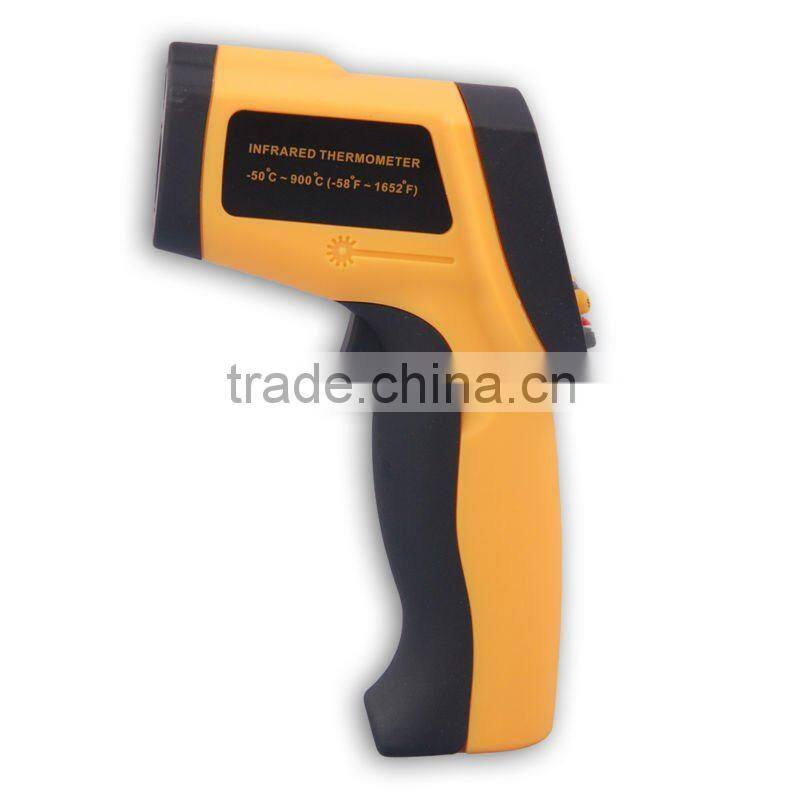

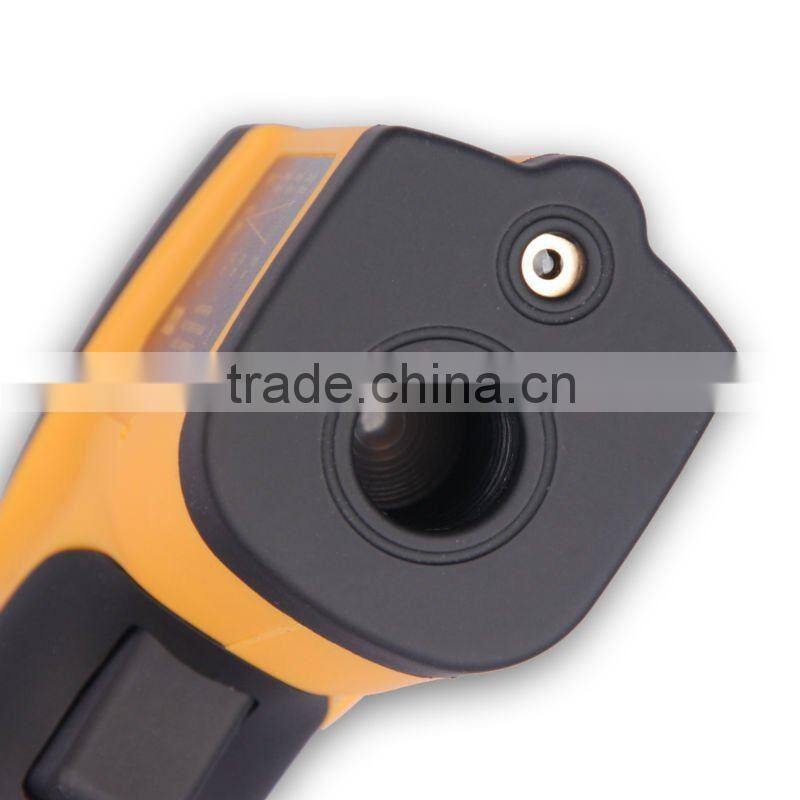

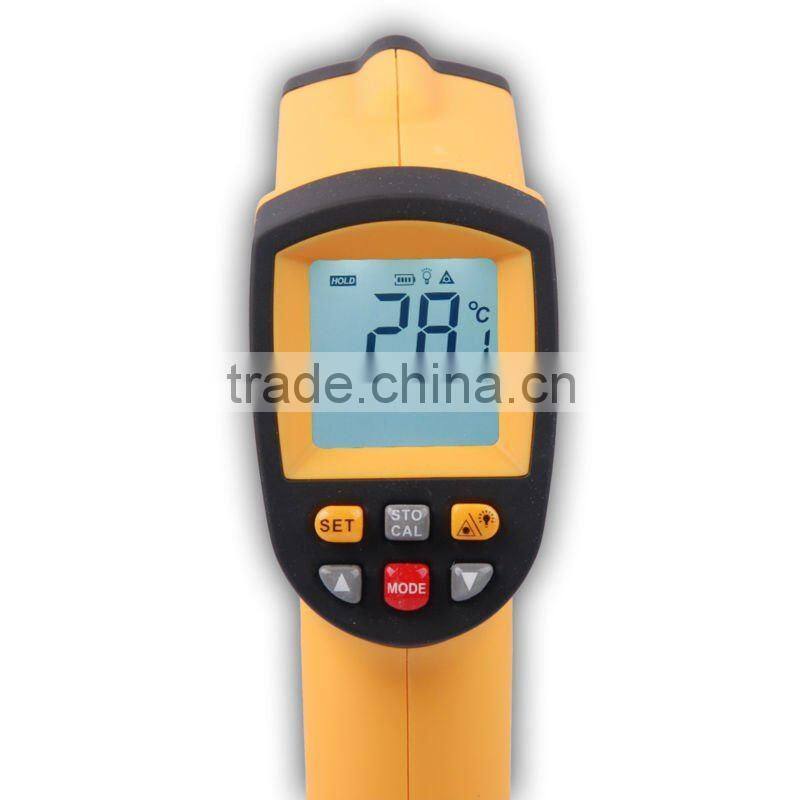

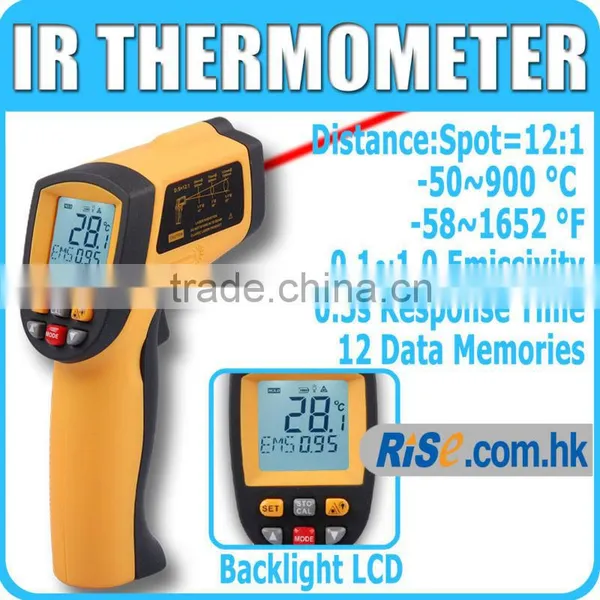

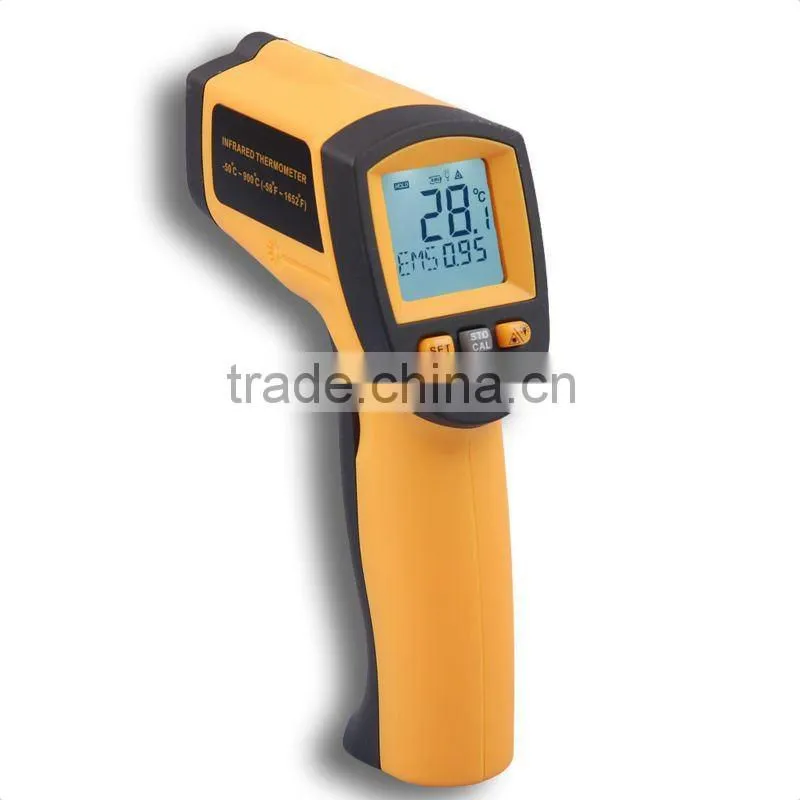

12:1 Non-contact Pyrometer -50~900 C -58~1652 F 0.1~1EM IR Infrared Thermometer

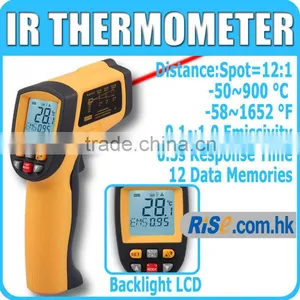

12:1 Non-contact Pyrometer -50~900 C -58~1652 F 0.1~1EM IR Infrared Thermometer thumbnail-1
12:1 Non-contact Pyrometer -50~900 C -58~1652 F 0.1~1EM IR Infrared Thermometer photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
IR-106
Usage:
Industrial
Contact Supplier Request Quote Chat Now
Rise Enterprise Company
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number IR-106
Usage Industrial
Theory Infrared Thermometer

Specifications

12:1 IR Thermometer (-50 ~ 900 C / -58 ~ 1652 F)

Brief Description



This Digital Infrared Thermometer is compact and easy to use. It is a very useful item for measuring surface of hot, hazardous or hard to reach objects without having to touch them. You just aim with Laser Point, press the button, and read the temperature in less than a second.



It has wide measuring range of Temperature from -50 to 900 °C (-58 ~ 1652 °F). The thermometer is also featured with Backlight LCD, Large Distance to Spot Ratio(12:1), High Accuracy, Fast Responding Time (0.5 seconds), User Adjustable Emissivity from 0.10 to 1.00 and Spectral Response from 8 to 14 µm.



The thermometer is switchable between °C and °F and also has 12 memories data storage, Maximum, Minimum, Average and Difference temperature functions, Adjustable High and Low Temperature Alarm and 5 levels Battery Life function.



Infrared Technology



Infrared Thermometer measures the surface temperature of an object. The unit's optics sense emitted, reflected and transmitted energy which is collect and focused onto a detector.



The unit's electronics translate the information into a temperature reading which is displayed on the LCD. For increased ease and accuracy, the laser pointer makes aiming even more precise.





Applications

  • Heat ventilation air-conditioning and refrigeration
  • Automotive industry
  • Electrical & power voltage/current inspection field
  • Water treatment and water quality inspection
  • Environmental monitoring
  • Marine and weather
  • Gas industry
  • Food processing industry



Features

  • Memory storage function (up to 12 data)
  • Wide Temperature range with -50 ~ 900 °C (-58 ~ 1652 °F)
  • With D:S = 12:1, maximum distance from the target object
  • Highly accurate and reliable
  • Adjustable Emissivity from 0.10 to 1.00 (Preset at 0.95)
  • Spectral Response from 8 to 14 µm
  • Large clear LCD display with Backlight
  • 5 levels Battery Life Indication
  • Auto Power Off
  • Data Hold Function
  • Access surface temperature in 1 second
  • Selectable between °C and °F
  • Maximum, Minimum, Average and Difference temperature functions
  • Adjustable High / Low Temperature Alarm
  • Fast response time (0.5 seconds)
  • Measure hazardous or inaccessible objects (high-voltage parts)
  • Pre-Calibrated in Factory
  • Targeting guide or laser pointer with on/off switch for accuracy are provided
  • Laser Pointer on/off feature



Specifications

  • Temperature Range: -50 ~ 900 °C (-58 ~ 1652 °F)
  • Resolution: 0.1 °C or 0.1 °F
  • Accuracy:
    • -50 °C (-58°F) ~ 0 °C (32 °F): ±3 °C (±5 °F)
    • 0 °C (32 °F) ~ 900 °C (1652 °F): ±1.5 °C (±2.7 °F) or ±1.5%
  • Repeatability: 1 % or 1 °C
  • Response Time: 500 ms, 95% response
  • Spectral Response (Wavelength): 8 ~ 14 µm
  • Distance to Spot Ratio (D:S): 12:1
  • Emissivity: 0.10 ~ 1.00 (Preset at 0.95)
  • Selectable between °C / °F
  • Data Hold Function
  • Laser Target Pointer Selection
  • Backlight Display Selection
  • Auto Power Shut Off
  • Operating Temperature: 0 ~ 40 °C (32 ~ 104 °F)
  • Relative Humidity: 10 ~ 95% R.H. non-condensing, up to 30 °C
  • Storage Temperature: -20 ~ 60 °C (-4 to 140 °F)
  • Power: 1 x 9V Battery (not included)
  • Battery Life: 22 hours (Non-Laser Mode), 12 hours (Laser Mode)
  • Item Dimension: approx. 175 (L) x 100 (W) x 49 (D) mm (6.89 x 3.94 x 1.93 inch)
  • Item Weight: approx. 226 g (7.97 oz) (battery excluded)



Table of approximate emissivity:



Material

Emissivity

Material

Emissivity

Aluminum

0.30

Lead

0.50

Asphalt

0.95

Limestone

0.98

Basalt

0.70

Oil

0.94

Brass

0.50

Paint

0.93

Brick

0.90

Paper

0.95

Carbon

0.85

Plastic

0.95

Ceramic

0.95

Rubber

0.95

Concrete

0.95

Sand

0.90

Copper

0.95

Skin

0.98

Dirt

0.94

Snow

0.90

Frozen Food

0.90

Steel

0.80

Hot Food

0.93

Textiles

0.94

Glass (plate)

0.85

Water

0.93

Ice

0.98

Wood

0.94

Iron

0.70









One Set Included

  • 1 x Infrared Thermometer
  • 1 x Instruction Manual
  • Standard Factory Package12:1 Non-contact Pyrometer -50~900 C -58~1652 F 0.1~1EM IR Infrared Thermometer12:1 Non-contact Pyrometer -50~900 C -58~1652 F 0.1~1EM IR Infrared Thermometer12:1 Non-contact Pyrometer -50~900 C -58~1652 F 0.1~1EM IR Infrared Thermometer12:1 Non-contact Pyrometer -50~900 C -58~1652 F 0.1~1EM IR Infrared Thermometer12:1 Non-contact Pyrometer -50~900 C -58~1652 F 0.1~1EM IR Infrared Thermometer
