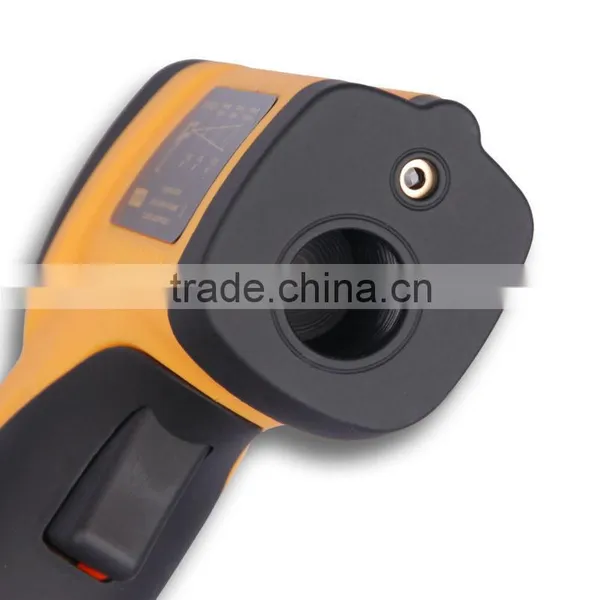

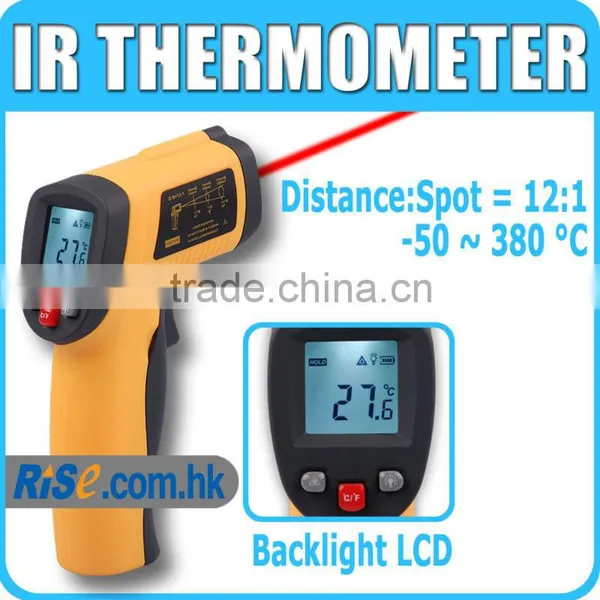

12:1 Pyrometer -50~380 C -58~716 F Non-contact IR Laser Infrared Thermometer

Specifications

Brief Description

This Digital Infrared Thermometer is compact and easy to use. It is a very useful item for measuring surface of hot, hazardous or hard to reach objects without having to touch them. You just aim with Laser Point, press the button, and read the temperature in less than a second.

It has wide measuring range of Temperature from -50 to 380 °C (-58 ~ 716 °F). The thermometer is also featured with Backlight LCD, Large Distance to Spot Ratio (12:1), 0.95 emissivity, switchable between °C and °F.

Infrared Technology

Infrared Thermometer measures the surface temperature of an object. The unit's optics sense emitted, reflected and transmitted energy which is collect and focused onto a detector.

The unit's electronics translate the information into a temperature reading which is displayed on the LCD. For increased ease and accuracy, the laser pointer makes aiming even more precise.

Applications

• Heat ventilation air-conditioning and refrigeration
• Automotive industry
• Electrical & power voltage/current inspection field
• Water treatment and water quality inspection
• Environmental monitoring
• Marine and weather
• Gas industry
• Food processing industry

Features

• Wide Temperature range with -50 ~ 380 °C (-58 ~ 716 °F)
• With D:S = 12:1, maximum distance from the target object
• Highly accurate and reliable
• Targeting guide or laser pointer with on/off switch for accuracy are provided
• Large clear LCD display with Backlight
• Auto Power Off
• Data Hold Function
• Fixed 0.95 emissivity covers 90% of surface applications
• Access surface temperature in 1 second
• Selectable between °C and °F
• Pre-Calibrated in Factory
• Laser Pointer on/off feature

Specifications

• Temperature Range: -50 ~ 380 °C (-58 ~ 716 °F)
• Resolution: 0.1 °C or 0.1 °F
• Accuracy:
  • -50 °C (-58 °F) ~ 0 °C (32 °F): ±3 °C (±5 °F)
  • 0 °C (32 °F) ~ 380 °C (716 °F): ±1.5 °C (±2.7 °F) or ±1.5%
• Repeatability: 1 % or 1 °C
• Response Time: 500 ms, 95% response
• Spectral Response (Wavelength): 8 ~ 14 um
• Distance to Spot Ratio (D:S): 12:1
• Fixed emissivity: 0.95
• Selectable between °C / °F
• Data Hold Function
• Laser Target Pointer Selection
• Backlight Display Selection
• Auto Power Shut Off
• Operating Temperature: 0 ~ 40 °C (32 ~ 104 °F)
• Relative Humidity: 10 ~ 95% R.H. non-condensing, up to 30 °C
• Storage Temperature: -20 ~ 60 °C (-4 to 140 °F)
• Power: 1 x 9V Battery (not included)
• Battery Life: 22 hours (Non-Laser Mode), 12 hours (Laser Mode)
• Item Dimension: approx. 153 (L) x 101 (W) x 43 (D) mm (6.02 x 3.98 x 1.69 inch)
• Item Weight: approx. 147.5 g (5.2 oz) (battery excluded)

One Set Included

• 1 x Infrared Thermometer
• 1 x Instruction Manual
• Standard Factory Package
