12:1 -32~320C 608F 0.95EM Celsius AR320 Laser Pyrometer IR Infrared Thermometer

Specifications

Brief Description

This Professional Digital Infrared Thermometer is compact and easy to use. It is a very useful tool for measuring surface temperature of hot, hazardous or hard to reach objects without contacting them. You just simply aim your target point with built-in laser pointer, press the button and read the temperature in less than a second.

This IR thermometer has wide temperature range from -32 to 320 °C (-26 ~ 608 °F), large distance to spot ratio (12:1) and fast responding time (0.5 seconds). It is also featured with backlight LCD, high accuracy, preset emissivity 0.95 and spectral response from 8 to 14 µm & switchable scales between °C and °F.

This is an ideal tool for various industries, food preparation, horticulture, HVAC, construction, mechanics, medical, animal care and hot spots.

Infrared Temperature Measurement

Infrared Thermometers are widely used to measure surface temperatures of objects. The unit's optics sense emitted, reflected and transmitted energy with different wavelengths which is collected and focused onto a detector. The unit's electronics translate the information into a temperature reading which is displayed on the LCD. The built-in laser pointer makes aiming your target point more easily and accurately.

Applications

• Heat ventilation air-conditioning and refrigeration
• Automotive industry
• Electrical & power voltage/current inspection field
• Water treatment and water quality inspection
• Environmental monitoring
• Marine and weather
• Gas industry
• Food processing industry

Features

• Measuring surface temperature in 1 second
• Wide temperature range from -32 to 320 °C (-26 ~ 608 °F)
• With D:S = 12:1, maximum distance from the target object
• Highly accurate and reliable
• 0.95 emissivity covering most of surface applications
• Spectral response from 8 to 14 µm
• Selectable scales between °C and °F
• Fast response time (0.5 seconds)

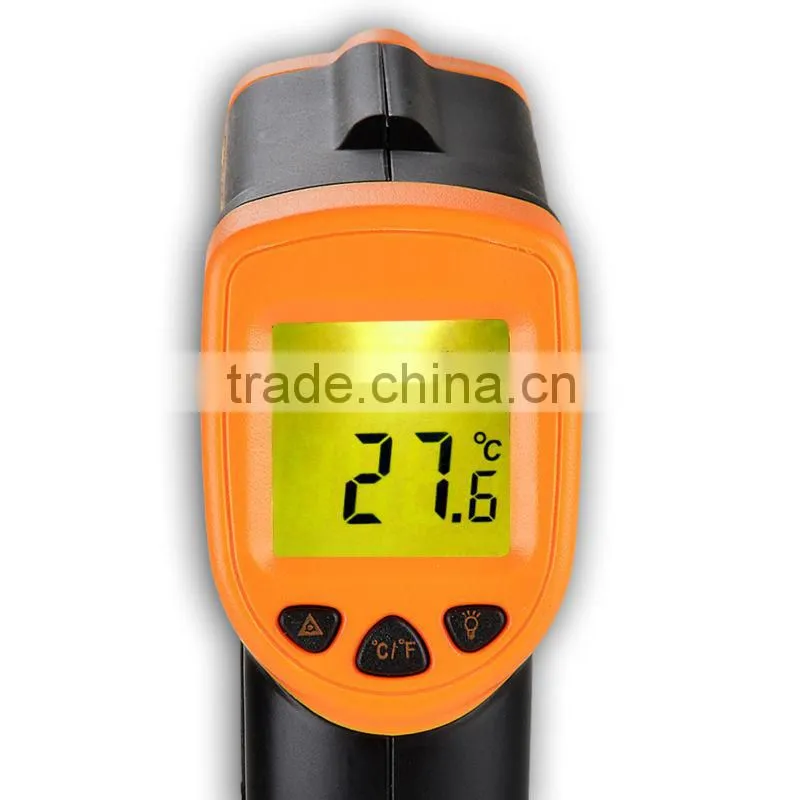

• Large clear LCD display with backlight
• Data hold function
• Pre-calibrated in factory
• Laser pointer ON/OFF
• Auto power off
• Low battery indication

Specifications

• Measuring Range: -32 to 320 °C (-26 ~ 608 °F)
• Accuracy
• -32 ~ 0 °C (-26 ~ 32 °F): ±3°C
• 0 ~ 100 °C (32 ~ 212 °F): ±2°C
• Distance to Spot Size / DS Ratio: 12:1
• Resolution: 0.1 °C or 0.1 °F
• Repeatability: 1% of reading or 1 °C
• Response Time: 0.5 seconds, 95% response
• Spectral Response: 8 ~ 14 µm
• Emissivity: Preset at 0.95
• Relative Humidity: 10 ~ 95% RH non-condensing at up to 30 °C (86 °F)
• Storage Temperature: -20 ~ 60 °C (-4 ~ 140 °F)

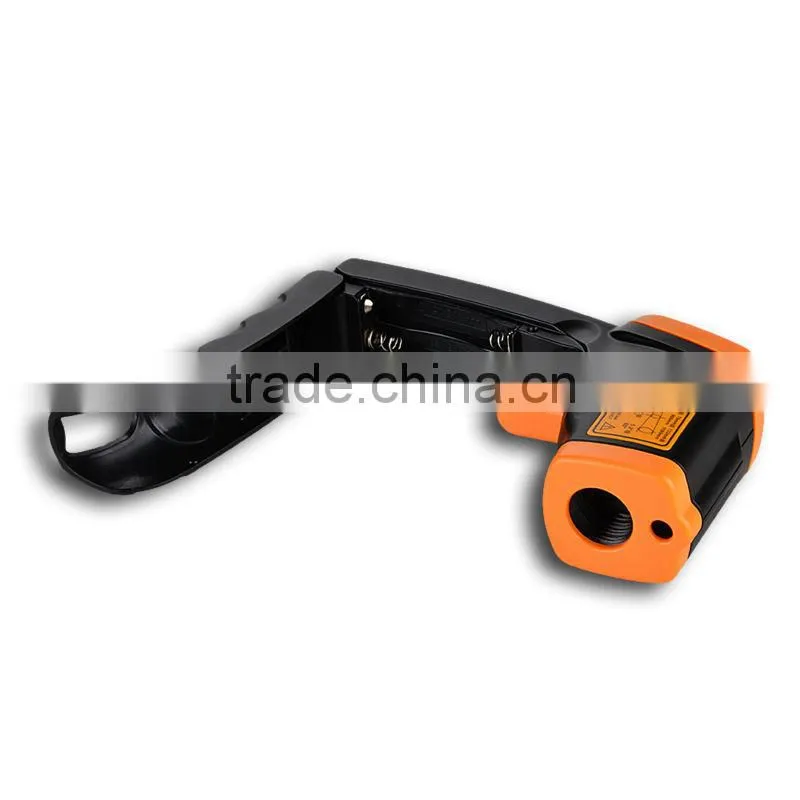

• Power: 2 x AAA Battery (included)
• Battery Life: 12 hours (alkaline battery)
• Item Size: approx. 146 x 80 x 38 mm (5.75 x 3.15 x 1.50 inch)
• Item Weight: approx. 130 g (4.6 oz)

One Set Included

• 1 x Infrared Thermometer
• 1 x Instruction Manual
• 2 x AAA Battery (included)
• Standard Factory Package
