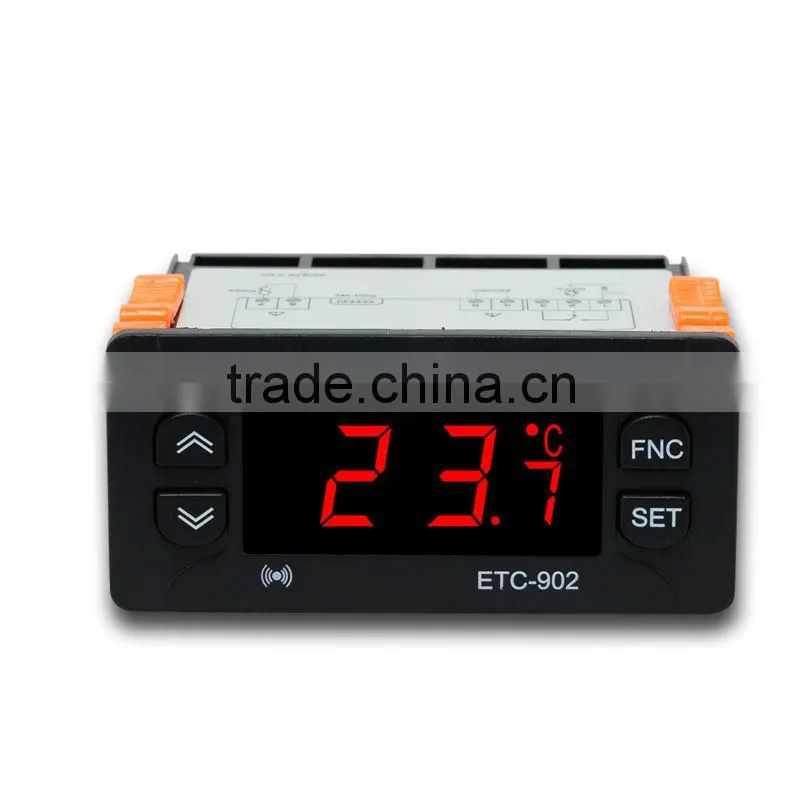

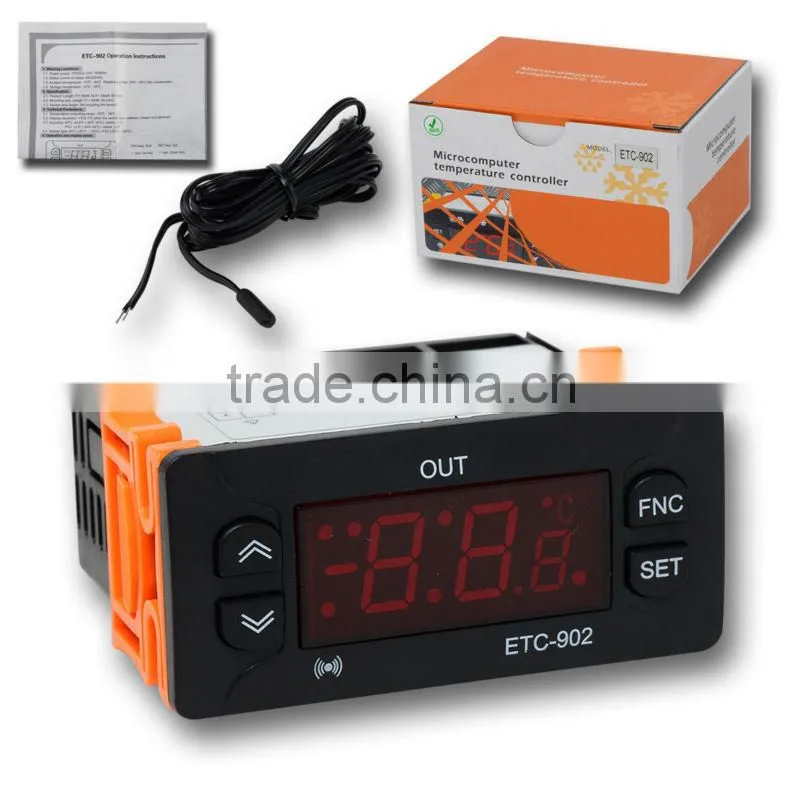

230V NTC Cold Storage ETC-902 C F Temp Thermostat Temperature Controller

Specifications

Brief Description

This mini Temperature Controller is an excellent and professional controlling device for maintaining temperature at a target range. It can measure andcontrol temperature for a wide range (-50 to 99 °C /-58 ~ 210.2 °F). This model could be used for cold storage application by controlling compressor & alarm.

This Temperature Controller equips a copy card interface (copy card not included). For those users have the copy card, they could set the parameters in batch very conveniently. It saves time and cost for batch production.

Note:

We supply the 220 ~ 240V version of this item. Please consider the voltage issue before bidding. We will provide appropriate plug adapter according to the plug shape of shipping location.

Features

• Mini and light weight design
• Large and clear LED display
• Wide Temperature Range (-50 ~ 99 °C/-58 ~ 210.2 °F)
• Copy card interface for batch production
• Password setting
• Temperature alarm
• Temperature calibration
• Control temperature by setting the temperature set value and the different value
• NTC sensor included

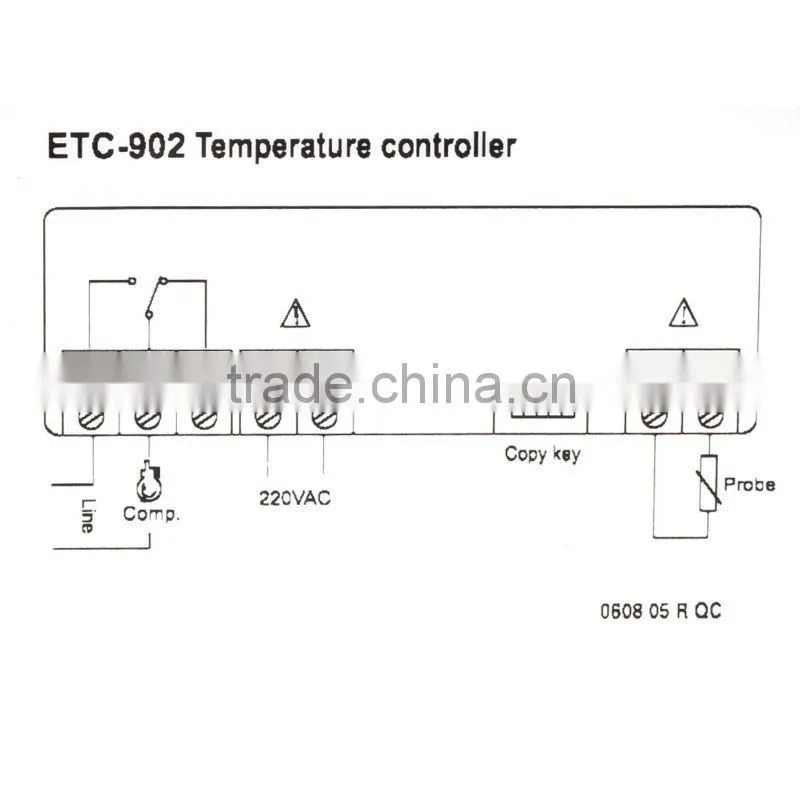

• Wiring diagram for installation included

Specifications

• Power Supply: 230V AC ± 10% 50 / 60 Hz
• Rated current of the relays: 8A/220VAC
• Ambient Temperature: -15 ~ 60 °C
• Operating Relative Humidity: 20 % ~ 85 % (No condensation)
• Storage Temperature: -15 ~ 60 °C
• Temperature controlling range: -50 ~ 99 °C (-58 ~ 210.2 °F)
• Display resolution: 1 °C / 0.1 °C (With the switch mode between integer and decimal )

• Probe: NTC x1 included

• Accuracy: NTC: ± 0.5 °C (-30 ~ 50 °C)
• Cable length: 2 m (6.56 feet) including the sensor probe
• Item dimensions: approx. 34.5 (W) x 77 (H) x 58 (D) mm (0.11 x 0.25 x 0.19 inch)
• Mounting size: Length 71 x Width 29 (mm)
• Item weight: 199 g (7.01 oz)

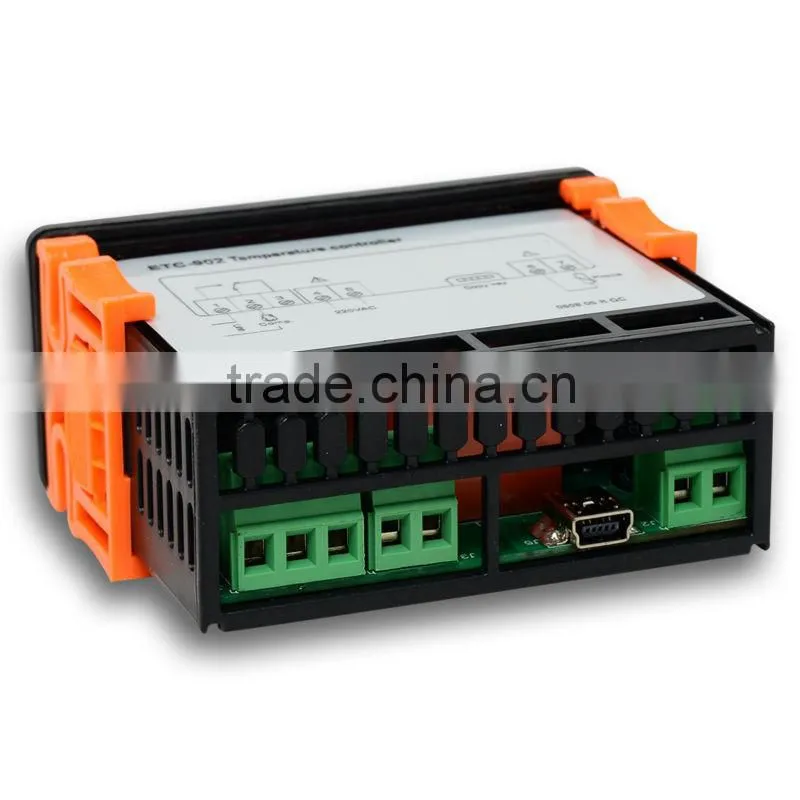

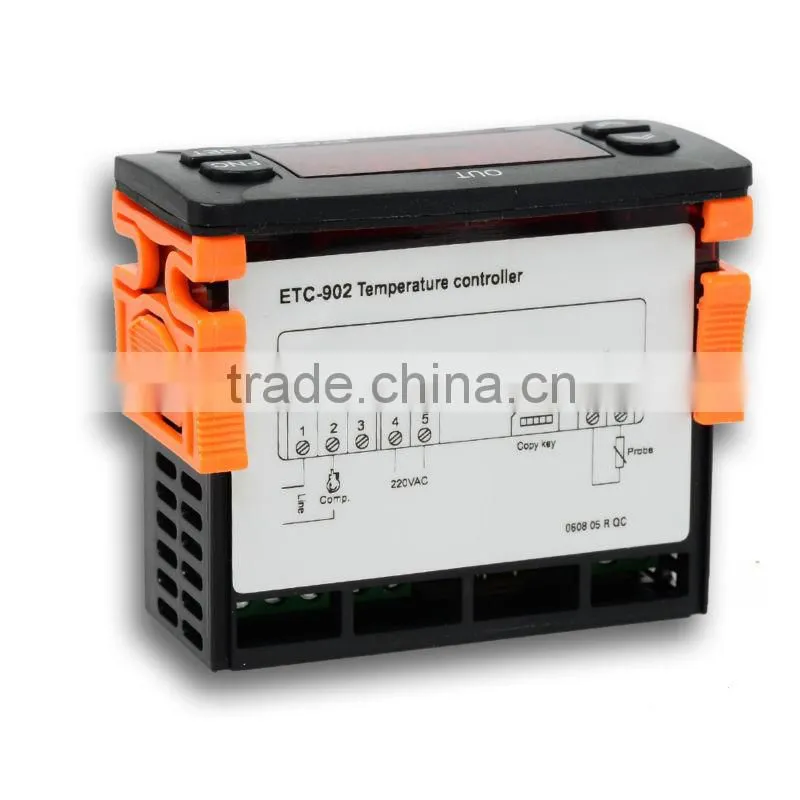

Wiring work

The unit is of a panel mount design and requires mounting in a suitable box. This unit is supplied with wiring diagram of how to fix the main unit to your application systems. However, it is highly recommended to do the wiring connections via qualified technician with experiences in electricity.

Please consider the wiring issues before bidding!

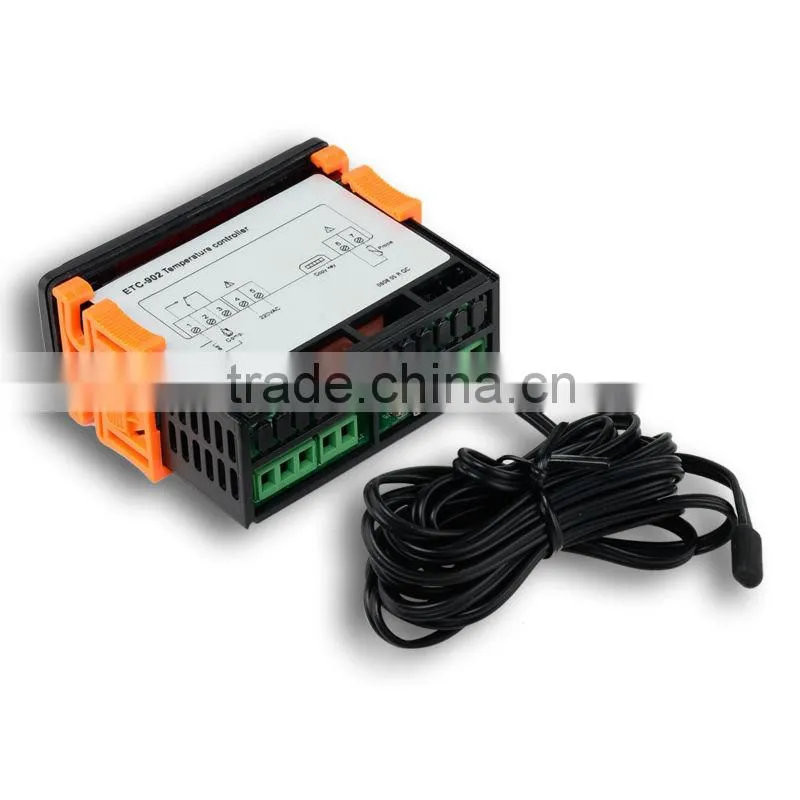

One Set Included

• 1 x Mini Temperature Controller

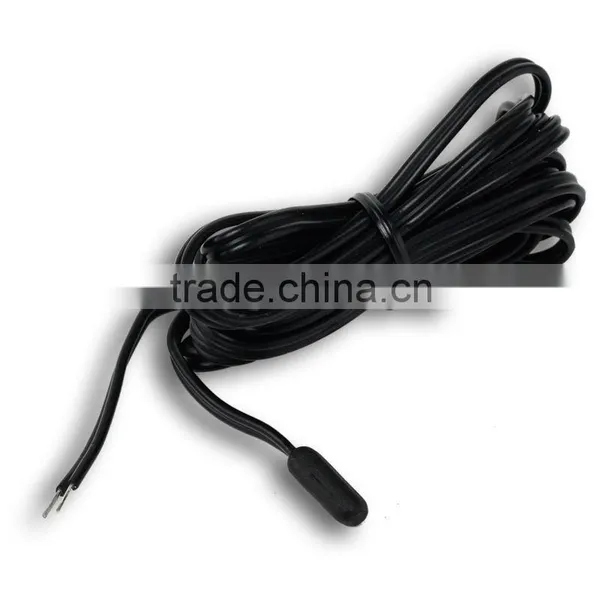

• 1 x Temperature sensor probe with cable (NTC probe)
• 1 x Instruction Manual
• Standard Factory Package
