Specifications
Digital Temperature Controller 110 V & F / 220 V & CBrief Description
This mini Temperature Controller is an excellent and professional controlling device for maintaining temperature at a target range. It has 2 outputs to control cooling & heating devices simultaneously to maintain stable temperature. It can measure and control temperature for a wide range (-40 ~ 120 °C / -40 ~ 248 °F).
The stability of temperature is one of the crucial factors for aquarium, terrarium and other applications. By utilizing the temperature controller, you can maintain the environment at the optimal temperature. This device is also suitable for laboratories and other temperature-controlled systems.
Applications
- Aquarium
- Terrarium
- Vivarium
- Paludarium
- Chicken Incubator
Note:
We supply 2 versions of this item, 220 V & °C / 110 V & °F. Unless required, we will ship the temperature controller with 220 V or 110 V versions based on the voltage of your countries. For example, if you are customers from United States, Canada, Mexico, Japan and Taiwan, we will ship the 110 V version with °F scale. For customers from Europe, Australia, New Zealand, most Asian Countries, South America and Africa, we will ship the 220 V version with °C scale.
Features
- Small size & simple operation
- 2 outputs to control cooling & heating devices simlutaneously
- Accurate measurement and anti-interference ability
- Large and clear LED display
- Wide temperature range (-40 ~ 120 °C / -40 ~ 248 °F)
- 2 versions for different countries (220 V & °C / 110 V & °F)
- Control temperature by setting the temperature set value and the different value
- Temperature calibration
- Power outage permanent memory function
- Refrigerating control output delay protection
- Heating & cooling indicator light
- NTC sensor included

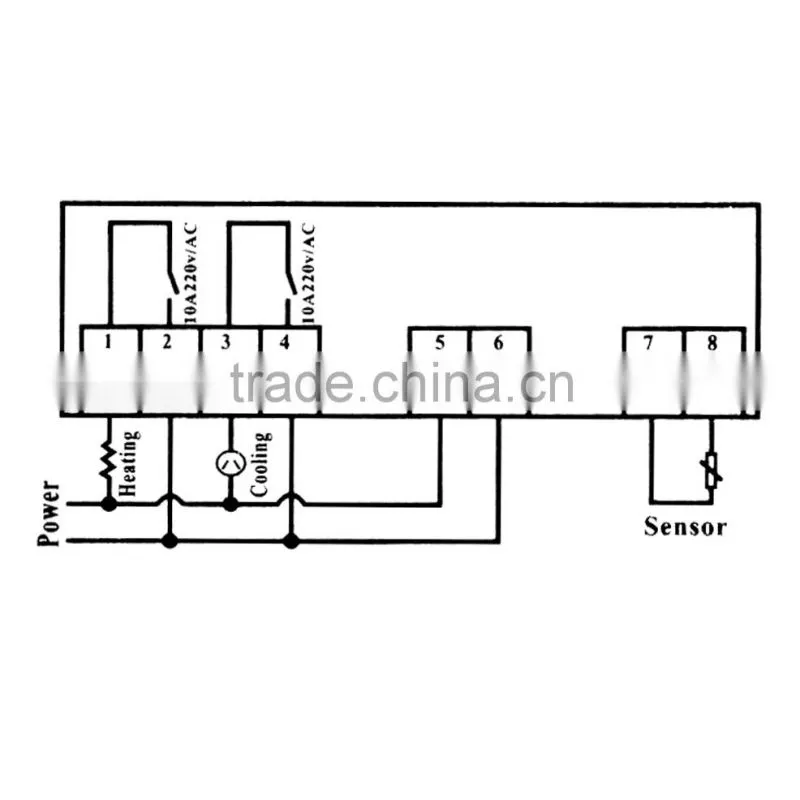

- Wiring diagram for installation included

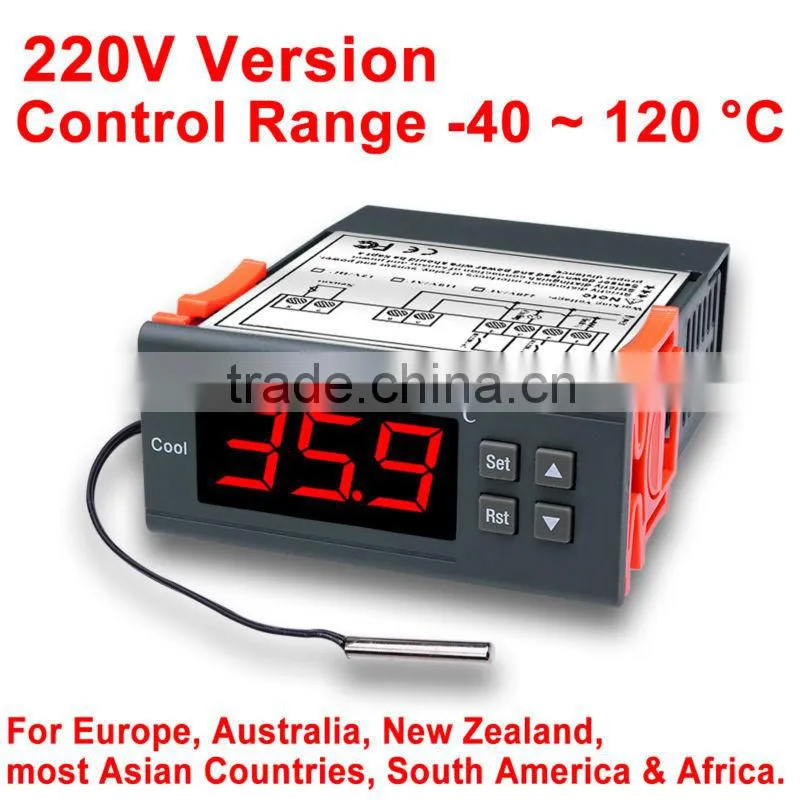

220 V & °C Version Specifications
- Power Supply: AC 220 V
- Measurement Range: -40 ~ 120 °C
- Measurement Error: ± 0.5 °C
- Temperature Control Precision: 1 °C
- Temperature Resolution: 0. 1 °C
- Slewing Range of Temperature: adjustable in the range of 1 ~ 30 °C
- Temperature Sensor: NTC 25 °C = 10K B3435 ± 1 % (1 meter cable length, no positive or negative)
- Output Load: normally open 10A / AC 220 V * 2 PCS
- Working Environment Temperature: -20 ~ 70 °C
- Working Environment Humidity: 90 % RH none moisture condensation
- Dimension of Whole Unit: 75 (W) x 34.5 (H) x 85 (W) mm
- Trepanning Dimension: 71 (W) x 29 (H)
- Item Weight: 212 g (7.48 oz)

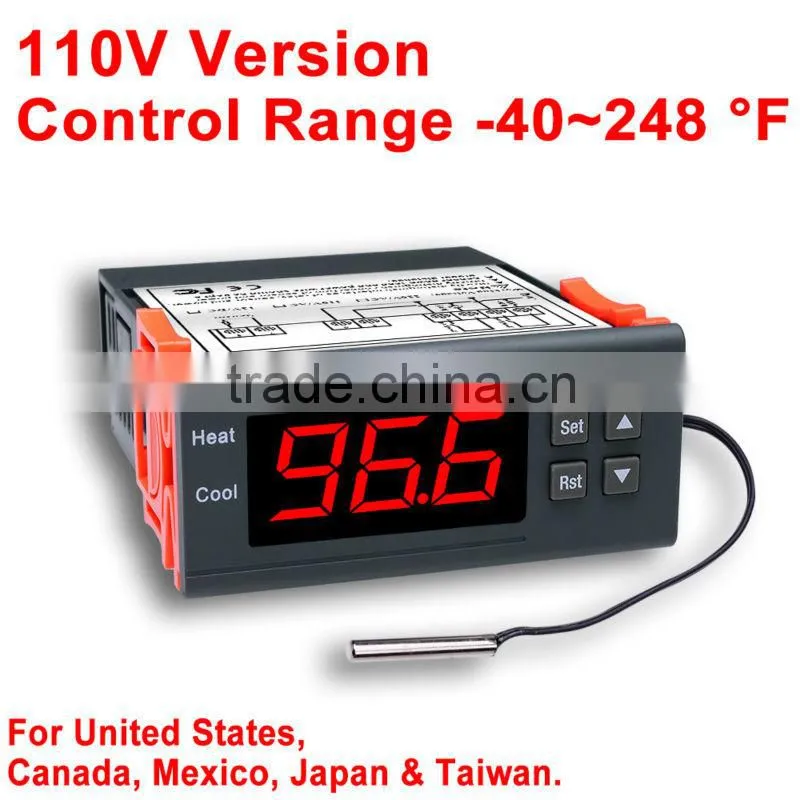

110 V & °F Version Specifications
- Power Supply: AC 110 V
- Measurement Range: -40 ~ 248 °F
- Measurement Error: ± 0.5 °F
- Temperature Control Precision: 1 °F
- Temperature Resolution: 0. 1 °F
- Slewing Range of Temperature: adjustable in the range of 1 ~ 30 °F
- Temperature Sensor: NTC 77 °F = 10K B3435 ± 1 % (1 meter cable length, no positive or negative)
- Output Load: normally open 10A / AC 220 V * 2 PCS
- Working Environment Temperature: -68 ~ 158 °F
- Working Environment Humidity: 90 % RH none moisture condensation
- Dimension of Whole Unit: 75 (W) x 34.5 (H) x 85 (W) mm
- Trepanning Dimension: 71 (W) x 29 (H)
- Item Weight: 212 g (7.48 oz)

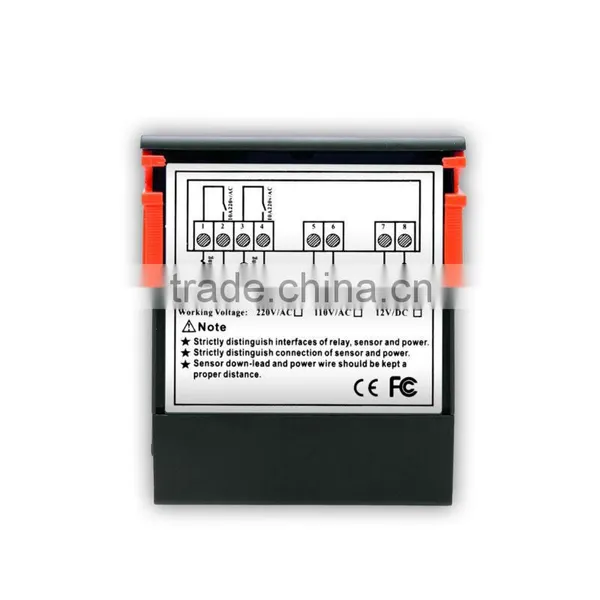

Wiring work

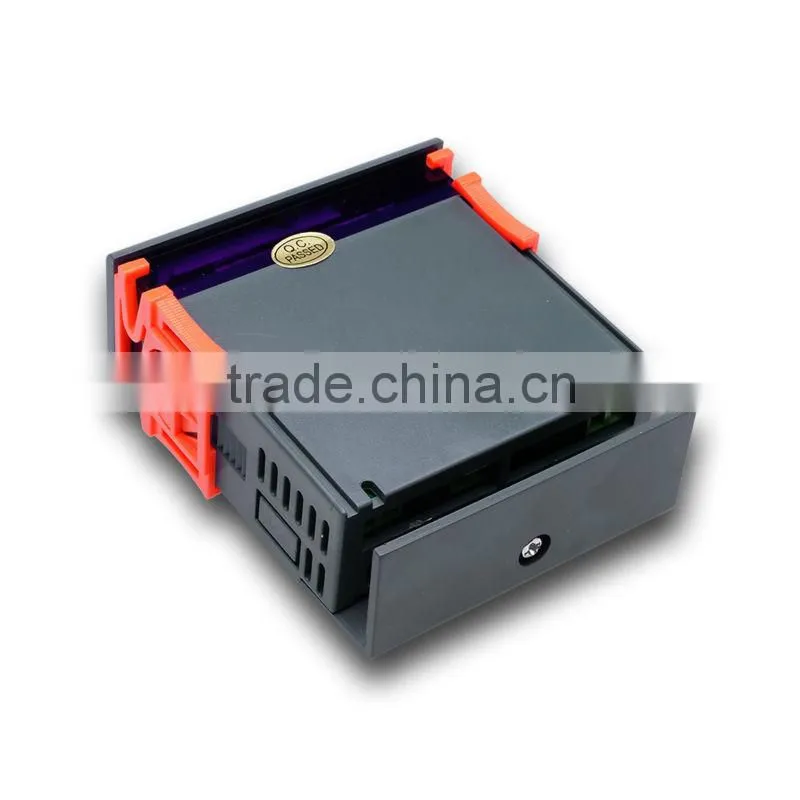

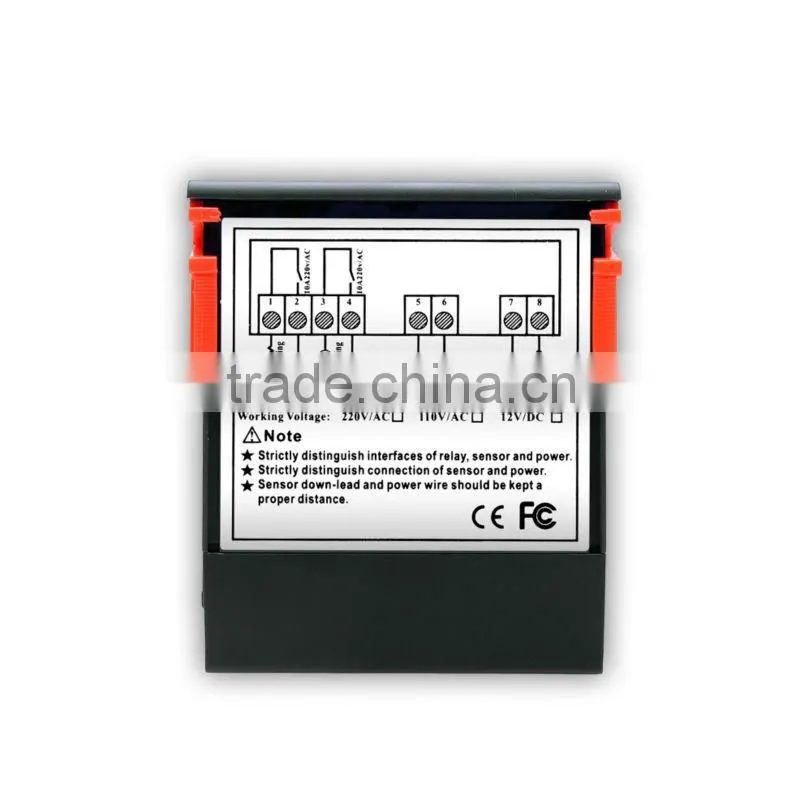

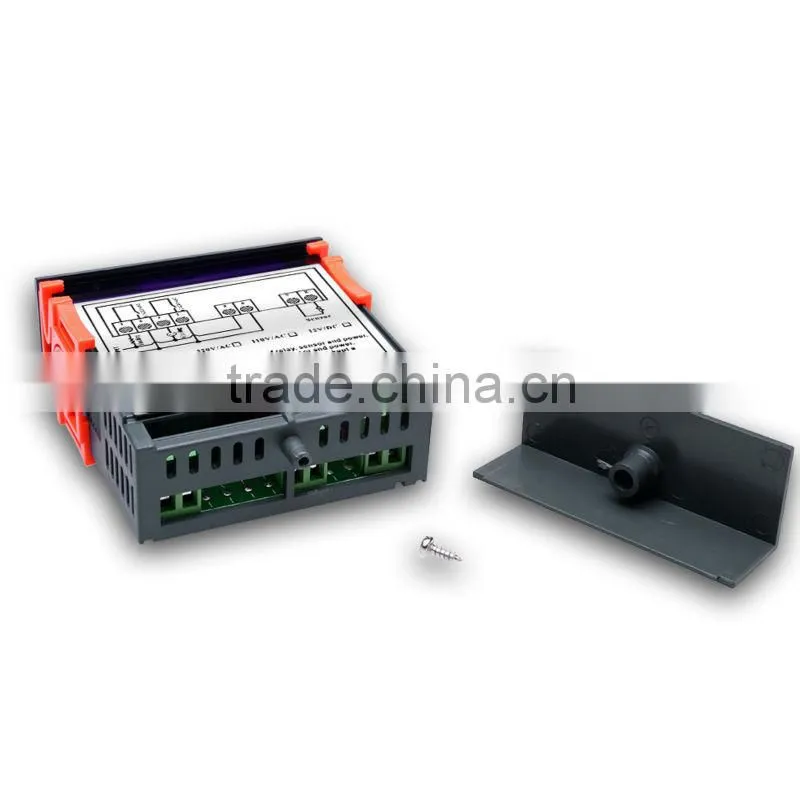

The unit is of a panel mount design and requires mounting in a suitable box. This unit is supplied with wiring diagram of how to fix the main unit to your application systems. However, it is highly recommended to do the wiring connections via qualified technician with experiences in electricity.
Please consider the wiring issues before bidding!

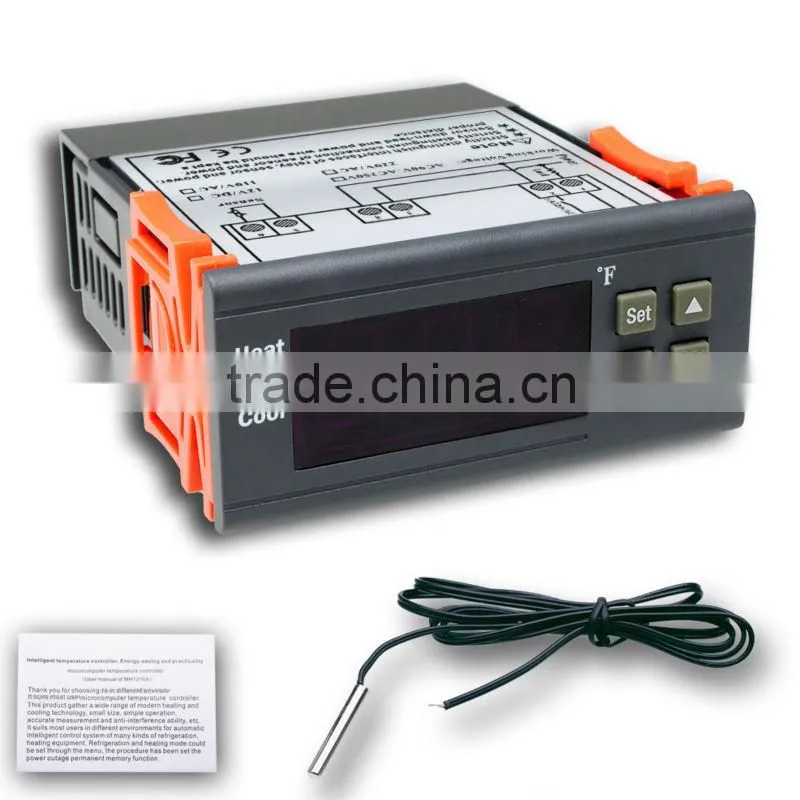

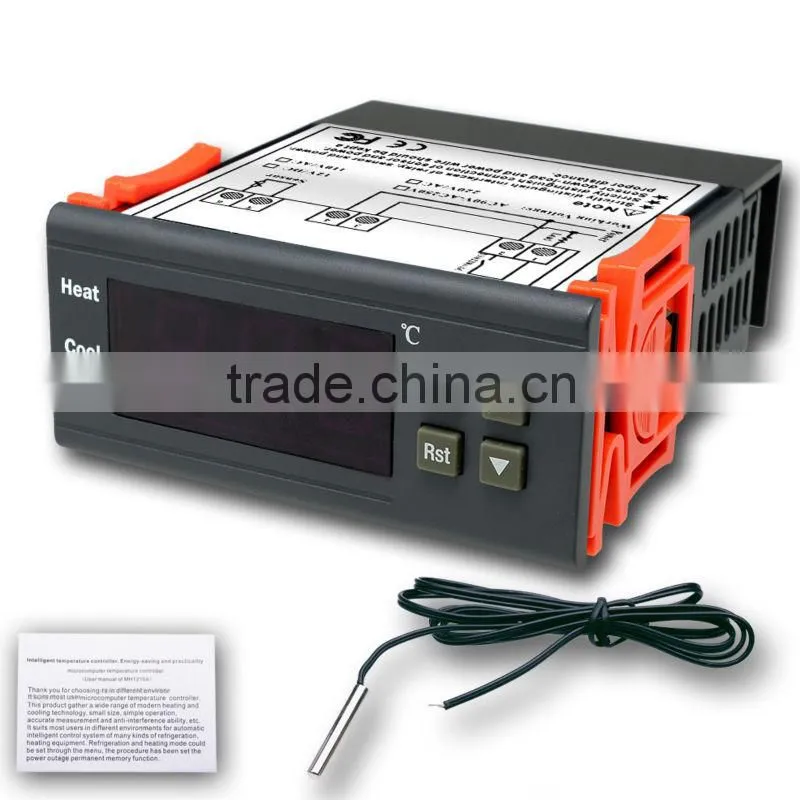

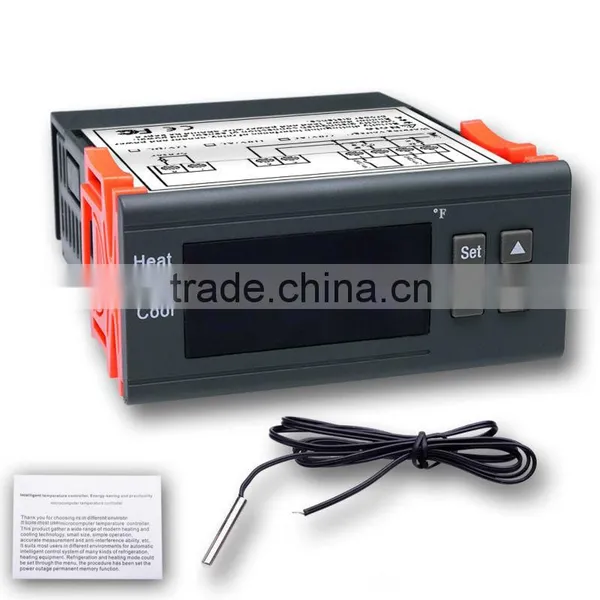

One Set Included
- 1 x Mini Temperature Controller
- 1 x Temperature sensor probe with cable (NTC probe)
- 1 x Instruction Manual
- Standard Factory Package
