Specifications

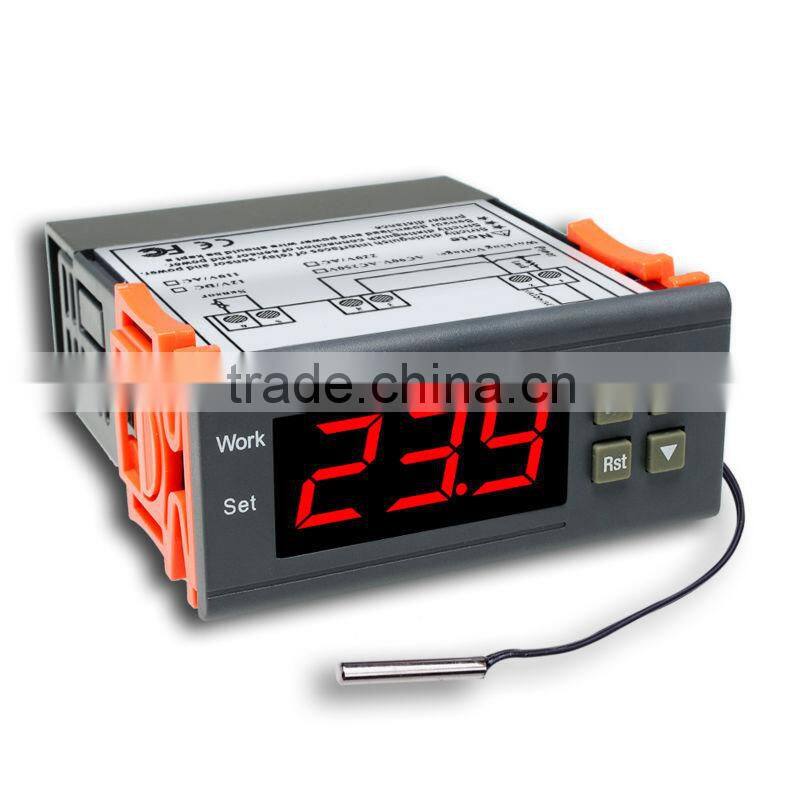

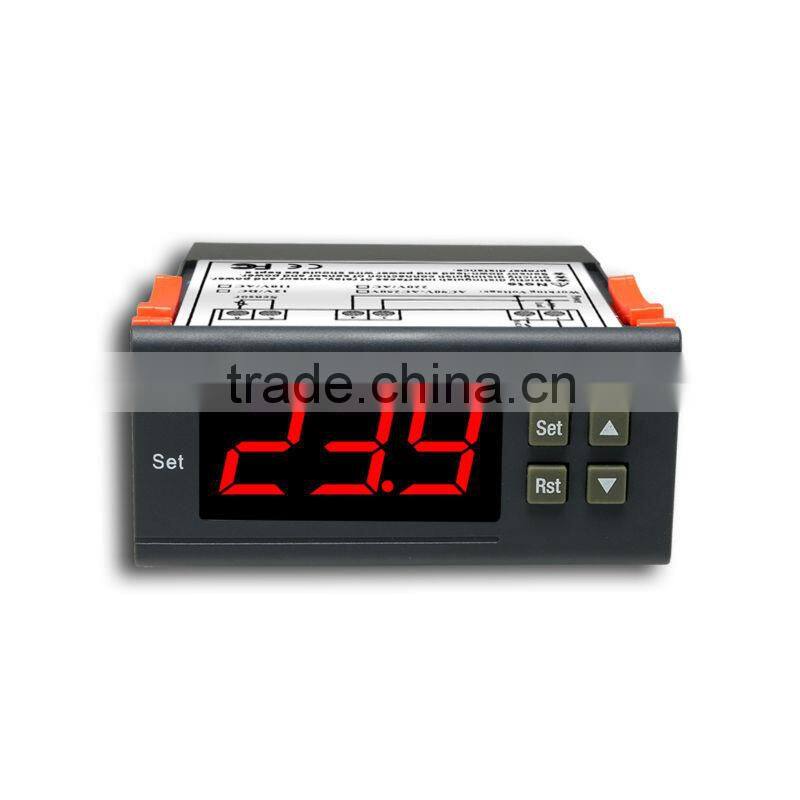

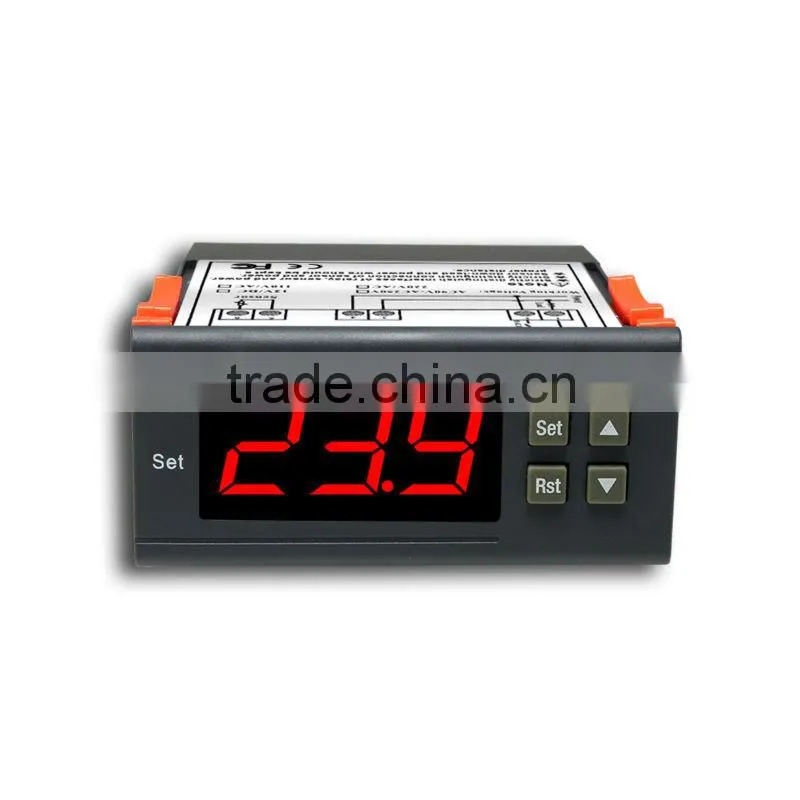

Digital Temperature Controller 90V ~ 250VBrief Description
This mini and light weight Temperature Controller is an excellent and professional controlling device for maintaining temperature at a target range. It features universal working voltage AC90 ~ 250 V which can be used in all countries. It can measure and control temperature for a wide range -50 ~ 110 °C. It maintains stable temperature by controlling a heating or cooling device.
The stability of temperature is one of the crucial factors for aquarium, terrarium and other applications. By utilizing the temperature controller, you can maintain the environment at the optimal temperature. This device is also suitable for laboratories and other temperature-controlled systems.
Applications
Aquarium
Terrarium
Vivarium
Paludarium
Chicken Incubator
Features
Universal working voltage
Small size, light weight & simple operation
Accurate measurement and anti-interference ability
Large and clear LED display
Wide temperature range -50 ~ 110 °C
Control temperature by setting the temperature set value and the different value
Temperature calibration
Power outage permanent memory function
Refrigerating control output delay protection
Work & set indicator light
NTC sensor included
Wiring diagram for installation included
Specifications
Power Supply: AC 90 ~ 250V 50/60Hz
Power Consumption: ≤ 3W
Measurement Range: -50 ~ 110 °C
Measurement Error: ± 0.3 °C
Temperature Control Precision: 0.1 °C
Temperature Resolution: 0.1°C
Slewing Range of Temperature: adjustable in the range of 0.1 ~ 30 °C
Temperature Sensor: NTC 25 °C = 10K B3435 ± 1 % (1 meter cable length, no positive or negative)
Output Load: normally open 10A / AC 220V
Working Environment Temperature: -20 ~ 70 °C
Working Environment Humidity: 90 % RH none moisture condensation
Dimension of Whole Unit: 75 (W) x 34.5 (H) x 85 (W) mm
Trepanning Dimension: 71 (W) x 29 (H)
Item Weight: 134 g (4.72 oz)
Wiring work

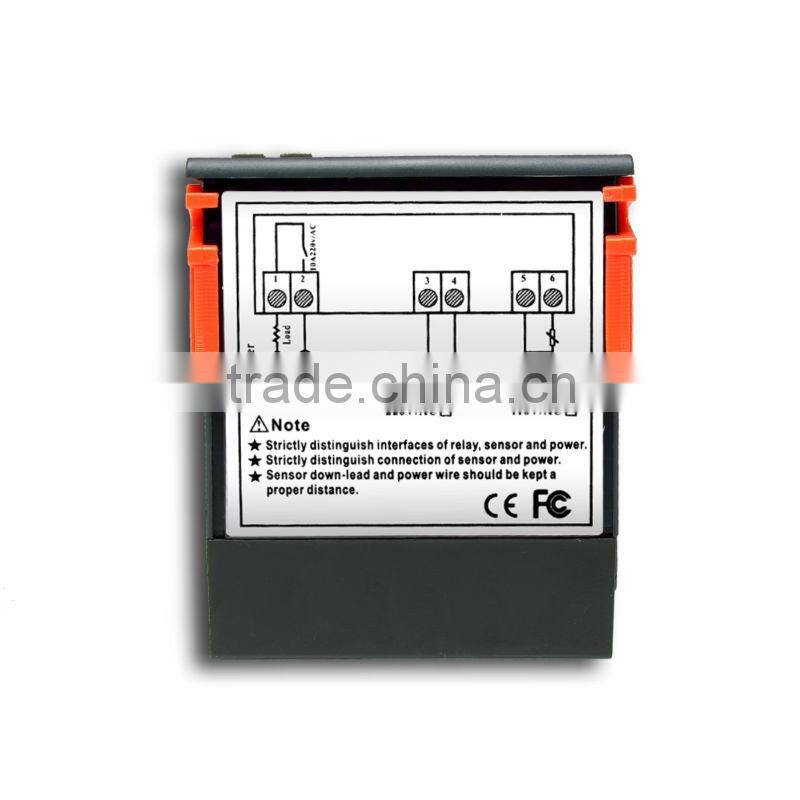

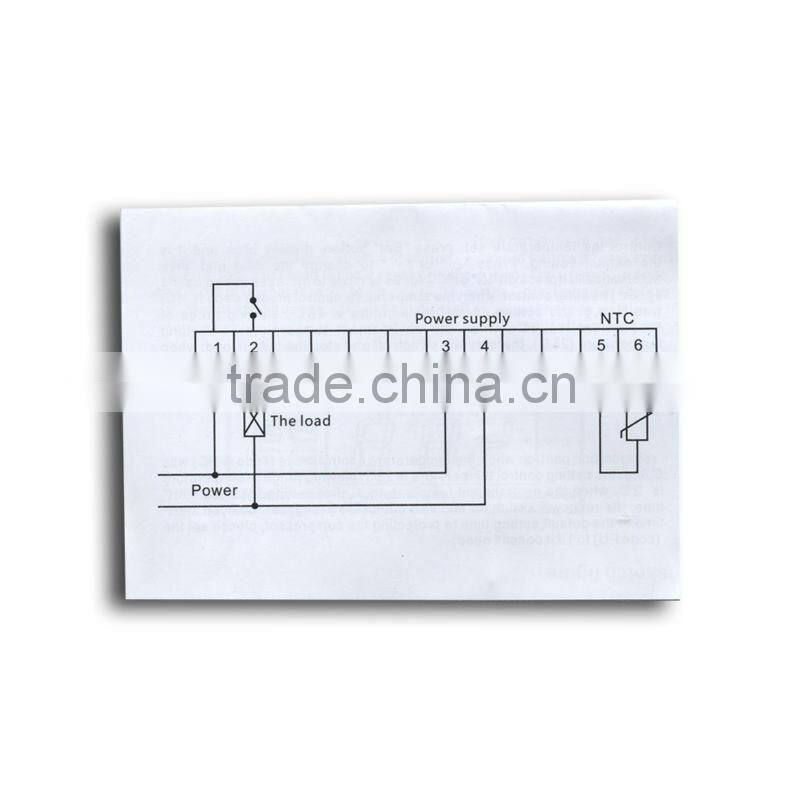

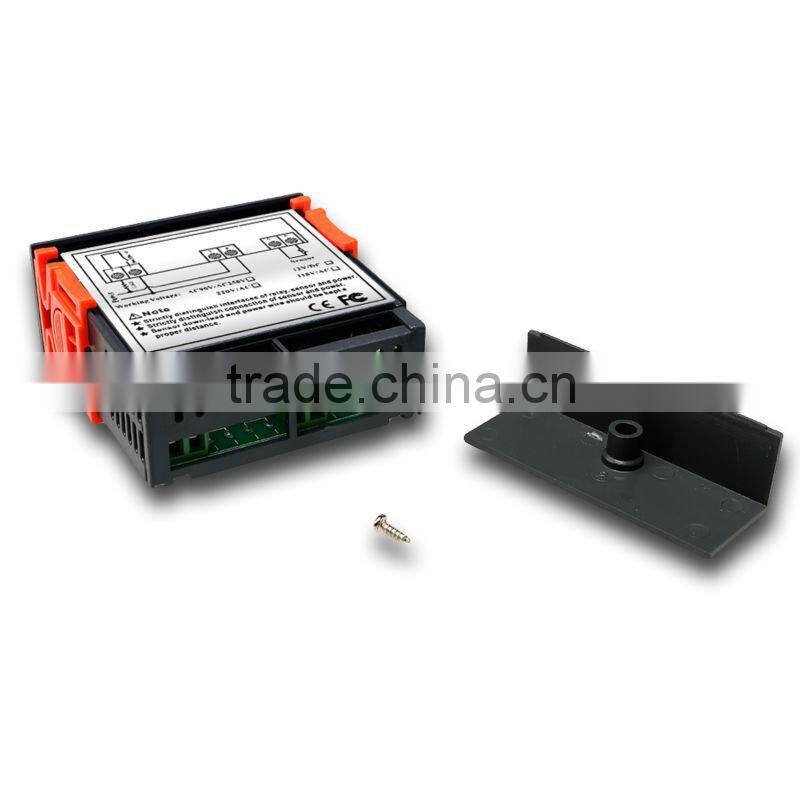

The unit is of a panel mount design and requires mounting in a suitable box. This unit is supplied with wiring diagram of how to fix the main unit to your application systems. However, it is highly recommended to do the wiring connections via qualified technician with experiences in electricity.
Please consider the wiring issues before bidding!
One Set Included
1 x Mini Temperature Controller

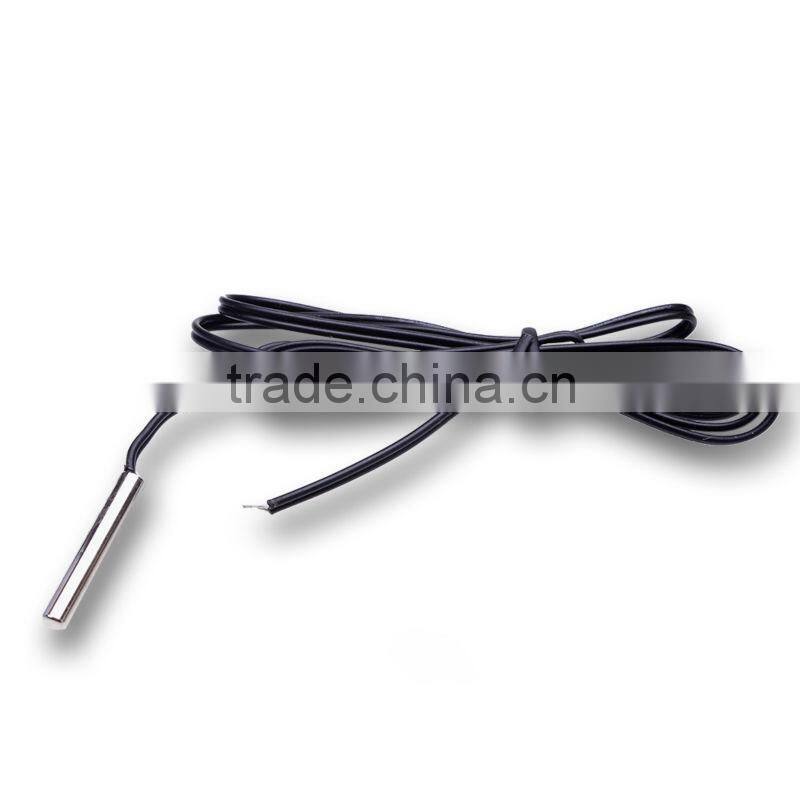

1 x Temperature Sensor Probe with Cable (NTC probe)
1 x Instruction Manual
Standard Factory Package
