Specifications

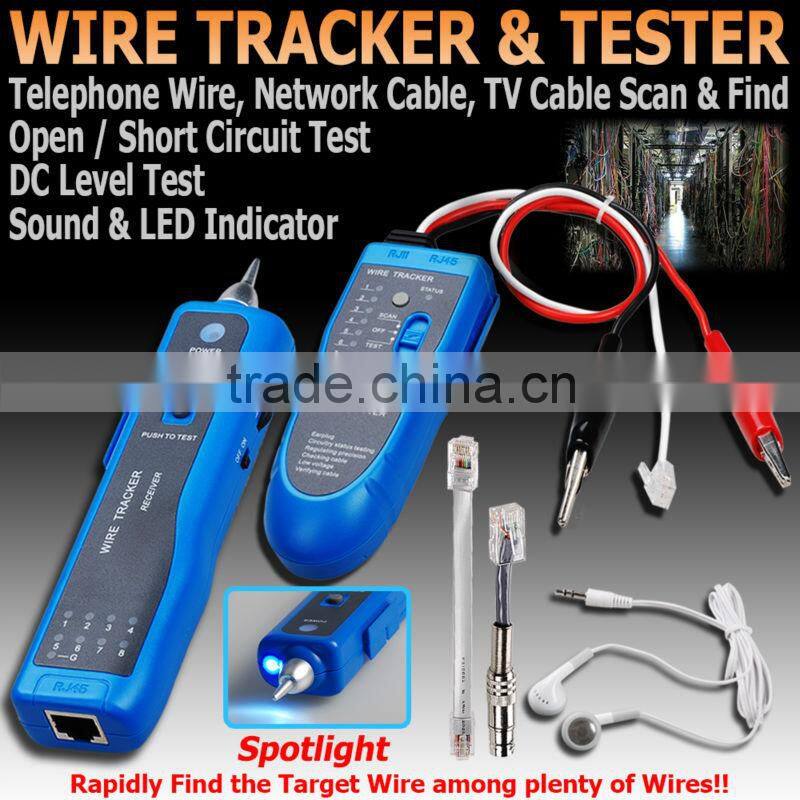

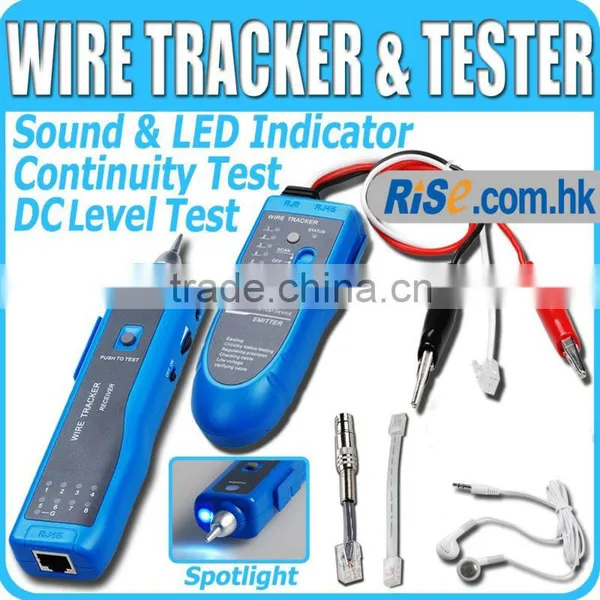

RJ11 RJ45 BNC Telephone Network LAN TV Cable Electric Wire Finder Tracker TesterBrief Description

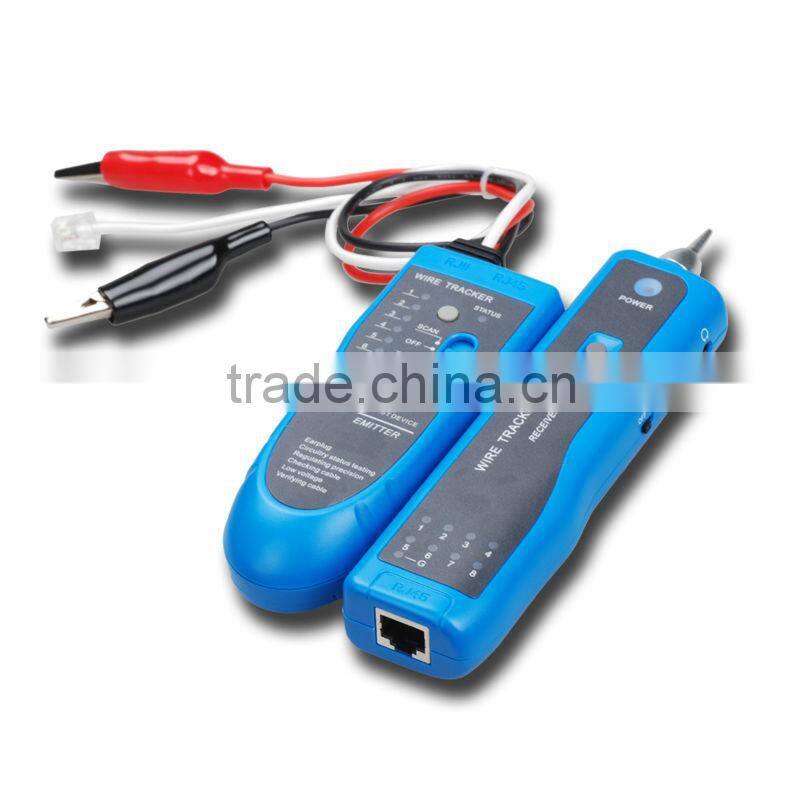

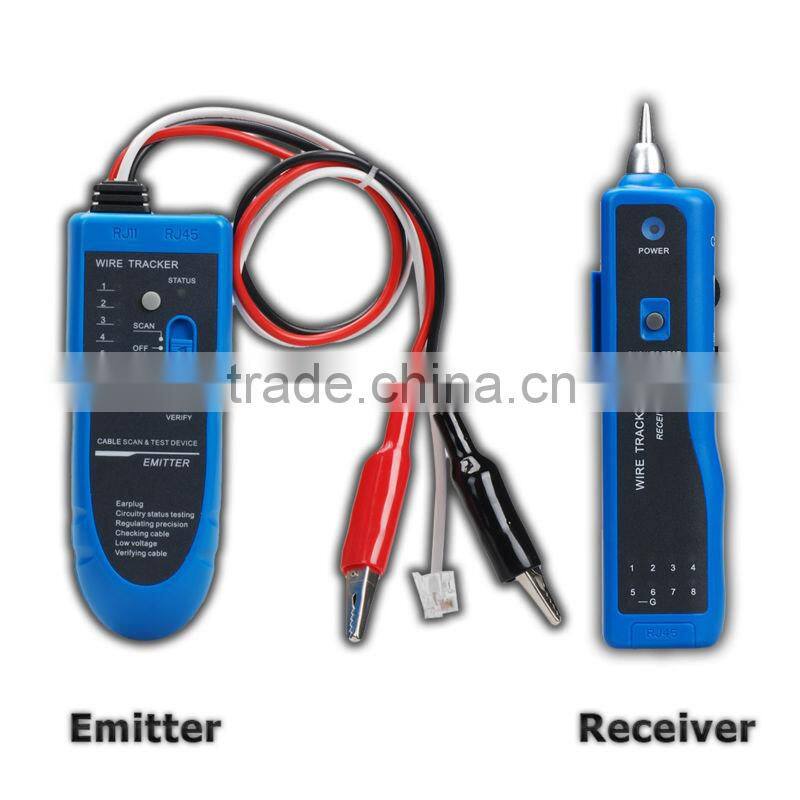

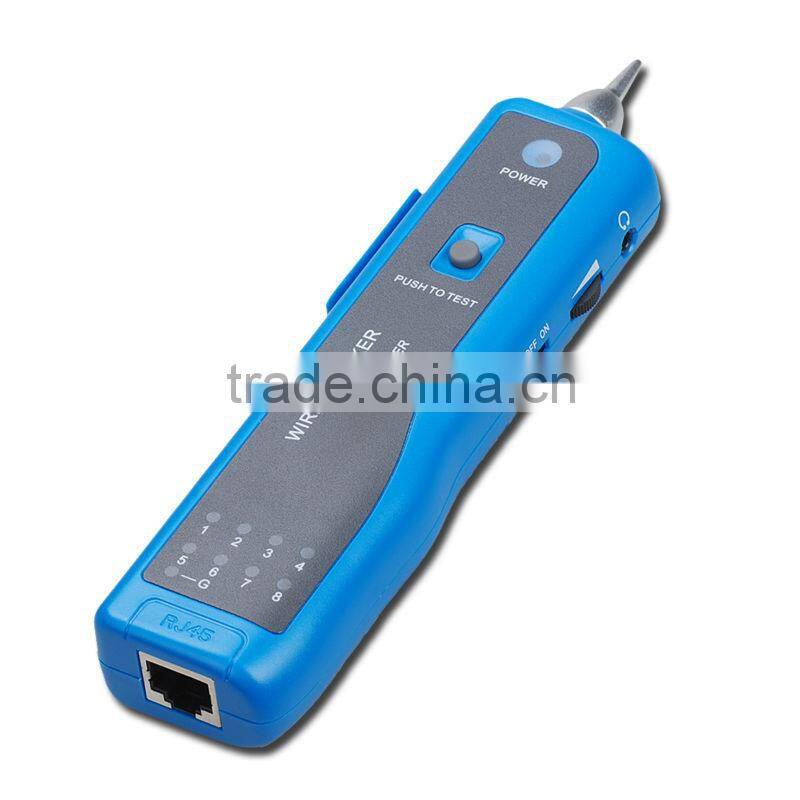

This professional wire tracking set is the latest instrument specialized in tracking of various commonly used cable and wire. The set composed of an emitter and a receiver and the pair allows us to find target wire among plenty rapidly and accurately. The receiver have both sound and LED signal indicators. By comparing the volume of the"tout"sound and the brightness of LED, you can find the target wire with the highest volume and brightness.
This tracker can be use to trace a wide range of cable including telephone wire, computer network cable, TV cable and other weak current electric wires. Moreover, it has other useful functions including continuity testing, network cable sequence collation, open/short circuit testing and DC level testing.
This instrument set is an ideal tool for technicians in installation and maintenance of weak current systems such as communication line and comprehensive wiring circuit. It is widely applicable to telephone systems, computer networks and other metal wire circuit and fields.
Features
- Rapidly identify the target wire among plenty of wires
- Telephone wire, network cable and other electric wires scanning & finding
- Locating target wire in wall without drilling
- Network wire collation function:
- According to 16 wire sequences, you can judge the characteristics of short-circuit, breaking circuit, open circuit and crossing
- Auto scan mode rapidly test corresponding double-twisted cables (1,2,3,4,5,6,7,8 and G) to judge wrong connection, short/open circuit
- Network wire sequence collation supports direct wire collation of operating switch
- Continuity testing
- Open / short circuit testing
- DC level testing
- Cable assignment test
- Open, short and cross of LAN cable
- 2-wire (RJ11)/4-wire (RJ45) telephone cable
- Line DC detecting, anode and cathode determination
- Ringing signal detecting
- Open, short, and cross test
- Cable status testing (2-wire):
- High sensitivity & strong anti-jamming ability
- Bright white LED spotlight for dark environments
- Earphone for noisy environments
- Adjustable volume of signal
- Auto time-delay power off
- Low battery indication
- Comes with RJ45 to BNC Converter
Specifications
- Max working current:
- Emitter: ≤ 10 mA
- Receiver: ≤ 30 mA
- Signal output electric status: 8Vp-p
- Signal transmission format: Multi-frequency impulse
- Induction distance less than 20mm
- Distance of signal transmission: ≥3 km

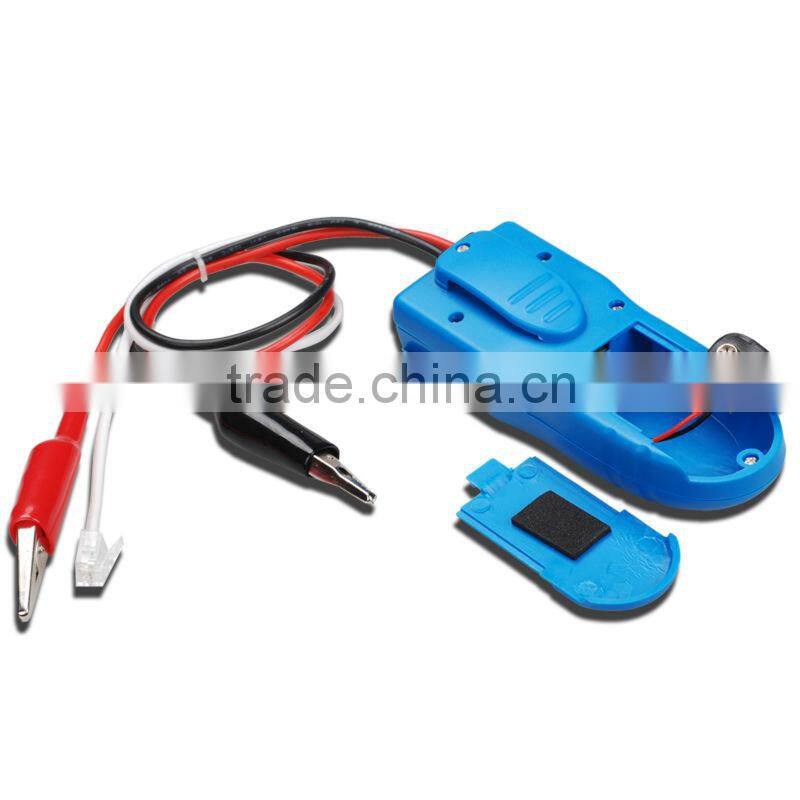

- Power supply: DC, 2 x 9V battery (Included)
- Battery life: 50 hours continuously
- Storage Temperature: -20 ~ 50°C
- Operating Temperature: -10 ~ 40°C
- Item size:
- Emitter: approx. 126 (L) x 49(W) x 34 (D) mm (4.96' x 1.93' x 1.34'inch)
- Receiver: approx. 175 (L) x 42 (W) x 27 (D) mm (6.89' x 1.65' x 1.06'inch)
- Item Weight: approx. 420 g (14.82 oz)

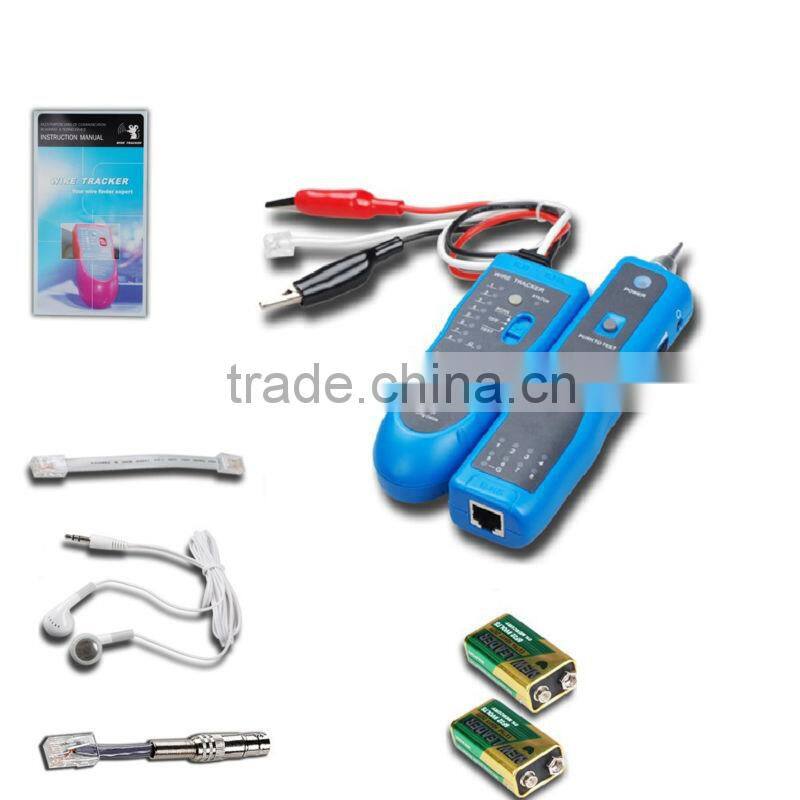

One Set Included
- 1 x Emitter
- 1 x Receiver
- 1 x RJ45 Network Cable
- 1 x BNC and RJ45 Converting Cable
- 1 x Earphone
- 2 x 9V Battery
- 1 x Toolkit Bag
- 1 x Instruction Manual
- Standard Factory Package
