Length Scan RJ45 STP UTP LAN Coaxial Telephone Wire Network Cable Tester Tracker

Specifications

Length Scan RJ45 STP UTP LAN Coaxial Telephone Wire Network Cable Tester Tracker

Brief Description



This multipurpose cable tracking and inspection set is the latest instrument with great and full functions of cable hunting, sorting and circuit status testing. It is composed of a main tester, a receiver and a remote identifier. The remote identifier allows cable locating more quickly and conveniently.



This set equips multiple RJ45 tester ports and is designed to detect and test a wide range of cable and circuit status including 5E/6E,network cable, coaxial cable, telephone wire, STP/UTP, jumper wire, open/short circuit, reverse connection and cross-over or cross-talk interference. It can also be used to locate wiring errors and make dynamical cable length calibration and measurement.



This instrument set is an ideal tool for technicians in installation and maintenance of weak current systems such as communication line and comprehensive wiring circuit. It is widely applicable to telephone systems, computer networks and other metal wire circuit and fields. With this set, only one person is enough to complete cable continuity check.

Features

• Multiple RJ45 tester ports (Main, Scan & Loopback)
• Complete the cable continuity check in a quick and easy way
• Tracking & checking 5E, 6E, network cable, coaxial cable and telephone line, open circuit, short circuit, reverse connection or cross-talk interference
• Locating wiring or connection errors
• Determining cable length and distance of open circuit and short circuit
• Dynamically calibrating cable length and making length measurement as accurate as 97%
• Large & clear LCD
• Portable with long battery life (standby mode for over 50 hours)
• Auto time-delay shut off
• Measuring length and pair with or without far-end recognizer
• Far-end recognizer with prompting voice
• Self-checking function and auto compensate any changes in battery capacity or ambient temperature
• Single board computer software watchdog design and reliable operation



 Specifications

• Type of Cable Tested: STP / UTP twin twisted cable, coaxial cable, telephone line
•  Type of Cable Detected: 5E, 6E, telephone wire, coaxial cable, and other metal wires
• Tester Port :

o   Tester RJ45 master port (M), tester Loopback RJ45 port (L), far-end recognizer RJ45 port (R).

o   Optional BNC and RJ11 converters for use to measure and check the continuity of coaxial cable and telephone line

•     Length Measurement of Twin Twisted Cable:

o   Scope: 1 ~ 350m (3 ~ 1050 ft)

o   Calibration accuracy: 3% (± 0.5m or ± 1.5 ft) (calibrating cable > 5m)

o   Shipment accuracy: 5% (± 0.5m or ± 1.5 ft) (AMP, AT&T Class 5 cable)

o   Display: m or ft

• Length Calibration: User can set calibration factor by himself with a given length cable. The length of calibrating cable is more than 5m.
•  Working Ambient Temperature: -10 ~ 60 °C (14 ~ 140 °F)
•  Power supply:

o   Main tester: 4 x 1.5V AA batteries (not included)

o   Receiver: 1 x 9V battery (not included)

• Item size:

o   Main tester: 180 (L) x 80 (W) x 40 (D) mm (7.08' x 3.14' x 1.57' inch)

o   Receiver: 218 (L) x 46 (W) x 29 (D) mm (8.58' x 1.81' x 1.14'inch)

o   Remote identifier: 77 (L) x 31 (W) x 21 (D) mm (3.03' x 1.22' x 0.83' inch)

•  Item Weight: 625 g (22.04 oz)



One Set Included

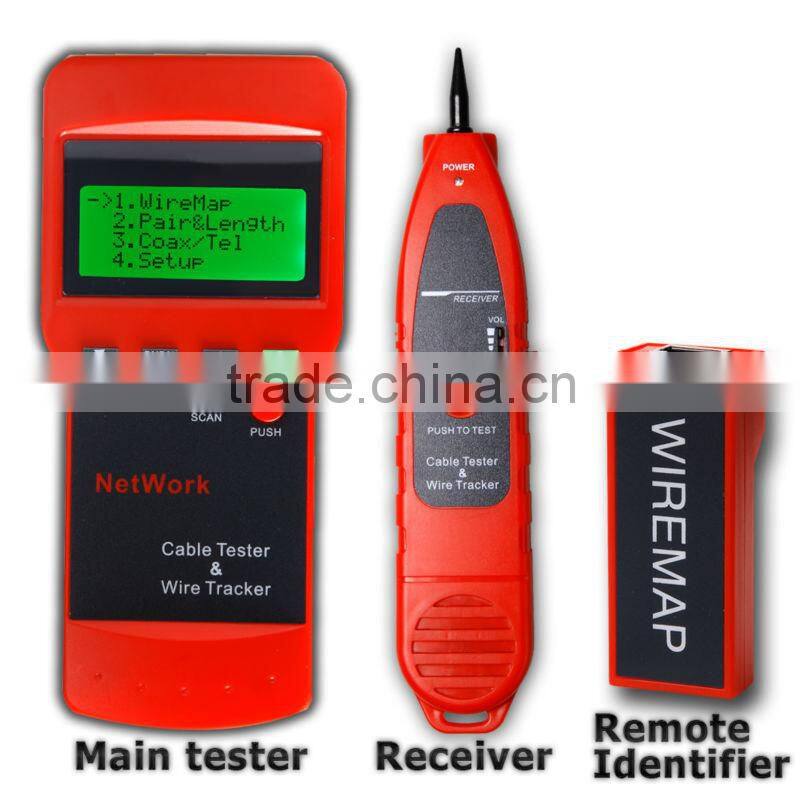

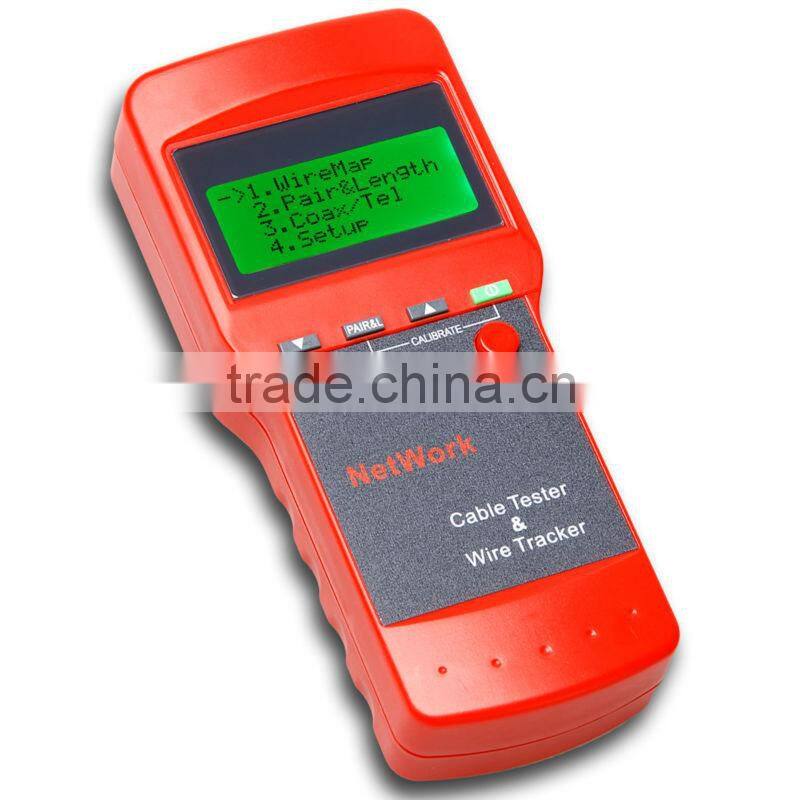

• 1 x Main Tester

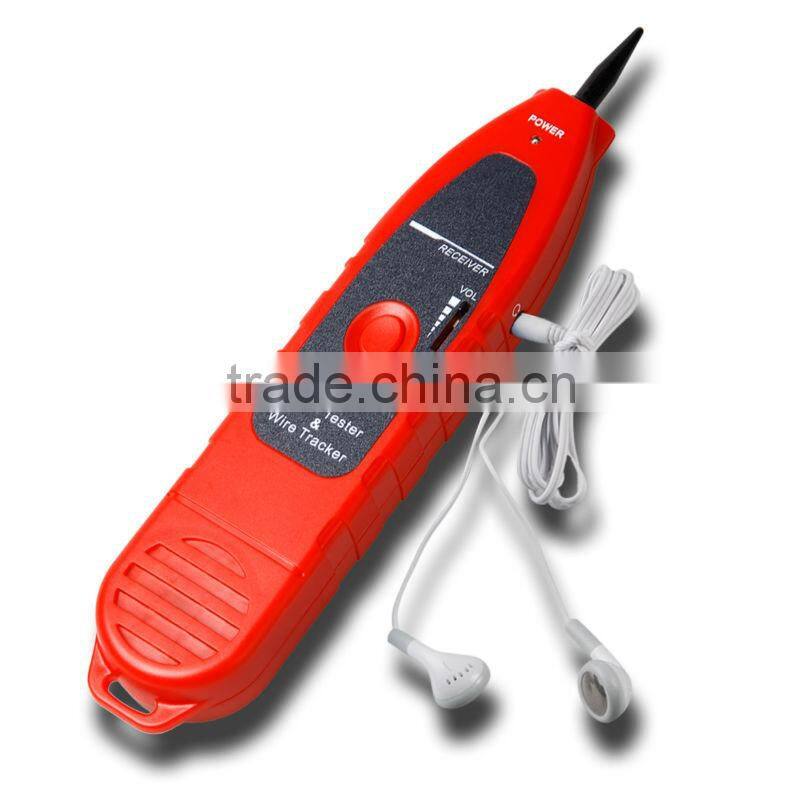

• 1 x Receiver

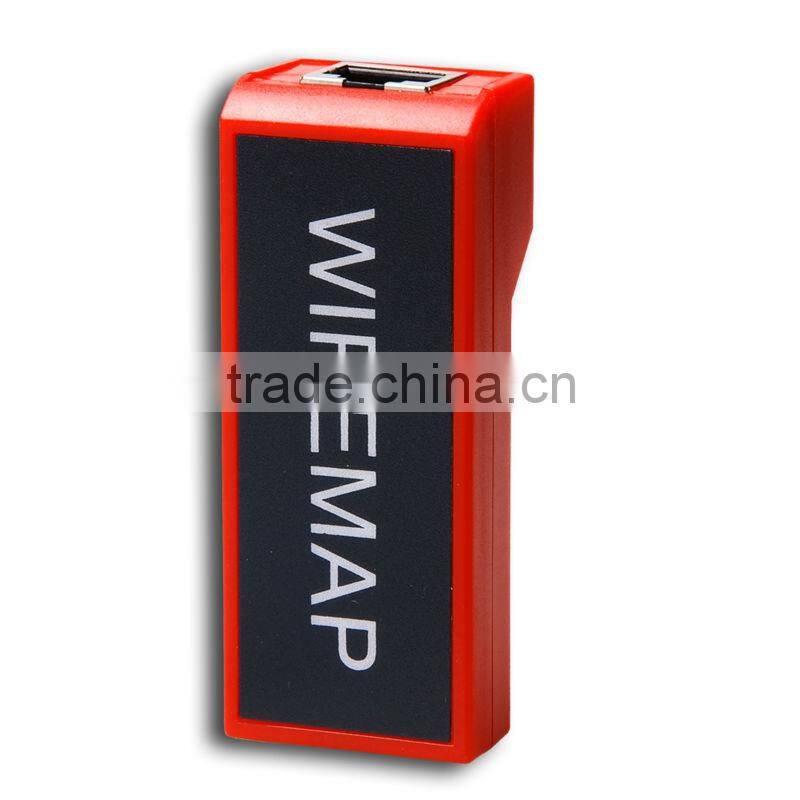

• 1 x Remote Identifier (Far-end Recognizer)

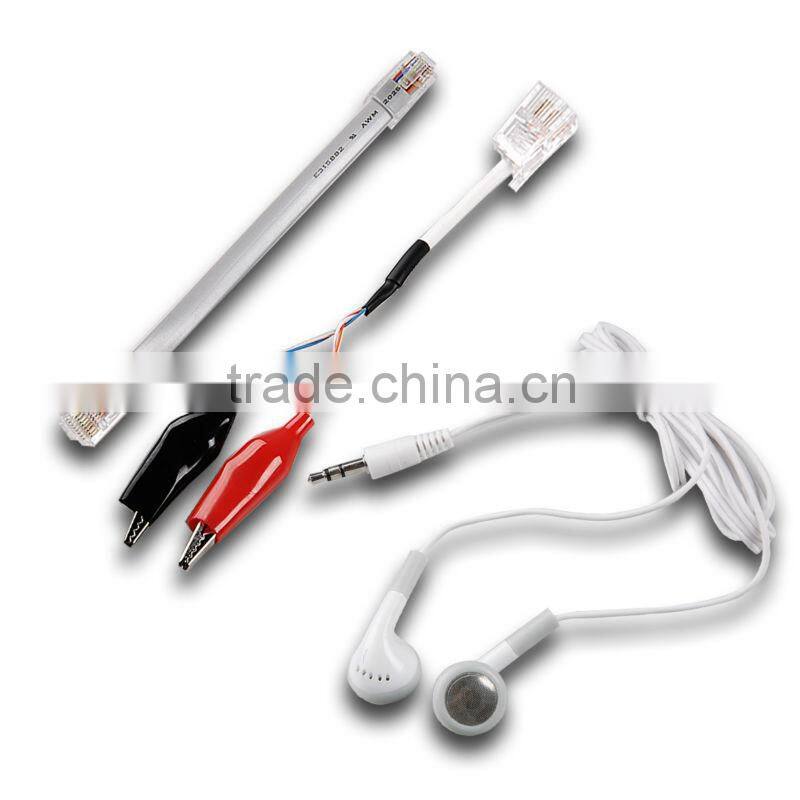

• 1 x Earphone
• 1 x Alligator Clip
• 1 x RJ45 Cable
• 1 x Carrying Bag
• 1 x Instruction Manual
• Standard factory package
