Home > Instruments & Meters > Optical Lens & Instrument > Optical Lens > 2.4" LCD Video DVR USB Zoom Rotate Inspection Camera Borescope Endoscope

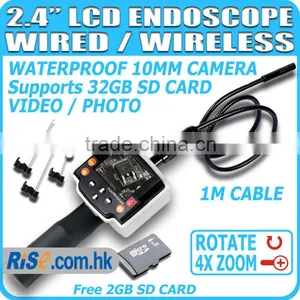

2.4" LCD Video DVR USB Zoom Rotate Inspection Camera Borescope Endoscope

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

China

Model Number:

ED-113

Contact Supplier Request Quote Chat Now

Rise Enterprise Company

Payment & Shipping

Payment Methods:

Port of Shipment:

Hong Kong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Model Number ED-113

Specifications

2.4" LCD Inspection Camera / Endoscope / Borescope with Flexible Camera Probe

Brief Description

This 2.4" Color LCD Video Inspection Camera DVR use optoelectronic technology to investigate hard-to-reach areas. It supports 4X zoom and 180° rotation of image. It has microSD slot so that you can record the Real Time Video or capture photos and save data by microSD card. It also has VIDEO OUT and USB interface for outputting video and image to TV and PC.

It has built-in LED light (with Brightness Control) on camera head to illuminate the inspection area. The 1 m (3.3 feet) Flexible Tube is waterproof with 10 mm diameter so that you can inspect area under water, gaps and holes. Optional Extension Cable (3 m / 9.9 feet) allows you to extend the vision of inspection point.

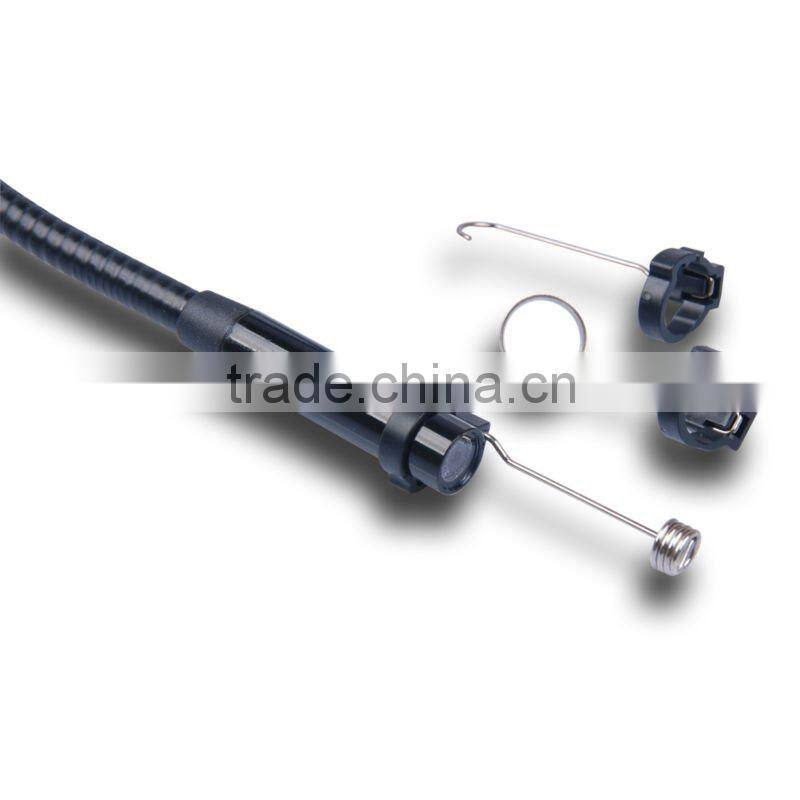

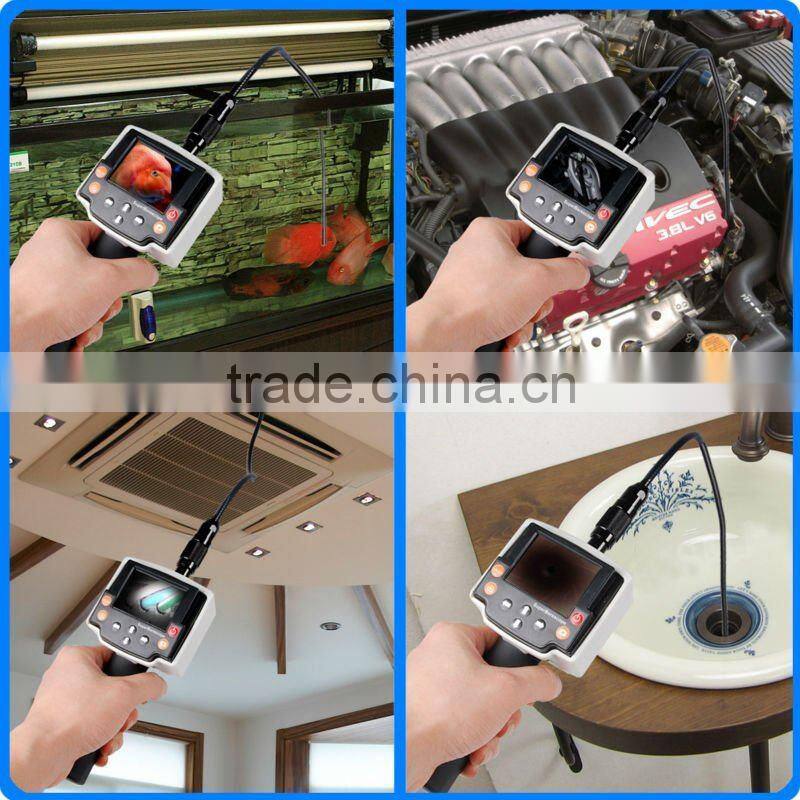

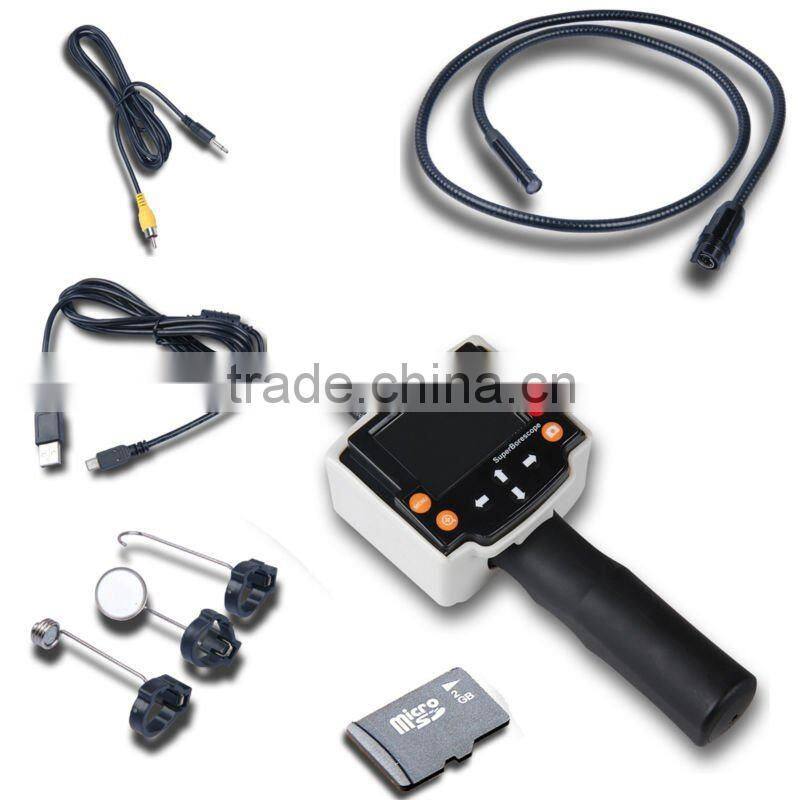

The tool set also comes with accessory hook, magnet and mini mirror to attach to the camera head for picking up small objects, viewing and hooking to identify the problem conveniently. This inspection camera is ideal for HVAC inspection, vent pipe, machine equipment, engine, cable routing, automotive / boat / aircraft inspection.

Features

Suitable for hard-to-reach inspection
Digital DVR with 2.4 inch TFT LCD Color Display
Image on the screen can be zoomed 4x and rotated 180°
Record video and capture photo
View photos and video playback functions
MicroSD slot, VIDEO OUT, USB interface
PAL and NTSC video output to TV

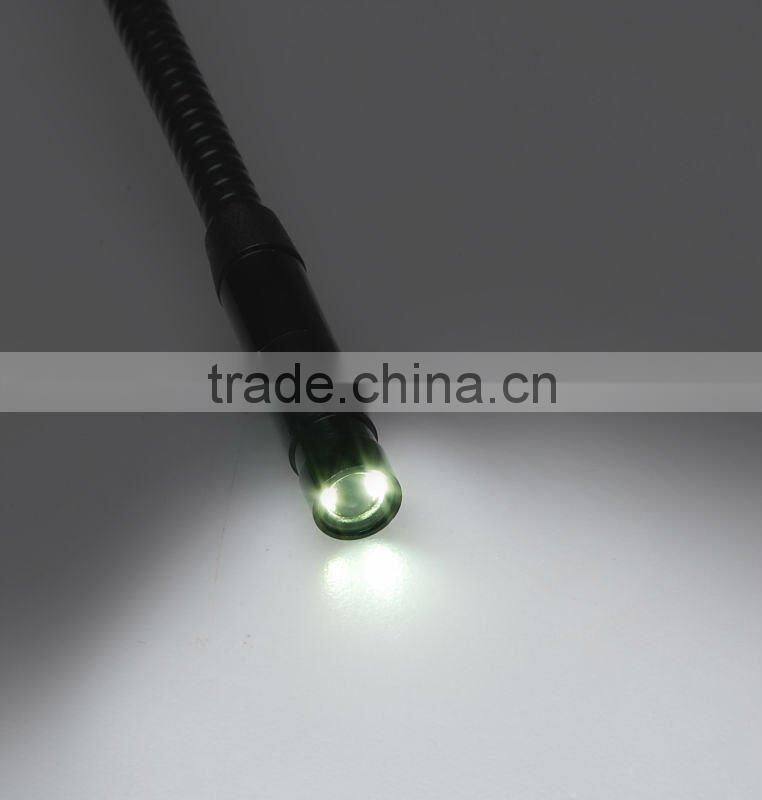

2 pcs of adjustable white LED lights for night vision
IP67 waterproof Camera Head
54° Viewable Angle and 3~6 cm (1.18 ~ 2.36 inch) focal distance
Glare-free close-ups and wide range field of view
6.8 mm PE covered metal probe with ABS handle
Low battery and power on indicator
Comfort Grip Housing
Conformed with CE Standard
Optional Extension Cable (3 Metre / 9.9 feet)

Specifications

LCD: 2.4 inch (6.1 cm) TFT Color screen with 320 x 234 resolution
Data storage media: 2GB Micro SD card included (Support up to 32GB)
Lens Sensor Resolution: 640 x 480 pixels
Sensitivity: 0.7V (Lux. sec)
Color Mosaic: RGB Bayer Pattern
Automatic white comparison & exposure to light
Camera Illumination: 2 pcs of white LED
Video Format: PAL / NTSC composite video
Handle End AVI Port: PAL / NTSC Signal Out
Photo capture: 720 x 480 (D1) resolution by JPEG format
AVI Playback & Movie recording: 30fps@720 x 480 (D1) and 30fps@320x240 (CIF) MJPG format
Camera:
- Lens Coverage: 54°
- Focal Distance: 3 ~ 6 cm (1.18 ~ 2.36 inch)
- Outer diameter: 10 mm (0.39 inch)
- IP 67 water resistant
Probe:
Metal Tube Length: 88.0 ± 2.0 cm (34.6 ± 0.79 inch)
Minimum Bending Radius: 4.5 cm (1.77 inch)
SD Slot: Support Micro SD up to 32 GB
Zoom: Maximum 4x
Battery Life: approx. 7 hours continuous usage
Operating Temperature: 0 ~ 45 °C (32 ~ 113 °F)
Power Consumption: 350 mA
TV Cable Length: approx. 1.5 m (4.92 feet)
Handle Length: 116.6 ± 2.0 mm (4.59 ± 0.79 inch)
Power: 4 x 1.5V AA batteries (not included)
Item Size: approx. 221 (L) x 75 (W) x 62 (D) mm (8.74 x 2.95 x 2.44 inch)
Item Weight: approx. 370 g (13.05 oz) (excluding accessories)
