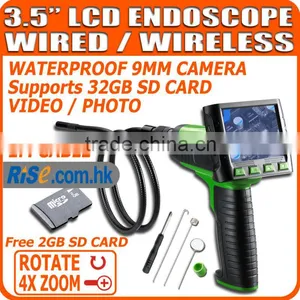

3.5" Color TFT LCD Wired & Wireless Inspection Camera / EndoscopeBrief Description

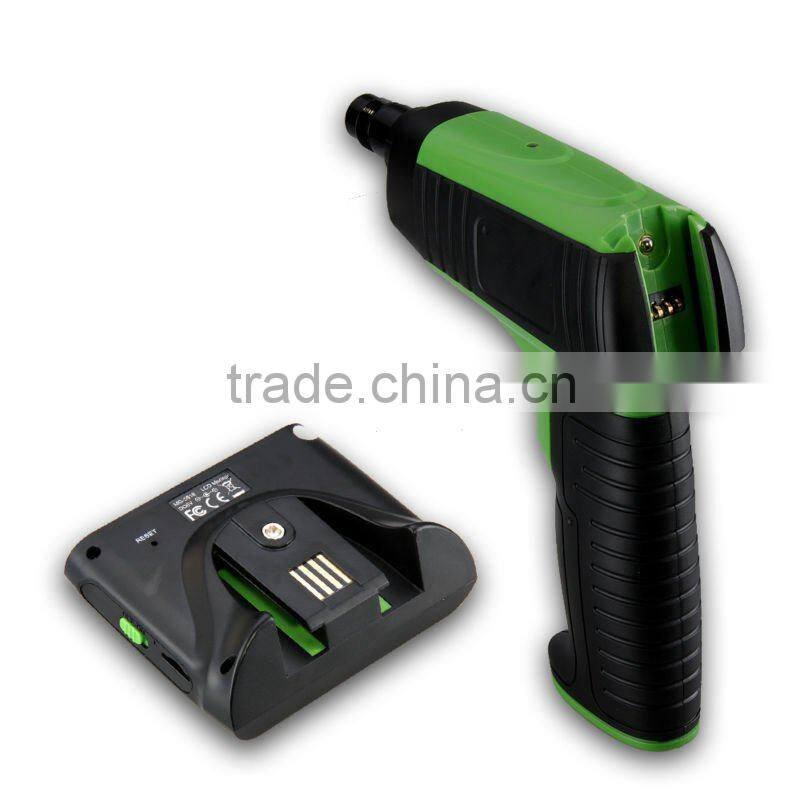

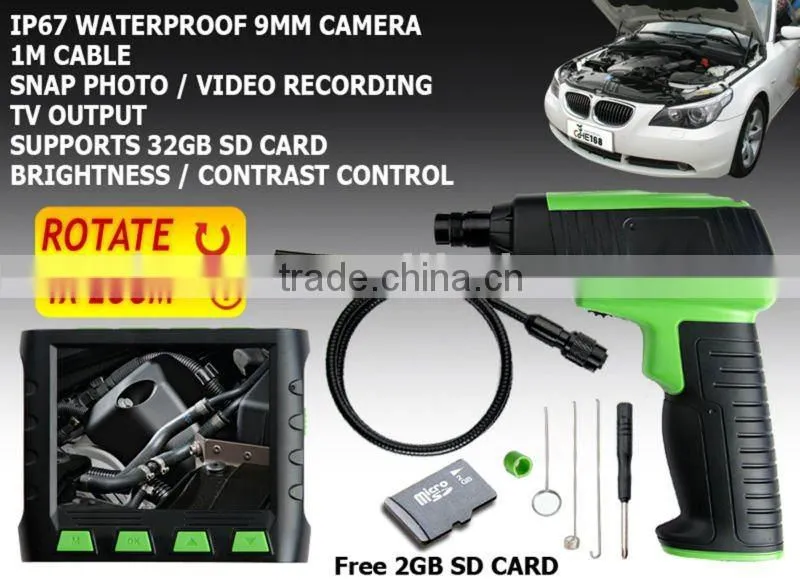

This Large 3.5" Color LCD Wireless Video Inspection Camera with USB uses optoelectronic technology to investigate hard-to-reach area. Compared with traditional inspection camera, the LCD receiver is detachable so it can wirelessly transmit the video signal between the camera grip and the receiver within 10 m.

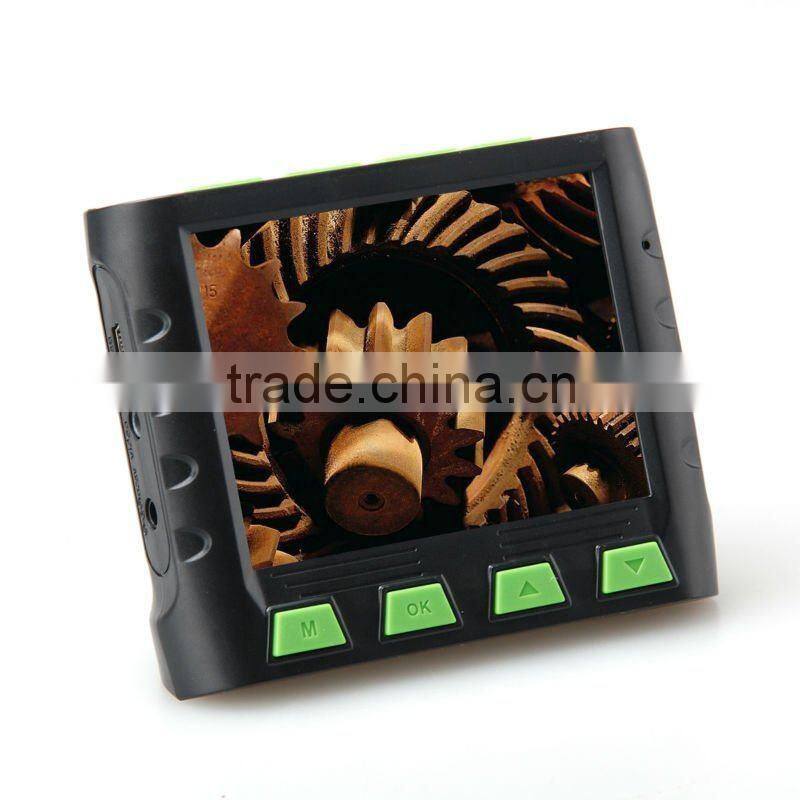

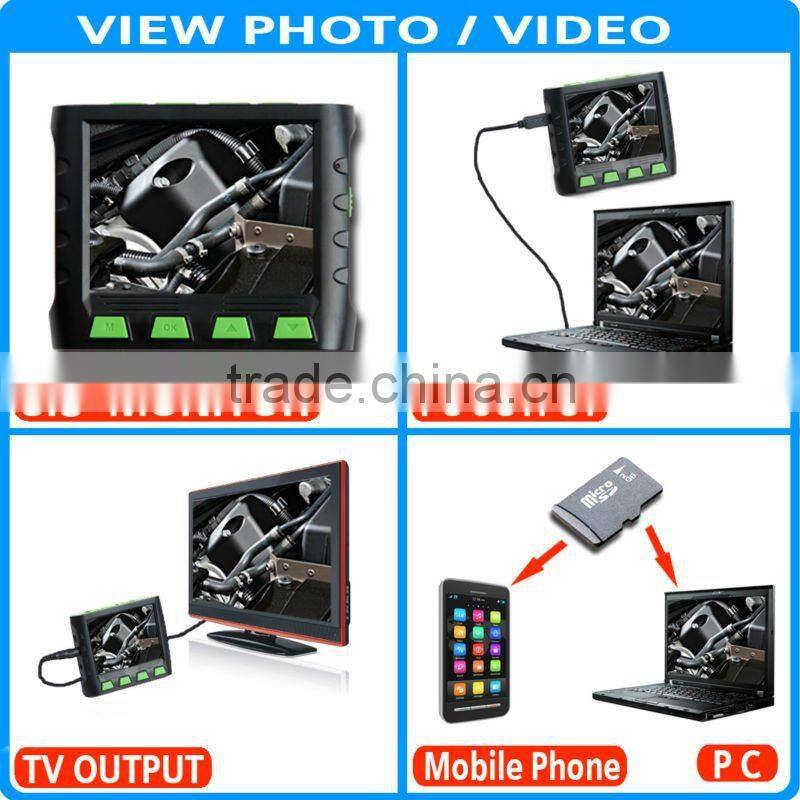

The LCD Receiver has built-in Lithium battery which is rechargeable with AC adapter. It supports 4X zoom and 180° rotation of image. It has microSD slot so that you can record the Real Time Video or capture photos and save data by microSD card. It also has VIDEO OUT and USB interface for outputting video and image to TV and PC.
The camera head of probe has 4 pcs of built-in LED light (with Brightness Control) to illuminate the inspection area. The 1 m (3.3 feets) Flexible Tube with 9 mm diameter is waterproof so that you can inspect area under water, gaps and holes.
The tool set also includes accessory hook, magnet and mini mirror to be attached to the camera head for picking up small objects, viewing and hooking conveniently.

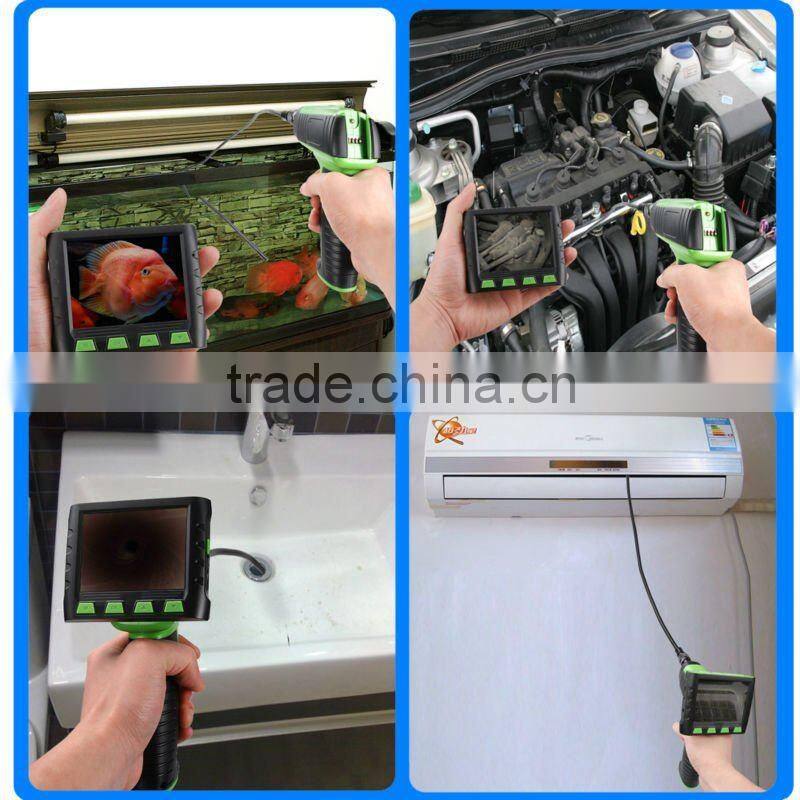

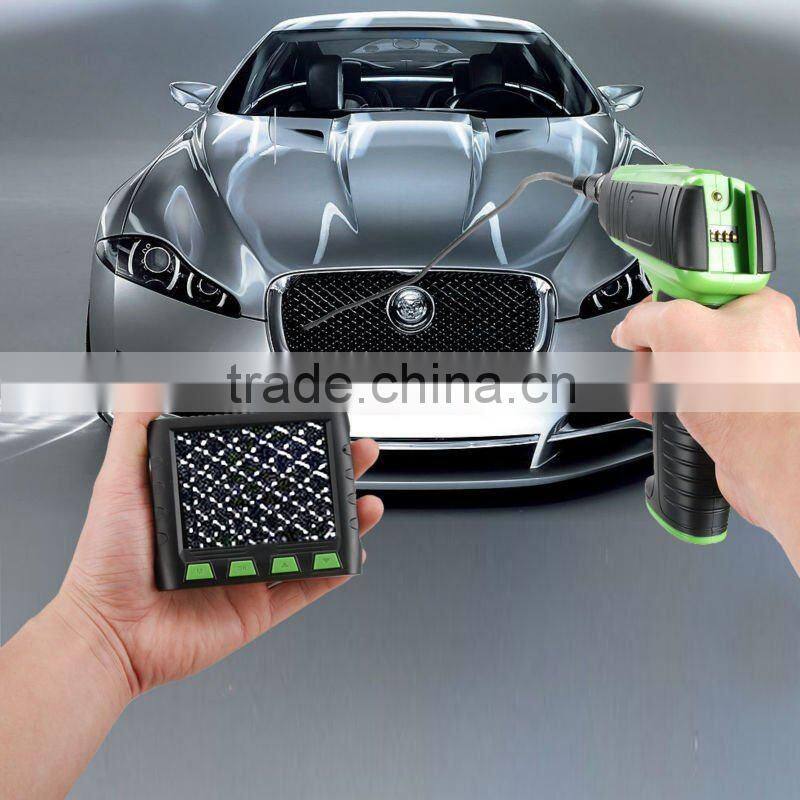

This inspection camera helps you to diagnose broken part, weld point and released parts easily to save time and increase productivity. It has many applications including HVAC inspection, vent pipe, machine equipment, engine, cable routing, automotive / boat / aircraft inspection, etc.
Features
- Records photos and videos wirelessly or while attached on the grip
- High visibility Color LCD display
- 3.5" TFT LCD Monitor with 320 x 240 pixels resolution and high visibility
- MicroSD slot, VIDEO OUT, USB interface
- Wireless distance up to 10m (more than 10m if no obstacle)
- Image on the screen can be zoomed 4X and rotated 180°
- Photos and video playback function
- IP67 waterproof probe and camera head
- Built-in high power and adjustable LED light
- 9 mm camera head diameter
- Accessories including hook, mirror and magnetic tips
- Suitable for hard-to-reach remote inspection
- Small in size and high image quality
- Flexible, portable, easy to operate and stable performance
- Ideal for industrial such as automotive, electrical, plumbing, heating, ventilation, air conditioning, refrigeration and general home inspection, building and home construction, aviation, vehicles maintenance
- Built-in rechargeable Lithium battery in LCD Receiver
Specifications
- Recommended indoor usages
- LCD Display: 3.5" TFT LCD with 320×240 pixels resolution
- Data storage media: 2GB Micro SD card included (Support up to 32GB)
- Wireless frequency transmission: 2468MHz
- Wireless distance transmission: Up to 10m (more than 10m if no obstacles)
- Camera Head: 9 mm diameter
- Probe Length: 100 cm
- Probe and Camera Head protection: IP67
- Light Source: 4 pcs of adjustable high brightness LED
- Video output: PAL or NTSC
- Menu Language Setting: English, French, German and Spanish
- Power Adapter (Input): 100 ~ 240 V AC, 50 ~ 60 Hz
- Power Adapter (Output): 5.5V DC, 1.5A
- Build-in Battery: Rechargeable Lithium Battery in LCD Receiver
- Operating Temperature: -10 ~ +50 °C (-14 ~ +122 °F)
- Operating Humidity: 15 ~ 85 % R.H.
- Dimension (Grip): 190 x 150 x 42 mm (excluding Flexible Tube)
- Dimension (LCD Receiver): 110 x 75 x 35 mm
- Weight (Grip): 550 g
- Weight (LCD Receiver): 160 g

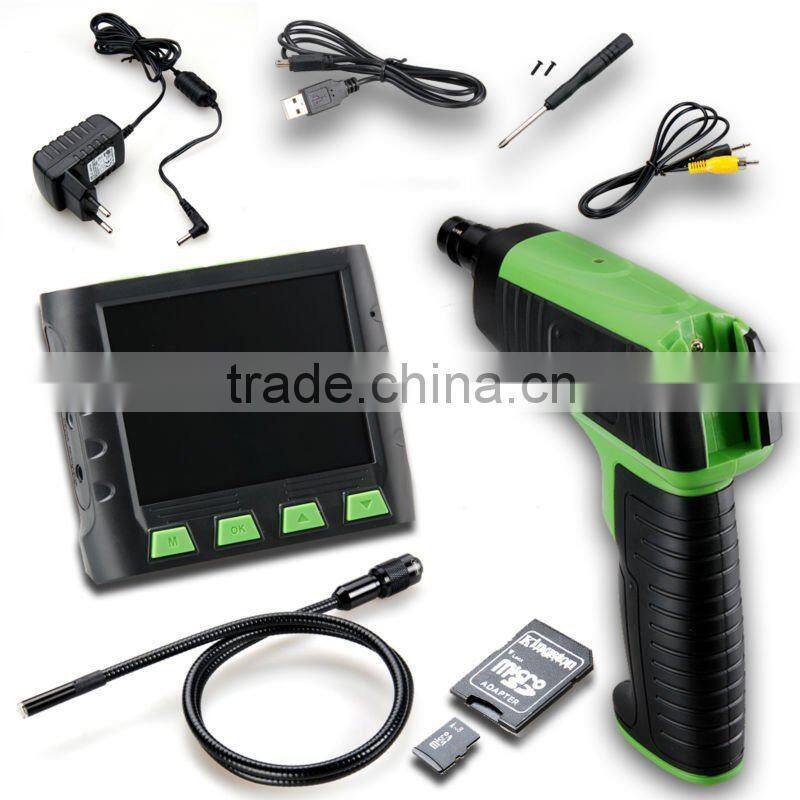

One Set Included
- 1 x USB Wireless Inspection Camera Grip
- 1 x 3.5 inch TFT LCD Receiver (detachable from Camera Grip)

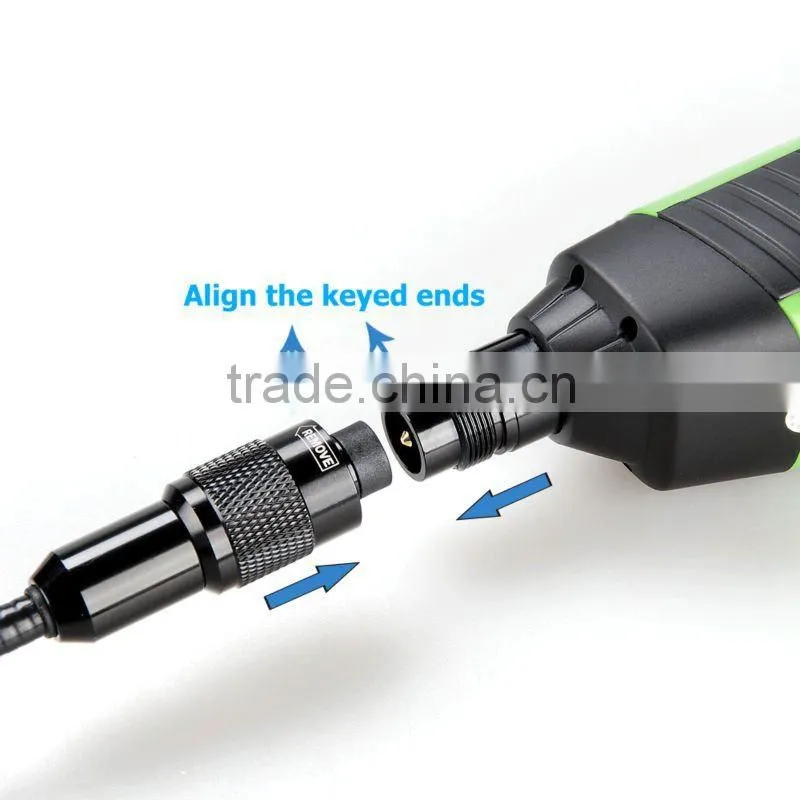

- 1 x Flexible Waterproof Camera Head
- 1 x Magnet Tip
- 1 x Hook Tip
- 1 x Mirror Tip
- 1 x Lantern Ring
- 1 x Rechargeable Lithium Battery (installed in LCD Receiver)
- 1 x USB Cable
- 1 x Video Cable
- 1 x 2GB MicroSD Card
- 1 x MicroSD to SD Card Adapter
- 1 x Power Adapter (US / EU / AU / UK adapter plug)
- 1 x Instruction Manual
- Standard Factory Package
