Home > Health & Medicine > Medical Equipment > Medical Diagnosis Equipment > Table Type Refrigerated Centrifuge Swing Out Rotor TDL5M-II

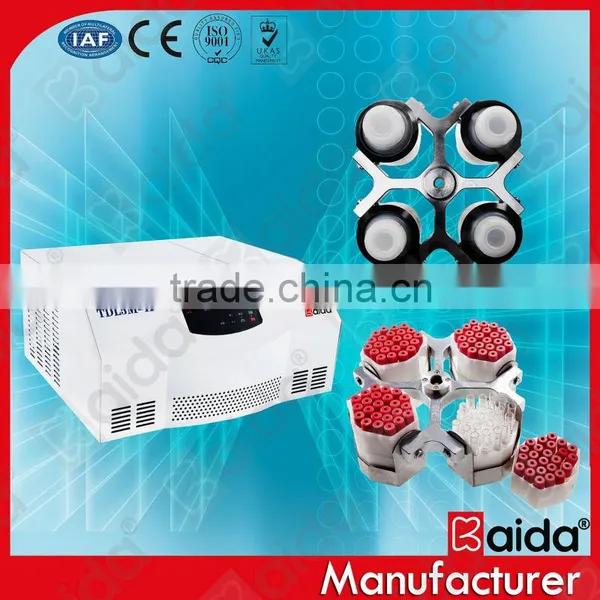

Table Type Refrigerated Centrifuge Swing Out Rotor TDL5M-II

Name: Table Type Refrigerated Centrifuge Swing Out Rotor TDL5M-II
Brand: Kaida
SKU: 109889199
Availability: InStock

Table Type Refrigerated Centrifuge Swing Out Rotor TDL5M-II thumbnail-1

Table Type Refrigerated Centrifuge Swing Out Rotor TDL5M-II photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Type:

Medical Centrifuge

Brand Name:

Kaida

Place of Origin:

Hunan, China

Contact Supplier Request Quote Chat Now

Hunan Hongda Scientific Instruments Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

CHANGSHA

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Medical Centrifuge

Brand Name Kaida

Place of Origin Hunan, China

Model Number TDL5M-II

Specifications

Table type refrigerated Centrifuge swing out rotor
1.brushless motor
2.swing out rotor
3.Pre-cooling design for chamber

Table type refrigerated Centrifuge swing out rotor TDL5M-II

FEATURES:

1. Brushless frequency motor which in great torque, free maintenance, no powder pollution, quick in speed down. super high speed bearing from Europe with high quality, running smoothly and maintenance free.

2. Controlled by microcomputer with touching panel, LED & LCD display. Operating parameter can be saved automatically, RCF value can be set directly for working, easy to use.

3. Multistage damping system, the Freon-free compressor from European, Small vibration, low noise and slight vibration, green.

4. Steel body, stainless steel centrifugal chamber. Imports of key components, durable and easy to clean.

5. With overspeed, overtemperature, door interlock, unbalance protection functions, and rotor service lifespan calculation function, the rotor can be high temperature and high pressure sterilization to ensure safety.

6. Pre-cooling design for chamber, fast cooling. The proprietary SCT speed control design, fast acceleration and deceleration, high efficiency.

7. Adjustable acceleration and deceleration from grade 0-9 or directly set the time of Accel/Decel, and can be store 40 kinds of self-defining operating models, to achieve the best centrifugal result.

8. Hold-on and transient centrifuging, convenient for centrifugal diversification

9. Can be configured 5ml, 7ml, 10ml, 15ml, 30ml,50ml and several kinds of adapters, to meet the customer's different needs.

TECHNICAL PARAMETER

Model	TDL5M-II
Max Speed	5500r/min
Max RCF	5310×g
Max Capacity	3000ml
Speed Accuracy	±20r/min
Temperature Accuracy	±1°C
Time Range	0-99h59min59s
Power Supply	AC 220V 50Hz 18A
Noise	≤60dB
Dimension	800×700×400(mm)
Net Weight	110kg

TDL5M-II ROTOR:

Model	No.	Capacity	Max Speed (r/min)	Max RCF(×g)	Dimension of tube (mm)
Swing Rotor	No.63	4×50/100ml	5500	5310	Φ38×124
	No.69	4×500ml (adaptor 12×50ml /8×100ml)	4000	3580	Φ80×140
	No.70	4×250ml (adaptor 8×50ml /36×10ml)	4000	3500	Φ64×113
	No.71	4×750ml	4000	3580	Φ99x130
	No.75	72x5ml	4000	2830	Φ14x54
	No.77	32×10/15ml	4000	2810	Φ16×85-118
	No.78	16x10/15ml	4000	2810	Φ16×85-118
	No.81	8×50/100ml	4000	2810	Φ38x124
	No.82	48/40×5ml	4000	2800	Φ14×54
	No.84	148×7ml	4000	3200	Immuno tubes
	No.84	120×7ml	4000	3200	Vacuum Blood tube
	No.85	96x7ml	4000	2800	Immuno tubes
	No.85	80x7ml	4000	2800	Vacuum Blood tube

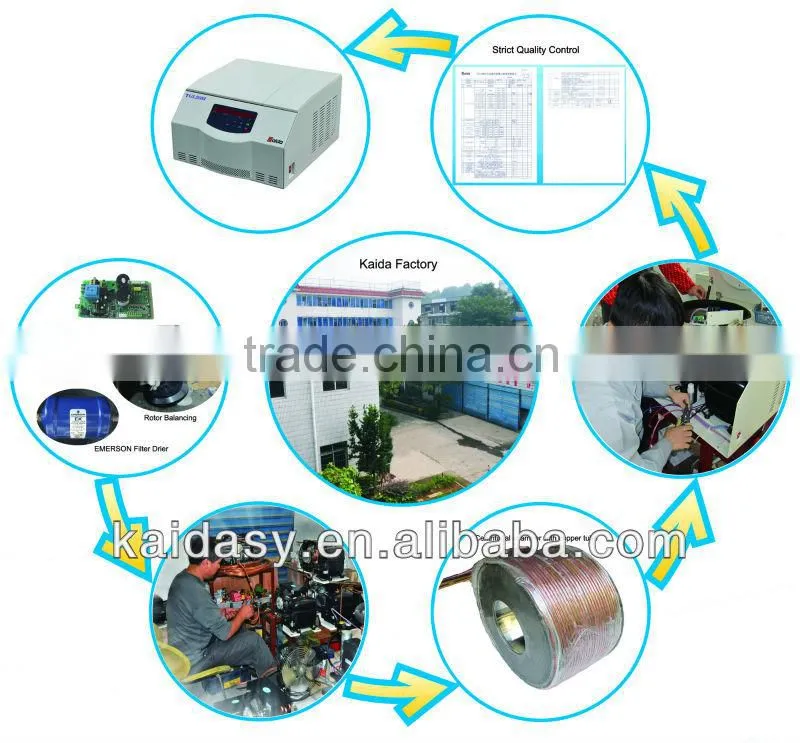

WORKING FLOW:

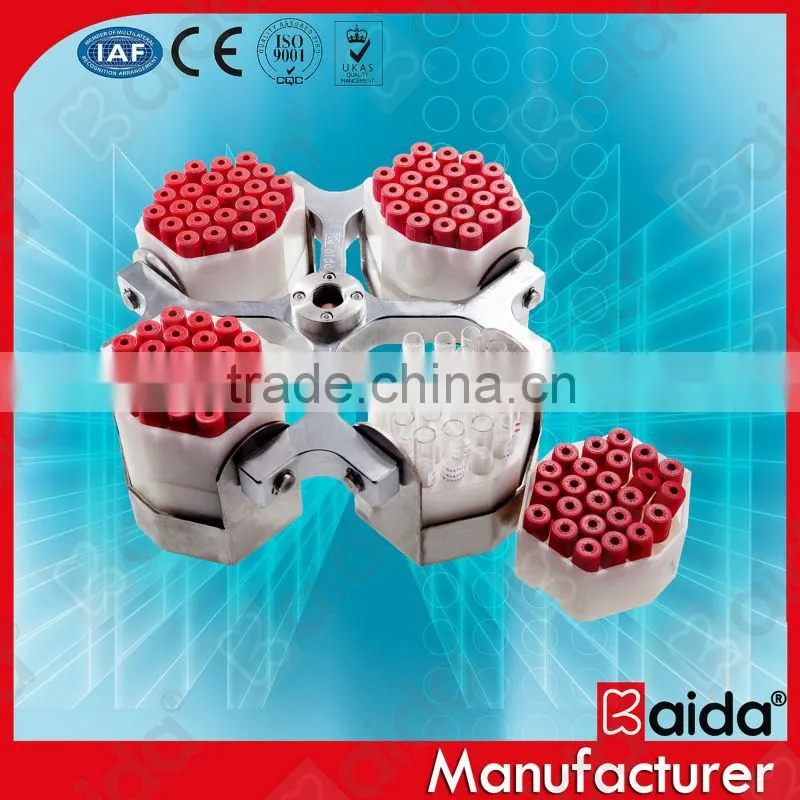

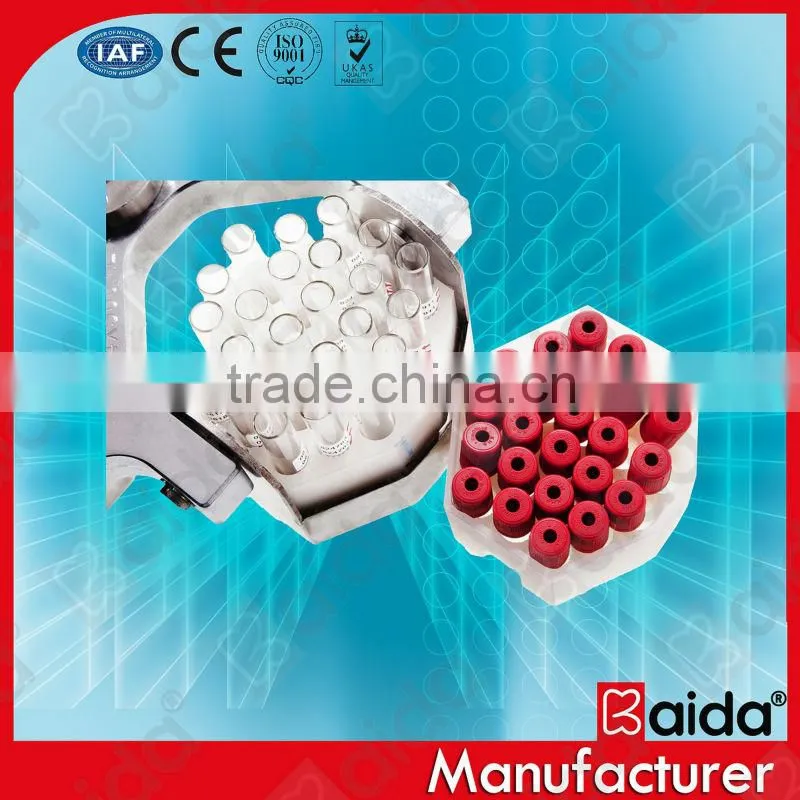

Rotor

Auto Uncapping Rotor

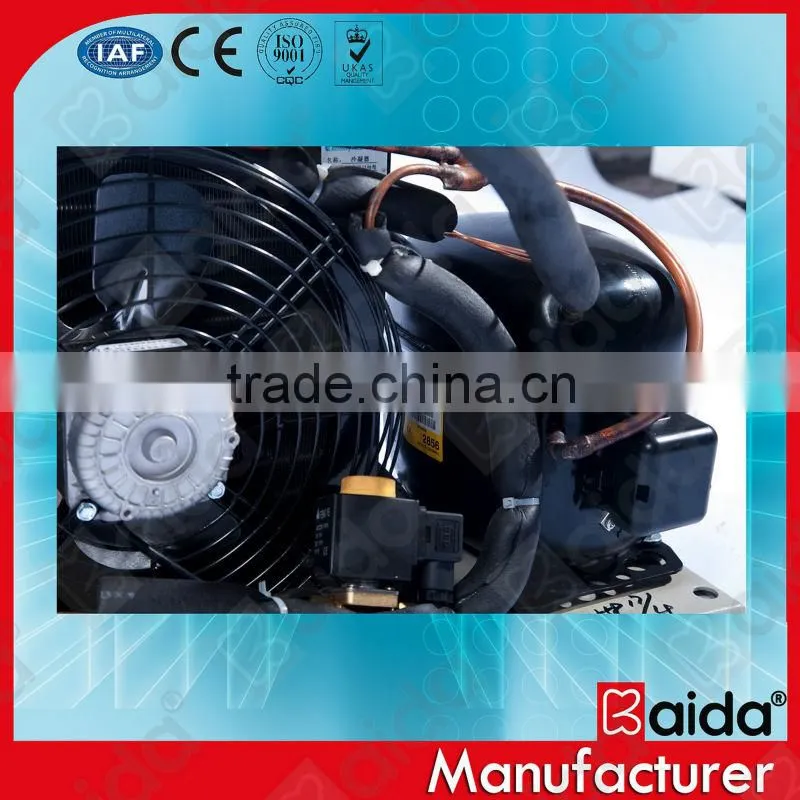

Quality Parts

Customer From Cuba State Blood Bank

Remarks:

If you have any question or special requirement about the centrifuge and its accessories, pls don’t hesitate to contact us. Your request will always draw our first attention. Thanks for all your support!
