Specifications
1.MCU Control,RPM/RCF,Temperature,time display2.Super large capacity,can process 6pcs of 1000ml blood bag
3.save 40 programs

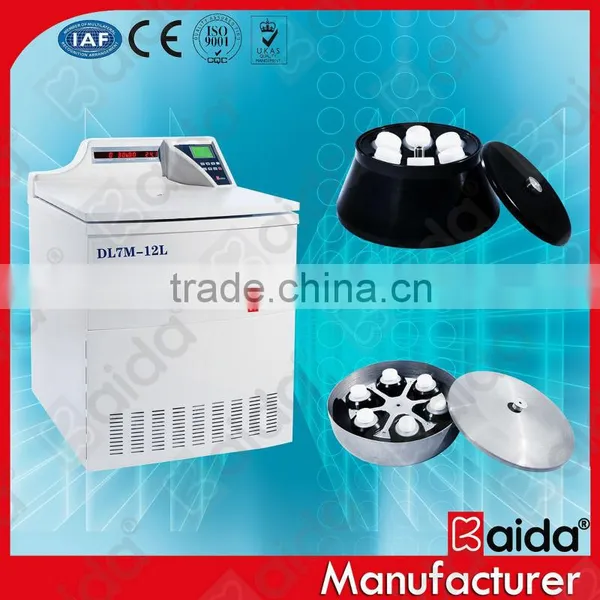

Blood bank Refrigerated Centrifuge DL7M-12L
FEATURES
1.Microprocessor control, operated by touch panel, LED and LCD display, operated data can be saved automatically, RCF value can be set directly for working, easy to use.
2.Brushless converter motor which has high torque, High speed bearing from Europe, smoothly running and maintenance-free.

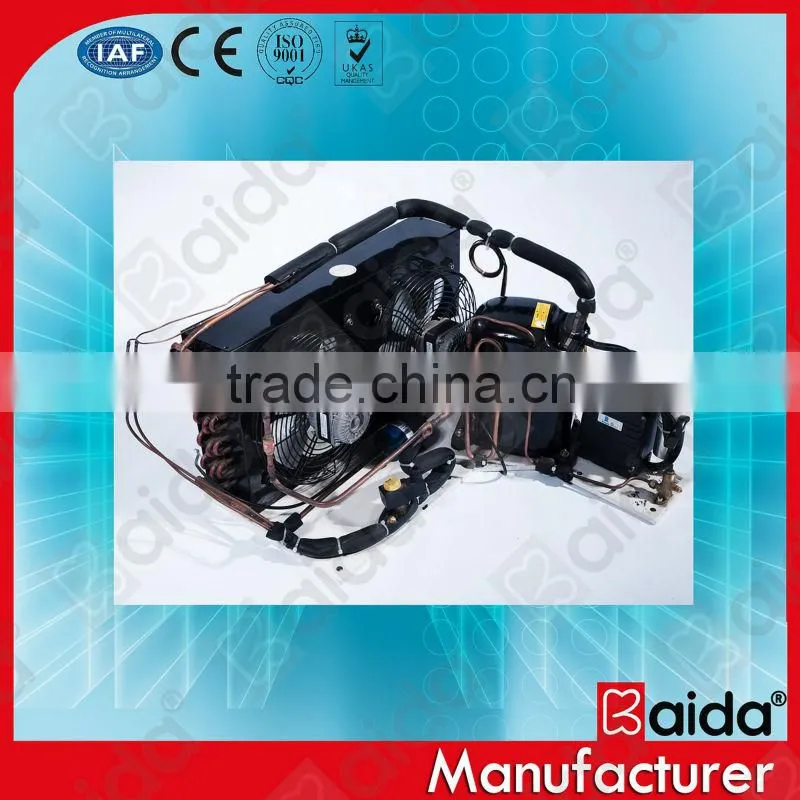

3.Multistage damping system, the freon-free compressor from Europe, low noise and slight vibration, green.
4.Steel body, stainless steel centrifugal chamber, imports of key components, durable and easy to clean.
5.overspeed, overtemperature, door interlock, unbalanced protection. The function of rotor service life calculation, ensure safety.
6.Pre-cooling design for chamber, fast cooling. Proprietary SCT speed control design, fast acceleration and deceleration, high efficiency.
7.Adjustable acceleration and deceleration from grade 0 to 9 or directly set the time of Accel/Decel, and can be store 40 kinds of self-defining operating models, to achieve the best centrifugal result.
8.Proprietary SBT control technique and rotor design, to avoid mix up, ensure getting maximum specimen.
9.Super large capacity. It can process 6 pieces of 1000ml blood bag (one blood bag in a position) or 12 pieces of 500ml blood bag ( two in a position) at one time for high efficiency.
10.Hold-on and transient centrifuging, easy to diversification centrifugation.
11.Widely used in the field of Blood bank, Pharmacy, Biological products and so on.
DL7M-12L TECHNICAL PARAMETER
Model |
DL7M-12L |
Max Speed |
8000r/min |
Max RCF |
12300×g |
Max Capacity |
14400ml |
Speed Accuracy |
±20r/min |
Temperature Range |
-20°C--40°C |
Temperature Accuracy |
±1°C |
Time Range |
0-99H59min |
Power Supply |
AC 220V 50Hz 35A |
Noise |
≤65dB |
Dimension |
960×860×1200(mm) |
Weight |
500kg |
DL7M-12L ROTORS:
Type |
Number |
Capacity |
Max speed (r/min) |
Max RCF (×g) |
Dimension of tube (mm) |
Angle Rotor |

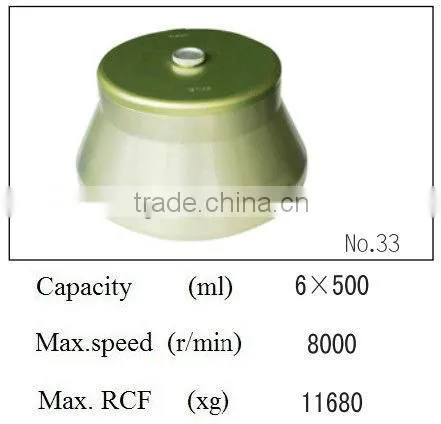

No.33 |
6×500ml |
8000 |
11680 |
Φ74x168 |

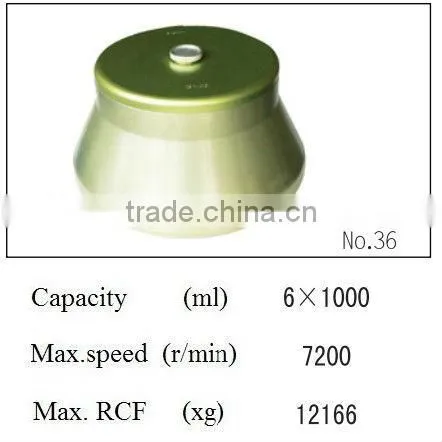

No.36 |
6×1000ml |
7200 |
12166 |
Φ97x175 |
|
Swing Rotor |
No.64 |
6×2400ml |
4200 |
6130 |
12pcs of 400-500ml triple blood bags |
No.67 |
2×6×1000ml |
4200 |
5000 |
For Biology Pharmacy |
Remarks:
If you have any question or special requirement about this product, please feel free to contact us. Your request will always draw our first attention.
