Specifications

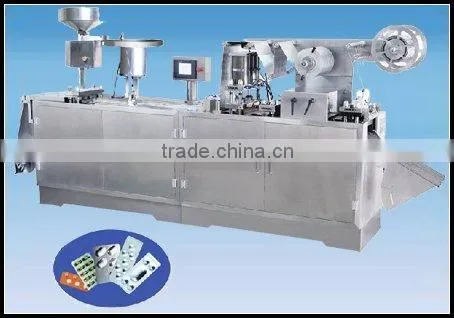

Model DPP-320F/250F High Sealed Double Aluminum Plastic Automatic PackerApplications
The machine is assembled with three parts and can be packed and transported separately. Under control of PLC, the machine can complete separately all procedures including warm-up, blister forming, automatic feeding, heat sealing and synchronous adjustment of Aluminum-Plastic strip, empty-detecting, hard Aluminum forming, second heat sealing, batch number printing, blanking and scrap-collecting, etc.
The machine is suitable for blister packing with Aluminum-Plastic, Aluminum-Aluminum and Aluminum-Plastic-Aluminum.
Performance and characteristic
Travel scope can be adjusted.
Mould is located by locating groove so that it’s easy to change mould. Adopt the moulds of pressing-and-frothing and cool-forming.
The material is fed automatically. The mould and feeding equipment can be designed as user’s requirements.
Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller.
Adopt photoelectric empty-detecting equipment and waster-eliminating equipment.
Stepping motor drive wheel to grip and tow wrapper, synchronize accurately.
The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.
Main Technical Parameter
MODEL |
250F |
320F |
|
Blanking frequency(sheets) |
15-30 |
15-30 |
|
Sheet's quantity of one blanking(sheets) |
3-4 |
5-6 |
|
Capacity:(sheets/hour) |
3600-7200 |
4700-10800 |
|
Adjustable scope of feed travel:(mm) |
10-160 |
10-170 |
|
Max Forming area and depth:(mm) |
PVC(For medicine): |
250×160×25 |
320×170×25 |
Tropicalized Aluminum |
250×160×25 |
320×170×25 |
|
Capacity of air compressor(m3/min) |
≥0.38 |
≥0.45 |
|
Power supply:(KW) |
380V 50HZ 10KW |
380V 50HZ 12KW |
|
Wrapper specification(mm) |
PVC(For medicine): |
250×(0.15-0.5) |
320×(0.15-0.5) |
PTP(Aluminum film) |
250×(0.02-0.035) |
320×(0.02-0.035) |
|
Tropicalized Aluminum |
250×(0.09-0.15) |
320×(0.09-0.15) |
|
Overall dimensions (mm) |
4300×635×1400 |
4800×718×1500 |
|
Part size (mm) |
1600×635×1400 |
1600×718×1500 |
|
1600×635×1400 |
1600×718×1500 |
||
1100×635×1400 |
1600×718×1500 |
||
Weight(kg) |
1500 |
2200 |
|
