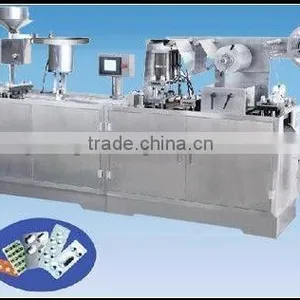

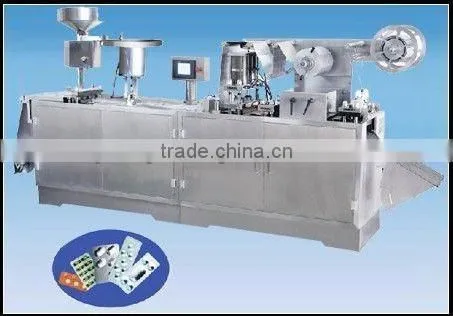

High Sealed Double Aluminum Plastic Automatic Packing machine

Specifications

Model DPP-320F/250F High Sealed Double Aluminum Plastic Automatic Packer

Applications

The machine is assembled with three parts and can be packed and transported separately. Under control of PLC, the machine can complete separately all procedures including warm-up, blister forming, automatic feeding, heat sealing and synchronous adjustment of Aluminum-Plastic strip, empty-detecting, hard Aluminum forming, second heat sealing, batch number printing, blanking and scrap-collecting, etc.
The machine is suitable for blister packing with Aluminum-Plastic, Aluminum-Aluminum and Aluminum-Plastic-Aluminum.
Performance and characteristic

Travel scope can be adjusted.

Mould is located by locating groove so that it’s easy to change mould. Adopt the moulds of pressing-and-frothing and cool-forming.

The material is fed automatically. The mould and feeding equipment can be designed as user’s requirements.

Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller.

Adopt photoelectric empty-detecting equipment and waster-eliminating equipment.

Stepping motor drive wheel to grip and tow wrapper, synchronize accurately.

The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.

Main Technical Parameter

MODEL		250F	320F
Blanking frequency(sheets)		15-30	15-30
Sheet's quantity of one blanking(sheets)		3-4	5-6
Capacity:(sheets/hour)		3600-7200	4700-10800
Adjustable scope of feed travel:(mm)		10-160	10-170
Max Forming area and depth:(mm)	PVC(For medicine):	250×160×25	320×170×25
	Tropicalized Aluminum	250×160×25	320×170×25
Capacity of air compressor(m3/min)		≥0.38	≥0.45
Power supply:(KW)		380V 50HZ 10KW	380V 50HZ 12KW
Wrapper specification(mm)	PVC(For medicine):	250×(0.15-0.5)	320×(0.15-0.5)
	PTP(Aluminum film)	250×(0.02-0.035)	320×(0.02-0.035)
	Tropicalized Aluminum	250×(0.09-0.15)	320×(0.09-0.15)
Overall dimensions (mm)		4300×635×1400	4800×718×1500
Part size (mm)		1600×635×1400	1600×718×1500
		1600×635×1400	1600×718×1500
		1100×635×1400	1600×718×1500
Weight(kg)		1500	2200
