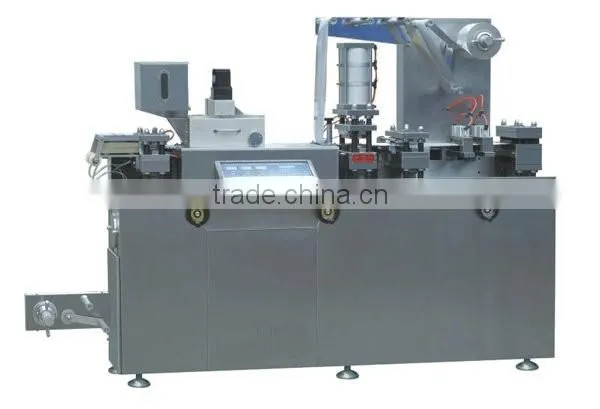

DPP-140E Double Aluminum Horizontal Blister Packaging Machine Pharmaceutical Line
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Medical
Automatic Grade:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Dpp-88 Blister Packing MachineNegotiableMOQ: 1 Set -
Model DPP-250A Plane Aluminum-Plastic Automatic Blister Packaging Machine /Pharmaceutical MachineryNegotiableMOQ: 1 Set
-
DPP-140A Aluminium Blister Packing MachineNegotiableMOQ: 1 Set
-
DPP-140A Auto Blister Pack MachineNegotiableMOQ: 1 Set
-
DPP-140A Al/pvc Blister Packing MachineNegotiableMOQ: 1 Set
Condition
New
Application
Medical
Automatic Grade
Automatic
Driven Type
Electric
Place of Origin
Zhejiang, China
Brand Name
huayuan
Model Number
DPP-140E
Dimension(L*W*H)
2050*530*1350mm
Weight
700kgs
Certification
CE ISO
Warranty
1 year
After-sales Service Provided
Overseas service center available
Specifications
1.AL/AL Blister packing machine.2.Control by PLC and touch screen.
3.Made of SS316.
4.Capacity:1800-3600sheets/min.
Applications:

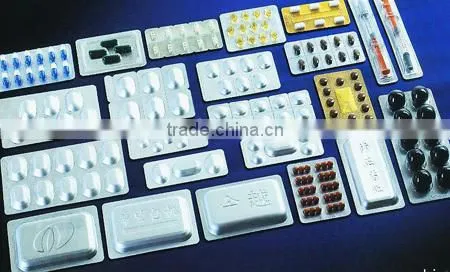

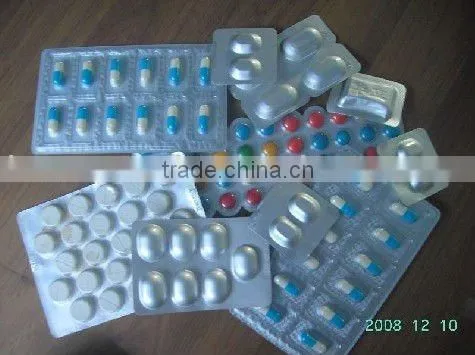

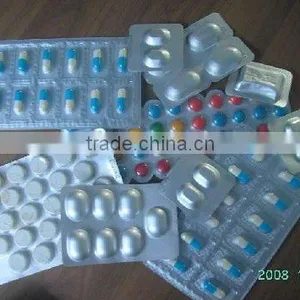

The product uses the composite Aluminum film as material which has performance of best seal, moisture and light proofing, and uses special mould to cool-form. It is renewed packing equipment in pharmaceutical industry. The machine has two functions. When it changes mould, the machine can pack the object not only with Aluminum-Aluminum, but also with Aluminum-Plastic.
Performance and characteristic:
Main Technical Parameter:
| MODEL | 140E | ||
| Blanking frequency(sheets) | 15-30 | ||
| Sheet's quantity of one blanking(sheets) | 2 | ||
| Capacity:(sheets/hour) | 1800-3600 | ||
| Adjustable scope of feed travel:(mm) | 100-130 | ||
| Max Forming area and depth:(mm) | PVC(For medicine): | 1430×130×15 | |
| Capacity of air compressor(m3/min) | ≥0.36 | ||
| Power supply:(KW) | 380V 50HZ 5.5KW | ||
| Wrapper specification(mm) | Composite Aluminum film | 140×(0.11-0.15) | |
| PTP Aluminum film | 140×(0.02-0.035) | ||
| Overall dimensions (mm) | 2050×530×1350 | ||
| Weight(kg) | 700 | ||
- Travel scope can be adjusted.
- Mould is located by locating groove, so that its easy to change mould. Adopt cool-forming moulds.
- Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller.
- Adopt photoelectric empty-detecting equipment and waster-eliminating equipment.
- The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machines life.
- Adopt the equipment of trace pressing, batch number printing and scarp-collecting.
- Stepping motor drive wheel to grip and tow wrapper, Synchronize accurately
