plastic blow molding machine---chemical bucket / tank / bottle making machine Quality Choice
- 20 Set / Sets per Month
- Qingdao
- T/T
- High speed Plastic bottle making 0.5L- 2L 6000BPH Automatic PET bottle blow blowing mold molding machine prices
- Factory Price High Quality Automatic Fast Plastic PP HDPE Bottle Blowiing Jerrycan Extrusion Blow Molding Machine
- Semi Automatic PET Plastic Bottle 5 Gallon 20 Liter Blow Molding Machine Price
- custom design semi-automatic preform pet plastic bottle blowing blow molding machine high speed
- Semi-automatic Two Cavity Bottle Making Machine Blow Molding Equipment
- Plastic bottle blowing machine Beverage bottle blowing machine Medicine bottle blowing machine
Product Details
Condition: | New | Application: | Other, bucket | Plastic Processed: | PP |
Blow Moulding Type: | Extrusion Blow Moulding | Automatic: | Yes | Place of Origin: | Shandong, China |
Brand Name: | Tongjia | Model Number: | TJ-TZK120 | Power(W): | 230KW |
Dimension(L*W*H): | 7.6mX4.6mX5.5m | Weight: | 38 ton | Certification: | CE, ISO |
Warranty: | one year for free | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1. Our factory was founded in 1953.2 .CE and ISO certificate
3. Famous brand parts
4. HIgh output.

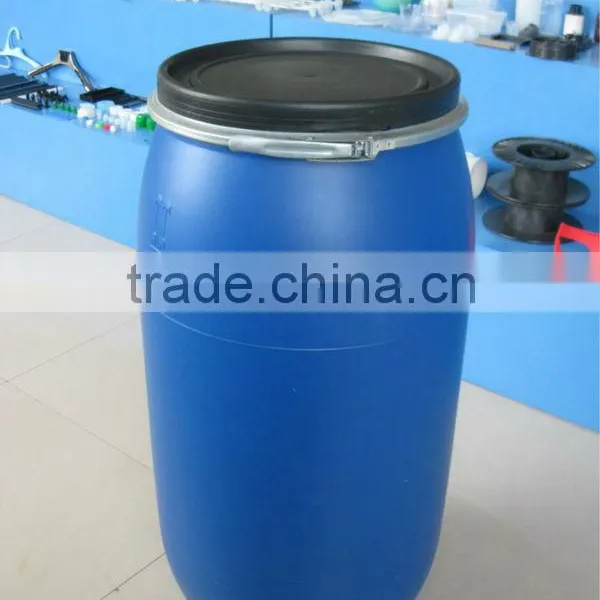

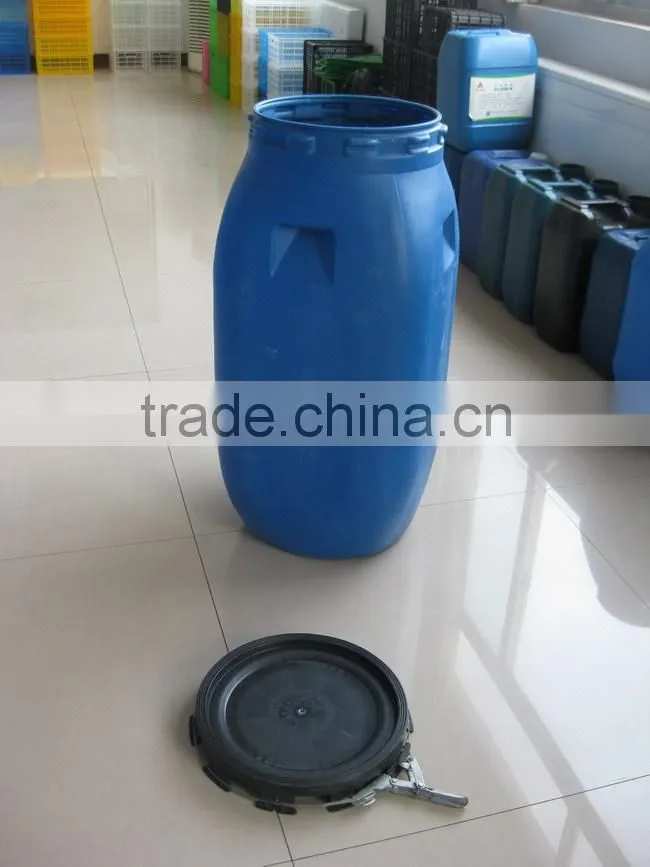

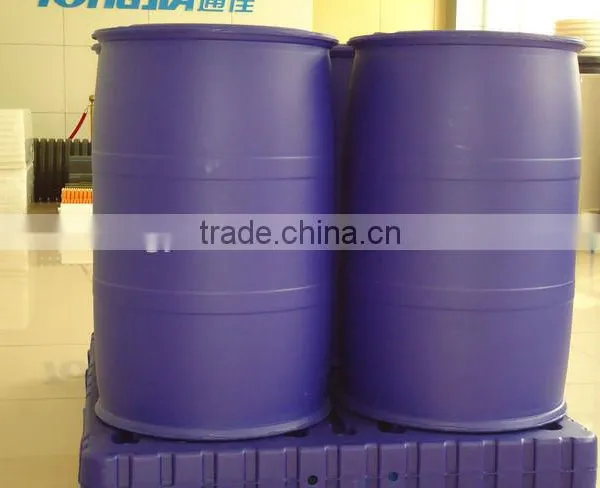

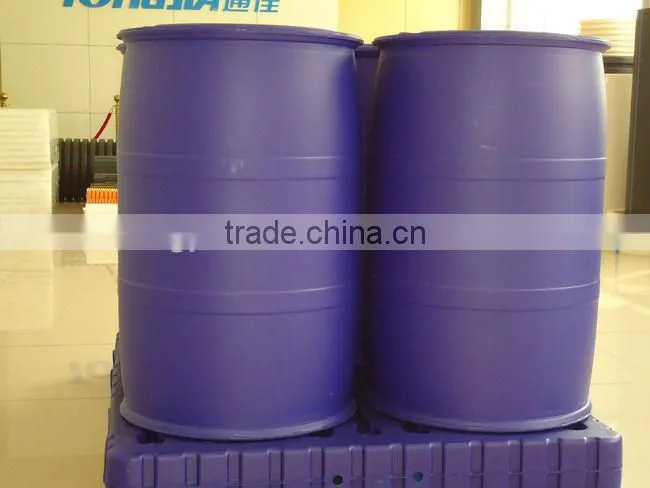

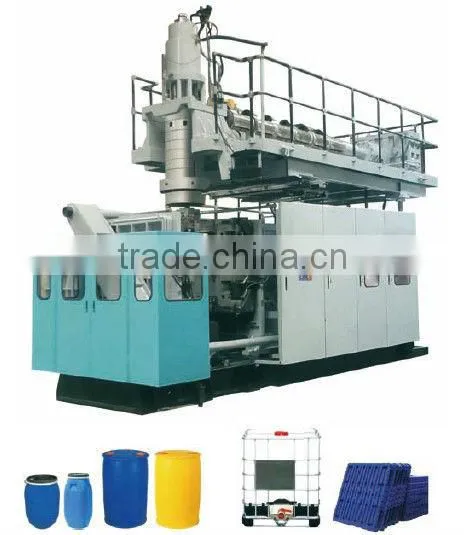

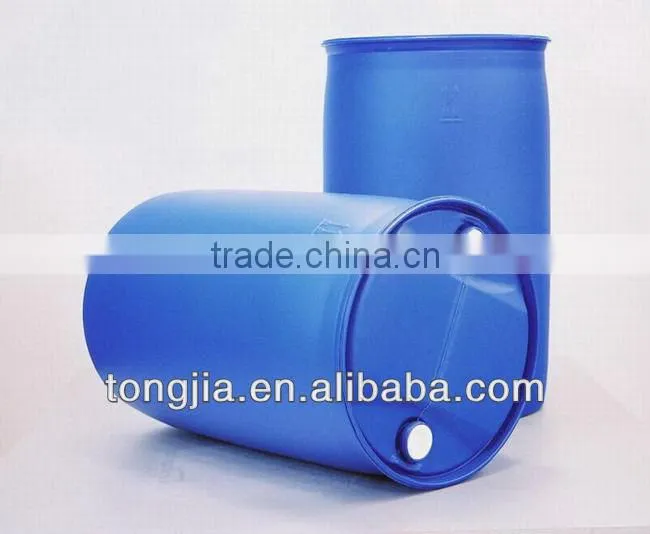

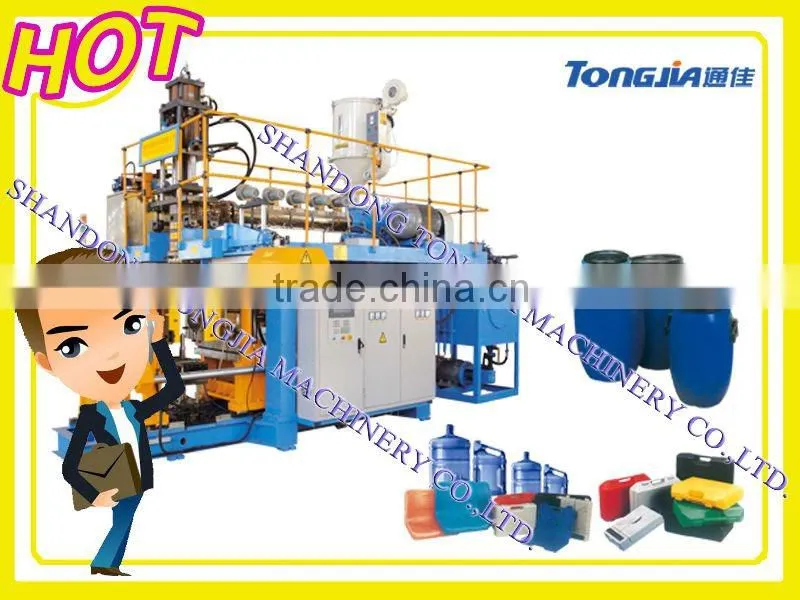

This series machine is mainly used for making vrious large-scale chemical used buckeds, hollow tray, play desktop, and multi-layer composite IBC buckets with capacity fro 100L to 1500L.
Thismachine adopts imported hydraulic control system, more steadier and long-time used. Adopts the international most advanced parison control system to make sure the wall thickness precise equality.
Our company has developed over 180 new products machinery with 9 kinds, all of our products has passed CE Certificate from TUV. Many of our products have exported to Russia, Belarus, Iran, Singapore, Vietnam, Malaysia, Spain, Argentina,Brazil, more than 60 countries in the world.
Specifications | TJ-DZK120 | |
Material | PE, PP, PA, ABS… | |
Max. capacity of product | L | 220 |
Dimensions(L*W*H) | m | 8.0×3.0×5.5 |
Total weight | T | 35 |

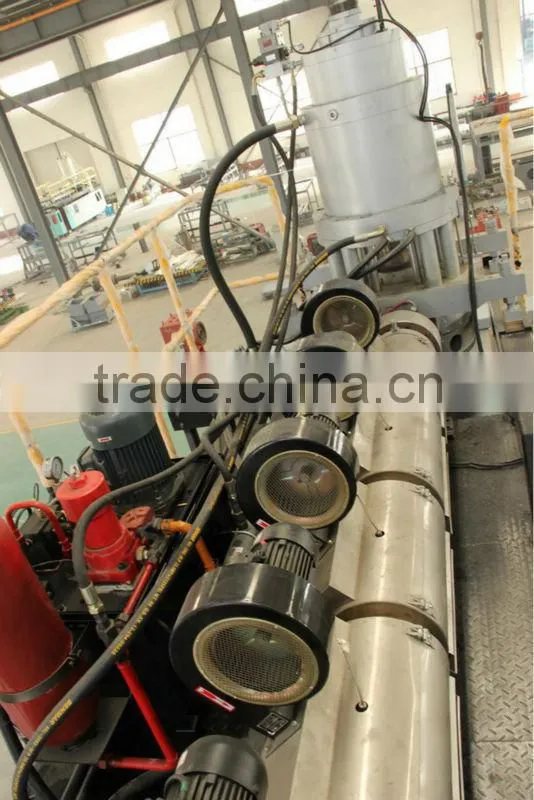

Extrusion system | ||
Dia. Of main screw | mm | 120 |
L/D ratio of screw | L/D | 32 |
Die | ||
Quantity of die heating zones | zone | 6 |
Heating power of die | KW | 30 |
Center distance of double-die | mm | 610 |
Max. dia. of die | mm | 22 |
Clamping system | ||
Clamping force | KN | 780-900 |
Distance between platens | mm | 800-1800 |
Max. size of mould(W*H) | mm | 1200×1720 |
Power | ||
Driving power of main extruder | KW | 132 |
Motor power of oil pump | KW | 45 |
Total power | KW | 220 |
Water consumption | L/min | 200 |
Air pressure | MPa | 0.8 |
Air consumption | m³/min | 3.0 |
Average energy consumption | KW | 110 |
Why choose us:

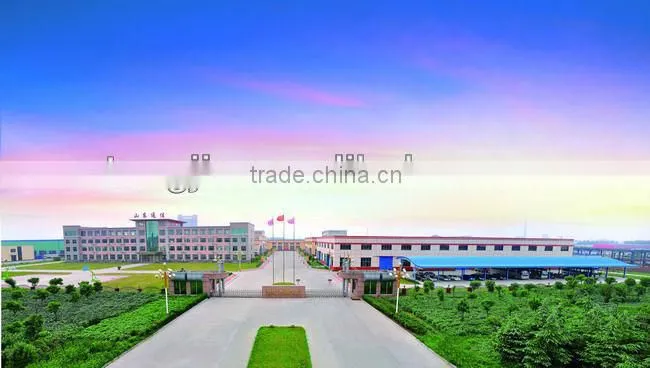

1. We are market-leader in this line in China. Our factory was founded in 1953 inplastic fields.
2. We have been engaged in the machine field for more than 20 years and have much experience in manufacturing plastic machines.
3. Brand-name parts of the machine.
4. Engineering team provide you with the most suitable model towards your products.
5. Technical training and service is the advantage of us.
6. The machine can working more than 10 years without damange by human.
7. We will reply your inquiry within 6 hours.
