The plastic blow moulding machine have well-designed die head and screw designed by professional technical engineers, and our careful deign and installation, it makes our plasticizing system much more stronger. The clamping system adopts guide rail mould-moving and electric proportional control. It makes the mould-moving to be more steady and quickly. The hydraulic and electric components all use the world famous brands. We use large flow storage device, high efficiency outside electromagnetism heating and some other energy conservation technology. It ensures that we can produce the efficient, high-speed and energy saving blow molding machine which suits the market and has the market competitive performance.
Blow Molding Machine
Characteristic of the small blow moulding machine
1. double-cylinder balance blow system
2. multi-stage pressure&speed blow
3. back-pressure adjustment device
4. decompression
5. low pressure mold protection
6. multiple hydraulic ejector knock-out
7. lubrication system
8. Hydraulic pressure full proportional control
9. PLC control
10 Molding data memory system
11.ISO9001:2000
12.CE certificate

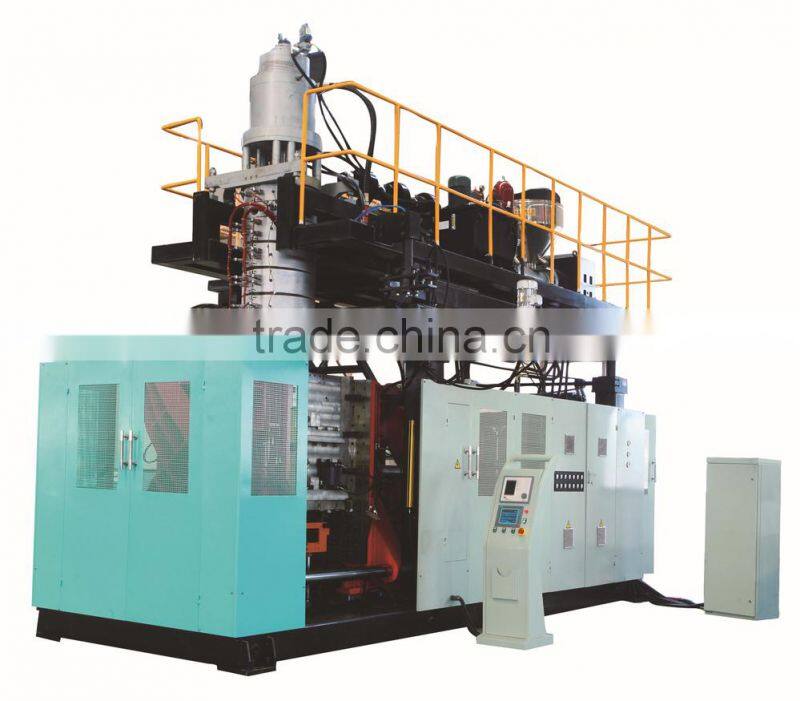

Main Technical Spec. and Detailed Introduction for JG-DZK90
1.Extrusion system
a.Screw and barrel
Rotary speed of screw 0-55r/min
Dia.of screw Φ90mm
L/D ratio 25:1
Material of screw 38CrMoAl high grade alloy steel and processed surface by nitriding
Screw type mixing screw
Material of barrel 38CrMoAl high grade alloy steel and processed surface by nitriding
Thickness wall 40mm
Heating barrel method electrical heater of casting aluminum and stainless steel shield
Heating zone 4 zones
Heating power 22kw
Control temperature method intelligent meter control (Taida brand)
Cooling method by fan
2. Extrusion Die system
Die type single die with storage cylinder
Material of die 40Cr and processed by polishing treatment
Volume of storage cylinder 2.5L
Die head heating method electrical heater of stainless steel
Heating zone 4 zones
Heating power 15kw
Max dia. Of die Φ78mm
3. Parison controller Siemens
Control method digital
Quantity of control point 100 points
4. Clamping system
Clamping method press straight by oil cylinder
Max. distance of mould open 1000mm
Min. distance of mould open 400mm
Max. clamping force 200KN
Dimension of max. module 500×700mm
5. Hydraulic pressure system
Max. pressure 10Mpa
Oil pump type double pumps
Diving motor three phase asynchronism AC motor
Diving power 15kw
Cooling method by water
6. Electronic system
Control method Taida PLC
Control temperature method intelligent control temperature meter (Taida)
Show method digital
Low pressure electronic Siemens
Transducer LG
7. Blow air system
Blow method automatic blow downwards
8. Spare Parts list
Heating ring 6 pieces
Sealing ring 20 pieces
Sensor thermocouple 1 piece
Middle relay 2 pieces
Temperature control meter 1 piece
Electromagnetism change way valve 1 piece
Triangle belt 4 pieces
Journey switch 2 pieces
Safety pipe 2 pieces

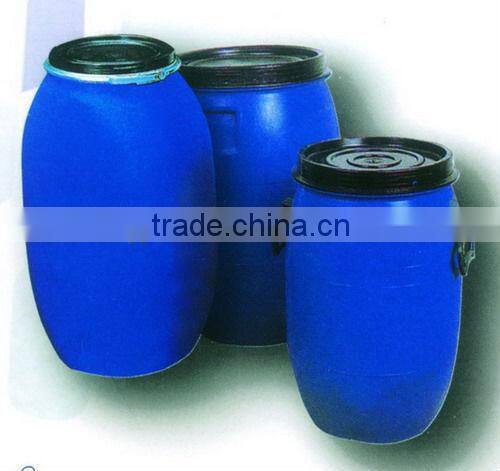

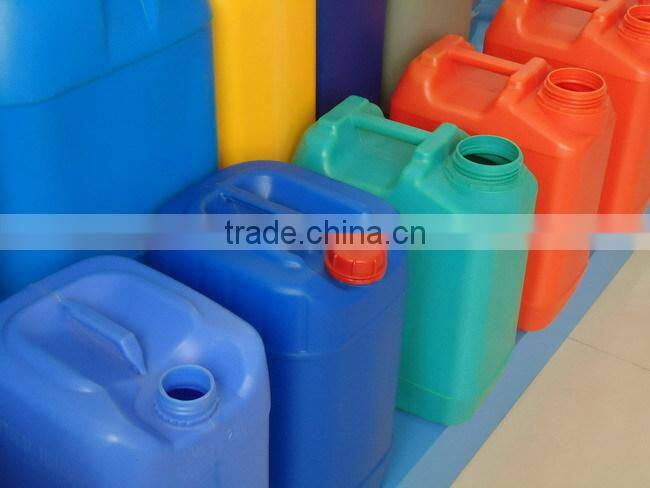

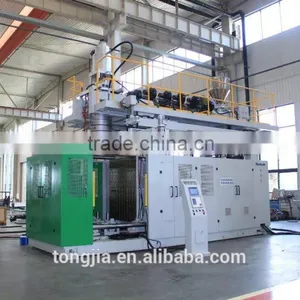

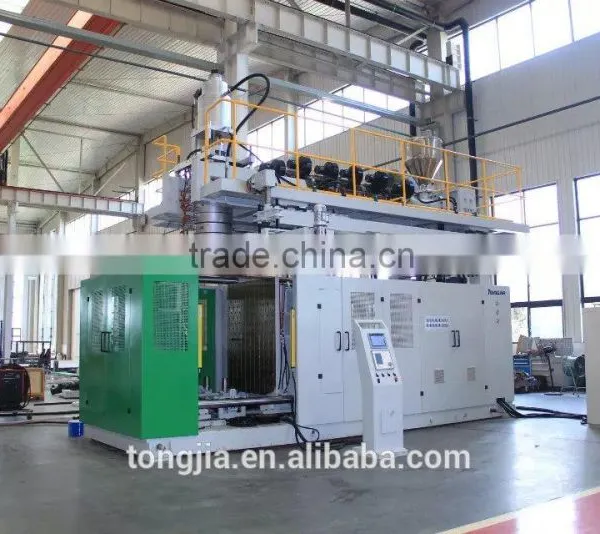

Product pictures
Our Service
1.12 Hours----Your reply will be replied within 12 hours.
2.Service----We offer your professional service in fluent English.
3.Delivery----1~3 months.
4.Free Design----Professional designers, free designs.
5.Certificates----Third-party verification service provider
6.Service----OEM service offered;Design service offered;Buyer label offered.
OR
1.Any inquires will be replied in the first time.
2.High quality products,competitiveprice,fast lead time.
3.Our sales staff will be have a good communication with you,let you fully understand the situation of our enterprises and products.
4.We will provide high quality overseas service,our technical staff will be able to provide you with technical support,for you personally to overseas assembly and test equipment.
5.Our customer service staff will put your feedback to the technical staff in the first time,timely solve yourproble

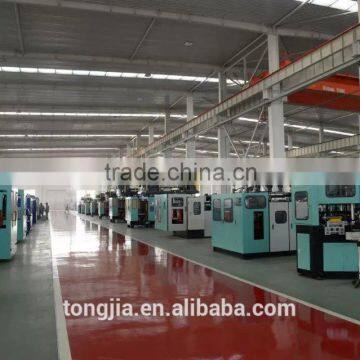

Our Corner

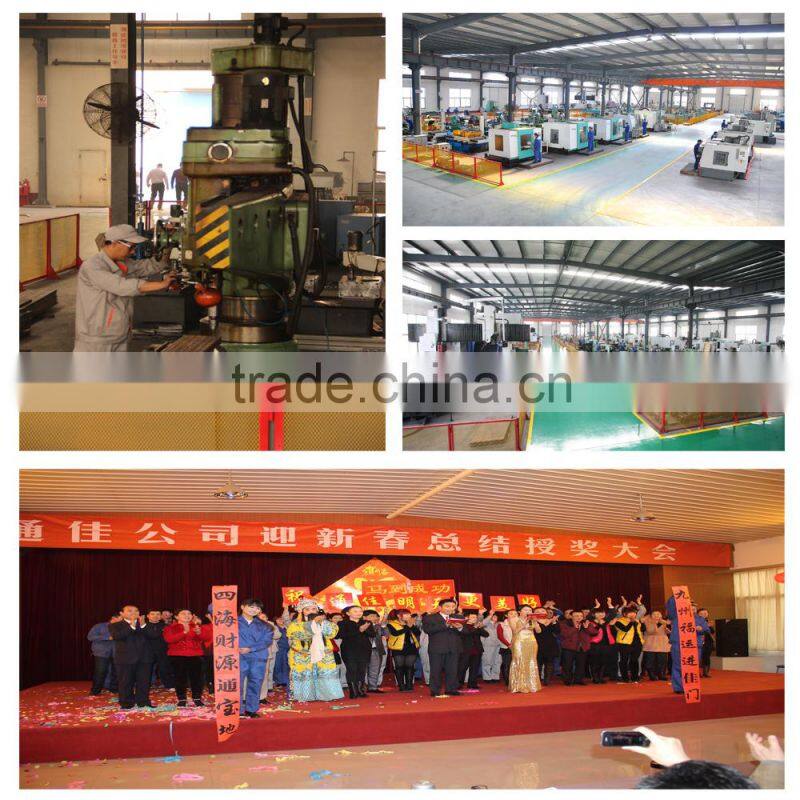

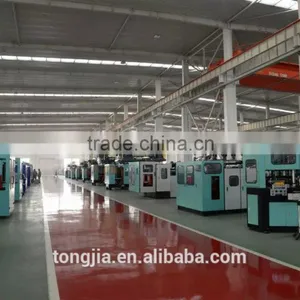

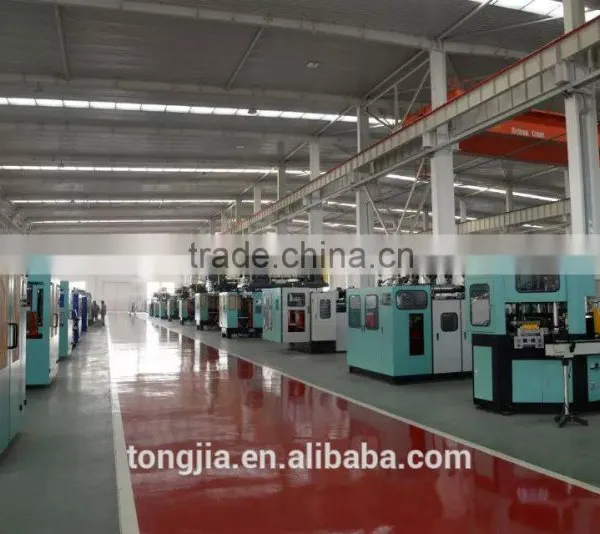

Note: Above is our excellent staff, workshop and the new year party
Our Strength

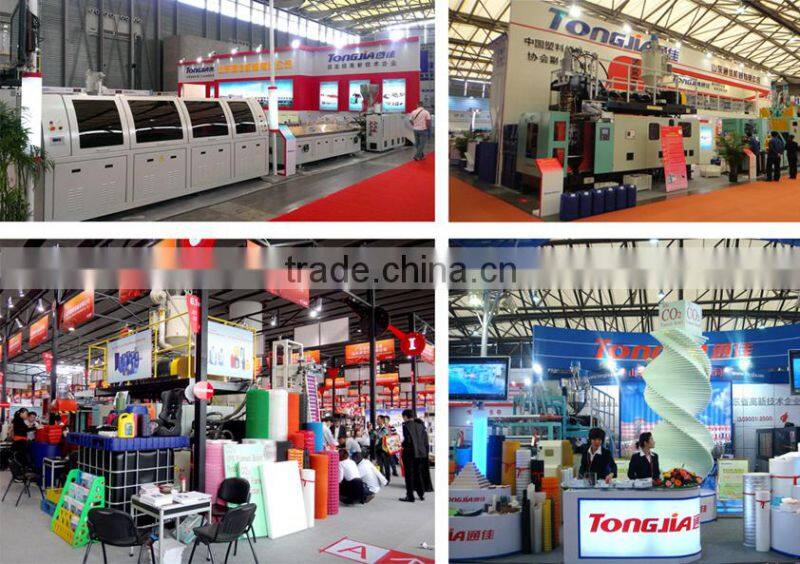

Note: We participate in the exhibition, such as K Fair In Germany and Canton Fair...
Our Certificates
Welcome overseas people to our factory site visits.
Why choose us?
1.Our factory was founded in 1953 and we are market-leader in this line in china.
2.In the plastic machinery field, we have more than 20 years of relevant experience.
3.Our products extend all over the national and over 60 countries and areas of the world.
4. Our spare parts are brand components.
5. Engineering team provide you with the most suitable model towards your products.
6. Technical training and service is the advantage of us.
7. Tongjia Machinery hopes to create nice future with clients from home to overseas.
8. Welcome overseas people to our factory site visits.
FAQ
1.Payment term:T/T,L/C;
2.Min order quantity:1 set or by negotiate with each other;
3.Service:Provide overseas service;
4.Tel:+86-537-2279166 2986622.
Your reliable supplier
With rich manufacturing experience and full strict control of raw materials,production and products inspection,we can provide good quality and competitive prices,timely delivery and excellent services.We sincerely would like to establish long-team business relationship with you
