5 Gallon PC bottle extruder blow molding machine--Hot Sale Oversea!!!

Specifications

1. Our factory was founded in 1953.
2. CE and ISO certificate
3. Famous brand parts of the machine
4. High output



The main specifications and component

(I)component

Extrusion system                                          1 set

Die head system                                          1 set

Clamping system                                         1 set

Hydraulic system                                          2 sets

Electrical control system                             1 set

(II)main technical specification

 1. extrusion system

A.screw and barrel

Rotary speed of screw                              0-55r/min

Dia. of screw                                   Φ75mm

L/D                                                            25:1

Material of screw                                38CrMoAlA processed by nitriding

Screw type                                               barrier mixing screw

Heating zones                                           5 zones

Heating power                                           18KW

Control temperature method                    intelligent meter control (Taida brand)

Cooling method                                        by fan

Exhaust                          Special design

B.Driving method

Driving power                                          30KW

Cooling method                                       by fan

Speed-change unit                                   special gear box for plastic machinery

2. Extrusion die system

Die type                                                   single die with storage cylinder

Material of die                                         40Cr and processed by polishing treatment

Volume of storage cylinder                      1.8L

Die head heating method                        electrical heater of stainless steel

Heating zones                                          5 zones

Heating power                                         5KW

Max. dia. of die                                        Φ100mm

3. Parison controller                             Siemens

Control method                                        digital

Quantity of control point                      100 points

4. Clamping system

Clamping method                                    press straight by oil cylinder

Max. distance of mould open                  900mm

Min. distance of mould open                   400mm

Dimension of max. module                 780×700mm

5. Hydraulic pressure system

Max. pressure                                         10Mpa

Oil pump type                                         single pump

6. Electronic system

Control method                                       Taida PLC

Control temperature method                  intelligent control temperature meter (Taida)

Display method                                       digital

Low voltage electronic                            Siemens

Transducer                                               LG

7. Blow air system

Blow method                                          automatic blow downwards

8. Other parameters:

Material type                                          PC

Capacity of final product                        5 Gallon 3Gallon 3.5Gallon

Power of main motor                              30kw

Output                                                     65—80 pcs/h

Total power (max.)                                  89KW

Electrical source                                     50HZ380v

0.8Mpa air pressure consume                1m³/min

10°C-15°Cwater consume                     0.8 m³/h

Dimensions (L x W x H)                          approx. 6.2 x3.2 x4.2 (m)

9.Total weight (approx)                        12 ton

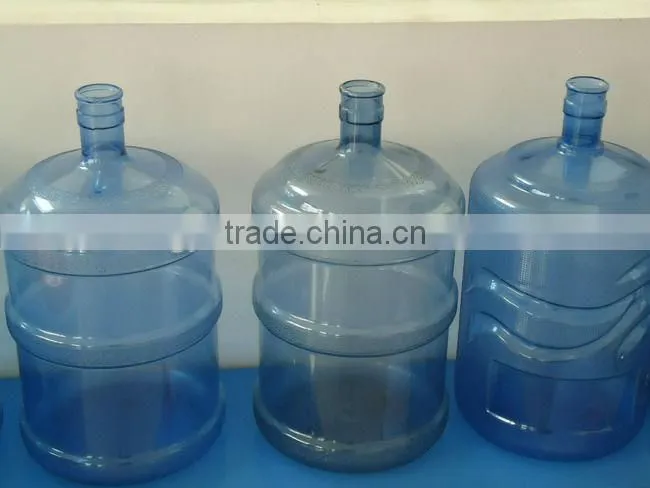

The products made by the machine:



 Contact Us:



Ms. April Liu

Tel: +86 187 6688 9100

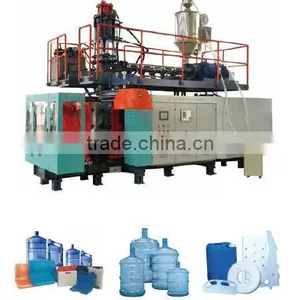

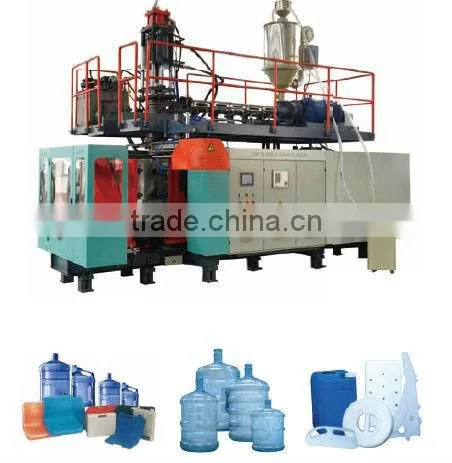

The Blow Molding Machine:



 Why choose us:

 1. We are market-leader in this line in China. Our factory was founded in 1953 inplastic fields.
2. We have been engaged in the machine field for more than 20 years and have much experience in manufacturing plastic machines.
3. Brand-name parts of the machine.
4. Engineering team provide you with the most suitable model towards your products.
5. Technical training and service is the advantage of us.
6. The machine can working more than 10 years without damange by human.
7. We will reply your inquiry within 6 hours.
