Specifications
1. Our factory was founded in 19532. Passed CE and ISo certificates.
3. High output and efficiency
4. Brand -named parts
Auto Blow Molding Machine is mainly used for making various large-scale chemical used buckets, hollow tray, playing desktop, and multi-layer composite IBC buckets with capacity from 100L to 1500L. Also producing Tool Case Chair, auto parts, large chemical bucket; PC 5 gallon and 3 gallon drinking water bucket, lampshade. Lubrication oil barrels, both for industry and civil bottles in bulk. Beside, Injection Blow Molding Machine is mainly used for producing injection blow medicine bottle, cosmetic bottle, reagent bottle, eyedrops bottle......
Specifications |
JG-ZKT75S |
|
Material |
|
PE |
Max. capacity of product |
L |
6 |
Dimensions(L*W*H) |
m |
3.63×2.4×2.38 |
Total weight |
T |
8.9 |
Extrusion system | ||
Dia. Of main screw |
mm |
75 |
L/D ratio of screw |
L/D |
25 |
Die | ||
Quantity of die heating zones |
zone |
4 |
Heating power of die |
KW |
5.6 |
Center distance of double-die |
mm |
160 |
Max. dia .of die |
mm |
140 |
Clamping system | ||
Clamping force |
KN |
110 |
Distance between platens |
mm |
600 |
Max. size of mould(W*H) |
mm |
400×450 |
Power | ||
Driving power of main extruder |
KW |
30 |
Motor power of oil pump |
KW |
11 |
Total power |
KW |
56 |
Water consumption |
L/min |
60 |
Air pressure |
MPa |
0.6 |
Air consumption |
m³/min |
0.8 |
Average energy consumption |
KW |
40 |
The Plastic Products:
Contact Us:
Ms. April Liu
Tel: +86 187 6688 9100

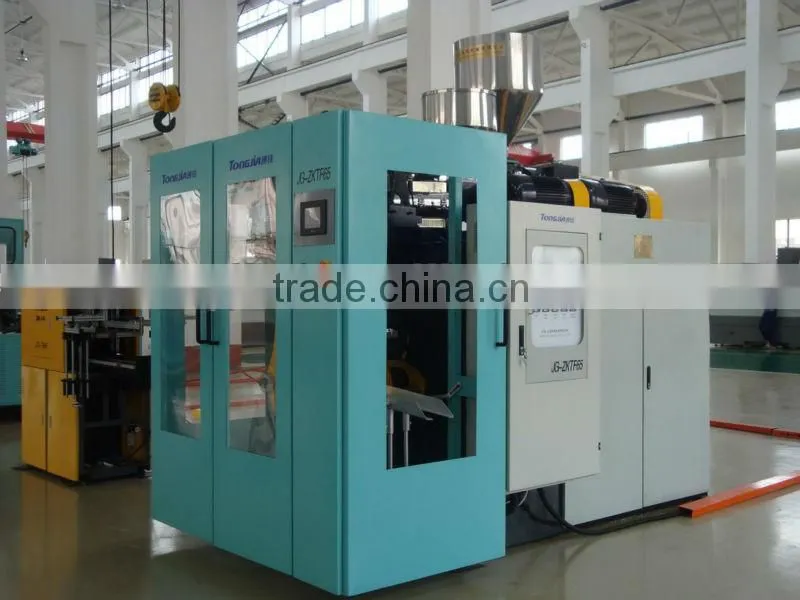

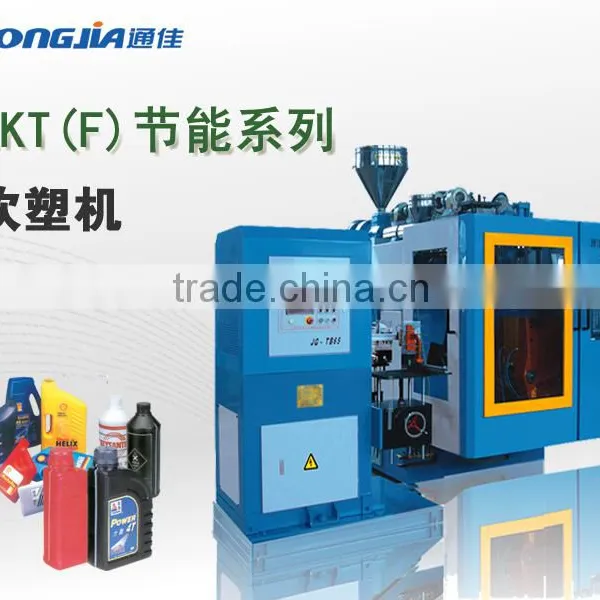

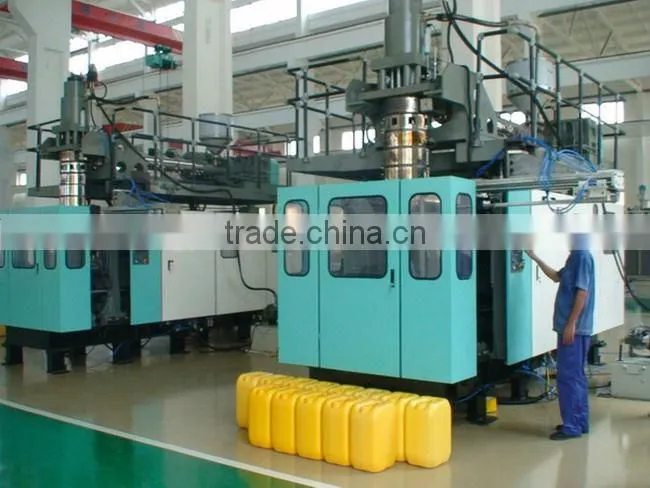

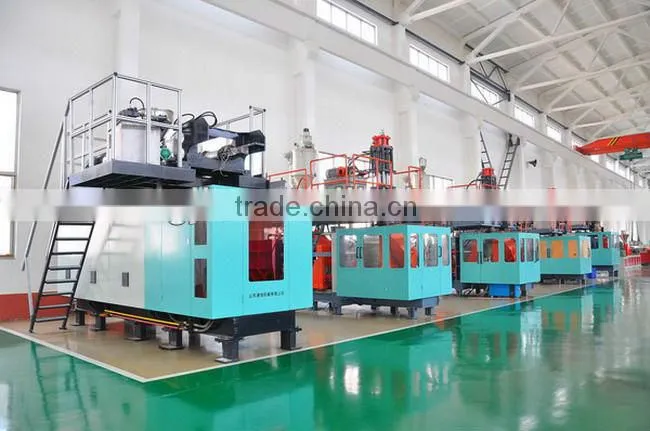

The Blow Molding Machine:
Contact Us:
Ms. April Liu
Tel: +86 187 6688 9100
The Exhibitions:
Why choose us:
1. We are market-leader in this line in China. Our factory was founded in 1953 inplastic fields.
2. We have been engaged in the machine field for more than 20 years and have much experience in manufacturing plastic machines.
3. Brand-name parts of the machine.
4. Engineering team provide you with the most suitable model towards your products.
5. Technical training and service is the advantage of us.
6. The machine can working more than 10 years without damange by human.
7. We will reply your inquiry within 6 hours.
