Help CenterBlow Molding Machine for Make the 5 & 3 Gallon PC Bottle
Related Products
-
Plastic Bottle/jerry Can/oil Bottle Blowing Molding MachineUS$ 28,800 - 36,500MOQ: 1 Set -
Multi-cavity Blow Moulding MachineNegotiableMOQ: 1 Set
-
5 Gallon PC Bottle Blow Moulding MachineNegotiableMOQ: 1 Set
-
Plastic Blow Molding MachineNegotiableMOQ: 1 Set
-
Blow Molding MachineNegotiableMOQ: 1 Set
Specifications
1. Our factory was founded in 1953.2. CE and ISO certificate
3. Famous brand parts of the machine
4. High output
The main specifications and component
(I)component
Extrusion system 1 set
Die head system 1 set
Clamping system 1 set
Hydraulic system 2 sets
Electrical control system 1 set
(II)main technical specification
1. extrusion system
A.screw and barrel
Rotary speed of screw 0-55r/min
Dia. of screw Φ75mm
L/D 25:1
Material of screw 38CrMoAlA processed by nitriding
Screw type barrier mixing screw
Material of barrel 38CrMoAlA processed by nitriding
Heating of barrel electrical heater of casting aluminum and stainless steel shield
Heating zones 5 zones
Heating power 18KW
Control temperature method intelligent meter control (Taida brand)
Cooling method by fan
Exhaust Special design
B.Driving method
Driving power 30KW
Cooling method by fan
Speed-change unit special gear box for plastic machinery
Max. dia. of die Φ100mm
3. Parison controller Siemens
Control method digital
Quantity of control point 100 points
4. Clamping system
Clamping method press straight by oil cylinder
Max. distance of mould open 900mm
Min. distance of mould open 400mm
Max. clamping force 240KN
Dimension of max. module 780×700mm
5. Hydraulic pressure system
Max. pressure 10Mpa
Oil pump type single pump
Driving motor frequency conversion motor
Driving power 22KW
Cooling method by water
6. Electronic system
Control method Taida PLC
Control temperature method intelligent control temperature meter (Taida)
Display method digital
Low voltage electronic Siemens
Transducer LG
7. Blow air system
Blow method automatic blow downwards
8. Other parameters:
Material type PC
Capacity of final product 5 Gallon 3Gallon 3.5Gallon
Power of main motor 30kw
Output 65—80 pcs/h
Total power (max.) 89KW
Electrical source 50HZ380v
0.8Mpa air pressure consume 1m3/min
10°C-15°Cwater consume 0.8 m3/h
Dimensions (L x W x H) approx. 6.2 x3.2 x4.2 (m)
9.Total weight (approx) 12 ton

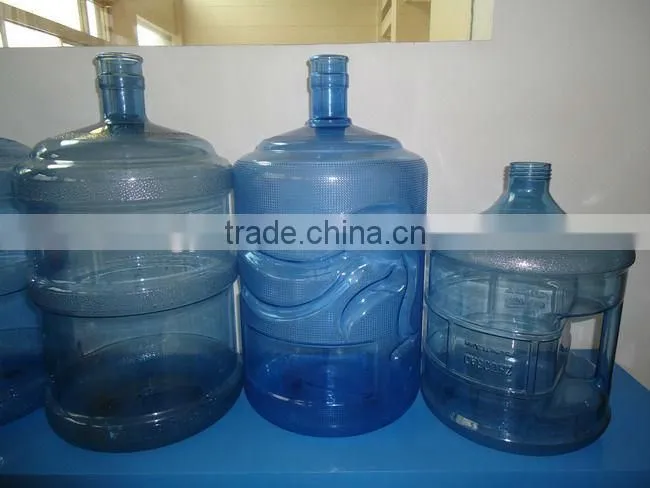

The products made by the machine:

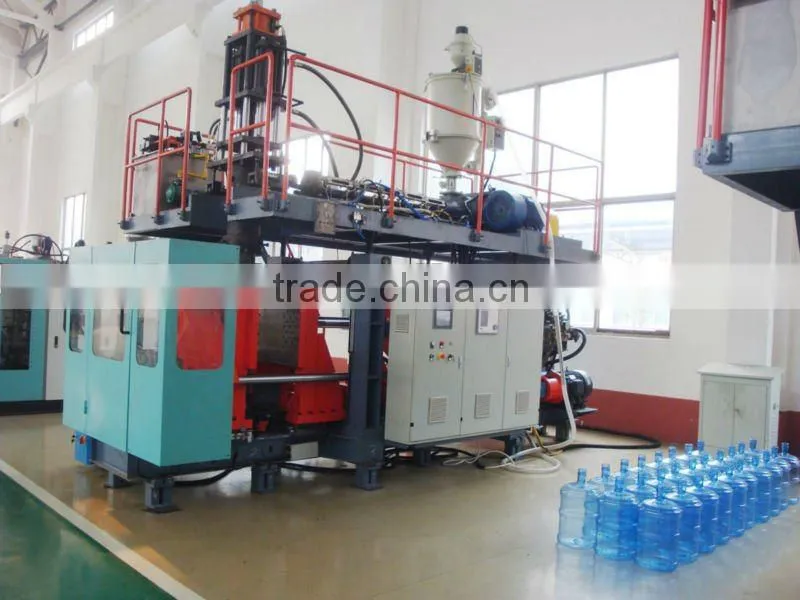

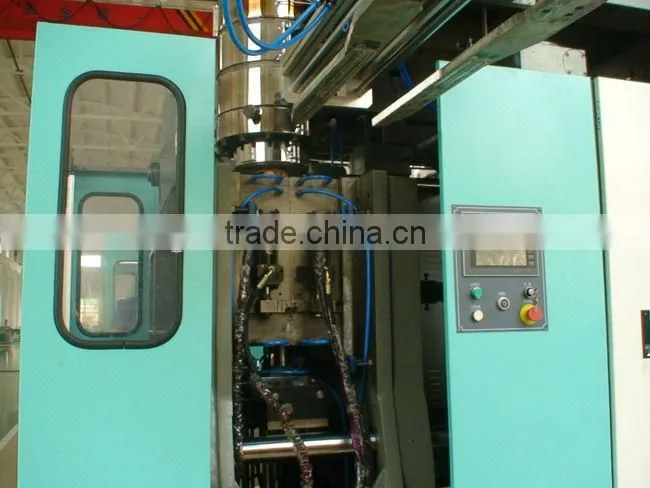

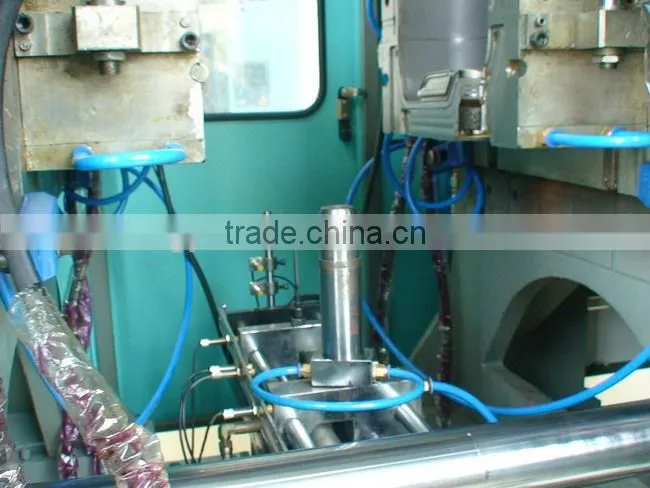

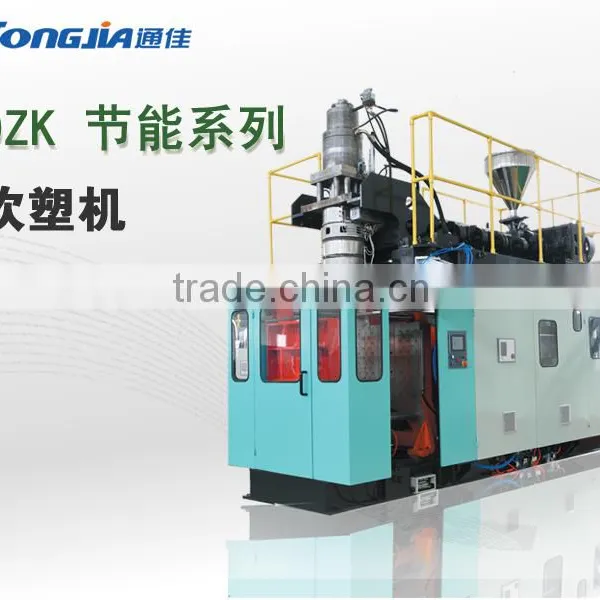

The Blow Molding Machine:
Contact Us:
Ms. April Liu
Tel: +86 187 6688 9100
Contact Us:
Ms. April Liu
Tel: +86 187 6688 9100
Why choose us:
1. We are market-leader in this line in China. Our factory was founded in 1953 inplastic fields.
2. We have been engaged in the machine field for more than 20 years and have much experience in manufacturing plastic machines.
3. Brand-name parts of the machine.
4. Engineering team provide you with the most suitable model towards your products.
5. Technical training and service is the advantage of us.
6. The machine can working more than 10 years without damange by human.
7. We will reply your inquiry within 6 hours.
