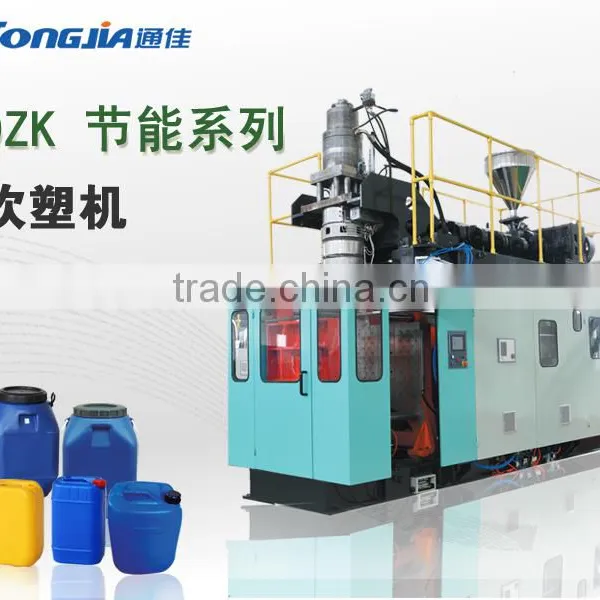

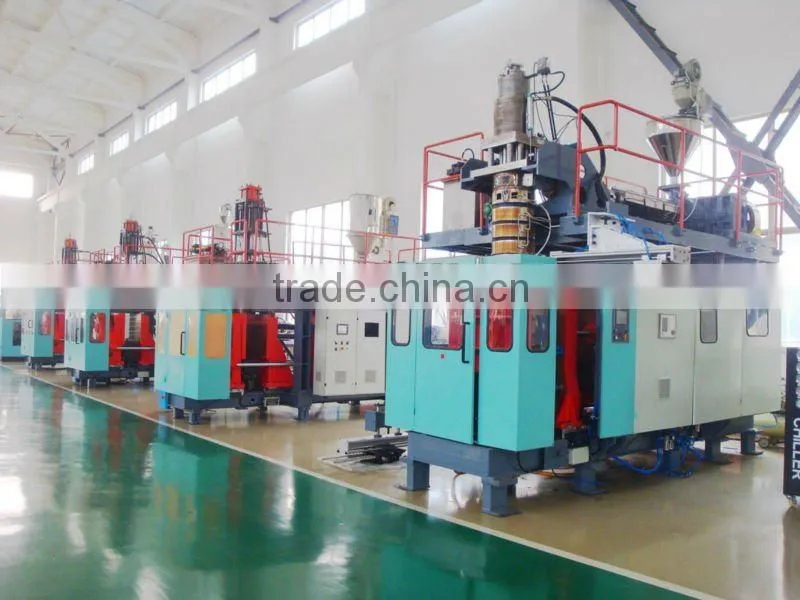

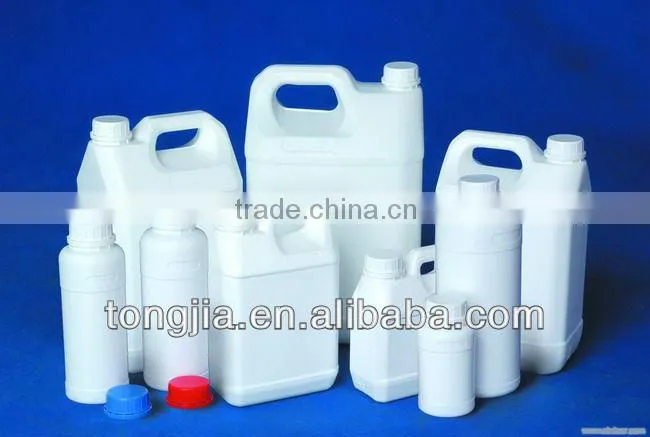

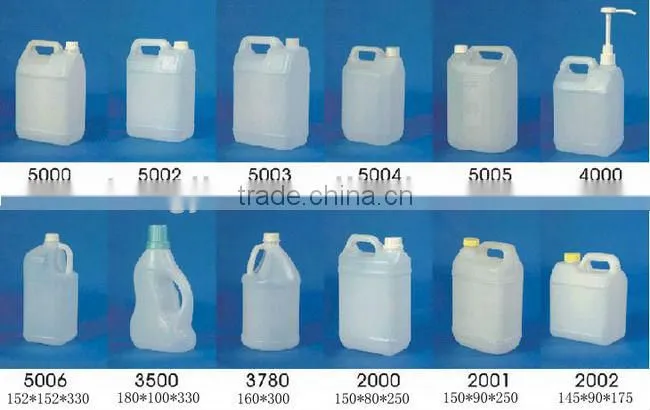

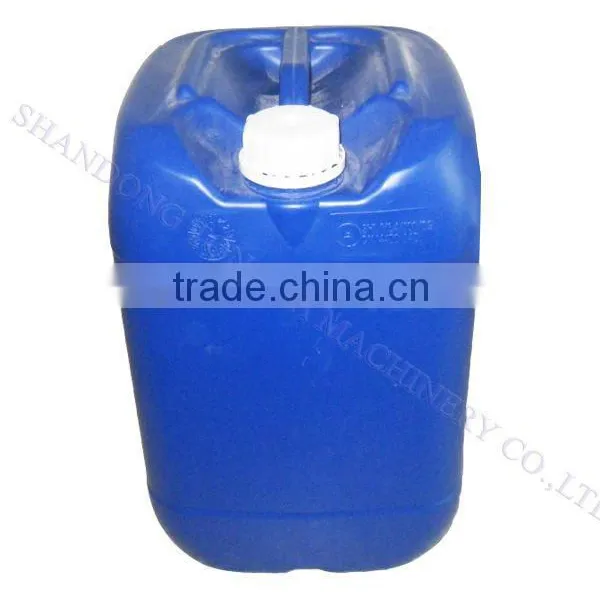

Help CenterPlastic Bottle/jerry Can/oil Bottle Blowing Molding Machine
Related Products

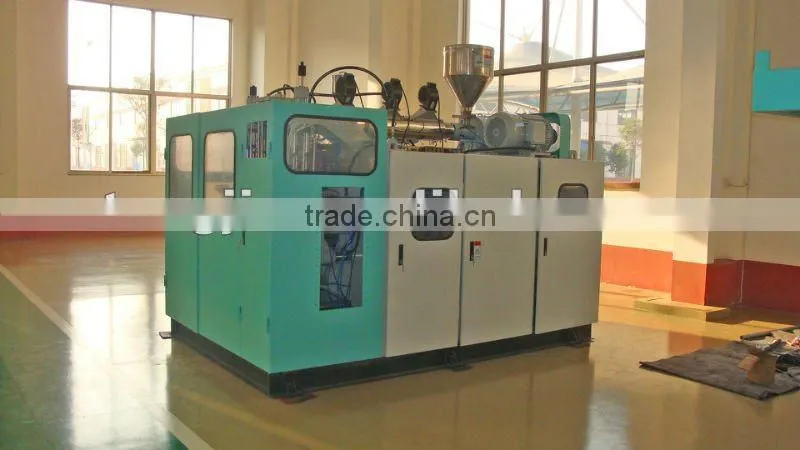

Main Technical Spec. for Double-work Station TJ-ZK65
Specifications |
TJ-ZK65 |
|
Material |
PE,PP, PVC,PA, ABS… |
|
Max. capacity of product |
L |
9 |
Dimensions(L×W×H) |
m |
2.9×2.1×2.85 |
Total weight |
T |
5.5 |
Extrusion system | ||
Dia. Of main screw |
mm |
65 |
L/D ratio of screw |
L/D |
25 |
Die | ||
Quantity of die heating zones |
zone |
2 |
Heating power of die |
KW |
4.4 |
Max. dia .of die |
mm |
150 |
Center distance of double-die |
mm |
150 |
Center distance of tetra-die |
mm |
80 |
Clamping system | ||
Clamping force |
KN |
40 |
Distance between platens |
mm |
100-550 |
Max. size of mould(W*H) |
mm |
350×400 |
Power | ||
Driving power of main extruder |
KW |
15 |
Motor power of oil pump |
KW |
5.5 |
Total power |
KW |
42 |
Water consumption |
L/min |
50 |
Air pressure |
MPa |
0.7 |
Air consumption |
m³/min |
0.4 |
Average energy consumption |
KW |
20 |
Contact Us:
Ms. April Liu
Tel: +86 187 6688 9100
Why choose us:
1. We are market-leader in this line in China. Our factory was founded in 1953 inplastic fields.
2. We have been engaged in the machine field for more than 20 years and have much experience in manufacturing plastic machines.
3. Brand-name parts of the machine.
4. Engineering team provide you with the most suitable model towards your products.
5. Technical training and service is the advantage of us.
6. The machine can working more than 10 years without damange by human.
7. We will reply your inquiry within 6 hours.
Contact Us:
Ms.April Liu
TeL: +86 187 6688 9100
