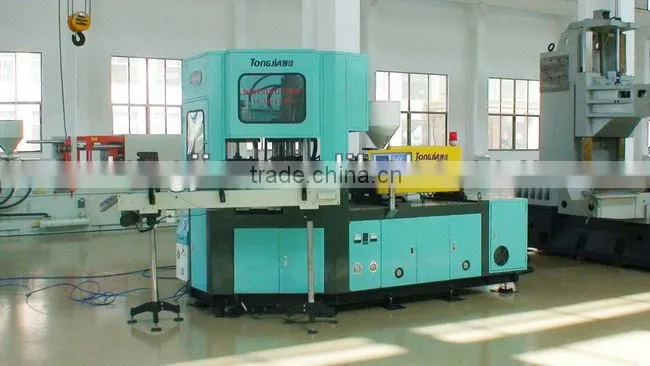

Injection Blow Molding Machine

Name: Injection Blow Molding Machine
Brand: Injection Molding Machine
SKU: 109820571

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

Other, Bottle

Plastic Processed:

Shandong Tongjia Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Other, Bottle

Plastic Processed PE

Screw Design Single-screw

Automatic Grade Full automic

Place of Origin Shandong, China

Brand Name Injection Molding Machine

Model Number TJ-ZKZ280

Power(W) 25KW

Dimension(L*W*H) 3.1*1.1*2.2

Weight 2.5T

Certification CE

After-sales Service Provided Overseas service center available

Specifications

This series machine can make the thickness of product is symmetrical and bottle neck is smooth.

Specifications		TJ-ZKZ280
Material		PE, PP, PA, ABS…
Max. capacity of product	L	0.003-0.6
Dimensions(LWH)	m	3.11.12.2
Total weight	T	2.5
Injection system
Dia. Of main screw	mm	35
Max. theoretical injection capacity	cm³	158
Quantity of die heating zones	zone	4
Total power of barrel-heating	KW	6.5
Control zones of electric-heating	Q’ty	3
Clamping system
Clamping force of injection mould	KN	280
Opening stroke of injection mould	mm	120
Clamping force of blow mold	KN	30
Opening stroke of blow mold	mm	120
Max. size of mould(L*W)	mm	300*200
Power
Main motor power	KW	15
Pressure of hydraulic system	Mpa	14
Min. of hydraulic compressed air	Mpa	0.8
Discharge quantity of compressed air	m³/min	0.8
Cooling water consumption	m³/h	3
Total power	KW	25
