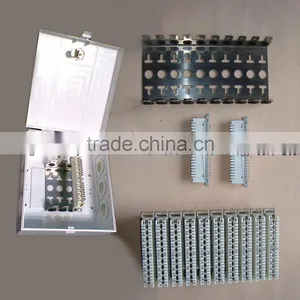

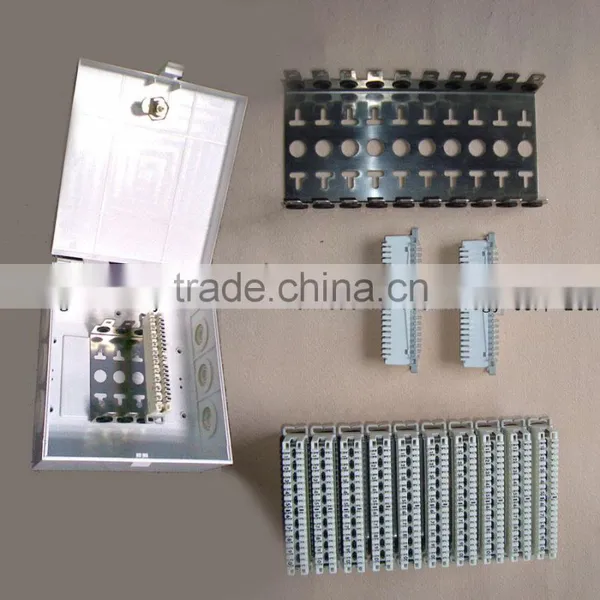

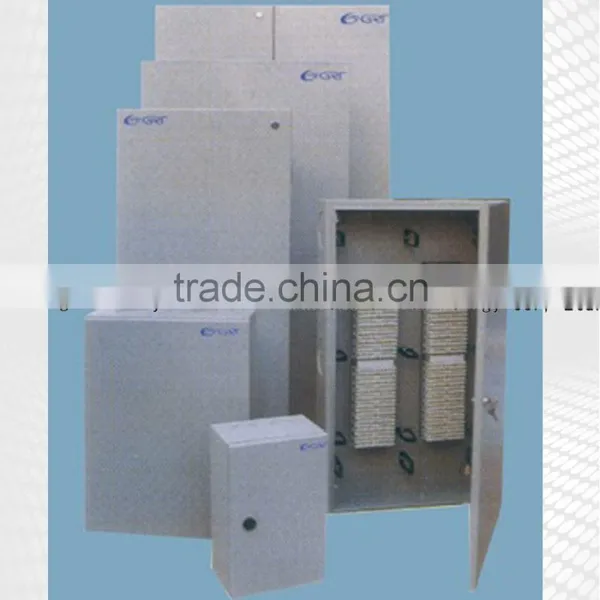

Help CenterDistribution Box for Telephone Wire and Krone Module
Related Products
-
Metal Fiber Optic Telephone Electrical Cable Waterproof Outdoor Power Distribution BoxNegotiableMOQ: 1 Piece -
100 Pairs Krone Module Mount FrameNegotiableMOQ: 1 Piece
-
4000 Pairs Telecom Cabinet or Main Distribution Frame With Krone Module Telecom CabinetNegotiableMOQ: 1 Piece
-
100 Lines or 150 Lines Krone Back Mount FrameNegotiableMOQ: 1 Piece
-
10 PAIRS DISCONNECTION LSA MODULE, 10 Pair LSA Connector/krone ModuleNegotiableMOQ: 1 Piece
Products description:
- The product uses advanced rotary snap and crimp splice two kinds of ways, rotary card connection, automatically snap the core wire automatic peeling, automatically cut the excess thread, the contact is not exposed,Contacting convenient and reliable.
- Terminal board can freely flip, easy to reverse wiring ,can be directly screw clamp pressure line test, test convenient, up and down throughout.
- The shell is made of aluminum alloy die casting, has strong rust resistance, and install conveniently.
- Terminal board is made of good quality project ABS . The insulation function is good. Its fire resistance can meet the GB-4609 and FU-0 standard.
- Order direction: When the products is finished, the other parts have be installed on the box. The customers can use according to the distributing cable capacity.
- Incoming wire using rotary clip airtight connection methods to ensure that the core is not exposed contacts, touch reliable.
- Outgoing wire use the screw pressing card, Peeling and cutting the insulation layer is not required. Point of contact
- Organic silicone grease is seeled at the point of contact, which has anti-corrosion, waterproof, moisture proof, safe and reliable.
- The shell is made of aluminum alloy or cold rolled plate forming, surface spray, and cable holes with sealing ring, good sealing performance.
Products Specifications:
Ambient temperature:-55~+55 degree.
relative humidity: <95%
atmospheric pressure:70~106Kpa.
Environment temperature:-25℃-+40℃
dielectric withstanding voltage: No breakdown and the flying fox phenomenon within one minute under AC voltage 500V.
Application: Local cable network of main line and branch line.

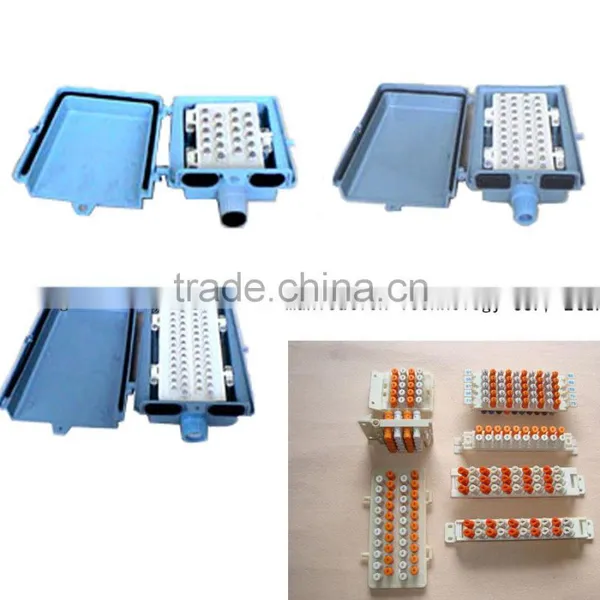

There are 5-50 pairs. There are Aluminum Alloy shell indoor distribution box, recessed junction box, hold dry sub-line box and so on.
No. |
Name |
Model |
Contact mode |
Size(mm) |
Maximum capacity(wire) |
1 |
10 pairs distribution box |
XF168-10 |
Rotary card module |
|
10 |
2 |
20 pairs |
XF168-20 |
|
20 |
|
3 |
30 pairs distribution box |
XF168-30 |
263*60*174 |
30 |
|
4 |
50 pairs distribution box |
XF168-50 |
286*60*179 |
20 |
|
5 |
10 pairs distribution box |
XF169-10 |
Card contact 10 wires module |
160*75*160 |
10 pairs |
JPX800B-10H | |||||
6 |
20 pairs distribution box |
XF169-20 |
160*75*160 |
20 pairs |
|
JPX800B-20H | |||||
7 |
30 pairs distribution box |
XF169-30 |
160*75*160 |
30 pairs |
|
JPX800B-30H | |||||
8 |
40 pairs distribution box |
XF169-30 |
205*102*187 |
40/50 |
|
JPX800B-40 | |||||
9 |
50 pairs distribution box |
XF169-50 |
205*102*187 |
40/50 |
|
JPX800B-50H |
