Specifications

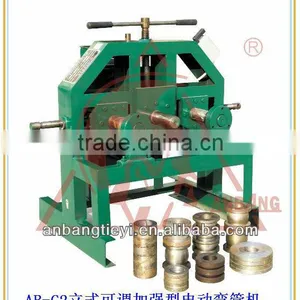

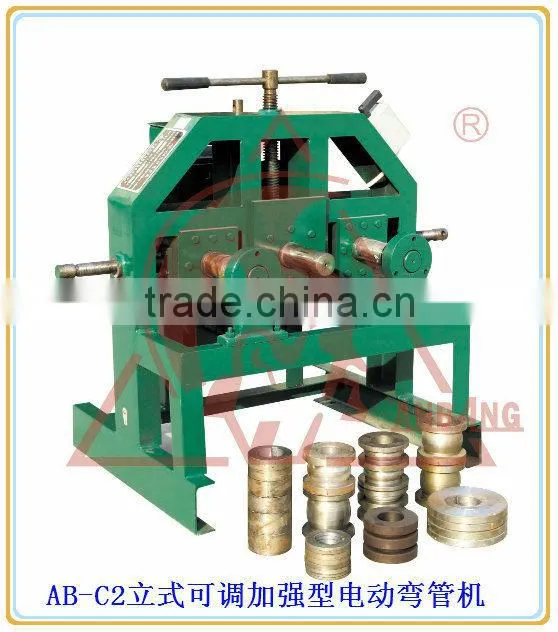

we can bend various diameter parts: round tubes, square tubes, rectangular tubes.Compared with the first generation AB-C1 bender, the space length of the two driving
shafts of the AB-C2 upright adjustable reinforcement tube bender is adjustable.
Thereafter, we can bend various diameter parts: round tubes, square tubes, rectangular tubes, as well as large and small diameter arc and round products. Owing
to the adjustable transverse distance of the two shafts, it can process thick
and large tubes easily. In operation we can get arc and round parts with different
diameters by controlling the press-down sizes of the driven roller. The machine
has large processing ability, and can be used extensively and labor saving.
There are 9 kinds of dies as the machine attachments.
1. Working ability:
1). Square tube: 15 x 15mm - 80 x 80mm
2). Round tuber: Φ22mm - Φ100mm
2. Processing flower basket material size: 0.6-2.5mm
3. Electric motor performance:
1). Power: 1.1kW (class 6);
2). Electric voltage: 220V / 380V
3). Frequency: 50Hz
4). Rated current: 2.2A
4. Main features:
1). Having good applicability, the shaft space length of the driving wheels of
the machine is adjustable
2). The machine, having extensive usage, can process square tubes, round tubes,
rectangular tubes, stainless steel tubes and flat irons
3). The advantage of the machine in round tube processing is that it can ensure
that the processed material have small section deformation
4). The machine is made with large processing strength and extensive material
processing specification
5. External dimensions (L x W x H): 800 x 700 x 700mm
6. Weight: 330kg
