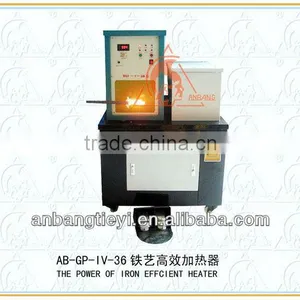

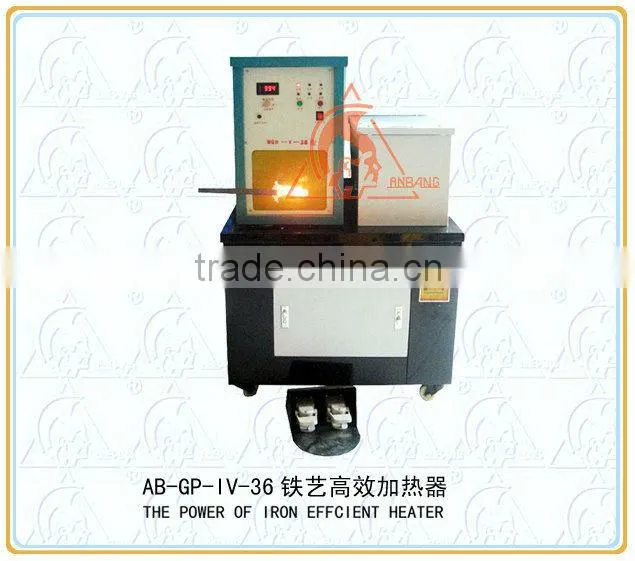

Help CenterHigh Efficient Heater Of Ironart
Related Products
-
Wrought Iron Hydraulic Bending MachineUS$ 15,800 - 15,800MOQ: 1 Set -
Cold Rolling Embossing MachineNegotiableMOQ: 1 Set
-
IRON TUBE ROUNDING AND ANGLING MACHINEUS$ 163.00 - 163.00MOQ: 1 Set
-
COLD ROLLING EMBOSSING MACHINEUS$ 9800.00 - 9800.00MOQ: 1
-
IRON CRAFTWORKS OF GATES,WINDOWS,BALUSTERS,,STAIR RAILSUS$ 200.00 - 200.00MOQ: 500 Sets
Specifications
Quickly heating: It take 10second to heat the 20cm2 sectionHigh efficient heater utilizes resonance theory, pulse frequency transfer of space technology and large capacity high speed switch, which combines elements of high-tech products. The main circuit uses the IGBT products, so it fundamentally reforms electronic oscillation characteristics of the older generation of high-frequency equipment. It can be applied to all occasions of less than 20cm welding section, including heat treatment of small metal parts such as small gears and shafts, and metal smelting such as melting gold and silver.
1. Working ability (maximum working specification):
a). Flat iron ≤60 x 10mm
b). Square steel ≤30 x 30mm
c). Other work piece diameter ≤30mm
2. Electric motor performance:
a). Voltage: 380
b). The range of input voltage: 320 - 420V
c). Frequency: 50Hz
d). Surge frequency: 30 - 80kHz
e). Input electric current: 4 - 36A
f). Output surge electric current: 300 - 1,400A
g). Duty-cycle: 100%
3. Main features:
a). Bulk small (main frame): 410 x 290 x 500mm
b). Tank: 310 x 260 x 380mm
c). Quickly heating: it takes 10 seconds to heat the 20cm2 section
d). Electricity consumption: it saves 60% than other electronic tube-type equipment
e). The inductorium can be disassembly and assembly, so it is suitable to many kinds of work pieces
f). There is a sound and light warning system when over pressure, lack water, or over electric current
