panel led digital ac current meter 0-10A power meter
Negotiable
/ Piece
1 Piece(Min.Order)
- 2000 Piece / Pieces per Month
- Beijing
- T/T Credit Card PayPal
You May Like
Product Details
Place of Origin | Beijing, China | Brand Name | GFUVE | |
Model Number | FU2200A | Measuring Current Range | 0~6A | |
Measuring Voltage Range | 30~600V | Accuracy Class | 0.2% | |
Operating Temperature | -25 ~ 55 °C | Dimensions | Trepanning: 92 X 92mm |
Product Description
new design panel led digital ac current meter 0-10A power meter
Product Description

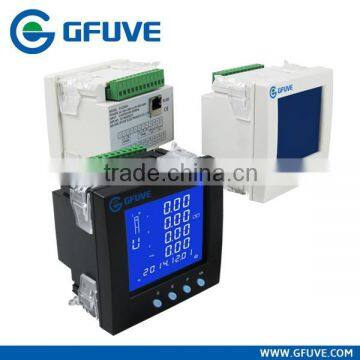

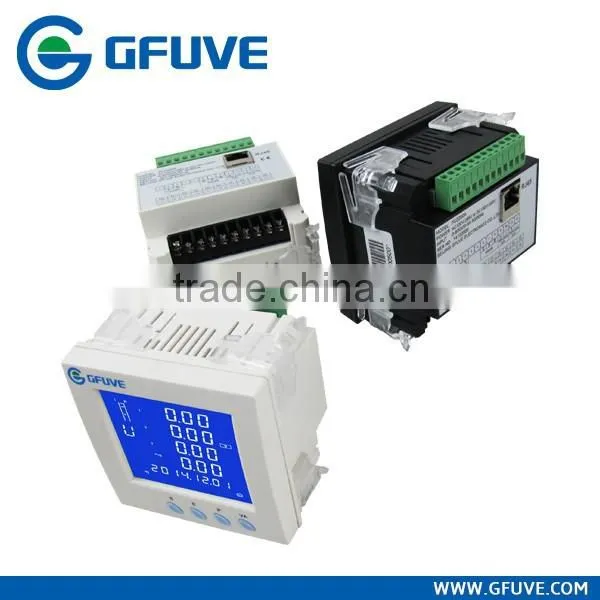

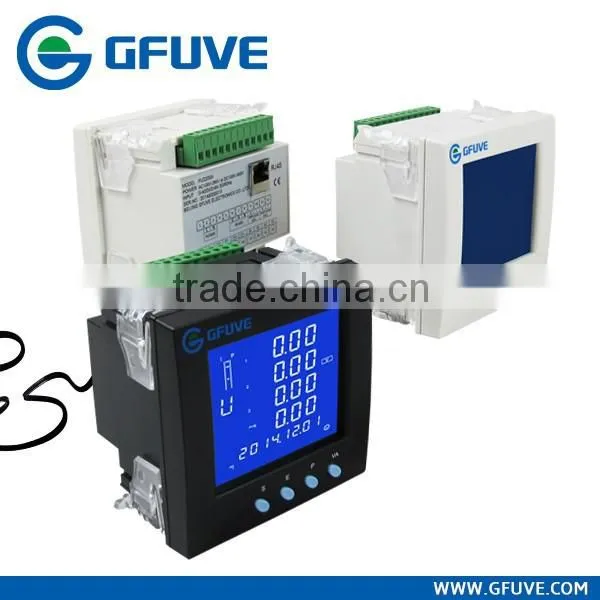

FU2200A Ethernet power meter has the PC software and the data logger function, which can set by end users from 1min to 60min intervals to record. You can read the data through a PC. Also, you can share the data in the Internet LAN. By the way, it can measure the harmonics. Back of power meter FU2200A with Ethernet port as photo shows here.
FEATURES
- True-RMS measuring parameters
- ANSI and IEC 0.2 accuracy class
- Power quality analysis
- 4 quadrant energy
- 2MB onboard memory, can be extended to 16M
- Data logging
- High-speed RS485, Ethernet port (option)
- Measure individual harmonics from 2nd to 49th (option)
- TOU, 4 Tariffs, 6 Seasons, 6 Schedules
- Three years warranty
- With PC management software; web browse data
APPLICATIONS
- Metering of distribution feeders, transformers, generators, capacitor banks and motors
- Medium and low voltage systems
- Commercial, industrial, utility
- Power quality analysis
- Data logging
- Monitoring system
PARAMETERS
Electrical parameters | |
---|---|
Power Supply (AC/DC) | AC85-400V / DC85-330V Power consumption: <4VA |
Measurement Parameters | Voltage (Ph-N); Voltage (Ph-Ph); Current; Frequency; PF; Active Power(W); Reactive Power(Q); Apparent Power(S), 2nd to 49th harmonics(option) |
Harmonics | Total harmonics ratio of phase-voltage Total harmonics ratio of current 2nd to 49th harmonics ratio of phase-voltage 2nd to 49th harmonics ratio of current |
Maximum Value & Minimum Value | Voltage, current, frequency, active power, reactive power, apparent power,demandP,demandQ, demandS. |
Computation | Forward active power energy Reverse active power energy Forward active power energy Reverse reactive power energy |
Measuring Range | 0-400V, 0-6A, 45-65Hz, -1 ~ 0 ~ 1 |
Measuring Accuracy | Voltage: 0.5%RD±0.05%FS Current: 0.5%RD±0.05%FS Active Power: 0.5%RD±0.05%FS Reactive Power: 1.5%RD +0.05%FS Apparent power: 0.5%RD +0.1%FS Power Factor: 0.5%RD Frequency: 0.05%RD Active Energy: 0.5% |
Maximum Demand | Ia, Ib, Ic, ΣPtotal, ΣQtotal, ΣStotal, 15 minutes |
Display | Blue back-lit LCD Display 5 display figures 4 operation keys |
Communication | Support RS-485 interface port, 32 (128) Networking ModBus-TCP/IP SNMP communication protocol Ethernet 10/100M port (RJ45) |
Memory | 2M onboard memory,can be extended to 16M. Data looger interval can set by end users from 1min to 60min.The default is 15min. You can read the data through a PC, also you can select the data to diaplay and store from software. |
Programmable | Measuring system: 3P4W/3P3W etc Transformation Ratio: PT 1-10000; CT 1-10000 |
Energy Pulse | Provides active & reactive energy pulse output Pulse parameters can be choosed Range: 0.1-10000kWh/kvarh Dry contact output (1Ax100V) |
Connection Mode | 3P4W, 3P4W BAL, 3P3W, 3P3W BAL, 1P3W, 1P2W |
Baud | Baud: 1200-57600, Standard 38400 |
Mechanical parameters | |
Dimensions (L x W x H) (mm) | 96 x 96 x 12.8 |
Mounting | Panel mounting Trepanning: 92x92mm The thickness of installation: 51mm |
Environmental conditions | |
Temperature | -5 to +50 °C |
Humidity | 20%-95%RH, without condensation |
Warranty | Three years warranty |
