Specifications
1.a multifunction power analyzerasure all the electric parameters in the circuit
3. it has RTC, calendar and one pulse

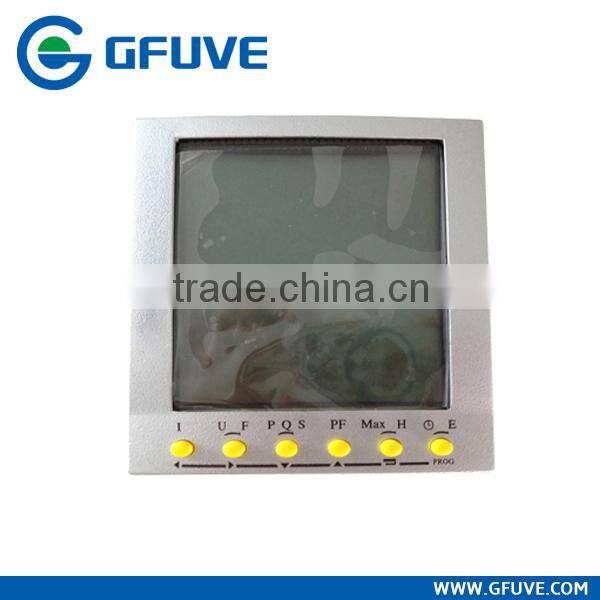

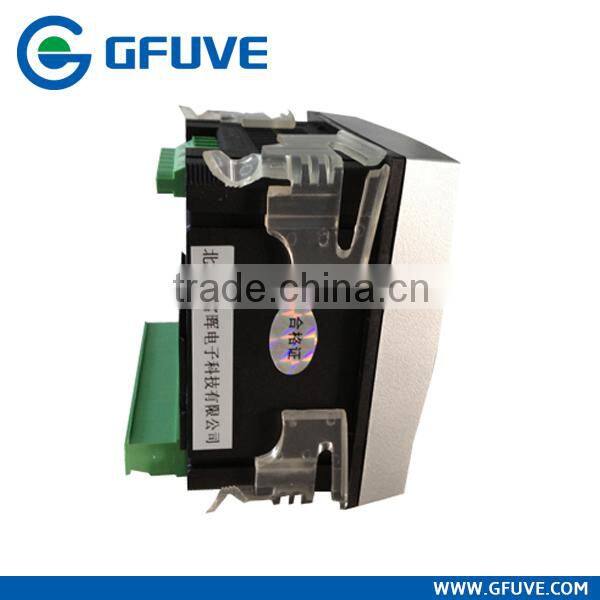

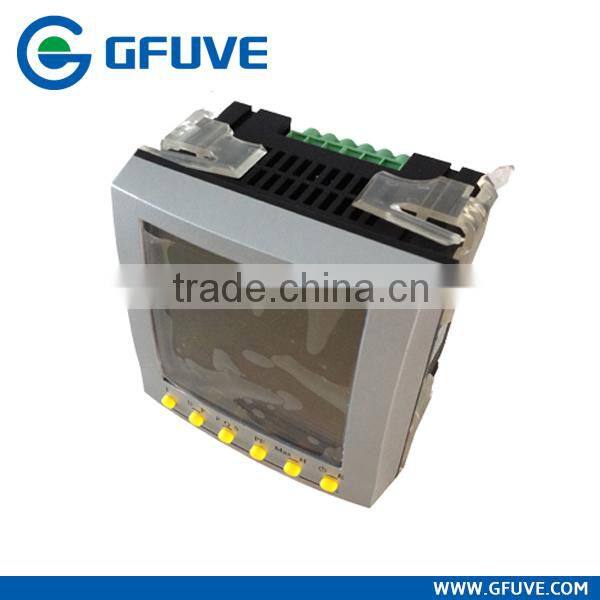

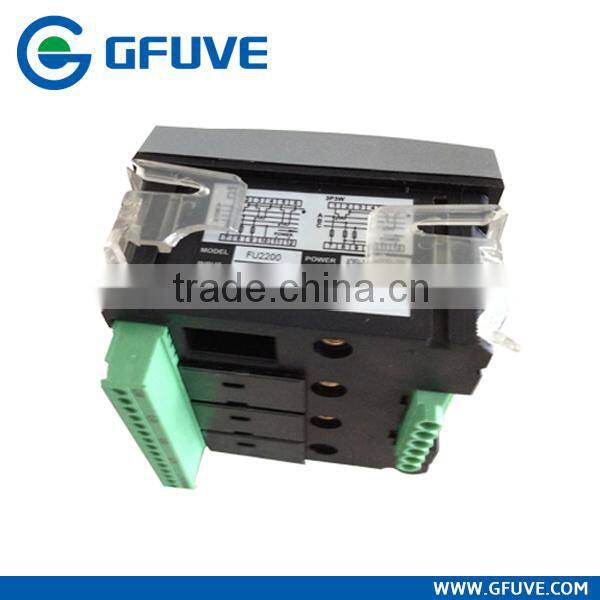

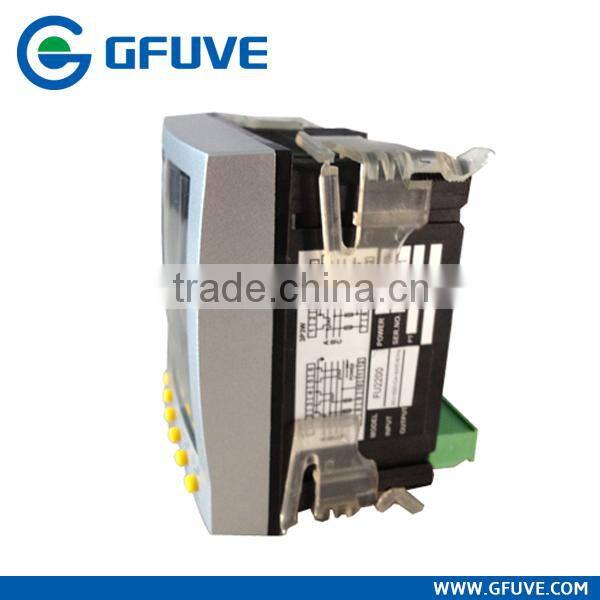

FU2200 Prepaid digital three phase kwh meter
Introduction
FU2200 is a multifunction power analyzer, It can measure all the electric parameters in the circuit, and it has RTC, calendar and one pulse output.
Measurement Parameters
Voltage (Ph-N); Voltage (Ph-Ph); Current; Frequency; PF; Active Power (W); Reactive Power (Q); Apparent Power(S)
Computation
Forward active power energy
Reverse active power energy
Forward active power energy
Reverse reactive power energy
Measuring Range
30~600V, 0~6A, 45~65Hz, -1~0~1
Measuring Accuracy
Frequency: 0.1%
Electric energy: 0.5%, 1.0%
Voltage : 0.2%±0.1V
Current : 0.2%±0.001A
Power : 0.5% ±0.4W
Power Factor : 0.5% ±0.001

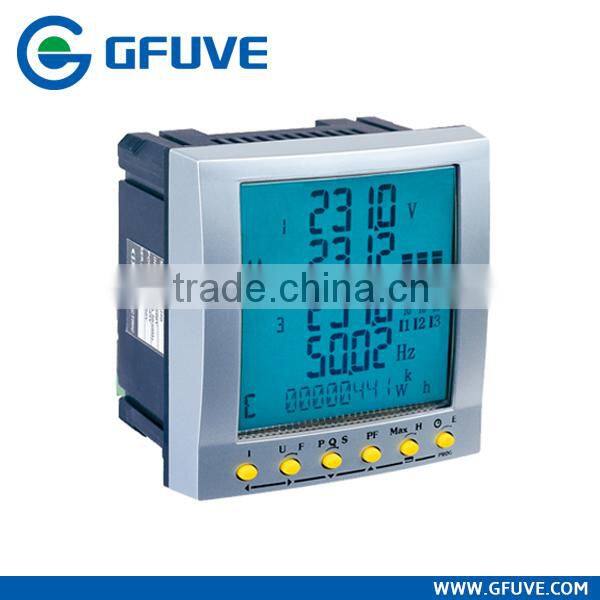

Display
LCD Display, 128´64 Lattice, English and Chinese interface, 4 Displays. Green back-lit 4 operation keys.
Communication
RS-485 interface port support, 32(128) Networking, ModBus-RTU communication protocol.
Energy Pulse (Optional)
One active energy pulse output
Pulse constant: 5000kWh
Photocoupler output (0.1A*30V).
RTC
Accuracy drift less than 2.5min/year
Connection Mode
3P4W, 3P4W BAL, 3P3W, 3P3W BAL, 1P2W, 1P3W.
Programmable
Measuring System : 3P4W/3P3W etc.
Transformation Ratio : PT,CT.
Communication:
Address: 1~247; Baud: 1200~19200; Parity Bit: N/E/O
RTC: Year; Month; Day; Hour; Minute; Second
Energy: Reset
Dimension
Mounting Panel:120 X 120mm
Thickness:21mm
Depth:118mm
Mounting
Panel Mounting
Trepanning: 92 X 92mm
Power Supply (AC/DC)
AC85~265V / DC85~330V, DC18~90V (optional)
Power Consumption: <4VA
Working condition
Temperature: -25 ~ 55 °C
Humidity: 20% ~ 95%RH, Without condensation
