Single Phase Digital Electric Energy Meter

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port Beijing/Shenzhen
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Beijing, China	Brand Name	GFUVE
Model Number	FU2040	Display Type	Digital Only
Phase	Single Phase	Measuring Energy Range	0-999999999.9kwh
Accuracy Class	0.5%,1.0%	Output Voltage	30-600V
Operating Temperature	-25 - 55 °C	Dimensions	72X72mm

Product Description

Specifications

1. a LCD display power analyzer
tering and displaying all the measured parameter
in wide temperature ranger

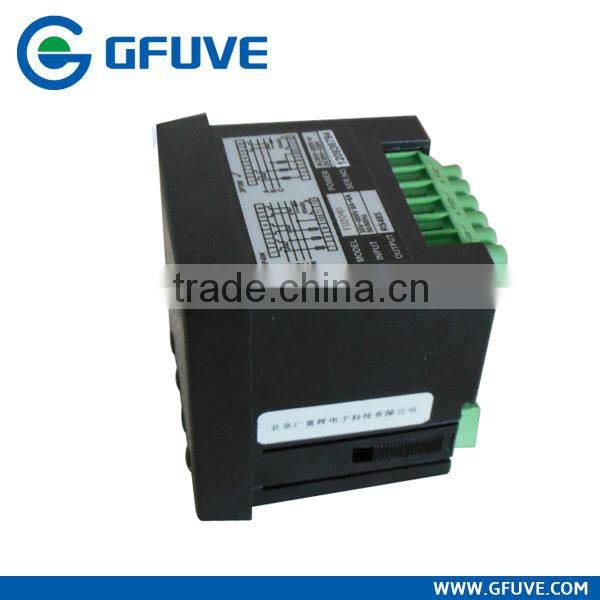

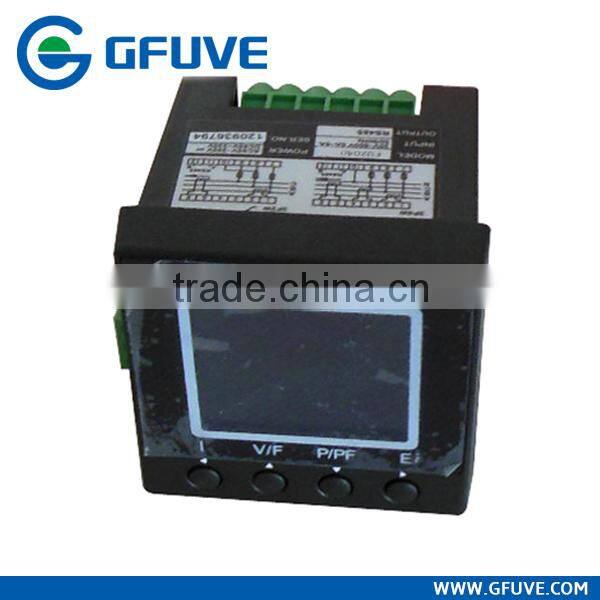

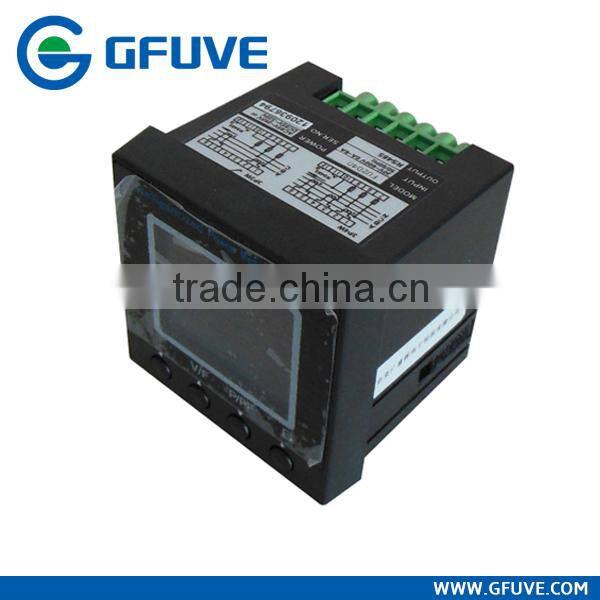

FU2040 single phase digital electric energy meter

Product Description

FU2040 is a LCD display power analyzer, metering and displaying all the measured parameter in one circuit and computing four quadrants energy. This model can work in wide temperature range.

Measurement Parameters

Voltage (Ph-N); Voltage (Ph-Ph); Current; Frequency; PF; Active Power(W); Reactive Power(Q) ; Apparent Power(S)

Computation

Forward / Reverse active / reactive power energy.

Measuring Range

30~600V, 0~6A, 45~60Hz

Measuring Accuracy

Frequency	0.10%
Electric energy	0.5%, 1.0%
Voltage	0.2%±0.1V
Current	0.2%±0.001A
Power	0.5% ±0.4W
Power Factor	0.5% ±0.001

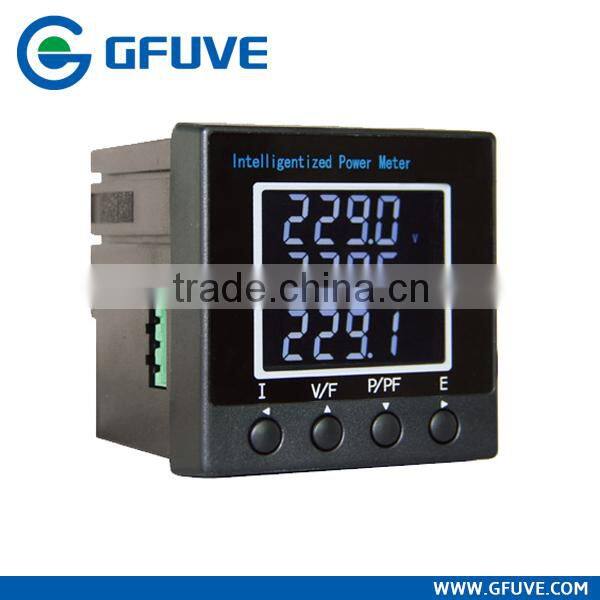

Display

LCD Display, 3 Displays. 4 Operation keys.

Communication

RS-485 interface port support, 32(128) Networking, ModBus-RTU

communication protocol.

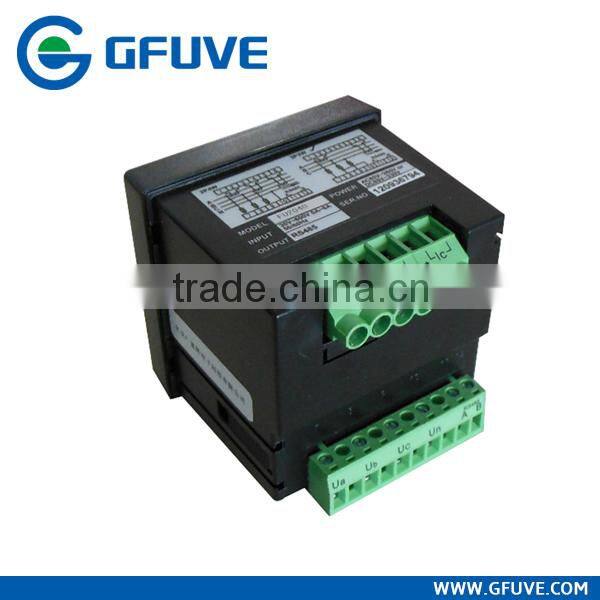

Connection Mode

3P4W, 3P4W BAL, 3P3W, 3P3W BAL, 1P2W, 1P3W.

Programmable

Measuring System : 3P4W/3P3W etc.

Transformation Ratio : PT,CT.

Communication:

Address: 1~247; Baud: 1200~19200; Parity Bit: N/E/O

Energy: Reset

Dimension

Mounting Panel:72 X 72mm

Thickness:13mm

Depth:60mm

Mounting

Panel Mounting

Trepanning: 68 X 68mm

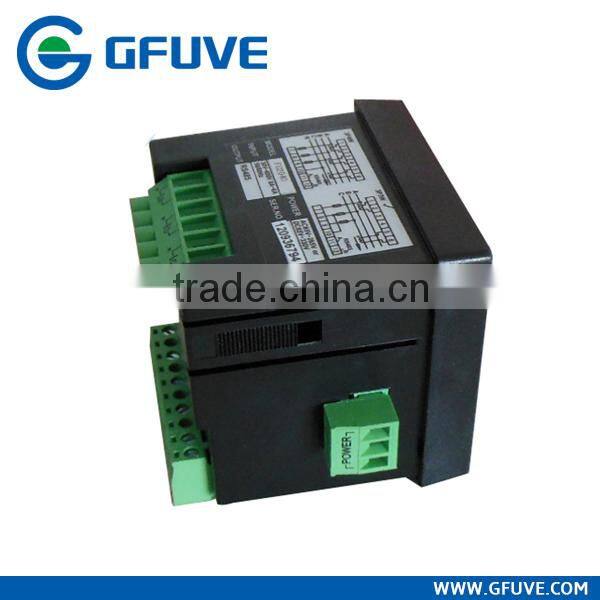

Power Supply (AC/DC)

AC85~265V / DC85~330V

Power Consumption: <4VA

Working condition

Temperature: -25 ~ 55 °C

Humidity: 20% ~ 95%RH, Without condensation
