Heavy Current and High Voltage Electrical Test Equipment GF2013 Amp Clamp Current Meter
Negotiable
MOQ: 10 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
GFUVE
Model Number:
GF2013
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing/Shenzhen/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wireless Electricity Anti-theft Primary Current RecorderNegotiableMOQ: 1 Set -
Electricity Wireless Energy Monitor MeterUS$ 10 - 300MOQ: 1 Piece
-
Modbus Data Logger Three Phase Power MeterNegotiableMOQ: 1 Piece
-
AC Precision 220V Power MeterUS$ 10 - 200MOQ: 1 Piece
-
Electric Digital Power Meter Price PanelNegotiableMOQ: 1 Set
Place of Origin
Beijing, China
Brand Name
GFUVE
Model Number
GF2013
Display Type
Digital Only
Measuring Current Range
0~300A
Measuring Voltage Range
6KV~35KV
Measuring Resistance Range
no
Measuring Capacitance Range
no
Measuring Inductance Range
no
Operating Temperature
-40℃-+70℃
Dimensions
small volume
Weight
light weight
Specifications
1. wireless is installed on high pressure 6KVaa35KV power line2. the measured value through the 433M wireless communication

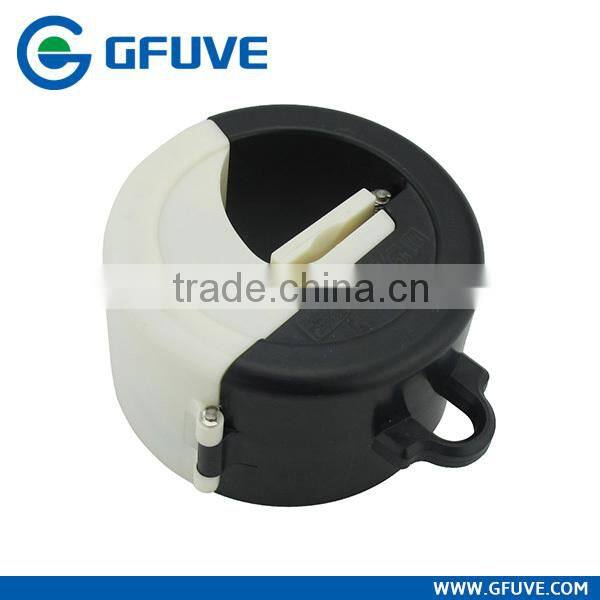

Heavy current and high voltage electrical test equipment GF2013 amp Clamp Current Meter, On-site calibration of high current,anti-leakage

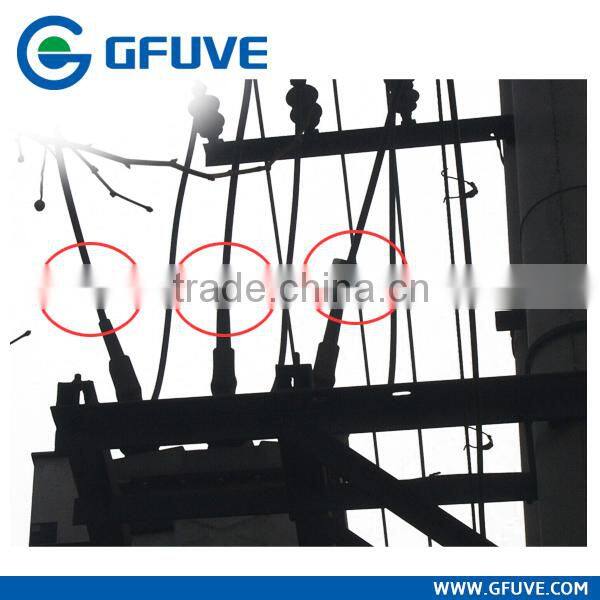

GF2013 medium voltage clamp current meter with wireless is installed on high pressure 6KV~35KV power line, this phase load current measuring calculation, and the measured value through the 433M wireless communication transmission to other copy read equipment (intelligent terminal) analyzed and using.
The equipment adopts Rogowski coil measurement technology, low power design and has charged installation etc., easy to use, simple.
Product features and specifications
- Measurement Range: 0~300A;Frequency 50/60Hz;
- Measurement Accuracy: class 1%, 0.5%;
- Small volume, light weight, easy to overhead installation, safe environmental protection;

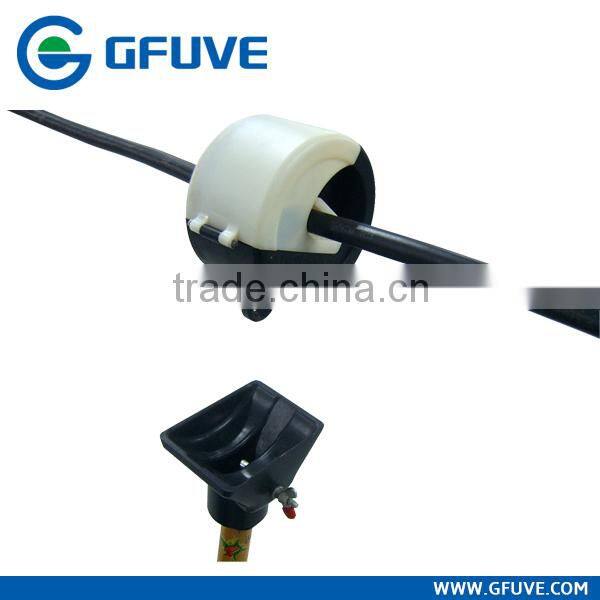

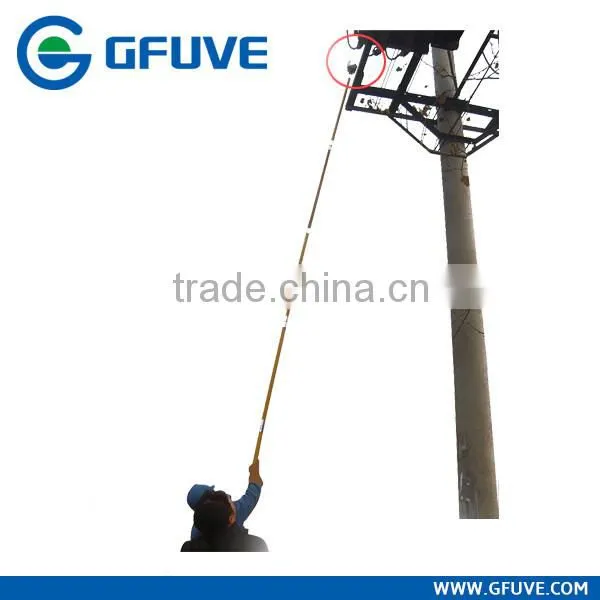

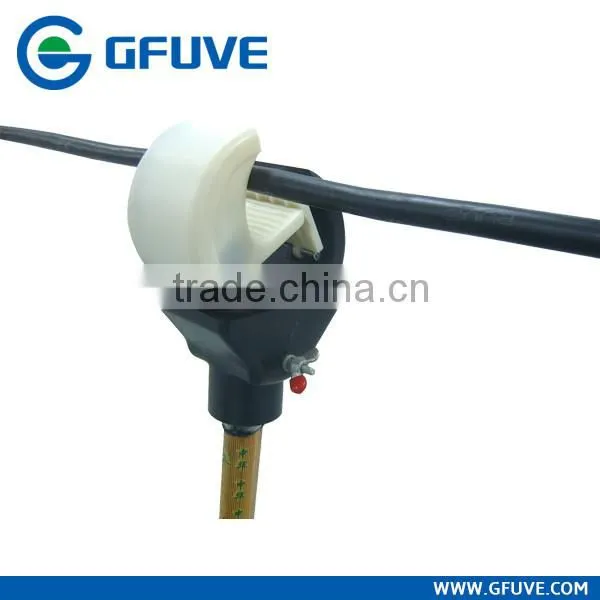

- Simple structure, convenient and flexible disassembly, charged installation;
- Battery power supply, low power consumption, long life;
- Working Temperature: -40°C~+70°C;
- Transmission distance: 100 m;
- Communication with 433M module;
- Have 2M memory, it can continuous storage 30 days data (record one data for every 10 minutes);
- Storage data interval time can be set.
