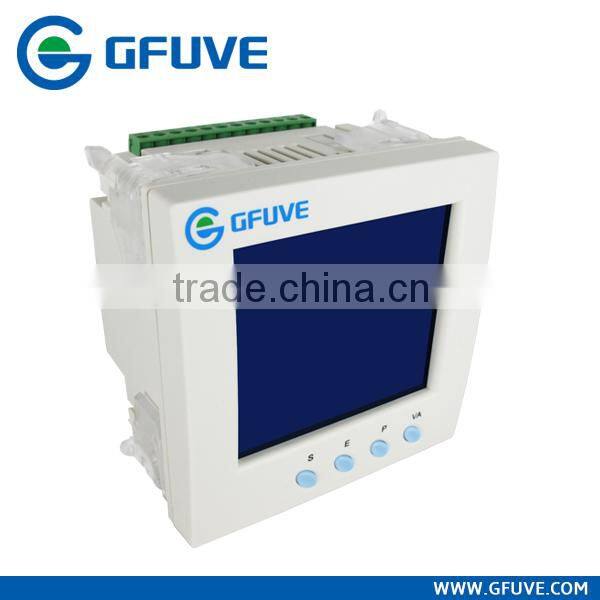

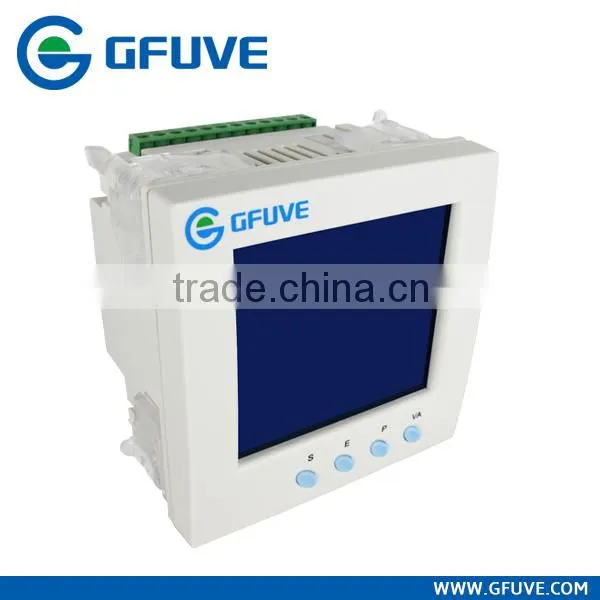

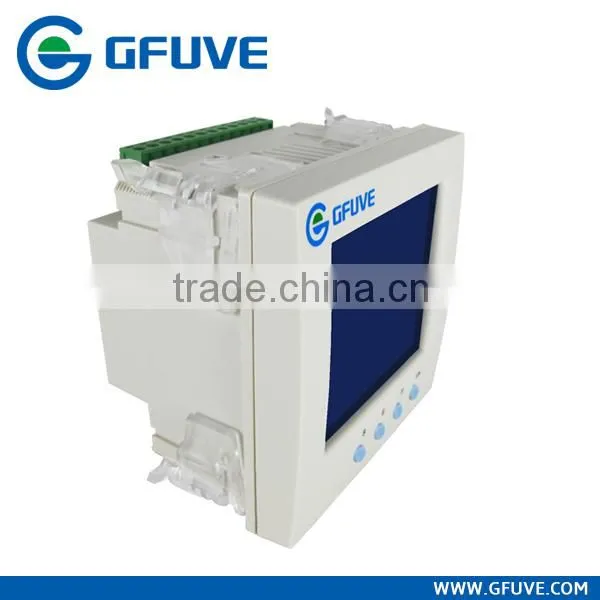

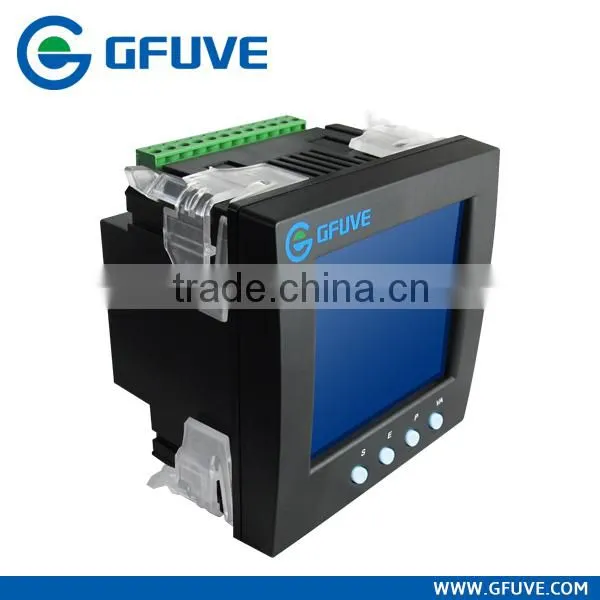

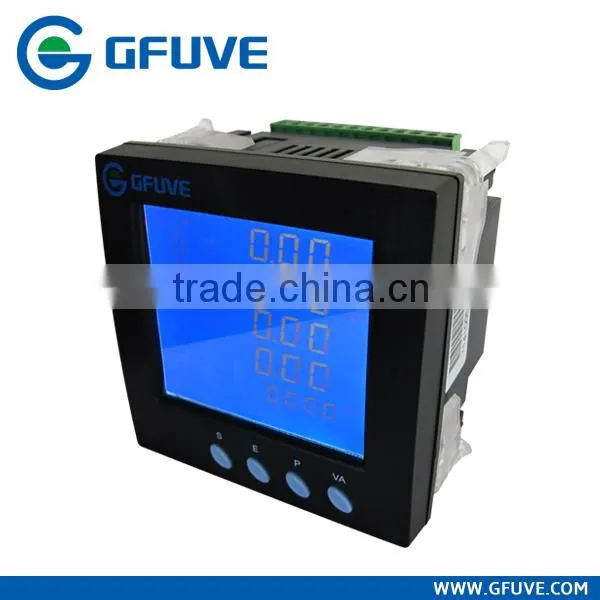

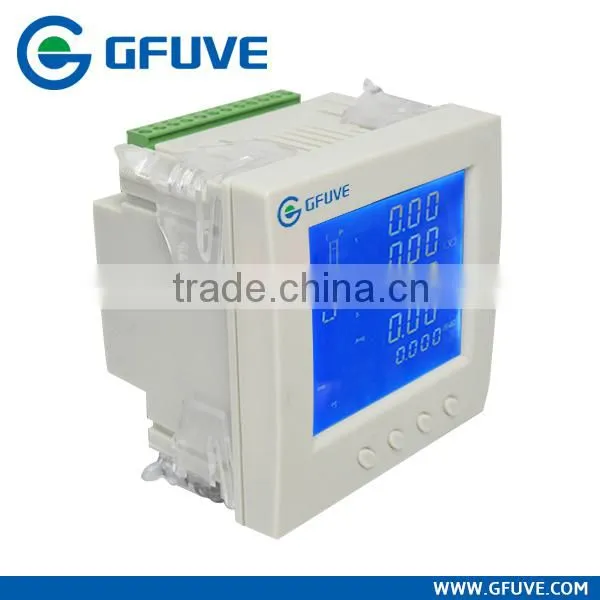

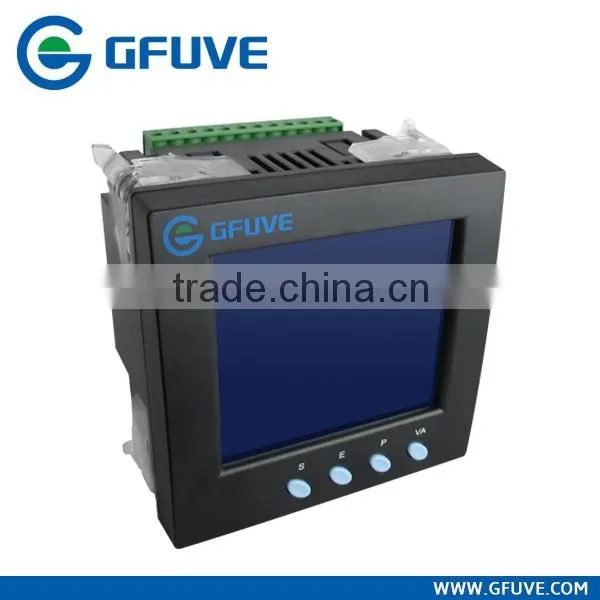

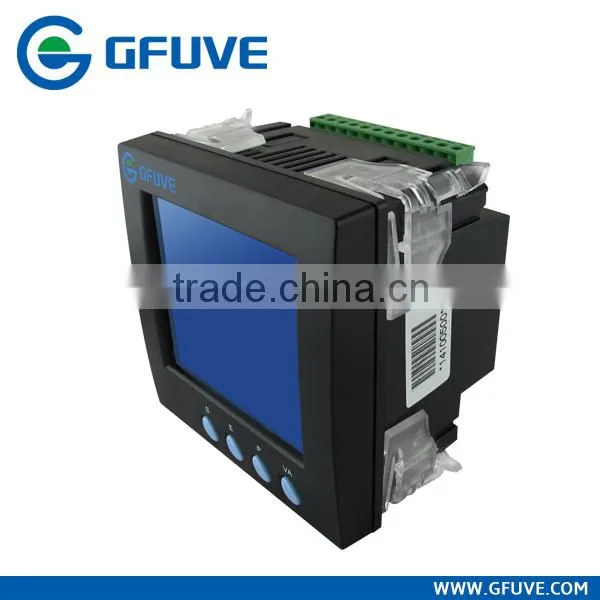

FU2200A AC precision 220V power meter
Introduction
The FU2200A digital power meter is a range of economical yet highly functional three-phase multifunction power and energy meters manufactured by GFUVE. These meters provide excellent value for monitoring power and energy management systems. The 2200A digital power meter may be used as data gathering devices for intelligent power distribution or plant automation systems. All monitored data is available via a standard digital RS485 communication port running the Modbus RTU protocol. With a wide range of models to choose from, the 2200A digital power meter offers unparalleled value and functionality.
Features
- True-RMS measuring Parameters.
- ANSI and IEC 0.5 Accuracy class.
- Power Quality Analysis.
- 4 Quadrant Energy;
- 4MB onboard memory;
- Data logging
- High-speed RS485, Ethernet Port (optional);
- Measure Individual Harmonics from 2nd to 63th (optional);
- Module Design;
- TOU, 4 Tariffs, 12 Seasons, 14 Schedules
- Class leading Warranty.
- With management software
Applications
- Metering of distribution feeders, transformers, generators, capacitor banks and motors.
- Medium and low voltage systems.
- Commercial, industrial, utility.
- Power quality analysis.
- Specifications
Parameter | Accuracy | Resolution | Range | |
Voltage | 0.2% | 0.01V | 0.5~500kV | |
Current | 0.2% | 0.01mA | 5mA~50000A | |
Active Power | 0.5% | 0.2W | -9999MW~+9999MW | |
Reactive Power | 2% | 0.2var | -9999Mvar~+9999Mvar | |
Apparent Power | 0.5% | 0.2VA | 0~9999MVA | |
Active Power Demand | 0.5% | 0.2W | -9999MW~+9999MW | |
Reactive Power Demand | 2% | 0.2var | -9999Mvar~+9999Mvar | |
Apparent Power Demand | 0.5% | 0.2VA | 0~9999MVA | |
Power Factor | 0.005 | 0.0001 | -1.0000~0~1.0000 | |
Frequency | 0.01Hz | 0.01Hz | 45.000~65.000Hz | |
Energy | Primary | 0.5% | 0.1kWh | 0~99999999.9kWh |
Secondary | 0.001kWh | 0~999999.999kWh | ||
Reactive Energy | Primary | 2% | 0.1kvarh | 0~99999999.9kvarh |
Secondary | 0.001kvarh | 0~999999.999kvarh | ||
Apparent Energy | Primary | 0.5% | 0.1VAh | 0~99999999.9kVAh |
Secondary | 0.001VAh | 0~999999.999kVAh | ||
Phase Angle | 0.1° | 0.01° | 0~359.99° | |
Unbalance Factor | 2% | 0.01% | 0~300.00% | |
PT |
| 1 | 1~10000 | |
CT |
| 1 | 1~10000 | |
Addr |
| 1 | 1~254 | |
