Hot-selling Solar Home Lighting System Easy Using With Leds Quality Choice

Name: Hot-selling Solar Home Lighting System Easy Using With Leds Quality Choice
Brand: LDSOLAR
SKU: 109750719
Availability: InStock

US$ 1 - 30 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Hubei, China

Brand Name:

LDSOLAR

Model Number:

SHS1208

Wuhan Welead S&T Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Wuhan shenzhen guangzhou Shanghai Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hubei, China

Brand Name LDSOLAR

Model Number SHS1208

Specification Normal

Application Home

Output Voltage (V) 12V

Load Power (W) 10w

Solar Power (W) 10W.

Work Time (h) 12hours

hot-selling solar home lighting system easy using

Main Function and Features:

Using high efficiency solar panel with high lumen LED bulb, making full use of solar power.

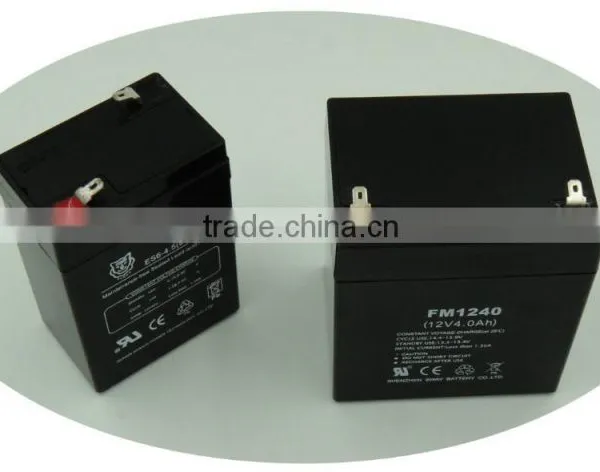

The system built-in lead acid battery, equipped with overcharge protection, over-discharge protection, overload protection and short circuit protection.
Special switch-off charge function (the solar panel was still charged battery when the power switch was off) and low voltage disconnection (LVD) function: effective get down system standby loss and prolong battery life time.

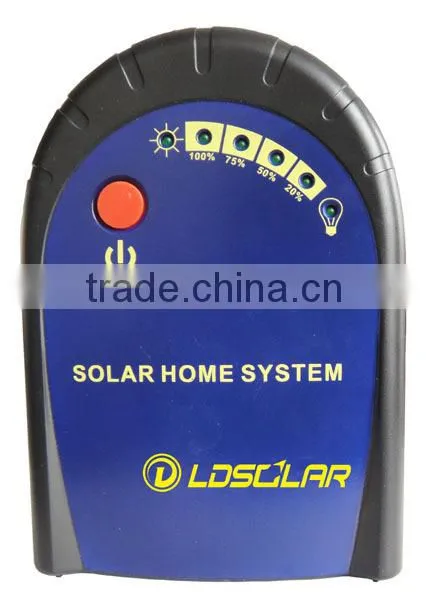

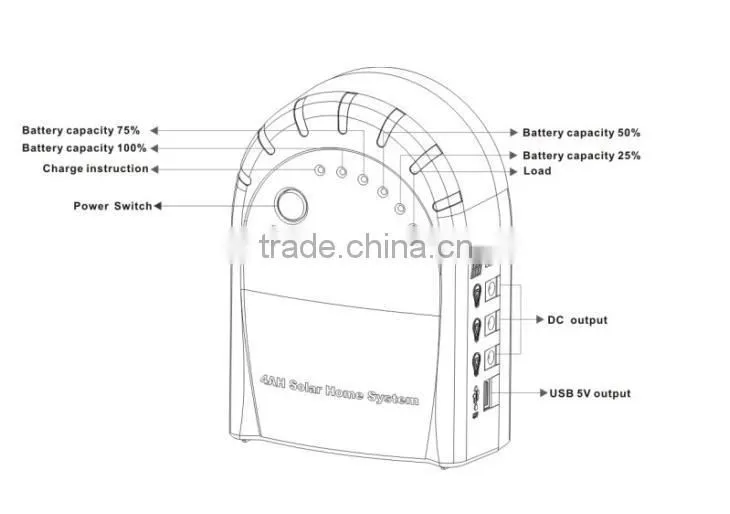

Indicator function of charging and discharging: the indicators of capacity show battery current capacity, when the solar panel charged battery, the indicator of charging was long lighting, when the battery full charged, the indicator of charging was flash.
The USB output maximum offer 5V/1.5A, with USB&AV multi cable for mobile phone, digital camera and so on.
Output overload protection: when the output current over 3A, the system will be closed output automatically.
Well-found, easy installation and using

Important Safely Information:

n This product is not waterproof, forbid fixed outdoor or humid environment.

n This product was built-in battery, please keep upright, no striking in order to avoid dangerous.

n Please keep the environment ventilation, away from high temperature, flammables ad explosives.

n First using please full charged battery, please turn off the power switch if long term idle.

n Prohibit connected unknown model or out of the serviceable range solar panels, LED bulbs into facilities, or will be destroyed our facilities.

n Prohibit connected equipped LED and solar panels into other unknown facilities, or they will be destroyed.

n Please clear the solar panel on time when the dust of solar panel is too much, or it will get down the efficiency of solar panel generation..

Technical data:

Model
System Voltage	6V/12V
Max. Input Voltage of solar panel	11V(6V);22V (12V)
Max. charge current	2A
DC port output current	1A ×3
USB output	5V/1.5A
Low voltage disconnection	5.3V(6V);10.6V(12V)
Low voltage reconnection	6V(6V); 12V(12V)
Over charge	7.1V(6V);14.2V(12V)
Working Temperature	-10℃---+45℃
Waterproof grade	IP32.
Size	120 mm×60 mm(83)×170mm
