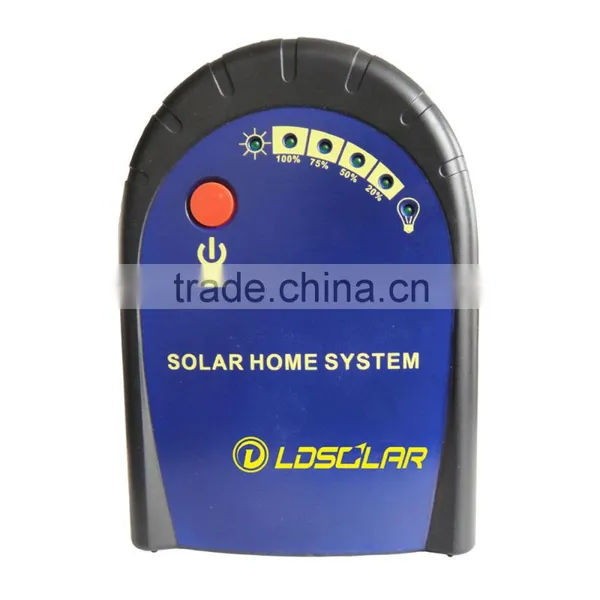

Portable 6w Led Solar Home Lighting System With Mobile Charger Quality Choice

FOB Price

US$ 1 - 30 / Unit

5 Units(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

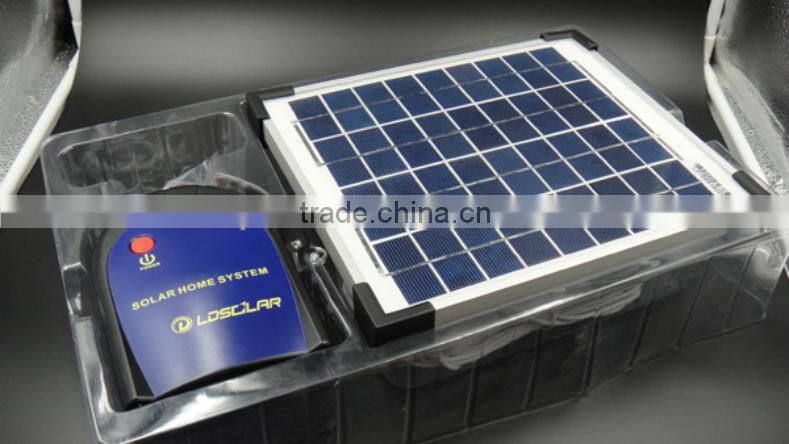

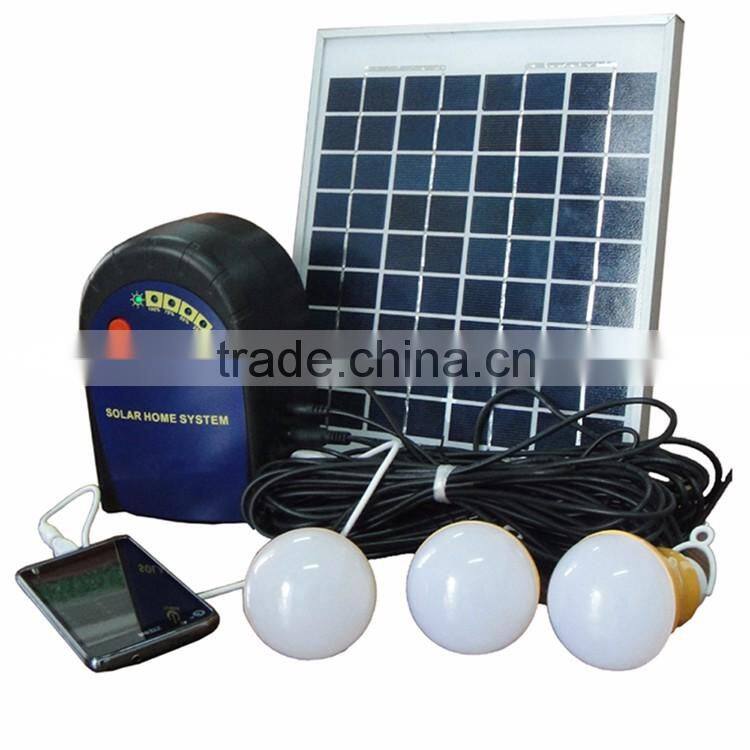

portable 6w led solar home lighting system with mobile charger

Main Function and Features:

1. Solar Panel: high quality 6w 21V polycrystalline solar panel with aluminum frame low iron toughened glasses

2. Battery: Built-in lead acid battery 4AH 12V up to 500cycles

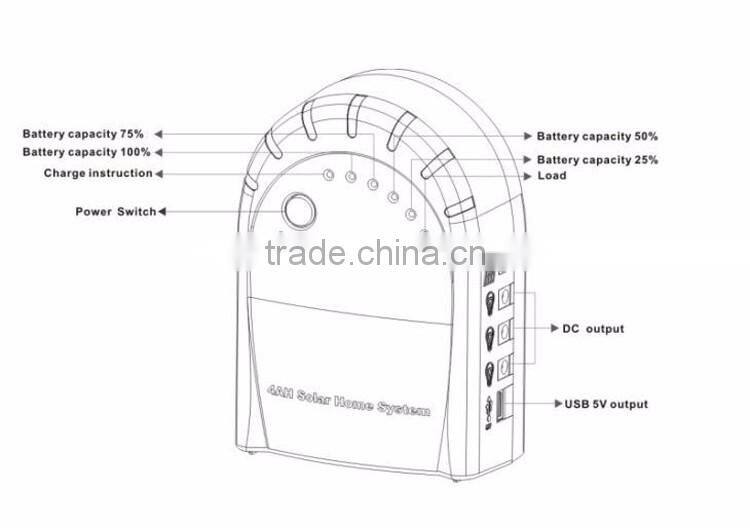

3. Output/Input: one USB output for mobile charging, three White port output for LED bulbs, one Black port input for solar panel

4. LED: Up to 50000hours high lightness &low power consumption LED bulbs

Installation

Step1:
Solar panel black cable connect to
the black color input port at the
side of mainbox
BLACK to BLACK

Step2:
LED (white to white)
Put LED on correct place
connect cable to mainbox
White to White

Step3:
Turn on the Red color power switch
You can use it
The solar light could service for you.

Technical data:

Model	SHS1208
System Voltage	12V
Max. Input Voltage from solar panel	22V
Max. charging current	2A
DC port output current (white)	1A x 3
USB output	5V 1.5A
Low Voltage Disconnection	10.6V
Low Votage Reconnection	12V
High Voltage Disconnection	14.2V
Working Temperature	-10 to +45 Celsius degree
Waterproof grade	IP32
Size:	12060170mm
Color box size:	45396283mm
Net weight	3.3kg
Outer carton size:	490467300mm(5sets/CTN)
Grossweight of each carton	17.5kgs
