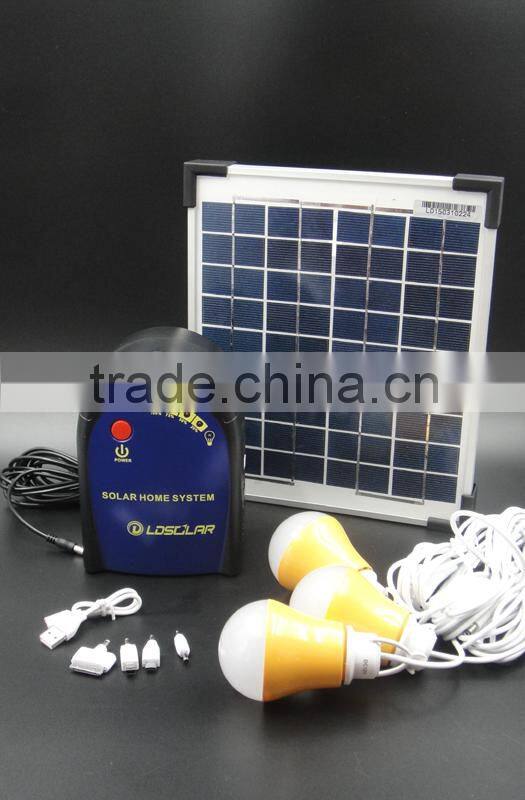

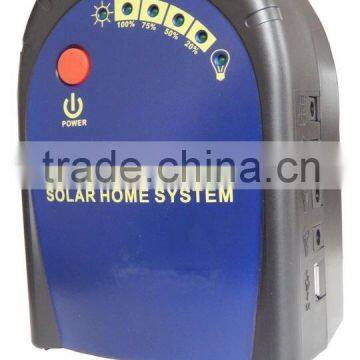

Help CenterSolar Lighting System 6V 12V With 6w Solar Panel and 4Ah Battery for House Using From Ldsolar
Related Products
-
Portable 6w Led Solar Home Lighting System With Mobile Charger Quality ChoiceUS$ 1 - 30MOQ: 5 Units -
2016 Hot Selling Mini Solar Home Lighting System With Led Bulbs and Mobile Charger Quality Choice Supplier's ChUS$ 1 - 30MOQ: 5 Units
-
Portable Low Price 6w/12v Solar Home Lighting System With ce Rohs Quality ChoiceUS$ 1 - 30MOQ: 5 Units
-
LDSOLAR Mini Home Solar Power System With Mobile Charger and Led Bulbs Quality Choice Supplier's ChoiceUS$ 1 - 30MOQ: 5 Units
-
Hot Selling Solar Indoor Home Lighting System With Led and Buit in Battery Quality ChoiceUS$ 1 - 30MOQ: 5 Units
new style solar home lighting system easy using.
Main Function and Features:

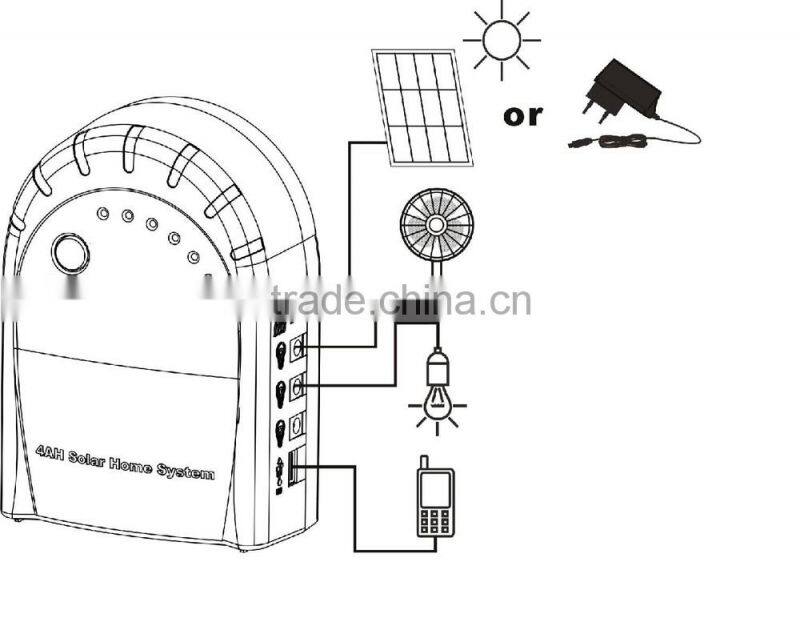

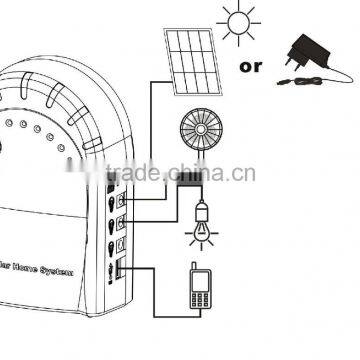

- Using high efficiency solar panel with high lumen LED bulb, making full use of solar power.
- The system built-in lead acid battery, equipped with overcharge protection, over-discharge protection, overload protection and short circuit protection.
- Special switch-off charge function (the solar panel was still charged battery when the power switch was off) and low voltage disconnection (LVD) function: effective get down system standby loss and prolong battery life time.

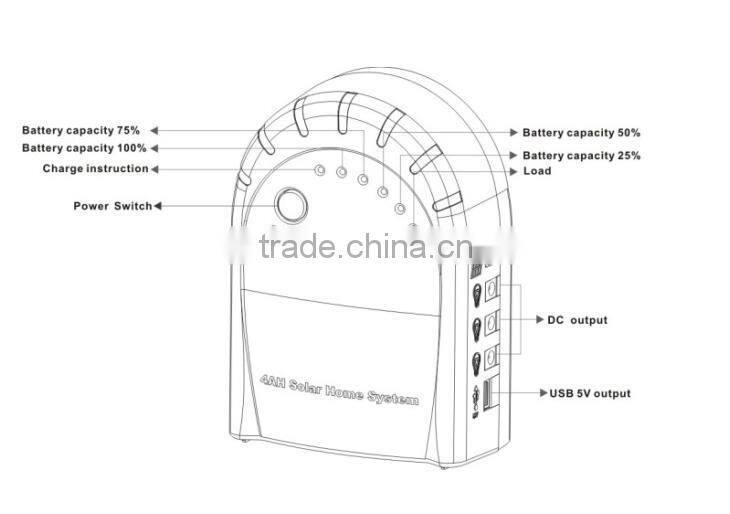

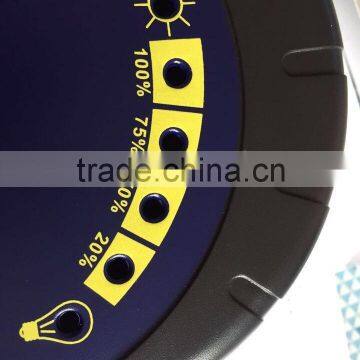

- Indicator function of charging and discharging: the indicators of capacity show battery current capacity, when the solar panel charged battery, the indicator of charging was long lighting, when the battery full charged, the indicator of charging was flash.
- The USB output maximum offer 5V/1.5A, with USB&AV multi cable for mobile phone, digital camera and so on.
- Output overload protection: when the output current over 3A, the system will be closed output automatically.
- Well-found, easy installation and using.
Important Safely Information:
n This product is not waterproof, forbid fixed outdoor or humid environment.
n This product was built-in battery, please keep upright, no striking in order to avoid dangerous.
n Please keep the environment ventilation, away from high temperature, flammables ad explosives.
n First using please full charged battery, please turn off the power switch if long term idle.
n Prohibit connected unknown model or out of the serviceable range solar panels, LED bulbs into facilities, or will be destroyed our facilities.
n Prohibit connected equipped LED and solar panels into other unknown facilities, or they will be destroyed.
n Please clear the solar panel on time when the dust of solar panel is too much, or it will get down the efficiency of solar panel generation..
Technical data:
Model |
|
System Voltage |
6V/12V |
Max. Input Voltage of solar panel |
11V(6V);22V (12V) |
Max. charge current |
2A |
DC port output current |
1A ×3 |
USB output |
5V/1.5A |
Low voltage disconnection |
5.3V(6V);10.6V(12V) |
Low voltage reconnection |
6V(6V); 12V(12V) |
Over charge |
7.1V(6V);14.2V(12V) |
Working Temperature |
-10℃---+45℃ |
Waterproof grade |
IP32. |
Size |
120 mm×60 mm(83)×170mm |
