lunch box making machine full-automatic machine

Specifications

Independent research and development capacity
High speed,Operated easily
Warranty times: 12 months
CE certificate





     Aluminum Foil Food Container Making Machine





 Aluminum foil container making machine composed of the followings

1. Auto Feeder (with an auto-lubricator)



Production Steps:



Feeding material

Punching by the press

Collecting product by the stacker

Collecting scrap by the scrap collector





Description of aluminum foil contaner making machine:





1. This production line can work automatically. Worker control and regulate this production line through electric control equipment.Feeding,punching,product & scrap collecting automatically.



2. Very reliable and steady as the controlling ststem complete with Siemens CPU 224 programmable logic controller (PLC)



3. It's integration of Gas & Electrical,centralized control.So feeding length,speed and other parameters are easy to set.



4. We can design and manufacture different machines on request.



5. Feeding is controlled by stepper syatem, the feeding length is  accurate and can be adjusted from 20mm to 90mm.

6. Steel plate wielded machine body marked with high rigidity and less deformation



7. It adopts combined pneumatic friction clutch and barking device to ensure steady clutching, low noise level, and flexible action



8. Integrated lubrication system enables easy oil supply and smooth operation of the machine tool. The automatic lubricating system with fixed place, time and quantity is available to choose.

 9. Photo-electric protection and automatic feeding device, driving output shaft and air cushion are available to choose

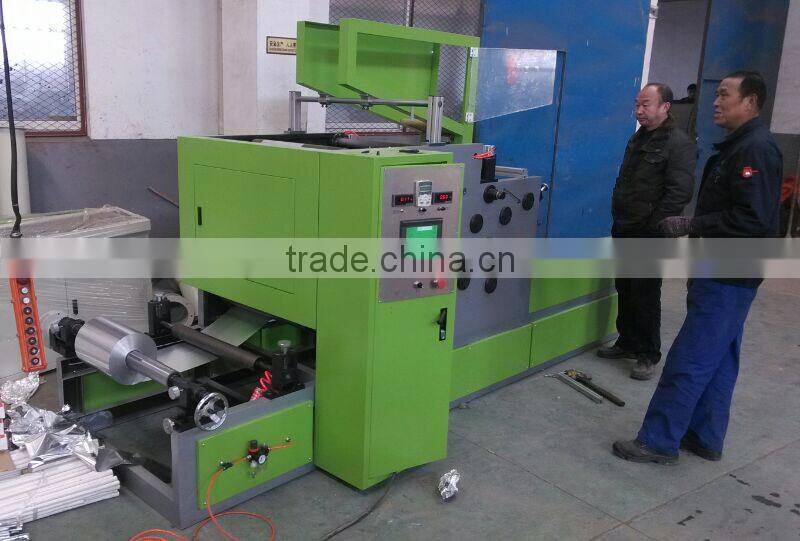

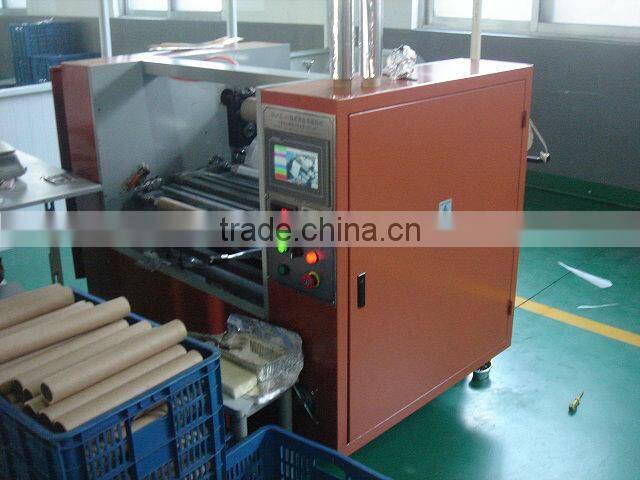

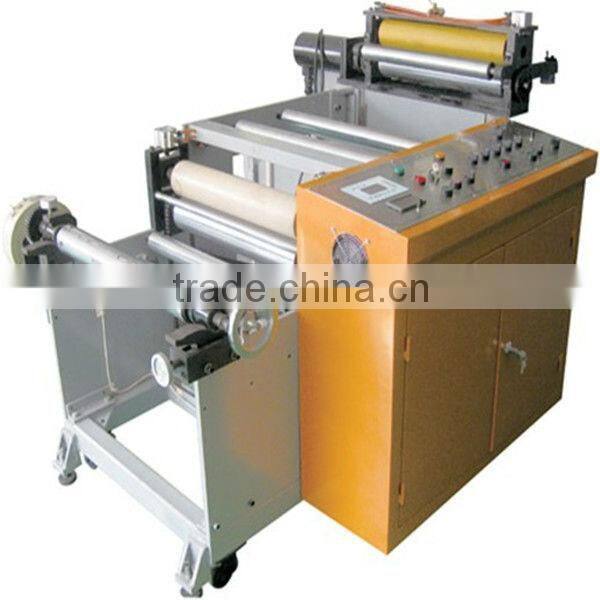

Aluminum Foil Rewinding Machine:









	XWSL-40	XWSL-55	XWSL-70	XWSL-80
Max width of Roll	350MM	500MM	650MM	750MM
Max Unwind Roll Diameter	600MM	600MM	600MM	600MM
Feeding Speed	0-35	0-35	0-35	0-35
Feeding Length	20-999	20-999	20-999	20-999
Feeding Accuracy	±0.3	±0.3	±0.3	±0.3
Working Vollage	380/220	380/220	380/220	380/220
Total Power	1	1	1.4	1.4
Weight of Machine	700	850	1000	1150
Diemension	2000*1150*900	2000*1300*900	2000*1450*900	2000*1550*900











High Accracy Press









	JF21-25	JF21-45	JF21-63	JF21-80	JF21-110
Nominal Pressure                (KN)	250	400	630	800	1100
Slide Block Stroke(mm)	80-160mm	100-260mm	120-260mm	140-260mm	150-260mm
Slide Strock Per Minutes(min)	90-60	70-50	70-50	60-45	50-40
Max Die Set Height(mm)	250-300	270-400	310-450	325-450	345-500
Die Set Height Adjustment(mm)	50	60	70	80	90
Slide Bottom Size(MM)	330*250	410*340	480*400	560*460	630*520
Stemhole Size(MM)	60*60	60*60	60*65	60*75	60*85
Bolster Surface Size(MM)	700*320/800*480	810*440/990*750	870*520/1000*800	1000*600/1200*800	1100*680/1300*800
Total Power(KW)	3-4	5.5	5.5-7.5	7.5-11	11-15
Weight	2800-3100	3800-4500	5500-6300	8000-9000	11000-12000











Details of The Machine:







respective usage and functions:



(1) Airline aluminum foil tray

(2) coating food container

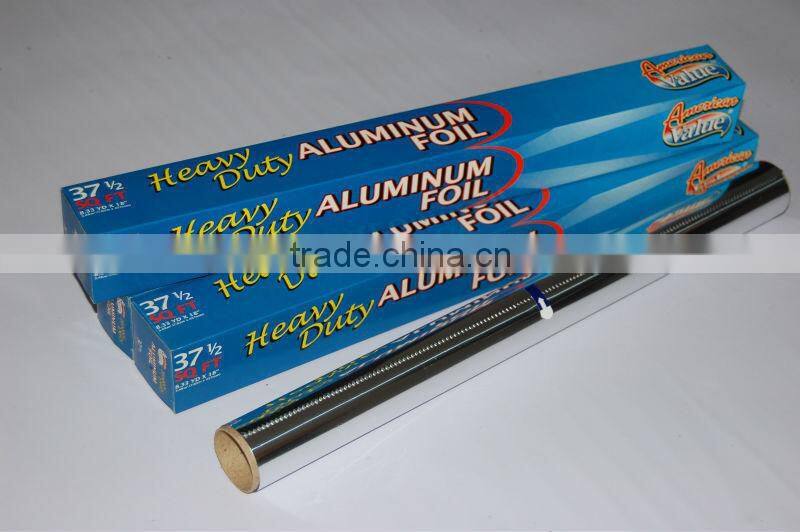

(3) Household aluminum foil



(4) Convenient carry-out aluminum foil container



(5) Turkey dish



(6) Other foil container,plate,pan,box,and tray

(7) egg tart ,cake plates

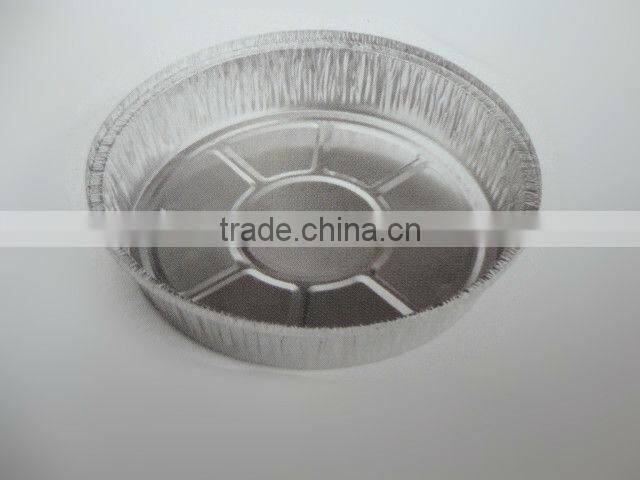

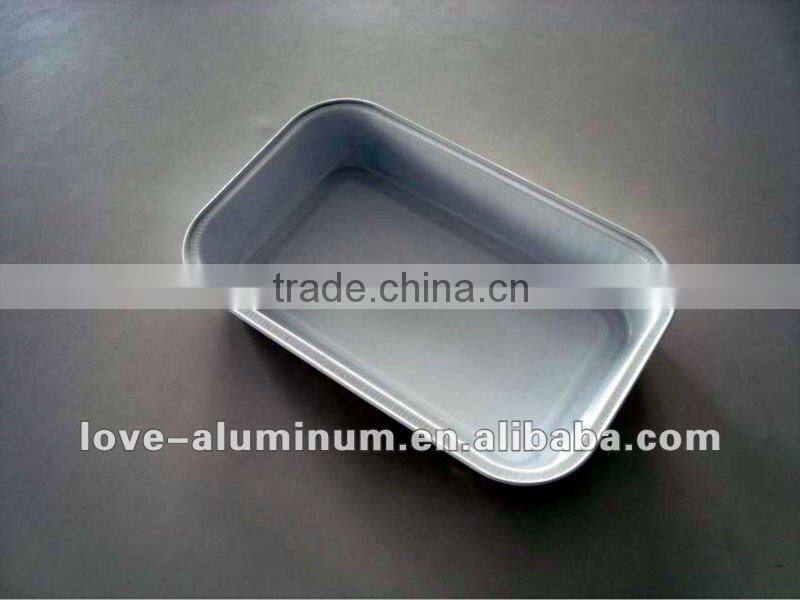

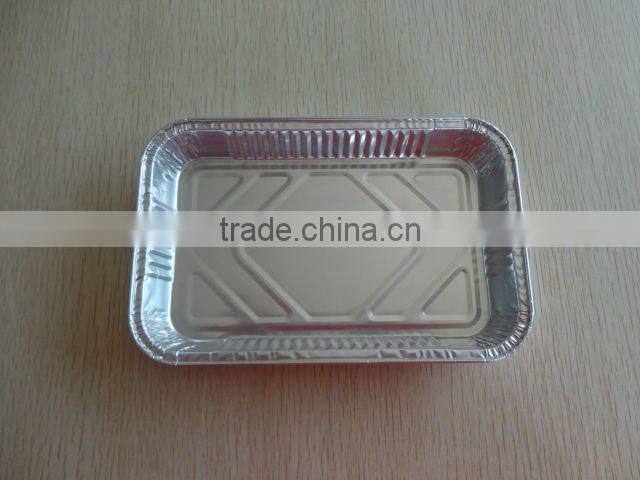

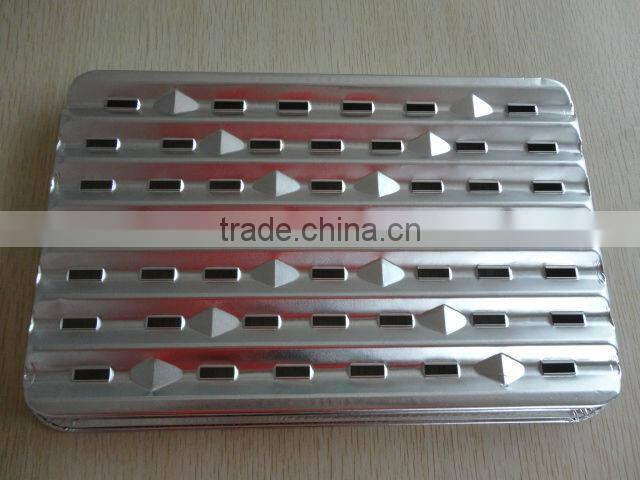

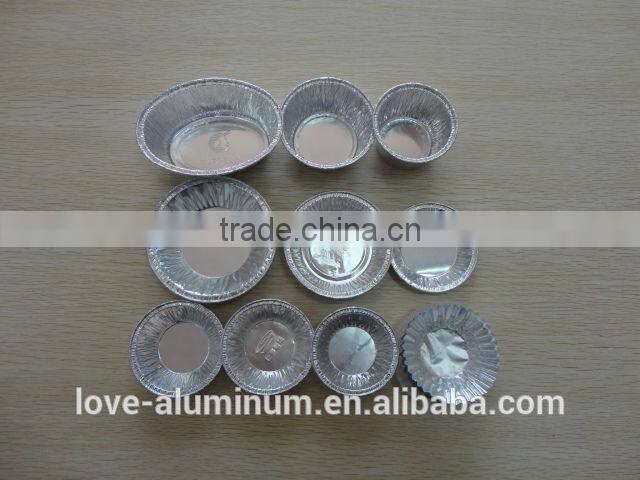

photo of the products:

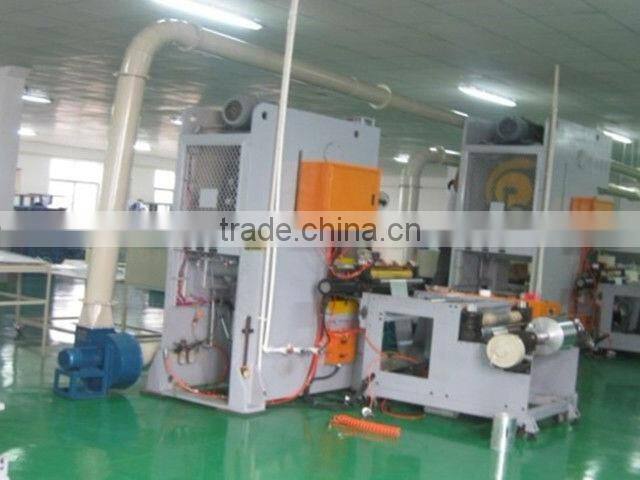

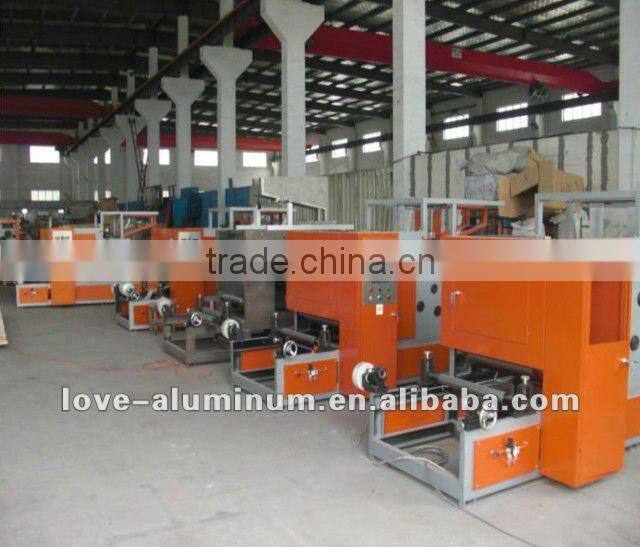

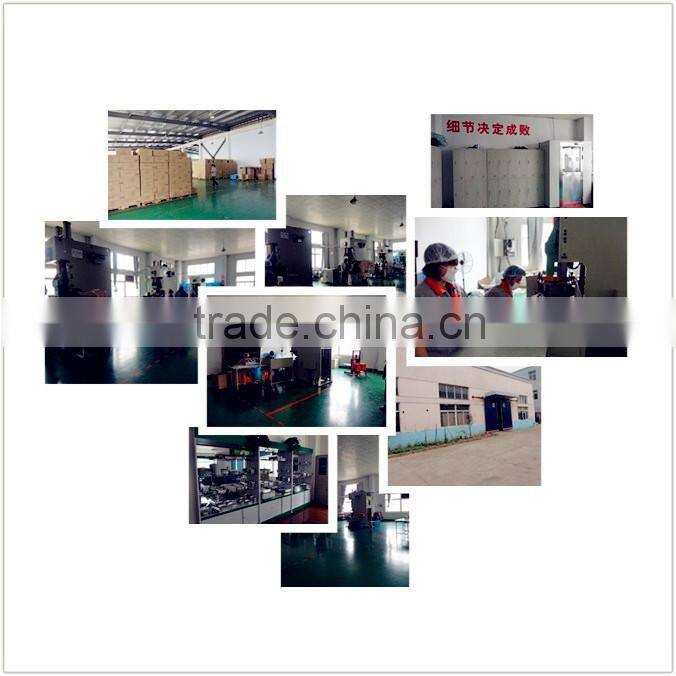

our factory:





FAQ



Q:How could I get price from you?



A: Send us the details like shape;sizes; weight. Our sales team shall forward you the prices within 12 hours.



Q: I am new to the market, how do I know that if the quality and prices are good from Fresh Life?



A: Fresh Life's core compertance is "Insist on quality" Hence, for foil items; all prices are regarding on its weight.



Q: What would be the production lead time?



A: On average of 25-30days after receiving bond.



Q: What would be the payment terms?



A: 30% TT in advance as a bond; rest of 70% against documents.
