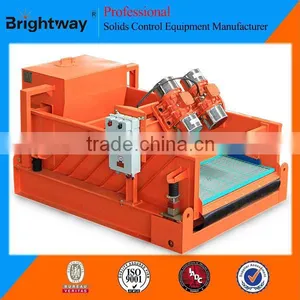

Brightway BWZS70-3P Shale Shaker
- 100 Set / Sets per Month
- TianJin ShangHai QingDao
- T/T L/C D/P D/A
Product Details
Condition: | New | Application: | oilfeild | Production Capacity: | 95% |
Place of Origin: | Shaanxi, China | Brand Name: | Brightway | Model Number: | BWZS70-3P |
Voltage: | 380V, 460V | Power(W): | 2*1.5KW, | Dimension(L*W*H): | 2403x1884x1448mm |
Weight: | 1390kg | Features: | Design and Manufacture according to clients' special requirements. | Certification: | IADC ISO 9001 BV |
Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
as required of Customers.
Product Description
Shale shaker is used in drilling fluids processing system to remove the particles from fluids by vibrating according to linear motion theory. It plays an important role in the drilling fluids treatment process.
As the first phase separation device, shale shaker decides the performance of the whole solids control system. It can separate out the particles which are larger than 76um.
Brightway BWZS series Shale Shaker Advantages
1.Brightway can design shale shakers according to clients’ special requirements or combined with our technician’s design.
2.Brightway designs and manufactures a complete series of linear motion shale shakers for all onshore and off shore applications.
3.The Brightway shale shakers advance with the times along with many advantages.
4.The electrical cabinet is small volume, easy operation, famous Chinese brand.
5.The explosion-proof motor brand is Oli or Martin for the shakers.
6.Compound rubber springs are with long life service, low vibration noise, high /low temperature resistance.
Brightway BWZS Series Shale Shaker Parameters
Model | BWZS75-2P | BWZS85-2P | BWZS70-3P | BWZS-3P | BWZS-4P |
Vibrating Mode | Liner motion | ||||
Vibrating Power | 2×0.45kw | 2×1.0kw | 2×1.5kw | 2×1.5kw | 2×1.86kw |
Vibrating Strength | ≤7.5G | ||||
Double Amplitude | 6.0~7.2mm | ||||
Capacity | 40m³/h(176GPM) | 80m³/h(352GPM) | 120m³/h(528GPM) | 150m³/h(660GPM) | 200m³/h(880GPM) |
Deck Adjustment | 0~2° | -1~3° | -1~5° | -1~5° | -1~5° |
Normal Power | 380V/50HZ,460V/60HZ or others |
| |||
Screen area | 1.4 m² | 2.1 m² | 2.6 m² | 2.1 m² | 2.7 m² |
Screen of Deck | 2pcs | 2pcs | 3pcs | 3pcs | 4pcs |
Weir Height | 1042mm or 944mm(Remark:mud logging tank divide into upper and back form) | ||||
Starter | Megnetic force starter | ||||
Decibels | <85db | ||||
Weight | 760Kg | 1200Kg | 1390Kg | 1320kg | 1480kg |
Dimension | 1650×1260×1080mm | 1975×1884×1448mm | 2403×1884×1448mm | 2370×1690×1420mm | 2950x1690x1420mm |
Standards and Mesh | API, 40/60 | ||||
Remark | Treating capacity test from mud:1.2g/cm³,density & viscosity 45s&40 mesh |

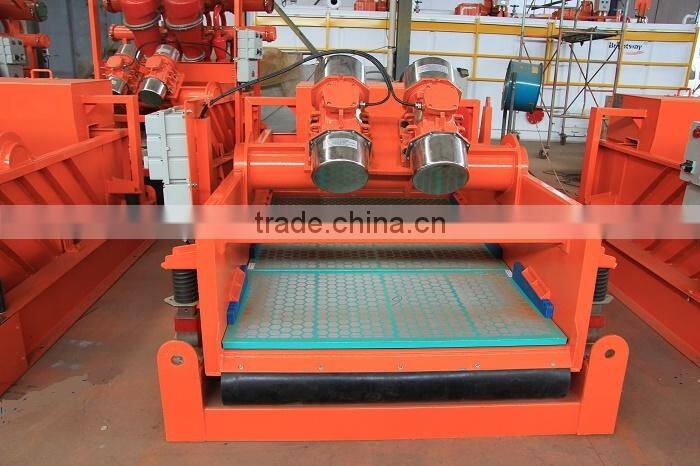

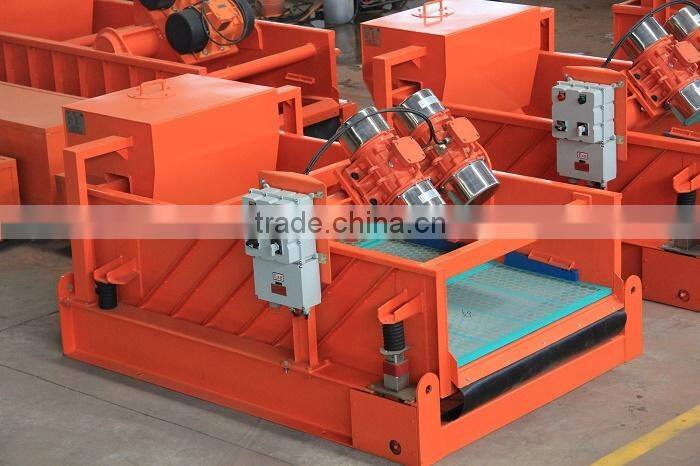

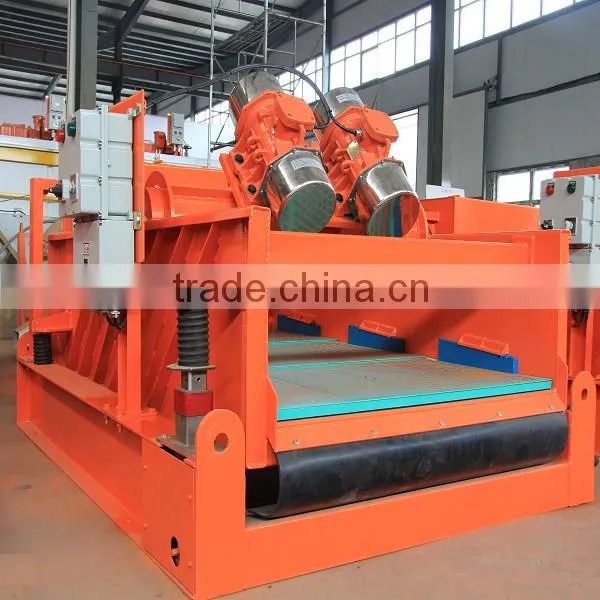

Brightway BWZS70-3P Shale Shaker Display
Brightway BWZS-4P Shale Shaker
Brightway Solids Control Co., Ltd
Address: No.118 Fuyu Road,Yuhua Industrial Zone,Yanta District,Xi’an City,China
Telephone: +86-29-89300061 +86-29-89305769
Fax: +86-29-89305769
Website: (English and Other Languages )
( English )
http://www.bwsolidscontrol.ru (Russian)
(Chinese)
Company Profile
Xi'an Brightway Energy Machinery Equipment Co., Ltd. is specialized in the manufacture of the mud solids control equipments and the complete set of solids control system.
We focus on:
1) Oil and gas drilling mud system
2) HDD drilling mud recycling systems
3) CBM drilling mud cleaning systems
4) Underground engineering systems
5) Geothermal well engineering systems
6) Environment & waste mud treating systems
Brightway mud solids control equipments: Shale shaker, vacuum degasser, mud cleaner, desander cleaner, desilter cleaner, decanting centrifuge, sand pump, submersible slurry pump, mud agitators, self-suction sand pump, jet mud mixer, mud gas separator, mud gun, screw pump, shear pump, flare ignition device, oil tank, water tank, and mud tank, etc.
