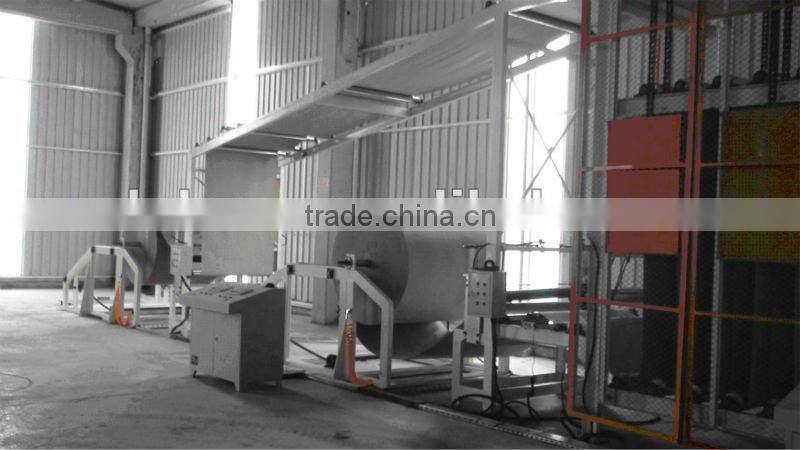

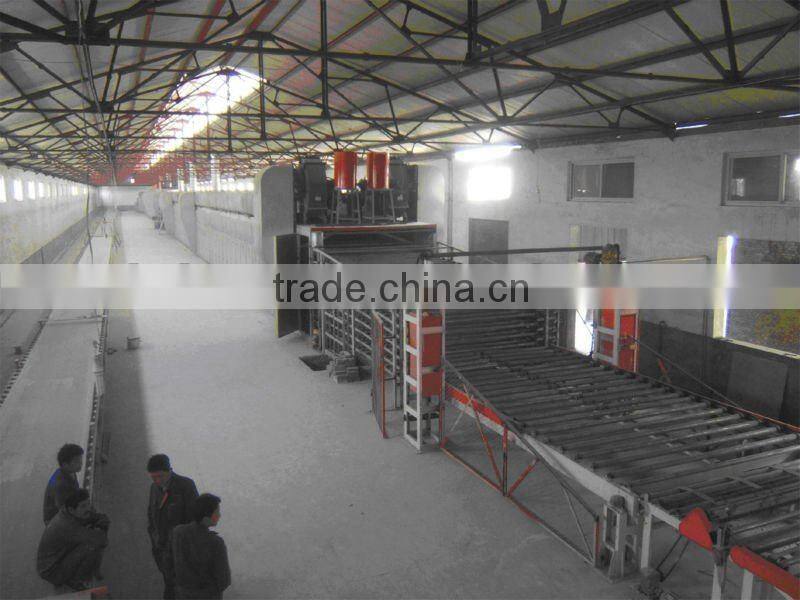

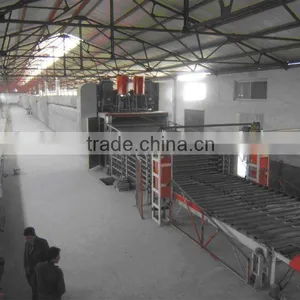

Paper Faced Gypsum Board Production Line

Specifications

Specifications

High quality gypsum board production line:

1.Different capacities;

2.Semi or full automatic according to the requirment of client;

3.Advanced dryer;

4.Multiple products.

Introduction of gypsum plaster board production line:

1. Production capacity: 2 million m2/y ~ 50 million m2/y   ( for the 9.5mm thick board)

2. Raw materials: gypsum powder / plaster, shielding paper, modified starch, foaming agent, glue

3. Standard and specification of the production:

1) The product refer to GB/T9775-2008;

2) Product specification:

Length: 2400-3600mm (changeable to the requirement )

Width: 1200mm, 1220mm or 1250mm

Thickness: 8mm-15mm

4. Raw material consumption list:

( Reference for the 9.5 mm gypsum board )

Hemi-hydrate gypsum power: 6.8kg/m2

Facing and backing paper: 0.48kg/m2

Starch: 0.035kg/m2

Foaming agent: 0.008kg/m2

Glue: 0.005kg/m2

Electricity:  0.3kwh/m2

Water:  4.8kg/m2

Heat consumption~3800kcal/m2

5. Main process:

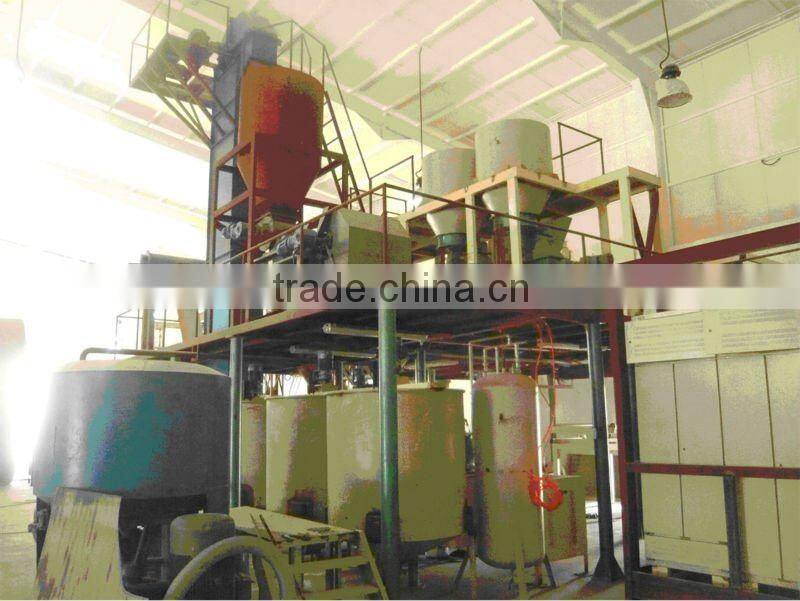

1)Raw material mixing;

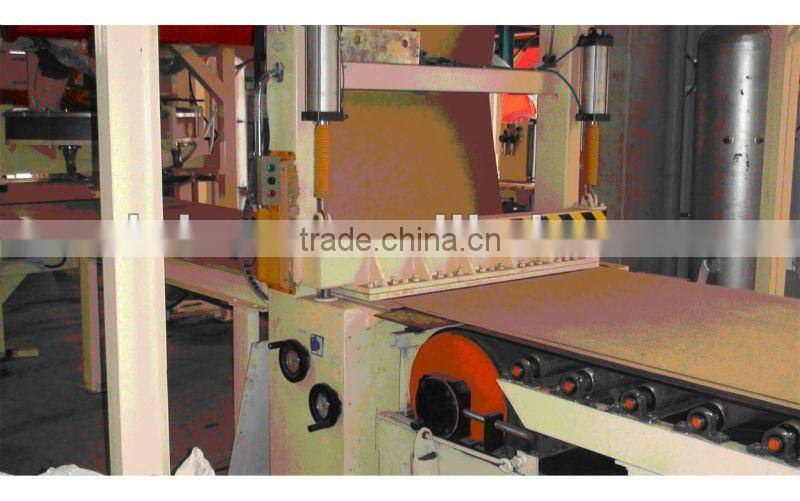

2)Forming;

3)Wet board/panel conveying;

4)Drying;

5)Dry board/panel conveying and stacking;
