FG-C Series Fluid Bed

FG-C Series Fluid Bed thumbnail-1
FG-C Series Fluid Bed thumbnail-2
FG-C Series Fluid Bed thumbnail-3
FG-C Series Fluid Bed thumbnail-4
FG-C Series Fluid Bed thumbnail-5
FG-C Series Fluid Bed thumbnail-6
FG-C Series Fluid Bed photo-1
FG-C Series Fluid Bed photo-2
FG-C Series Fluid Bed photo-3
FG-C Series Fluid Bed photo-4
FG-C Series Fluid Bed photo-5
FG-C Series Fluid Bed photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
Etage
Model Number:
FG-C series fluid bed dryer
Contact Supplier Request Quote Chat Now
Win Best Import And Export Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
chongqing port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Chongqing, China
Brand Name Etage
Model Number FG-C series fluid bed dryer
Application Granules
Type Drying Machine
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Our fluid bed dryer works under sealed negative pressure,the interior surface of it is very smooth;there is no dead corner in



Packaging & Shipping

 In wooden pallet. Shipped by sea



Our Services

 24 hours hotline









Product Description

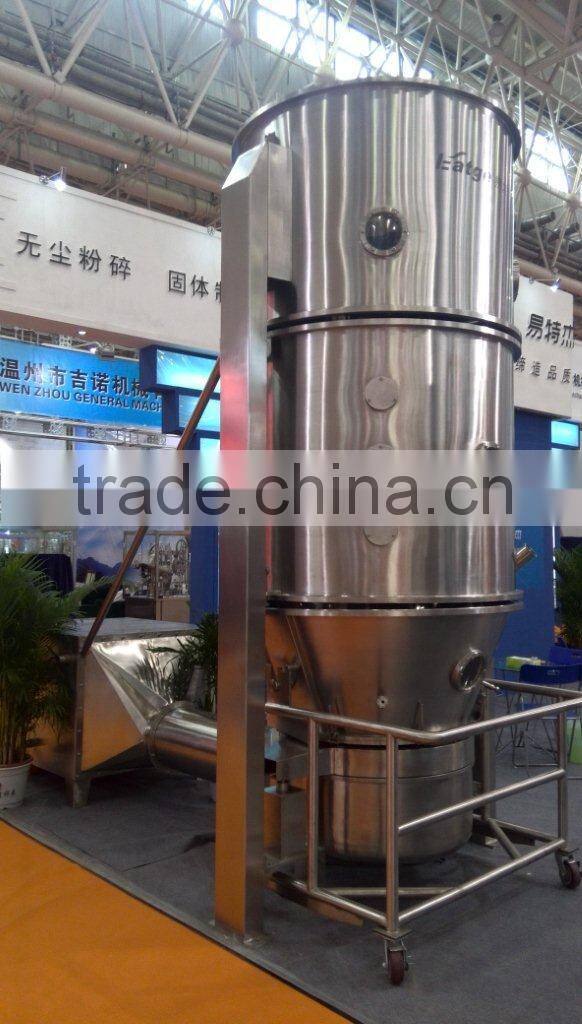

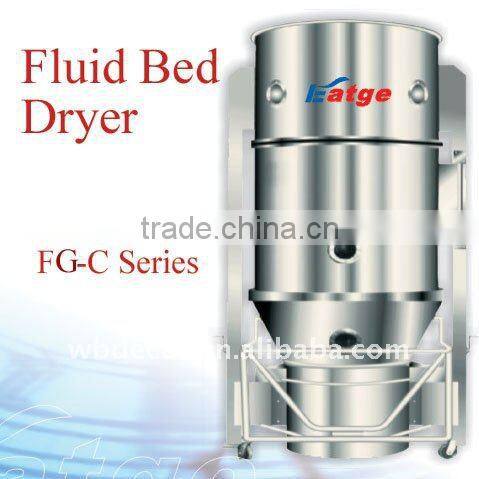

Fluid bed dryer utilizes hot air flow to make the material suspended into fluidized state and be heated quickly, after evaporation. the water will be discharged together with the air flow.The drying speed is very fast ,and the temperture during the drying process can be strictly controlled,

which guarantees the quality of the productions after being dries.



For big granules or lumpish materails, it can be dealt with the horizontally stirring knife, so that it can be dried quickly, meanwhile, the agglomeration state can be avioded. The dreyes works under the sealed negative pressure, the interior surface of it is very smooth; there is no dead conrner in it, which is convenient to be washed and cleaned.

item unit 5C 15C 30C 60C 120C 200C 300C 400C 500C
Capacity kg/batch 4-6 10-20 20-40 40-80 80-160 160-250 250-350 400 500
Diameter mm 400 650 700 1000 1200 1400 1600 1700 1800
Volume L 22 45 100 220 420 670 1000 1350 1480
Steam consumption kg/Hr 23 42 70 141 211 282 366 400 450
Steam Pressure Mpa 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6
Compressed air consumption cubic meter/min. 0.3 0.3 0.6 0.6 0.8 1.2 1.8 2.3 2.6
Compressed air pressure Mpa 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6
Fan Power KW 4/5 5.5/7.5 7.5/11 11/15 18.5/22 22/30 37/45 40/45 45/55
Working temperature Degree Normal-120 Normal-120 Normal-120 Normal-120 Normal-120 Normal-120 Normal-120 Normal-120 Normal-120
Moisture % >=2 >=2 >=2 >=2 >=2 >=2 >=2 >=2 >=2
Gain ratio % >=99 >=99 >=99 >=99 >=99 >=99 >=99 >=99 >=99
Noise DB <70 <70 <70 <70 <70 <70 <70 <70 <70
Heating power KW 7.0 12 14.5 21 30 47 70 80 90
Dimension cm 225*95*40 228*110*55 264*138*70 304*148*100 339*153*120 430*180*140 430*180*140 430*180*140 508*220*180


FG-C series fluid bedFG-C series fluid bed
