Brightway BWCSQ Series Desander Advantages
1. Our desander is produced on the basic of clients' demands.
2. Brightway desander is easy to operate, and all of the spare parts can be interchangeable with world famous brand.
3. Brightway desander is designed in ANSYS finite element analysis, and our design has been optimized to meet ergonomic operation maximum.
4. We adopt pickling, passivation, and hot galvanizing technology which greatly improves the working time of the desander.
5. Brightway desander is deployed with Oli Vibration motor.
6. We select Siemens, Schneider, ABB and other international well-known electrical components for Brightway desander.
7. We select high wear resistant composite polyurethane material for cyclone, which can be interchangeable with international brands.
Brightway BWCSQ Series Desander Parameters
Model | BWCSQ250-1S | BWCSQ250-2S | BWZS75-2S |
Screen area | 1.0m²(600×1600mm) | Without screen | |
Capacity | ≤112m³/h | ≤225m³/h | ≤225m³/h |
Cone Size | 10″(cone each 90~120m³/h) | ||
Cone Quantity | 1~2 cone, according to the flow capacity | ||
Working Pressure | 0.21~0.4Mpa | ||
Matching Pump | BWSB6×5-12J (37Kw) BWSB5×4-14J (37Kw) | BWSB8×6-13J (55Kw) | BWSB8×6-13J (55Kw) |
Inlet Size | 75mm-150mm | ||
Outlet Size | 125mm-200mm | ||
Separation Size | 47-76μm | ||

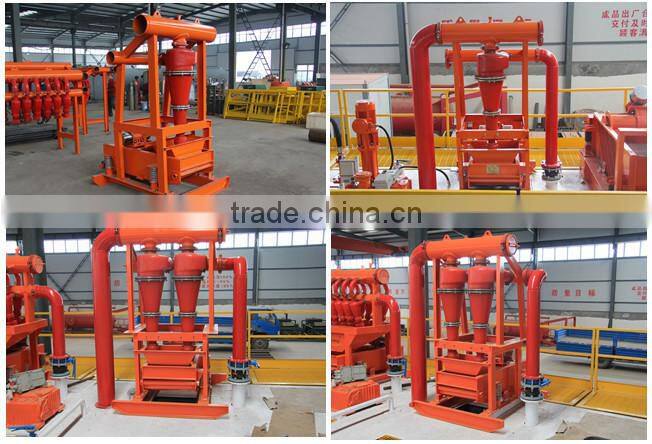

Brightway BWCSQ Series Desander
