Help Center12.1 Inch Desktop or Wall Mounting Small Lcd Monitor
Related Products
-
Best Quality HD 8 Inch TFT LCD AV VGA MonitorUS$ 50 - 70MOQ: 50 Pieces -
Hot HD 8 Inch TFT LCD AV VGA BNC MonitorUS$ 50 - 70MOQ: 50 Pieces
-
12 Inch 4:3 TFT LCD AV VGA HDMI Monitor With High QualityUS$ 70 - 80MOQ: 50 Pieces
-
Mini 7 Inch TFT LCD AV VGA HDMI MonitorUS$ 60 - 75MOQ: 50 Pieces
-
7 Inch High Brightness Ultra Slim Desktop VGA AV LCD Monitor With Digital ScreenUS$ 45 - 60MOQ: 50 Pieces
Specifications
12.1 inch desktop or wall mounting small lcd monitor4 Wire resistvie 2AV+VGA
Windows 9X,ME,2K,XP, win7, linux

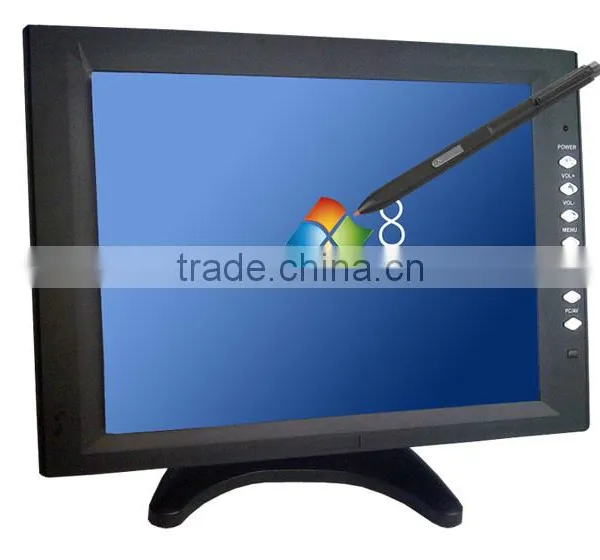

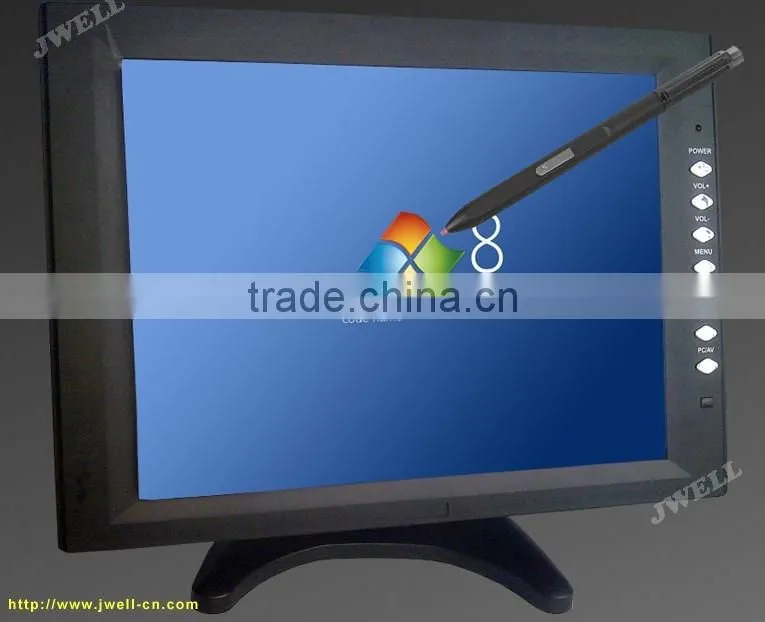

12.1 inch desktop or wall mounting small lcd monitor
high quality small lcd monitor
small lcd monitor details
High quality 12.1" Touch screen monitor with VGA Port 1024*768 LCD
12.1 inch high resolution Touch Screen Monitor with VGA Port
Good display and high resolution up to 1024*768 max,
Best resolution : 800 * 600
( High brightness 1024*768 HD screen is optional )
Origional import LCD Screen Panel : SANYO Brand
Description:
1) 12.1 inch TFT touch screen monitor
3) Display type: 12.1" Active Matrix TFT LCD ( 4:3)
4) Active display area: 152.4(H) X 91.44(V) mm
5) Resolution: 800 X 600 Best, up to 1024 x 768 @ 75Hz max,
7) Pixel pitch: 0.1905(W) X 0.1905(H) mm
8) Pixel response time: 12ms
9) Colors: 16.7 million
10) Brightness: 350 cd/m2
11) Contrast: 400:1
12) Viewing angle horizontal (left/right): 170° (85°/85°)
(From Centre, CR>=5) Vertical (up/down): 160° (70°/90°)
13) Backlight lamp life hours: 50,000
14) Input video format: Analog RGB, NTSC/PAL/SCAME(AUTO)
15) Touch screen Interface: USB
16) Touch response time Serial/USB: 10.4ms
17) Touch sensitivity: Fixed
18) Operating temperature:-10°C - 60°C
19) Storage temperature:-20°C - 80°C
20) Power Supply: AC 110-240V, DC 12V, 50-60 Hz
21) Power Consumption: <10 W Typ
22) Gift box Weight: 3.5kg
23) Warranty: 1 year
24) Remote control
Specification:
1) 4 wires resistive touch-screen interface with high Sensitivity (USB port)

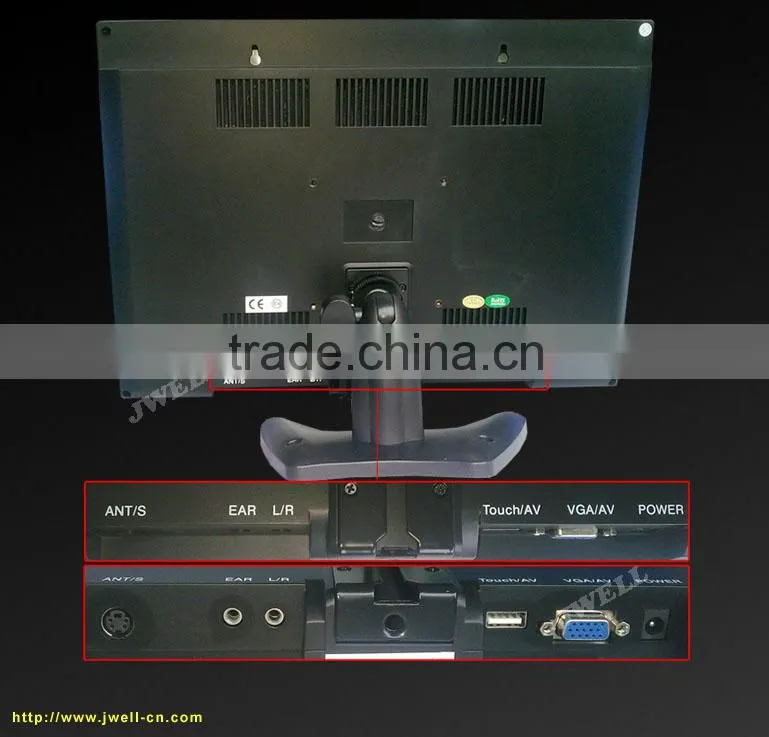

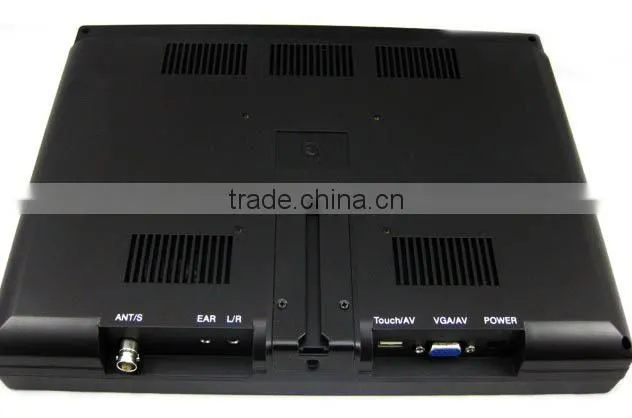

2) Standard VGA input (15 pin D-SUB/USB) and HDMI input can match with PC, GPS and security systems
3) 2 RCA video input can match with VCD, DVD and camera
4) RGB input
5) Touch-screen for PC display
6) Built-in speaker/amplifier and earphone jack
7) Operating Systems: DOS/Windows 9X, ME, 2K, XP, 7, Vista, NT, CE
/ LINUX / Mac,etc.

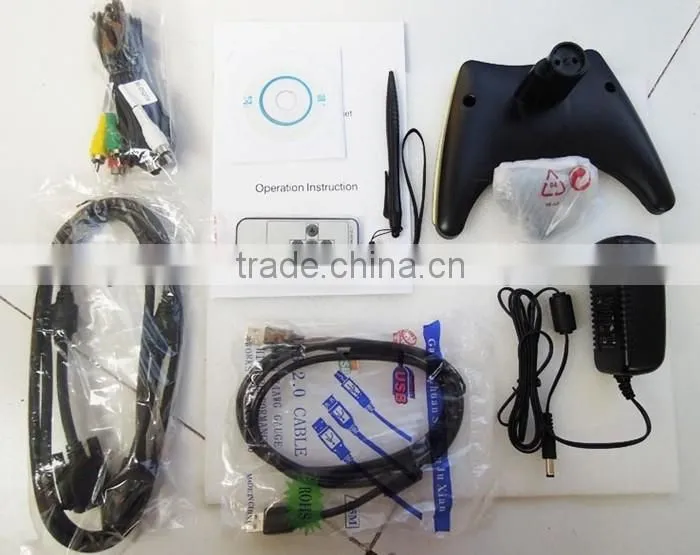

Accessories
1. USB cable
2. VGA cable
3. HDMI cable
4. Remote controller
5. Home and car adapter
6. Software CD
7. English user manual
8. Touch Pen
9. Bracket
Optional functions:
HDMI Input / DVI input / Open frame monitor / All In One PC
No Touch is optional
Optional display size:
7", 8", 9.7", 10.2", 10.4", 12.1", 15", 17", 19", 22"
***Popular models with simialr function from 7" to 19" :
Welcome to order the VGA/HDMI/TOUCH SCREEN Monitor from JWELL company
