Specifications

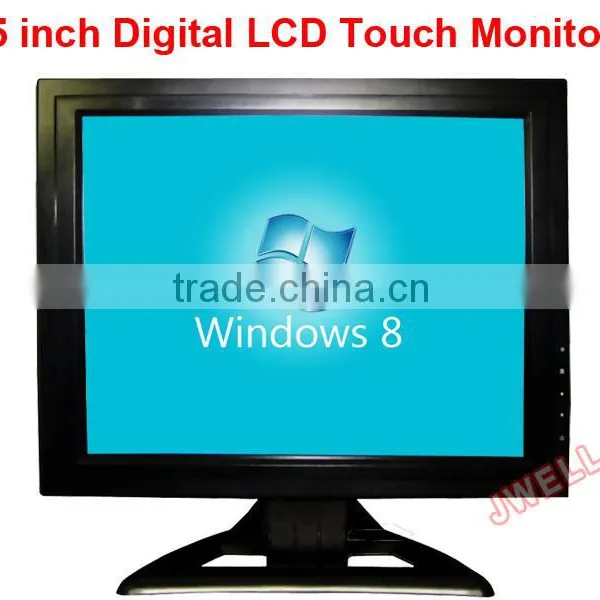

Indoor Kiosks 15" TFT LCD AV/VGA/ BNC touch screen monitor 1024X768 400cd/m2, 500:1 high brightnessSharp, AU brand
15" Indoor Kiosks TFT LCD AV/VGA/BNC Touch screen monitor with speaker
One of the world's most high-precision four wires resistive type touch-screen for PC display.
(USB port/COM RS232 optional)
Sensitive touch-screen, quick response
Standard VGA (15 pin D-SUB RGB) and Two RCA/BNC video input
Built-in speaker amplifier/PC audio input and earphone jack
Operating All Systems: DOS/Windows 9X ME 2K XP 7 Vista NT CE / LINUX / Mac£¬etc.
Can support almost all kinds of resolution
Low radiation and consumption. High reliability, good stability,
especially for work in harsh environments.
Specification:
Panel: 15" A+ GRADE Panel
Display Type: 4:3 Ratio
Physical Resolution :1024X768
4- wires /5-wire resitive touch-screen optional.
Touchscreen Interface: Serial (RS232) or USB optional.
15 pin D-SUB VGA signal input.
SD/USB card reader and TV/AV fucntion is optional.
Built in Speaker.
OSD: Remote control OSD(Voice, Brightness, Contrast)
One VGA input, 2 AV Input, 1 AV Input
Input Video Format: Analog RGB ,NTSC/PAL/SCAME(AUTO)
Touchscreen Interface: Serial (RS232) or USB
Operating System: DOS/Window 9X ME, 2K XP Vista NT Windows CE / LINUX / Mac
Power Consumption: <30 W Typ
Working Vplt:11V-15V
Technical Specification:
Touch Response Time Serial/USB: 10.4ms
PowerSupply: 85-265VAC,50-60HZ
Pixel Pitch: 0.107 (W) X 0.372(H) mm
Pixel Response Time Rise + Fall (Typically): 12ms
Brightness: 400 cd/m2
Contrast Ratio Typically: 14.58402778
ViewingAngle Horizontal (left/right): 170°C(85°/85°)
(From Centre, CR>=5) Vertical (up/down): 160° (70°/90°)
Temperature Range: Operating:-20°C-60°C,
Storage:-30°C-70°C
Relative Humidity Non Condensing: Operating:10%-90%, Storage 5%-90%
FM/IR Range: FM-30-88.9 MHz, IR-2.3MHZ-2.8MHZ
TV Channel Parameter:VHF-L 48.25~170.00Mhz VHF-H 170.00~450.00Mhz
Packing :
Quantity:3PCS/CTN
Net Weight:14.5KG/CTN
Gross Weight:15.5KG/CTN
Carton:45X47X45CM
Warranty: 1 year
Agency Approvals: FCC, CE, ROHS
Accessories:
VGA cable
Touch USB cable
Video/audio cable
BNC cable (optional)
Remote
Power Supply Adaptor
Power Lead(US,EU,UK etc type)
Software touch driver CD
User Manual (English)
Touch Pan
Bracket
Typical Applications:
Entertainment /Casino Systems
Outdoor and indoor Kiosks
Entertainment
Transport and Ticketing
Television station
Education
Exhibition
Advertisement
Hotel/Hospitality
Car PC
Industry equipment
Banking
Customised Solutions
