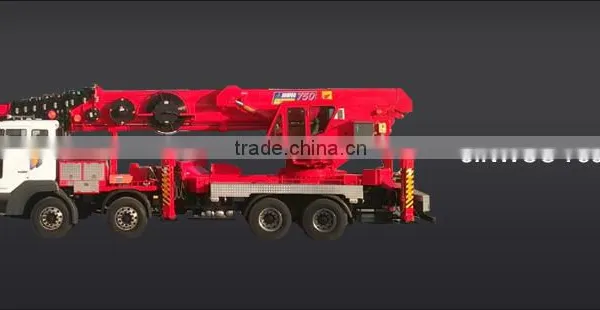

AERIAL PLATFORM HYNDAI HD320 25 Ton Standard Cab Chassis and 4WD
US$ 150,000 - 250,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Transmission Type:
Manual
Condition:
New
Emission Standard:
Euro 4
Payment & Shipping
Payment Methods:
Port of Shipment:
BUSAN-INCHEON
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Transmission Type
Manual
Condition
New
Emission Standard
Euro 4
Fuel Type
Diesel
Dimensions (L x W x H) (mm)
12700x2500x4000
Place of Origin
Incheon, South Korea
Brand Name
JINWOO
Model Number
JINWOO 750
| DESCRIPTON | UNIT | SPECIFICATIONS |
|
|---|---|---|---|
| PRODUCT CODE | OEM | - | JINWOO750 |
| MANUFACTURER | OEM | - | JINWOO SMC. CO. LTD. |
| PERMISSIBLE MOUNTING VEHICLE | HYUNDAI – HD360 Or DAEWOO - K7CEF | - | 8X4, 36TONS GVW, 420PS, 8 CYLINDERS, EURO2/5 ENGINE, 7,010mm WHEEL BASE |
| PRODUCT ( INCLUSIVE OF VEHICLE ) | STOWED LENGTH | MM | 12,700 |
| STOWED WIDTH | MM | 2,500 | |
| STOWED HEIGHT | MM | 3,995 | |
| WEIGHTAGE | Tons | 34.5 | |
| BOOM | No. of BOOMS | EA | 10 (TELESCOPIC) – 2 STAGE |
| EXTRUSION TYPE | - | HYDRAULIC CYLINDER, WIRE/CHAIN FAILURE-SAFE INTERLOCK | |
| CROSS-SECTION | - | OCTAGONAL | |
| TURRET or TURNTABLE | ROTATION | DEGREE | 360 (CONTINUOUS IN BOTH DIRECTIONS) |
| TYPE | - | HYDRAULIC SLEWING BEARING WITH REDUCTION GEAR) | |
| STABILIZER SLIDES | No. of BOOMS | - | TOTAL 4 (1 Fixed) |
| EACH SLIDE STROKE LENGTH | mm | 1,050 (FRONT) 1,050 (REAR) | |
| MAX. OUTREACH | mm | 8,200 (FRONT) 8,200 (REAR) | |
| OUTRIGGER JACKS | STROKE LENGTH | mm | 970 |
| STEEL PLATFORM | SIZE | mm | 3200(L)*1100(H)*1050(W) (for 3 workmen) |
| TYPE | - | HYDRAULIC ; SELF-LEVELING |
|
| ROTATION | DEGREE | 360° CONTINUOUS USING RING GEAR | |
| VALVE CONTROLS | BASIC TYPE | - | MANUAL LEVER (OUTER RIGGERS and BOOM) |
| REMOTE CONTROL | - | WIRELESS (FOR UPPER CONTROLS) | |

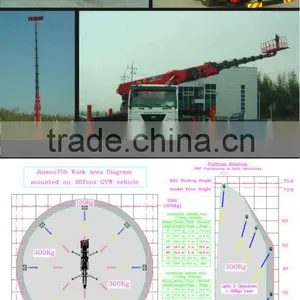

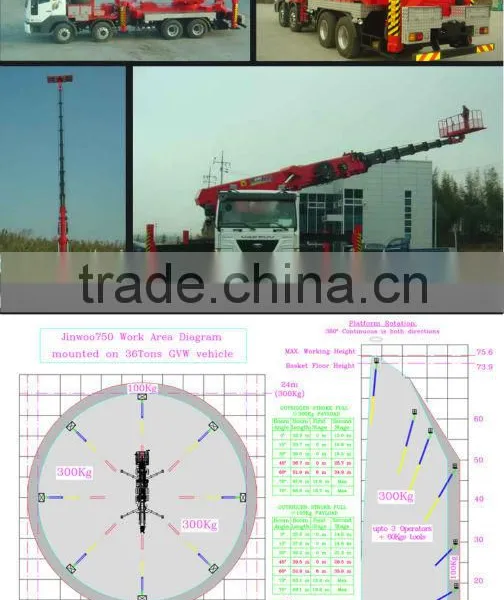

| MAX. WORKING HEIGHT | m | 75.6 ( 73.9M TO FLOOR OF BASKET ) | |
| MAX. OUTREACH | m | 28 @ 100Kg ; 24 @ 300Kg | |
| MAX. WORKING LOAD (PAYLOAD) | Kg | 300 for STEEL PLATFORM | |
| HYDRAULIC OIL TANK CAPACITY | L | 380 | |
| SAFETY DEVICES | - | RELIEF & COUNTER BALANCE VALVES, PROPORTIONAL CONTROL VALVE, PLATFORM SAFE ANGLE CONTROL VALVE, PILOT CHECK VALVE, OVERTURNING ALARM, BOOM OVER EXTENSION ALARM (OPTIONAL: AUTOMATIC CUT-OFF SAFETY SYSTEM), DISPLAY MONITOR, PAYLOAD & BOOM ANGLE LIMITER, PROGRAMMED OUTRIGGER BASED WORK AREA AUTOMATIC CUT-OFF SYSTEM | |
