Product Details
| Place of Origin: | Henan, China | Brand Name: | SAN HENG, SANHENG Rubber Cable | Model Number: | H05RR-F, YC YCW Rubber Cable |
| Insulation Material: | Other, Rubber, EPR Rubber Cable | Type: | Other, Low Voltage, Rubber Cable | Application: | Other, Construction, Telecommunication, Power station |
| Conductor Material: | Other, Copper, Tinned copper or bare copper Rubber Cable | Jacket: | Rubber |
Product Description

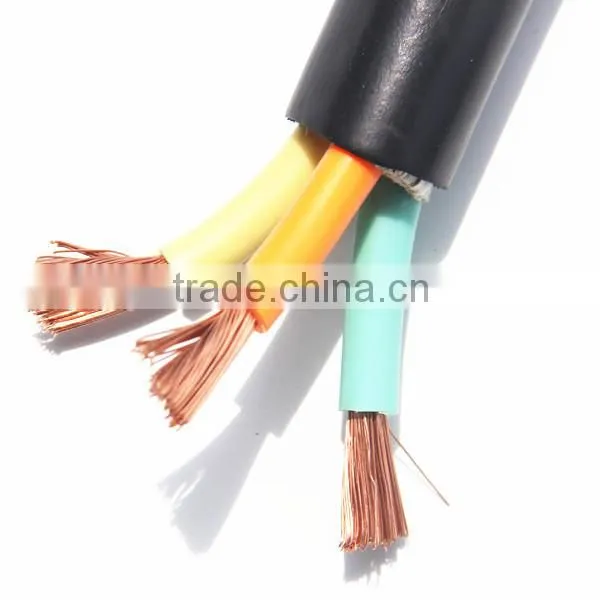

H07RN-F 3G*1.5mm2 pure copper conductor double insulation low rubber cable price
| Brand Name | SANHENG |
| Model Number | 3*1.5 3*2.5 3*6 4*1.5 4*2.5 ...... |
| Model Name | Rubber Insulated Cable for Mining Use |
| Manufacturing Standard | JH/T 8735.2 |
| Core Material | Copper |
| Core Number | Mulite |
| Insulation | Rubber |
| Screen | No |
| Sheath | Rubber |
| Rated Voltage | 0.6/1KV |
| Max. Rated Operating Temperature of Conductor | 90℃ |
| Max. Overtaxing Temperature | 130℃ |
| Max. Short-circuit Temperature(within 5 secs) | Lower than 250℃ |
| Laying Temperature | Over 0℃ ; The cable should be heathed beforehand under 0℃ when laid |
| Bending Diameter | Permissible bending radius for multicores is 15(D+d) ± 5%; D is the actual outer diameter of cable; d is the actual outer diameter of conductor. |
| Breaking Strength(Cu core cable) | 7*S(N); S is the total crossection area of cable. |
| Shipping Way | Shipping or as customer required |
| Packing | Wooden drum or Steel drum |
| Payment Item | T/T |
Reference Standard:
-VDE 0282
Application range:
-Hard-hold and power supply device acc
-Day and damp interiors, as well as for limited outdoor use acc
-Light and sound technology
Product feathers:
-Cable working temperature should not exceed +65°C
-Cable have a certain extent of temperature resistance and oil resistance, fit to work outside and working in the smeary enrivonment
Package:
1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement
2) Outer packing: wooden case, carton box
3) Other packing requirement according to client's request
