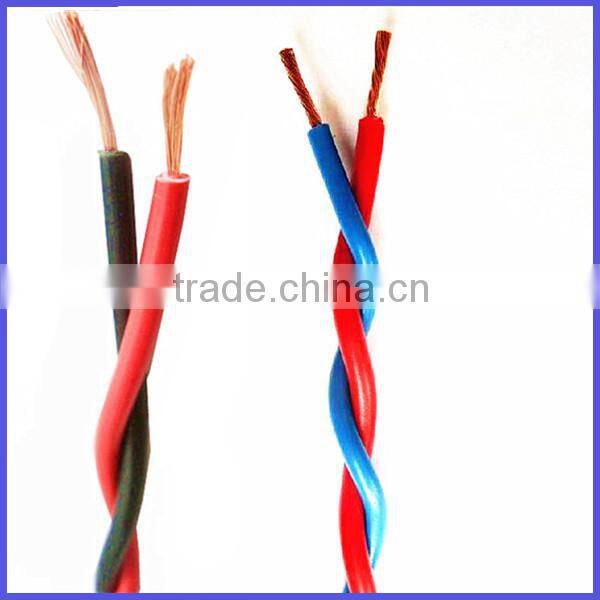

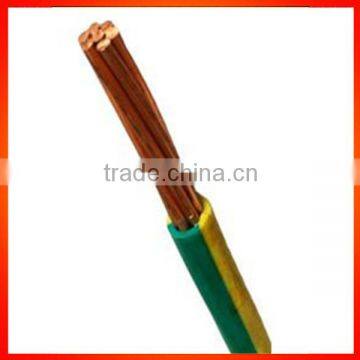

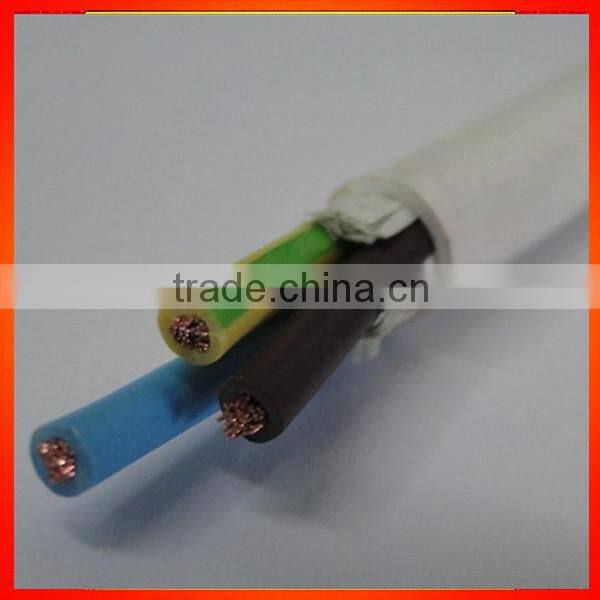

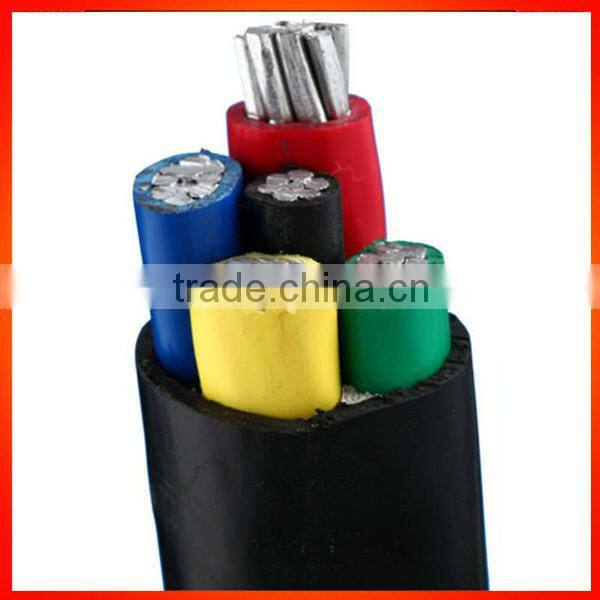

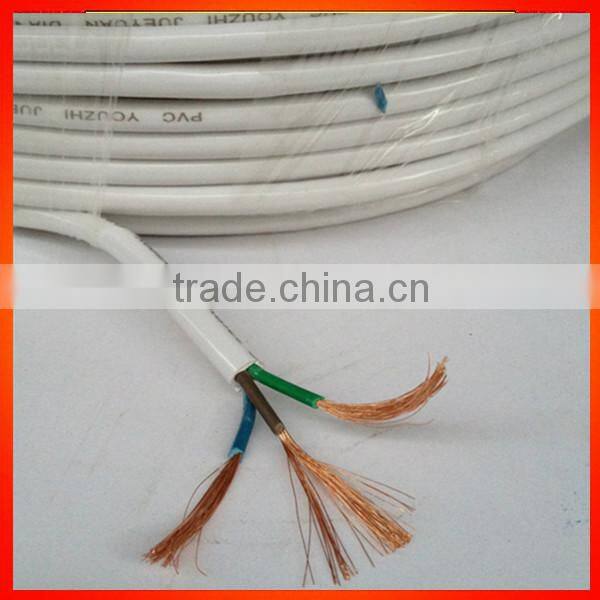

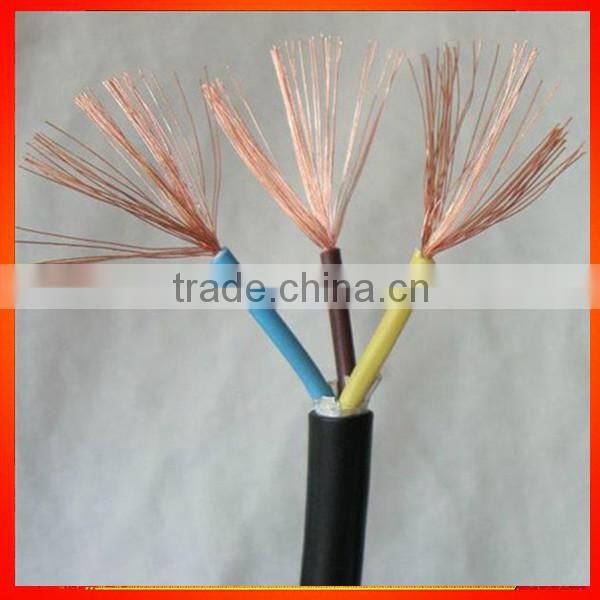

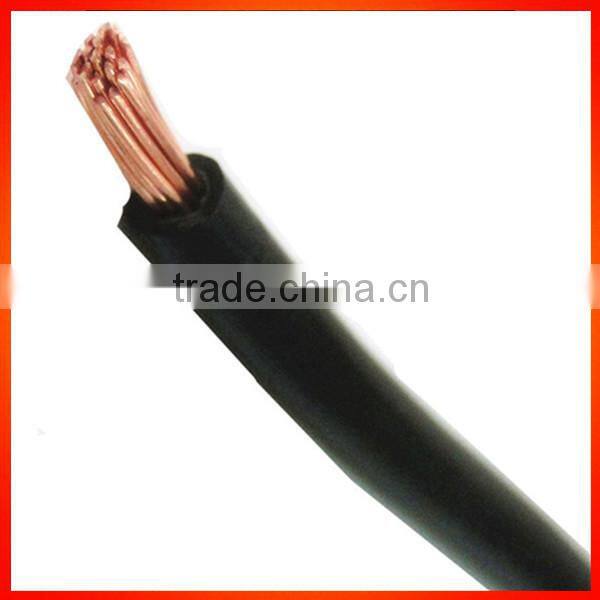

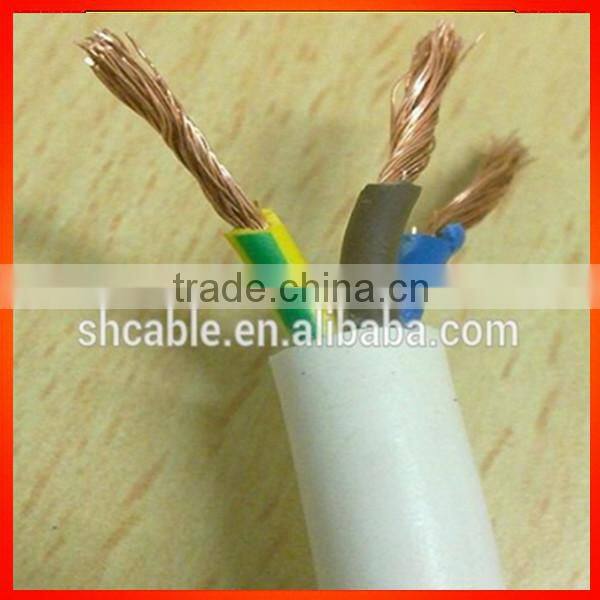

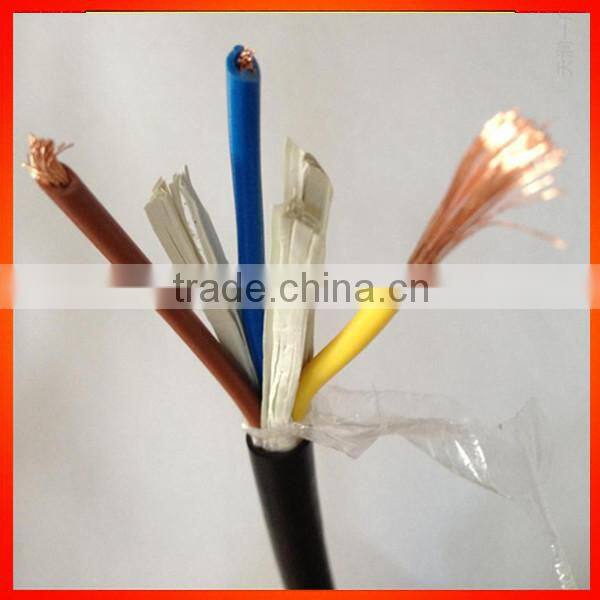

pvc sheathed cable wire super flexible civil wire
1.This product fit for ac voltage 300/500V and below of domestic electrical appliances.of smaller size motoriace tools,of instruments,of various meters and motorized lighting installations.
2. Electric wire has high quality and low price .We can also produce products according to your special requirement.
3. We promise you of the most competitive prices. If you need, we can offer you some samples for your reference.
4. Rated temperature of the wire is 70 centigrade.
5. Finished insualtion core and finished power line are put into the water at the temperature 20+50°C for an hour,they should be able to bear stipulated acsohz,soaked voltagetest at stated.
6.Wire has excellent electric insulation chnical property,non-inflammability,so it is safe and convent in using .
7. If you have any problem about the electrical wire and cable, please feel free to connected with me.

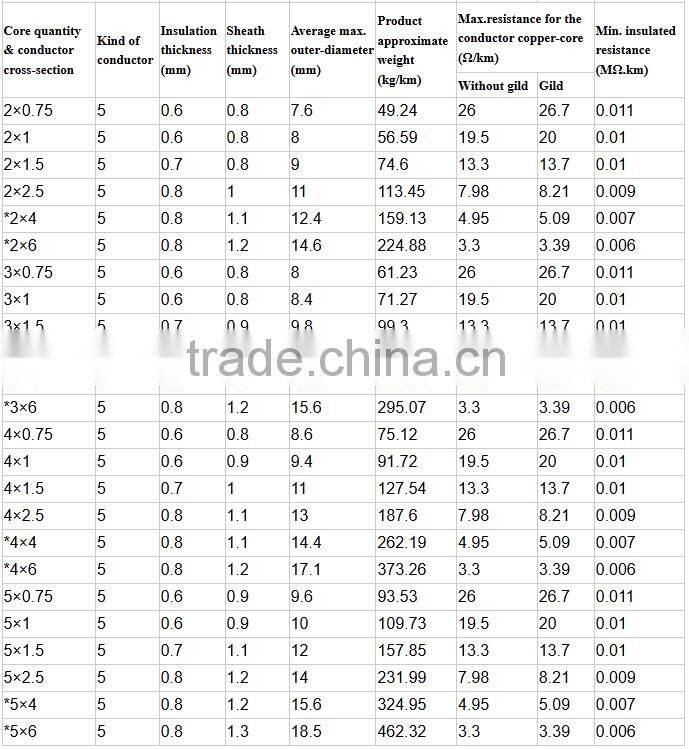

8. Specifications:
CONDUCTOR |
INSULATION |
JACKET |
MAX COND RESISTENCE (20 Ω/KM)
|
|||||
|
Cross section (mm²) |
Core structure (No./mm) |
Dia (mm) |
Core |
Insulation Thinckness (mm) |
O.D (mm) |
Jacket Thickness (mm) |
O.D (mm) |
|
|
0.75 |
24/0.20 |
1.13 |
2 |
0.61 |
2.35 |
0.80 |
6.30 |
26.7 |
3 |
0.61 |
2.35 |
0.82 |
6.70 |
||||
4 |
0.61 |
2.35 |
0.82 |
7.30 |
||||
5 |
0.61 |
2.35 |
0.93 |
8.20 |
||||
|
1 |
32/0.20 |
1.31 |
2 |
0.60 |
2.50 |
0.80 |
6.60 |
20.0 |
3 |
0.60 |
2.50 |
0.86 |
7.10 |
||||
4 |
0.60 |
2.50 |
0.93 |
7.90 |
||||
5 |
0.60 |
2.50 |
0.93 |
8.60 |
||||
|
1.5 |
30/0.25 |
1.58 |
2 |
0.71 |
3.00 |
0.80 |
7.60 |
13.7 |
3 |
0.71 |
3.00 |
0.92 |
8.30 |
||||
4 |
0.71 |
3.00 |
1.08 |
9.40 |
||||
5 |
0.71 |
3.00 |
1.15 |
10.40 |
||||
|
2.5 |
49/0.25 |
2.02 |
2 |
0.82 |
3.65 |
1.00 |
9.30 |
8.21 |
3 |
0.82 |
3.65 |
1.07 |
10.00 |
||||
4 |
0.82 |
3.65 |
1.19 |
11.20 |
||||
5 |
0.82 |
3.65 |
1.32 |
12.50 |
||||
