Specifications
Flat cable bvvb-Manufacturewith 30 years experience
-IEC ISO CCC
-Rated Voltage:300/500V
-Can customize

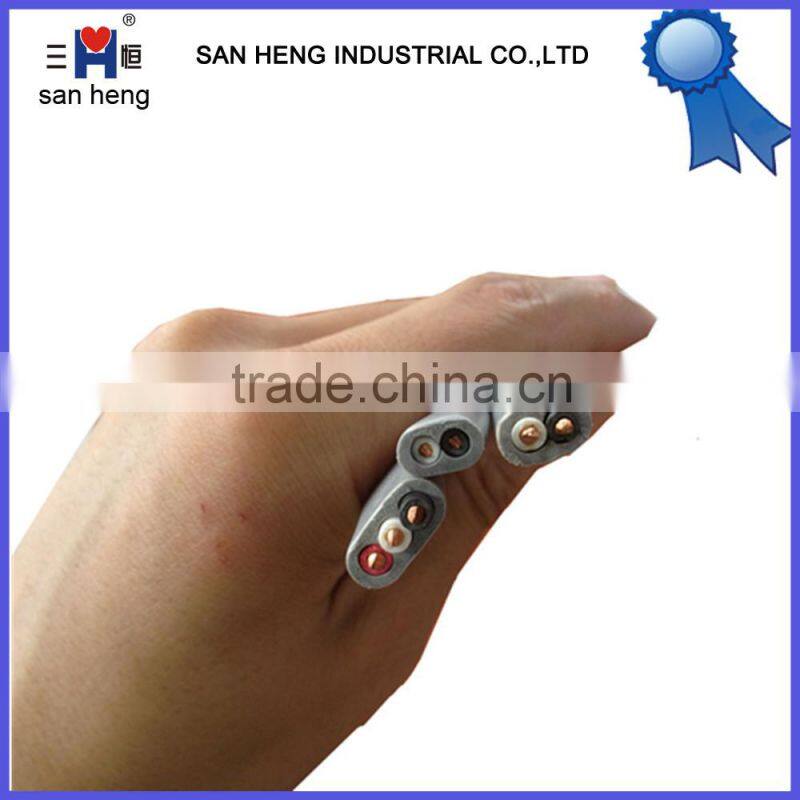

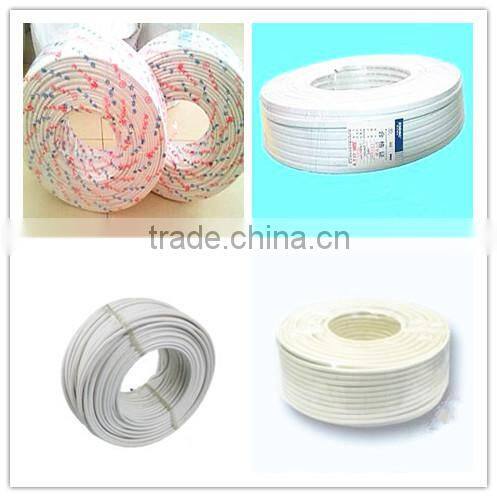

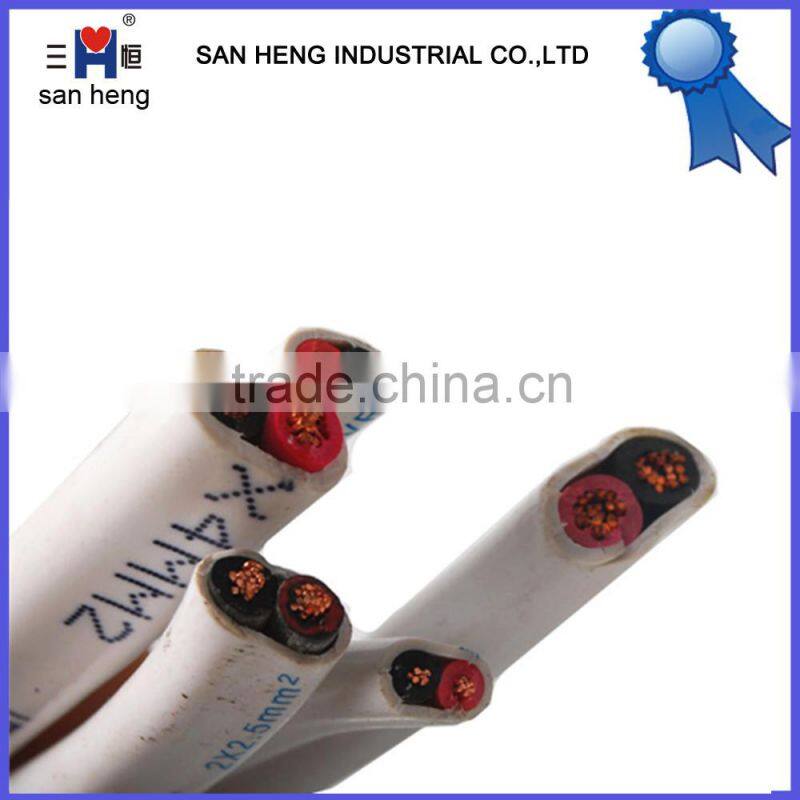

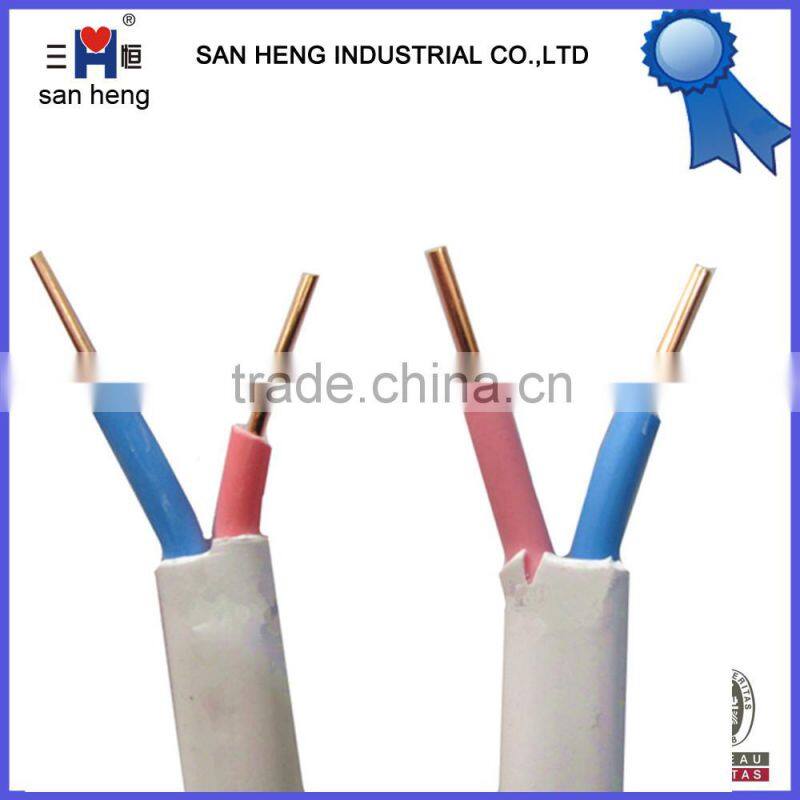

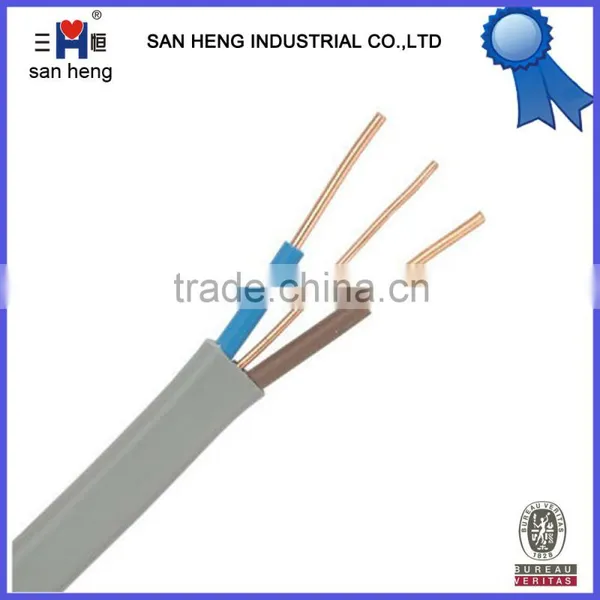

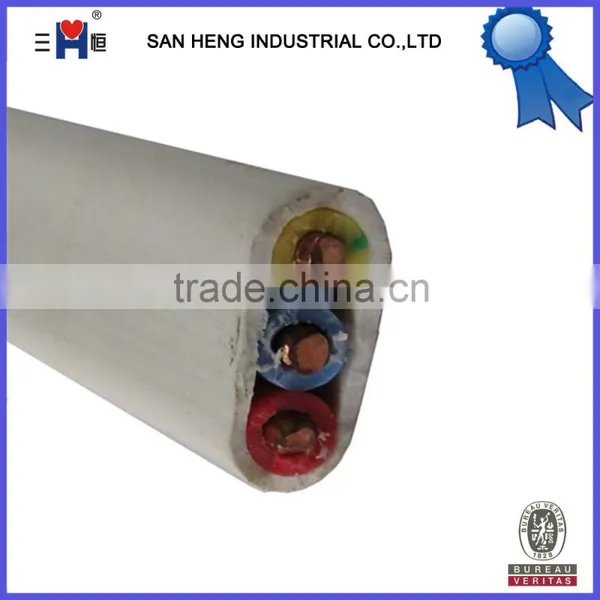

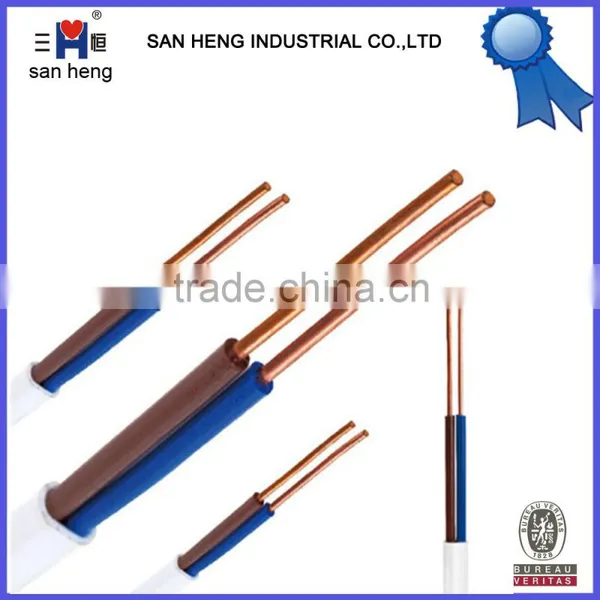

pvc insulated and sheathed Flat cable bvvb
Wire - Copper core PVC insulated PVC sheathed flat cable
1. Wire - Copper core PVC insulated PVC sheathed flat cable is made complying with the national standed and have pass the CCC--China Compulsory Certification,which contains the recondition of national security certificate--CCEE.Imports of SafetyandQualityLicensingSystem--CCIB.China Certification Electromagnetic Compatibility--EMC
2.Range of application: fit A.C rated voltage300/500V
3.The ermissable continuous operating temperature of wire shall not exceed 70 centigrade and the installation temperature of wire shall not be lower than -15 degree
4.We can also customize the electrical wire and cable as your requestyou can decide the core count and cross seaction of the conductor,as well as the jacket and insulation
5.Technial Parameter
Nominal seaction(mm²) |
Type |
Max Outer Dia
(mm) |
Resistance in 20°c
(Ω/km) |
Min Insulation resistance in 70°c (Ω/km) |
|
2*0.75 |
2*1/0.97 |
4.6*7.1 |
24.5 |
0.012 |
|
2*1.0 |
2*1/1.13 |
4.8*7.4 |
18.1 |
0.011 |
|
2*1.5 |
2*1/1.38 |
5.3*8.5 |
12.1 |
0.011 |
|
2*2.5 |
2*1/1.78 |
6.2*10.1 |
7.41 |
0.010 |
|
2*4(A) |
2*1/2.25 |
6.7*11.1 |
4.61 |
0..085 |
|
2*4(B) |
2*7/0.85 |
7.2*11.5 |
4.61 |
0.0080 |
|
2*6(A) |
2*1/2.76 |
7.5*12.5 |
3.08 |
0.007 |
|
2*6(B) |
2*7/1.04 |
8.0*13.0 |
3.08 |
0.0065 |
|
2*10 |
2*7/1.35 |
9.5*16.2 |
1.83 |
0.0065 |
|
3*0.75 |
3/1/0.97 |
4.6*9.6 |
24.5 |
0.012 |
|
3*1.0 |
3*1/1.13 |
4.8*10.1 |
18.10 |
0.011 |
|
3*1.5 |
3*1/1.38 |
5.3*11.7 |
12.10 |
0.011 |
|
3*2.5 |
3*1/1.78 |
6.2*14.0 |
7.4 |
0.010 |
|
3*4(A) |
3*1/2.25 |
7.0*15.8 |
4.61 |
0.0085 |
|
3*4(B) |
3*7/0.85 |
7.4*16.5 |
4.61 |
0.0080 |
|
3*6(A) |
3*1/2.76 |
7.5*17.5 |
3.08 |
0.007 |
|
3*6(B) |
3*1/1.04 |
8.0*18.0 |
3.08 |
0.0065 |
|
3*10 |
3*10 |
9.5*25.0 |
1.83 |
0.0065 |
We are manufacturer supply wires and cables. accept OEM service, provide free samples.
We have high quality products, best price and best service !
Large quantity and first order could enjoy a pleasant discount. Contact us and get a quotation RIGHT NOW !

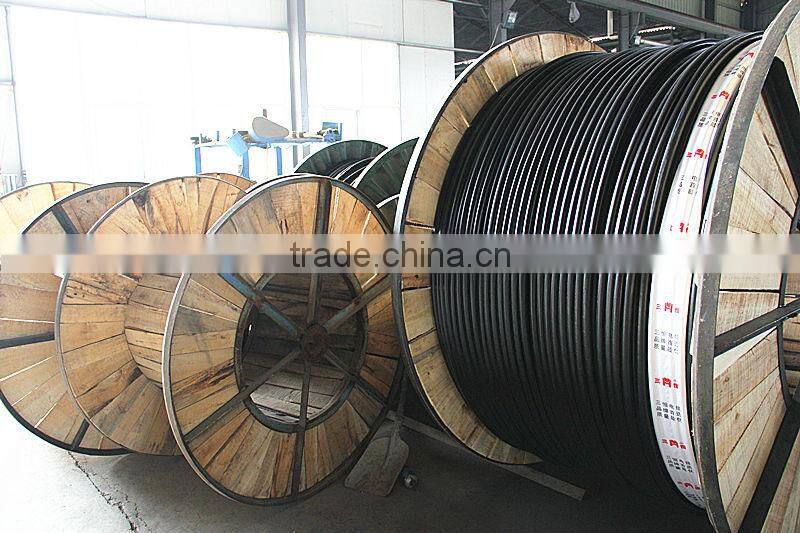

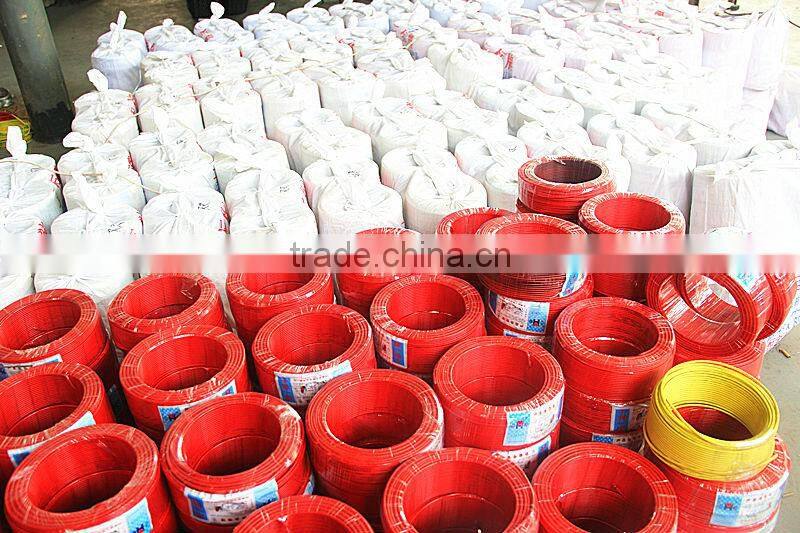

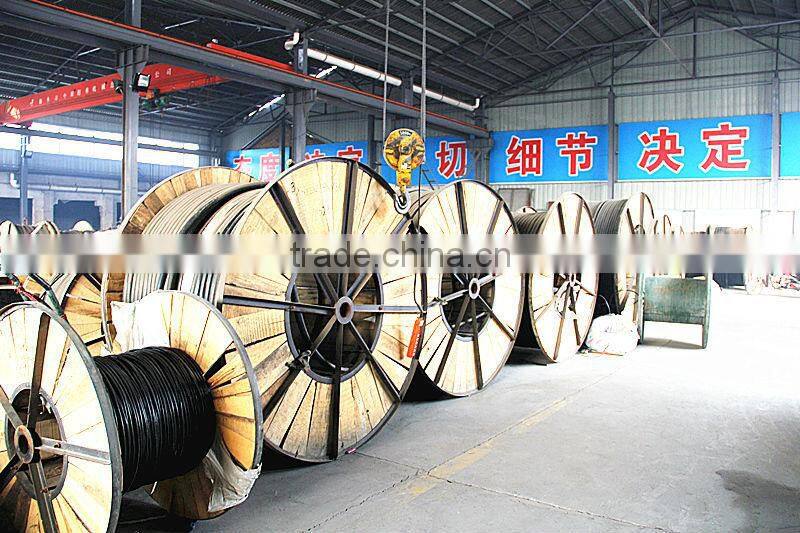

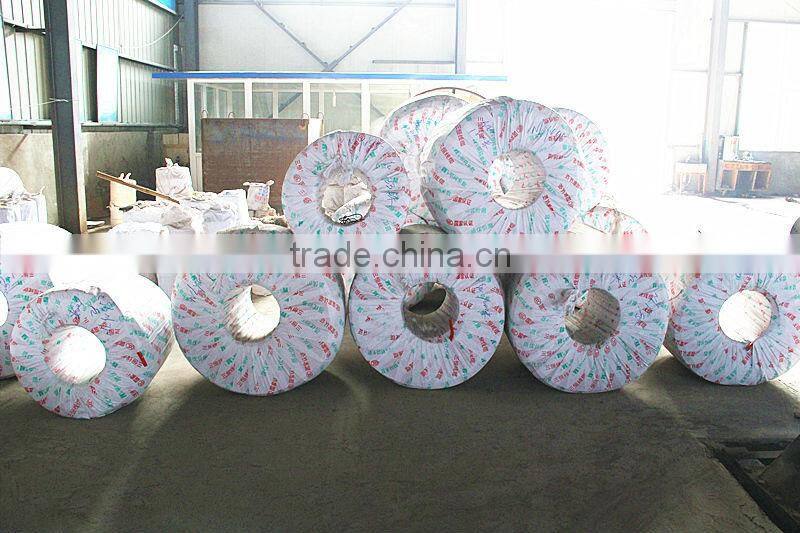

International standard packing: pp bag, woven bag, wooden drum, steel drum, or as per esteemed customers' request.

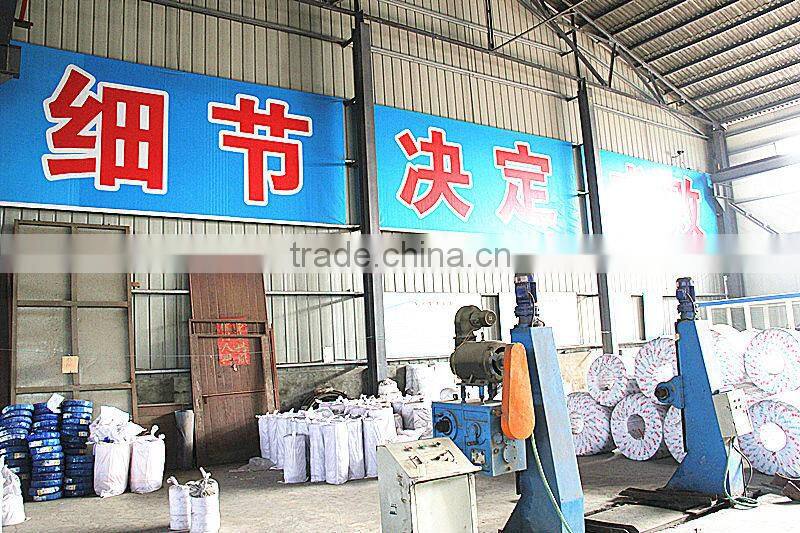

Established in 2000, Henan San Heng Industrial Co., Ltd. with those years' unremitting efforts and endeavors, has achieved sound cooperation and widely compliments from the clients throughout our country and all over the world by superior quality, reasonable price and sincere services.
Our products are mainly covering PVC cables .building cables, XLPE insulated power cables, PVC insulated power cables, aerial-bundle cables, PVC insulated wires, control cables, rubber cables, bare conductors, welding cables, and other related products.
Main Markets: Domestic market, Africa, Eastern Europe, Southeast Asia.
Quality First ! Customer First ! Service First !
We have got China national quality certification CCC and in accordance with Intenational standard IEC. also can customize as your requested standards.

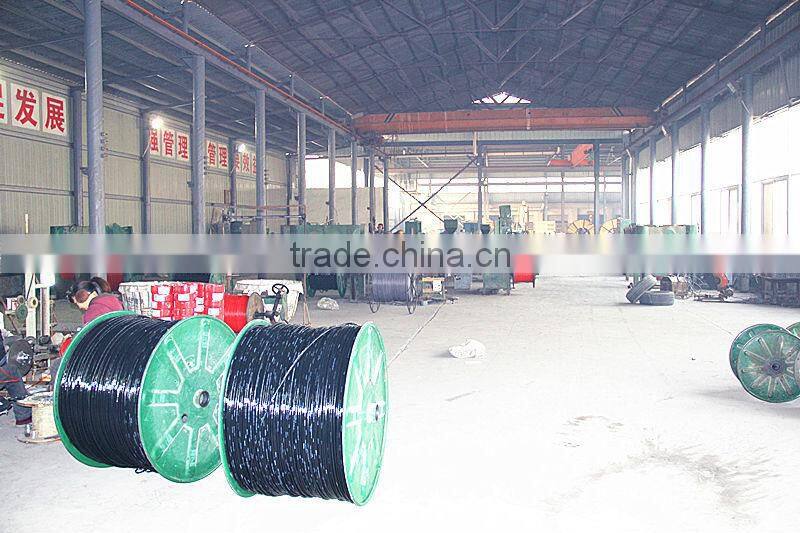

♦ We are one of the biggest manufacturer of cable and wire products in Henan, China with 14 years experience.
♦ We accept OEM. Your own logo and own design are welcomed. We will produce according to your requirments and descriptions.
♦ Your inquiry is welcomed at anytime, and we will give you feedback in 12 hours.
1.Q:Are you a factory or trading company?
A: We are a 14 years factory with more than 60 engineers.and have gained the supplier assessment.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Zhengzhou City, Henan Province, China,.You can fly to Xinzheng airport directly.All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A: We are honored to offer you samples according your inquiry.
4.Q:How does your factory do regarding quality control?
A: Our factory has gained BV,SGS,CCC,ISO, certification.
Dear sir or madam
This is cherry. If you have any problem , please feel free to contact us . Sending me email, Adding me on Skype, Talking with me On Trademanager or Call me .
ACTION ! RIGHT NOW !!! Tell us your request ! Let me know your needs !
Maybe we can help ! It must be a WIN-WIN cooperation with your company!
