1. Main Advantage of HAITAI Two colors Injection Molding Machine:
* Auxiliary injection unit is installed at the topof fixed platen, with 90 degree to main injection unit for purpose of saving space.
* Auxiliary injection unit is modularizingdesigned, can match with variety of clamping forces and main injection unit.
* Tray is controlled by servo valve, so it can achieve fast rotating and breaking steadily without shock.
* Tray is eqqipped with two cores and mold water cooling inteface, and core reaching signal and mold satety signal interface, to protect oil circuit and elebtric wire from interwining and atition.
* In order to keep the accuracy of tray position and protect mould, tray is equiped with eletric wire from interwining and attition, tray is eqqipped with imported high performance and long life timne bearing to ensure the mode is safe.
* Multiple core functions can satisfy complex manufacturing technique requirements.
2. Technical Parameters of two colors Injection machine HTW200S:
| SPECIFICATION | HTW200S | |||
| A | B | C | ||
| INJECTION UNIT | ||||
| Screw diameter | mm | 45 | 50 | 55 |
| Screw L/D ratio | L/D | 23.3 | 21 | 19.1 |
| Shot volume(theoretical) | cm3 | 340 | 420 | 510 |
| Injiection weight(ps) | g | 310 | 383 | 466 |
| Injection rate | g/s | 124 | 154 | 186 |
| Injection pressure | Mpa | 207 | 168 | 139 |
| Screw pressure | rpm | 155 | ||
| CLAMPING UNIT | ||||
| Clamping force | kN | 2000 | ||

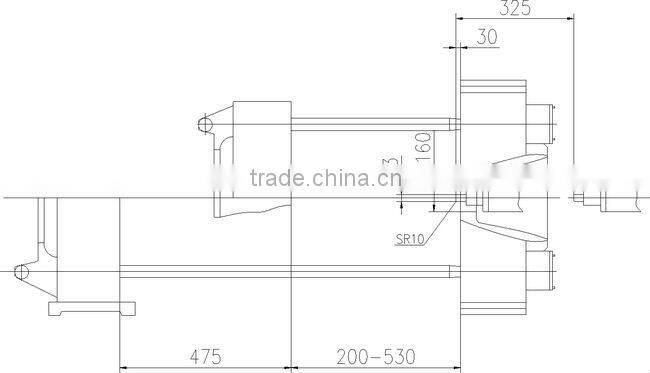

| Open stroke | mm | 475 | ||

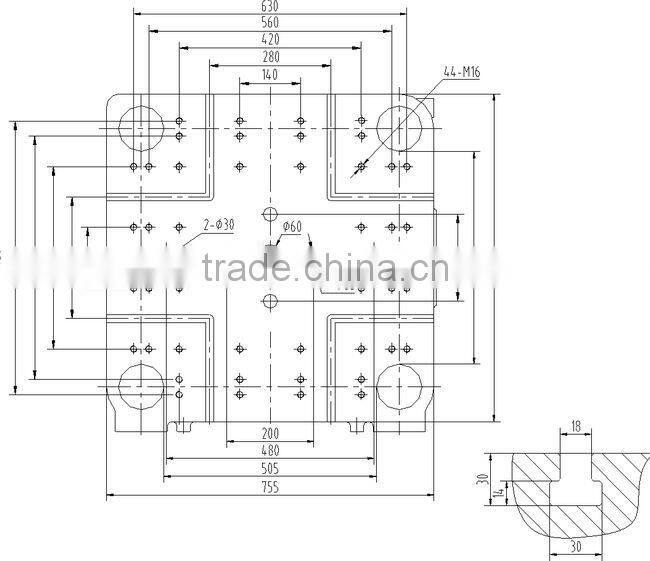

| Space between tie bars(W×H) | mm | 530×530 | ||
| Max.Mold height | mm | 530 | ||
| Min.Mold height | mm | 200 | ||
| Ejector stroke | mm | 140 | ||
| Ejector force | kN | 70 | ||
| OTHERS | ||||
| Max.Pump pressure | MPa | 16 | ||
| Pump motor power | kW | 18.5 | ||
| Heating power | kW | 13.6 | ||
| Machine dimension(L×W×H) | m | 5.22×1.57×2.21 | ||
| Oiltank cubage | L | 300 | ||
| Machine weight | t | 7 | ||
3. Certificates:
4. HAITAI AIM:
YOUR NEEDS,
OUR SOLUTIONS,
YOUR SUCCESS!
5. AGENT WANTED
