Home > Manufacturing & Processing Machinery > Plastic Machinery > Injection Molding Machine > HTW320 Plastic Making Machine

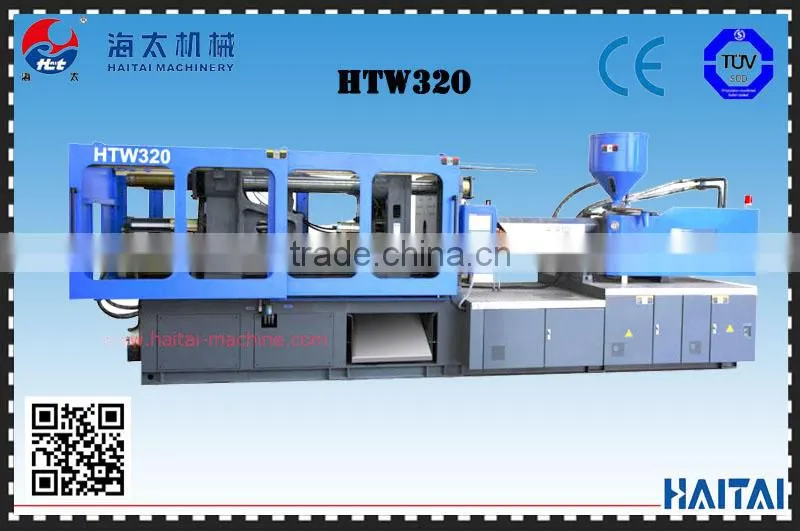

HTW320 Plastic Making Machine

Name: HTW320 Plastic Making Machine
Brand: HAITAI
SKU: 109633781

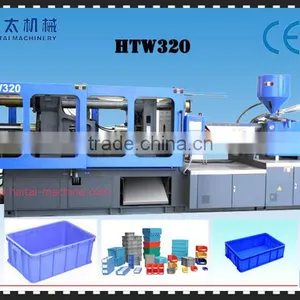

HTW320 Plastic Making Machine thumbnail-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Preform Injection

Style:

Horizontal

Contact Supplier Request Quote Chat Now

Ningbo Haitai Industry & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Preform Injection

Style Horizontal

Brand Name HAITAI

Model Number HTW320

Place of Origin Zhejiang, China

Plastic Type Thermoplastic

Automatic Yes

Injection Weight 1349

Injection Rate 422

Clamping Force 3200

Opening Stroke 660

Power(W) 37

Certification CE/TUV

After-sales Service Provided Engineers available to service machinery overseas

Specifications

plastic making machine
1.Big tie bar space and shot weight capacity
2.High quality components
3.Best after-service

HTW320

1. SPECIFICATIONS

HTW320 INJECTION MOLDING MACHINE

1. Designed by 3D software,structural strength are verified.

2. CNC machine tools for processing, products are of high precision.

3. T slot, threaded holes for mold installation.

4.Hydraulic system with a self sealing oil suction filter and adopted the bypass filter device.

5. Servo system adopted, energy-saving effect of up to 85%.

6.Servo system is made of high quality components. The system robustness is strong, running stability.

7. Timely and effective after-sales service.

2. TECHNICAL PARAMETERS

HTW320 INJECTION MOLDING MACHINE

SPECIFICATION		HTW320
		A	B	C
INJECTION UNIT
Screw diameter	mm	67	70	75
Screw L/D ratio	L/D	22.5	21.5	20
Shot volume(theoretical)	cm3	1181	1289	1480
Injiection weight(ps)	g	1076	1175	1349
Injection rate	g/s	337	368	422
Injection pressure	Mpa	186	170	148
Screw pressure	rpm	190
CLAMPING UNIT
Clamping force	kN	3200
Open stroke	mm	660
Space between tie bars(W×H)	mm	660×660
Max.Mold height	mm	720
Min.Mold height	mm	250
Ejector stroke	mm	160
Ejector force	kN	70
OTHERS
Max.Pump pressure	MPa	16
Pump motor power	kW	37
Heating power	kW	24.7
Machine dimension(L×W×H)	m	7.21×1.90×2.34
Oiltank cubage	L	500
Machine weight	t	12.5

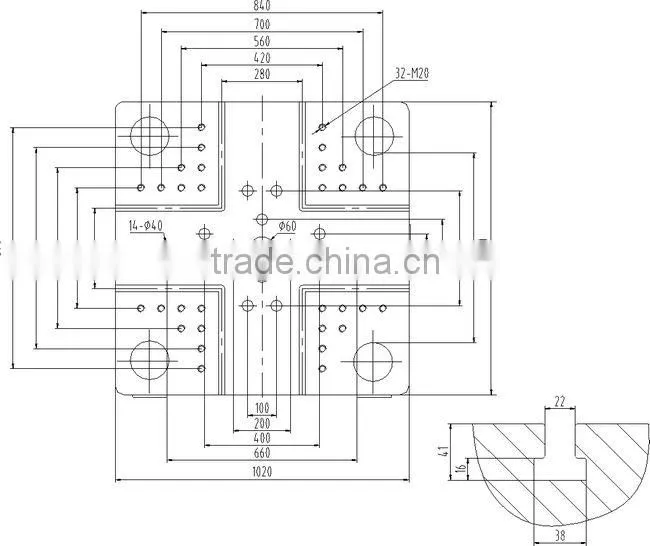

PLATEN DIMENSIONS
MOULD SPACE DIMENSOINS

3. Production description

HTW320 INJECTION MOLDING MACHINE

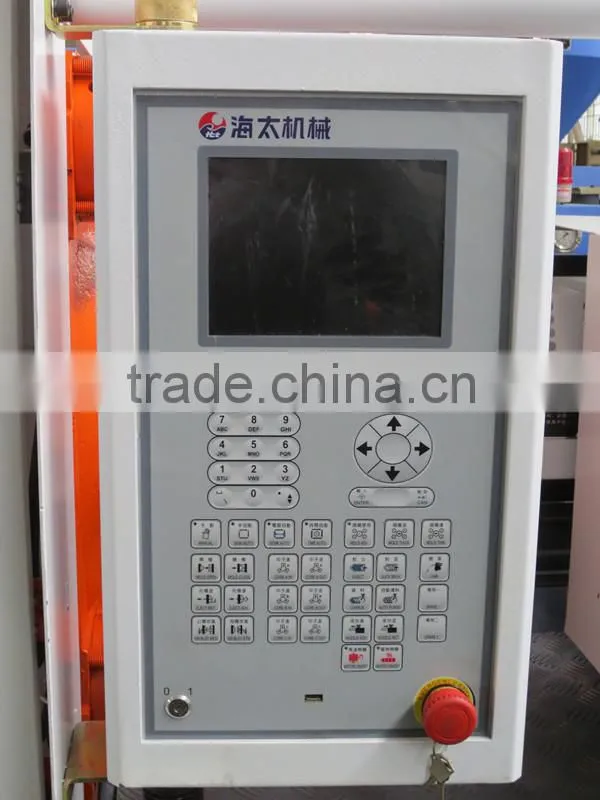

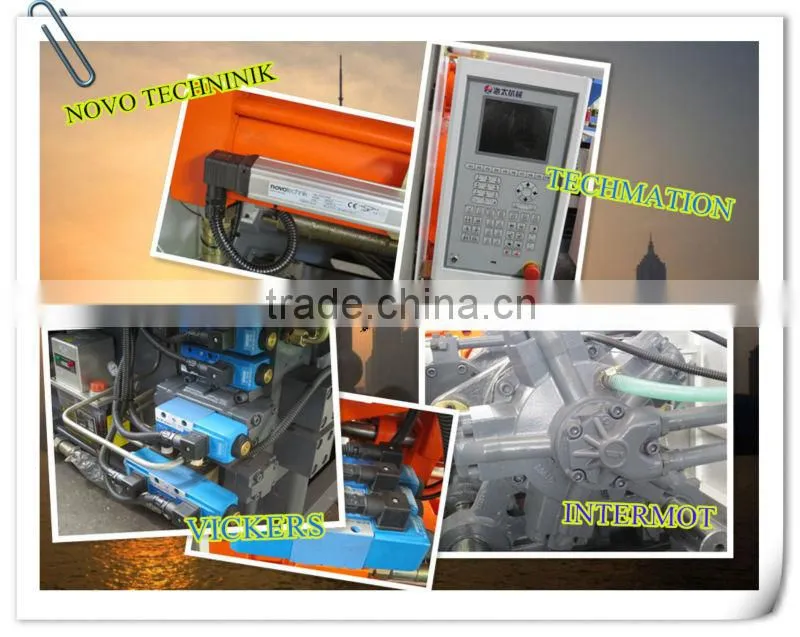

CONTROL SYSTEM

All-digital control system uses dedicated controller, multiple CPU processing division,
a multi-functional automatic fault detection, alarm system, certificates 99 mold of
processing procedures, with remote control interface. System is of high stability and
responsiveness. System uses color LCD, man made interface for easy operation and
with a number of peripheral interfaces.

FEATURES

- A variety of text can be switched.
- Manual, semi-automatic and fully automatic mode.
- To provide EUROMAP robot interface.
- Automatic movement monitoring with alarm and fault diagnosis.
- Function of slope setting can set the start and stop of movements, so as ensure the smooth movement

HTW320 INJECTION MOLDING MACHINE

HYDRAULIC SYSTEM

Advanced hydraulic system design, through proportional control of pressure, flow achieves rapid multi-level pressure, speed switching, the system configuration is reasonable, stable and reliable. The noise is less than 75 dB. The medium and large machine adopts a two-way cartridge inserted valve system to improve the system of flow and speed of response, and makes the whole machine reach the best performance.

HTW320 INJECTION MOLDING MACHINE

INJECTION SYSTEM

2005, diversified screw optimal design municipal science and technology research projects focus on key issues is completed, and is now designed professionally and production for a whole variety of raw material. the diversity of the screw is for your option.

FEATURES

- There are three or four screws and barrels with optimal design, respectively, nitride, hard plating, dual-metal, which is suitable for different processes of a variety of plastics. and the choice of product.

- Two-guided guided bar supports, double-balanced rapid injection.

- The high-torque hydraulic motors offer a stable plasticizing capacity, highprecision electronic device position detection enable accurate measurement.

- Multi-injection speed and pressure and multi-level holding pressure settings, switch from the injection time, location, pressure control to ensure the quality of molding.

- Multi-level back-pressure of pre-plastic and pre-speed are computer-controlled, anti- drooling and automated auto purge.

- Expected to prevent cold-start function to ensure that the screw, Liao Tong will not be harmed. Stability of the injection unit.

- Security doors fitted with hydraulic, mechanical and electrical interlocking triple safety device. When the safety door is open, the machine cannot clamp.

- Low pressure mold protection device to prevent damage to platen.

- Plywood, frame, the bridge, and the template attached structure, the finite element analysis.

- Hydraulic ejector, adjustable stroke, and top speed of ejector in and out, for multiple actions.

- Flexible tie bars nut eliminates fatigue fracture; assure the working life of tie bars

- Automatic adjustment. The replacement of different mold, the parameters set by clamping force to achieve the automatic adjustment.

- High-precision electronic detection device, multi-stage control of opening stoke, speed and location, location accuracy.

4. Certificates:

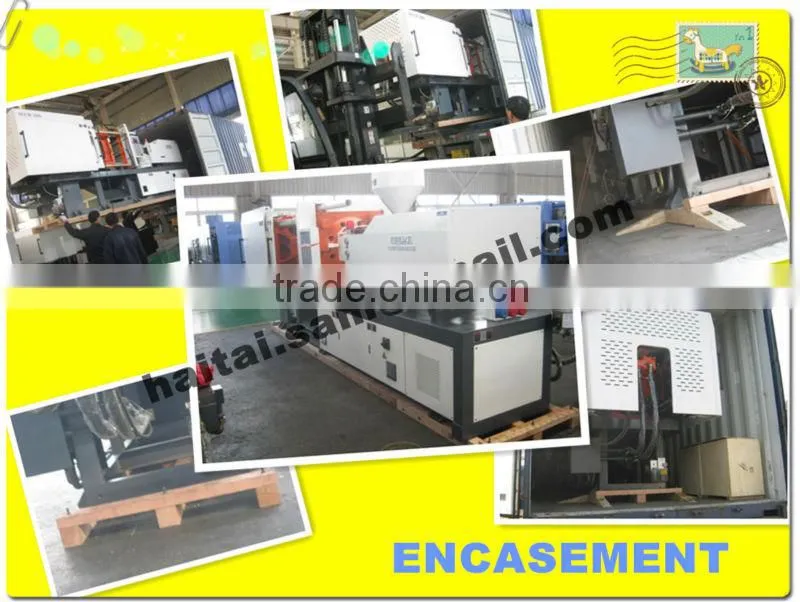

5. ENCASEMRNT

6.EXHIBITIONS & VISITERS

6. AGENT WANTED
