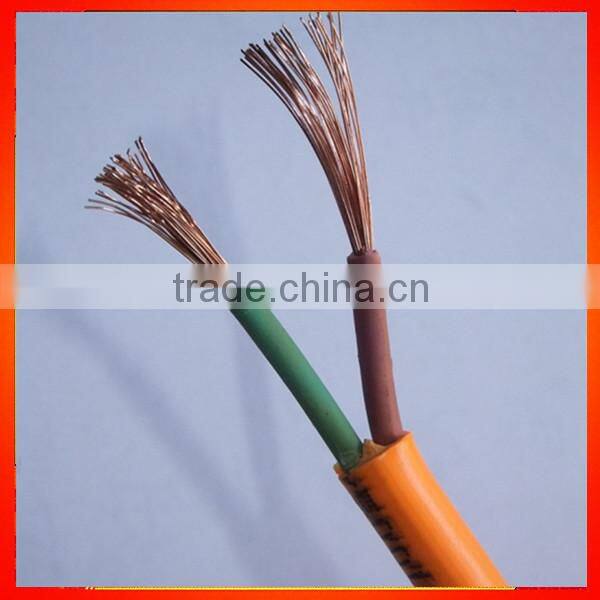

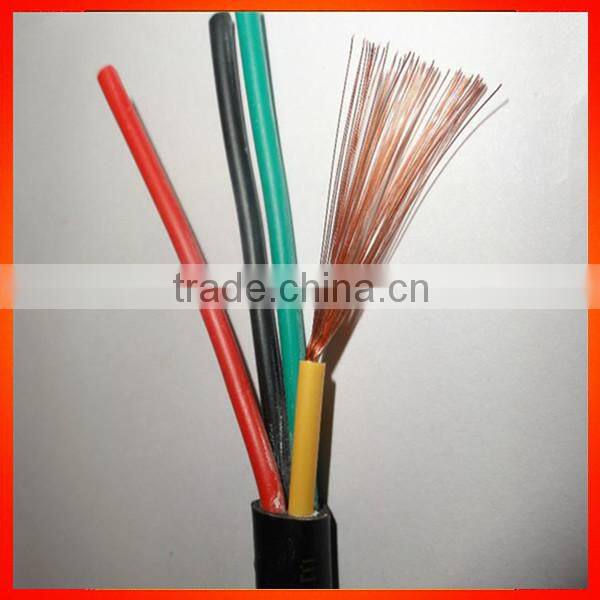

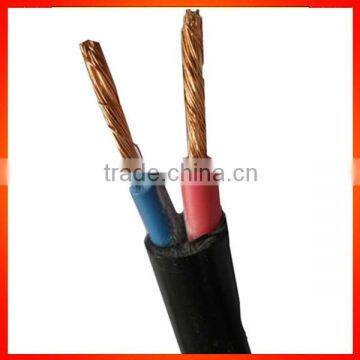

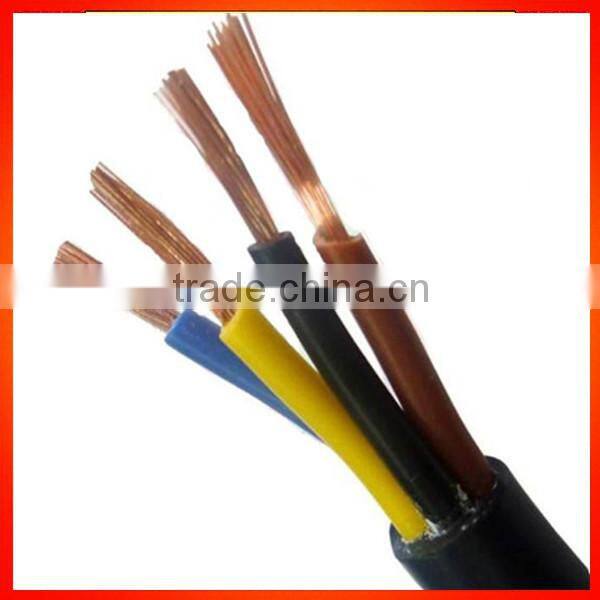

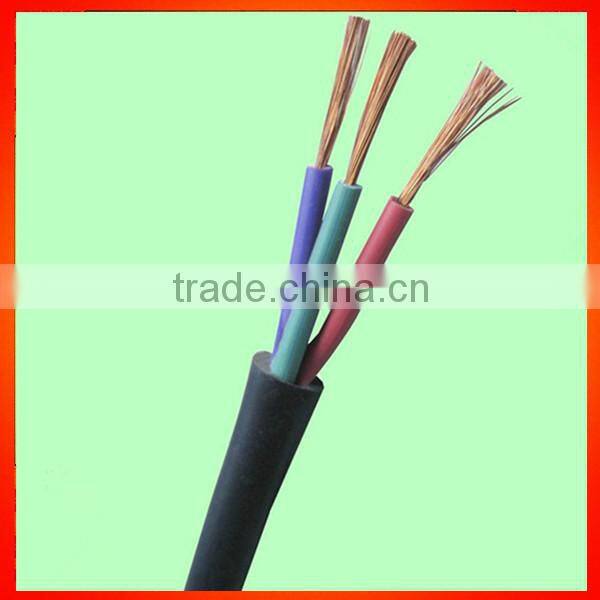

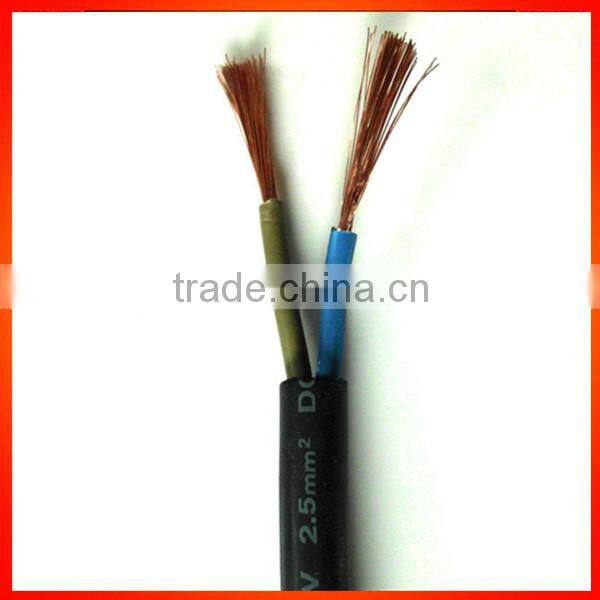

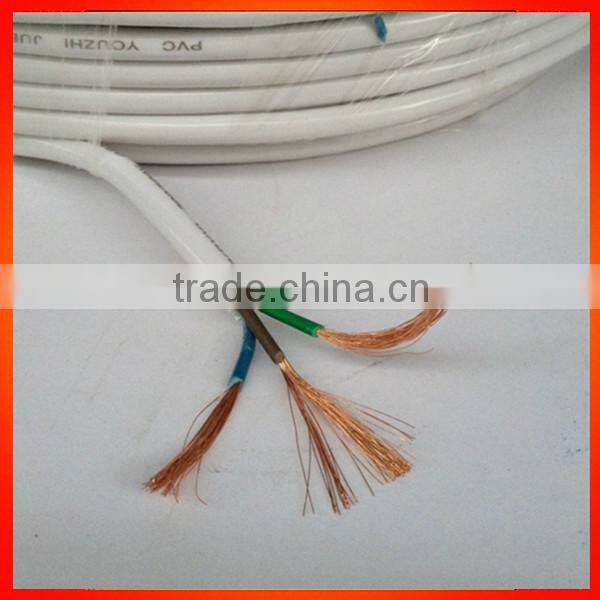

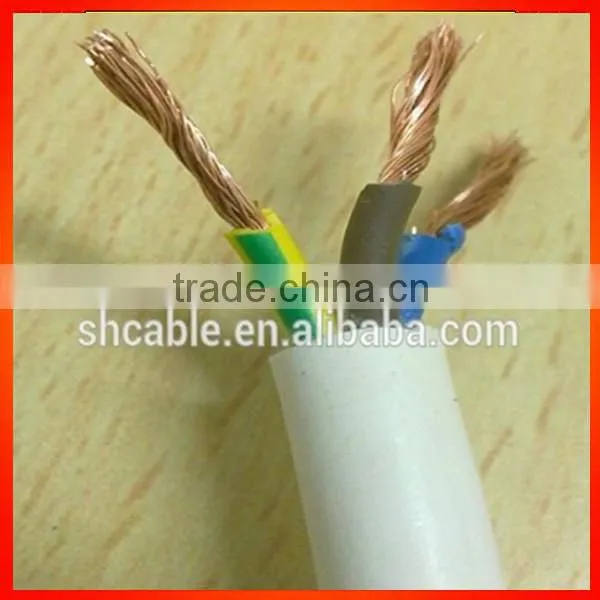

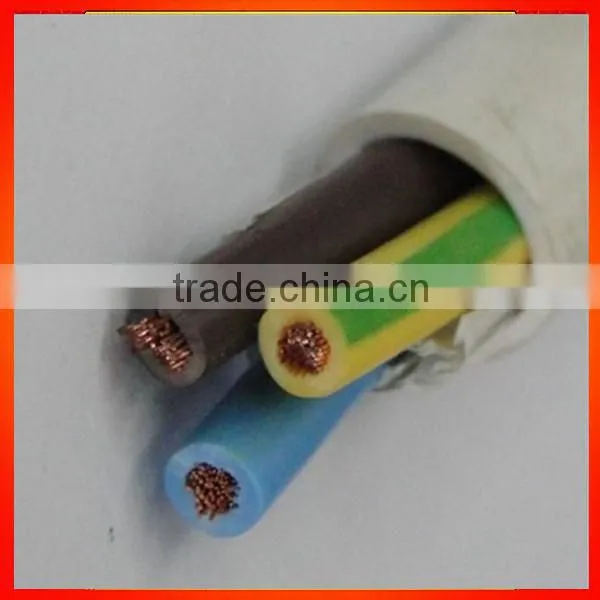

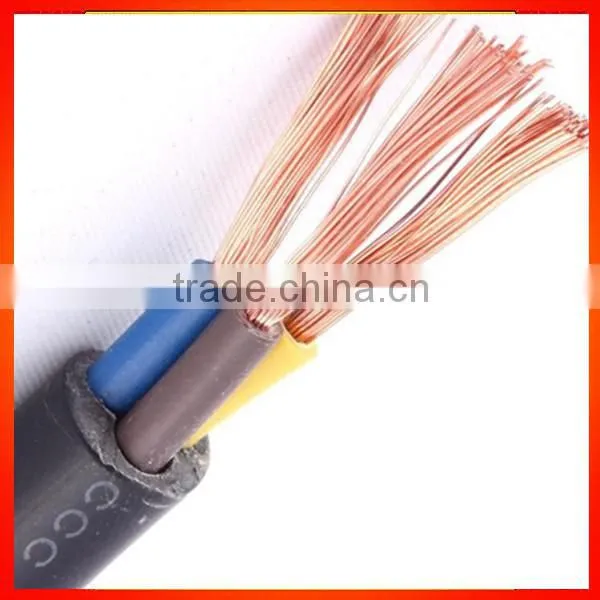

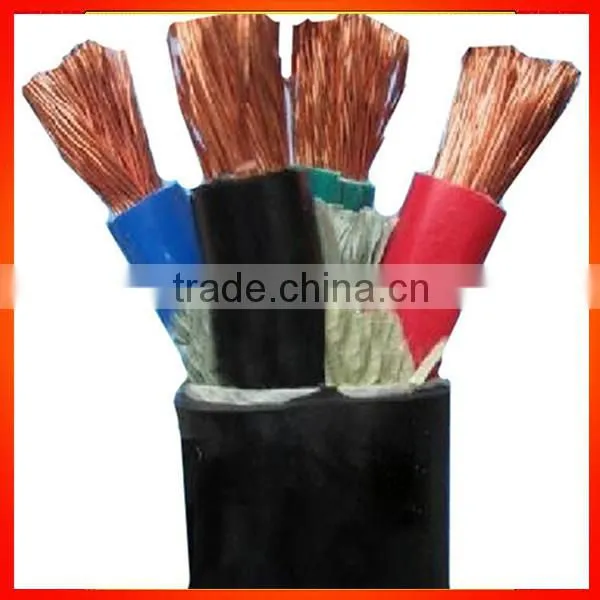

CU/PVC/PVC electrical wire cable insulated conductor
Description of power cord wire cable:
1. Core: 3 cores
2. Conductor sectional area: 0.75mm
3. Rated temperature: 70°C
4. Rated voltage: 300/500V
5. Bare stranded copper conductor , class 5 pure copper wire
6. Colour-coded PVC insulation
7. PVC jacket
8. European VDE AC power cord
9. Easy stripping and cutting
10. Resistant to acids,oil,alkali,noisture and fungus
11.Other technical parameters of this product can be found in the below form.
| Style | Conductor | Insulation Thickness (mm) |
Jacket Thickness (mm) |
Overall Diameter (mm) |
Voltage (V) |
|
| Sectional Area(mm2) | No./mm | |||||
| H03VVH2-F | 0.5*2C | 16/0.2 | 0.5 | 0.6 | 3.4*5.5±0.15 | 300 |
| 0.75*2C | 24/0.2 | 3.5*5.7±0.15 | ||||
| H03VV-F | 0.5*2c | 16/0.2 | 0.5 | 0.6 | 5.3±0.15 | 300 |
| 0.75*2c | 24/0.2 | 5.5±0.15 | ||||
| 0.5*3c | 16/0.2 | 5.6±0.15 | ||||
| 0.75*3c | 24/0.2 | 6.0±0.15 | ||||
| H05VVH2-F | 0.75*2C | 24/0.2 | 0.6 | 0.8 | 4.0*6.4 | 500 |
| H05VV-F | 0.75*2C | 24/0.2 | 0.6 | 0.8 | 6.5±0.15 | 500 |
| 0.75*3C | 6.8±0.15 | |||||
| 1.0*2C | 32/0.2 | 6.7±0.15 | ||||
| 1.0*3C | 7±0.15 | |||||
| 1.5*2C | 48/0.2 | 0.7 | 0.9 | 8±0.15 | ||
| 1.5*3C | 8.5±0.15 | |||||
| 2.5*2C | 80/0.2 | 0.8 | 1.1 | 9.6±0.2 | ||
| 2.5*3C | 10±0.2 | |||||
Application of VDE cable:
• Indoor small electrical instruuments.
Power supply wire,ac power cord
Packing of VDE approved cable:
1 rolls/pe film, 4~8 rolls carton boxes.
Other special packing require,please contact with us for details.
Delivery time of VDE electrical cable H05VV-F
20 days more or less, base on the order quantity.
Advantage of our factory:
1. more than 15 years experience of produce all kinds of electric wires and cables
2. High quality of VDE cables, pure new PVC and class 5 pure copper wire
3. UL/VDE/RoHs/CCC certificates
4. Small MOQ, 1000meters~10000meters, based on different wires
5. OEM are welcome, also can customize for customers.
6. More pictures about us can be found as below.
