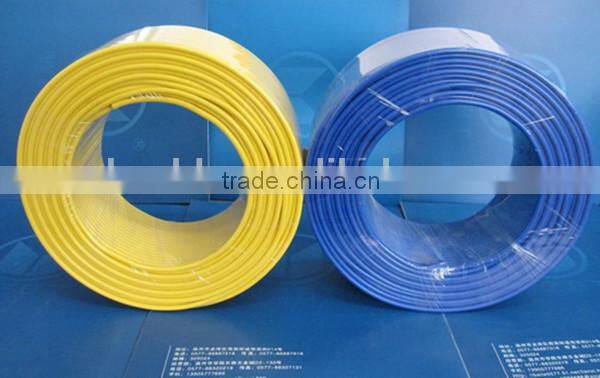

16 gauge electric wire
Electrical Cable wire

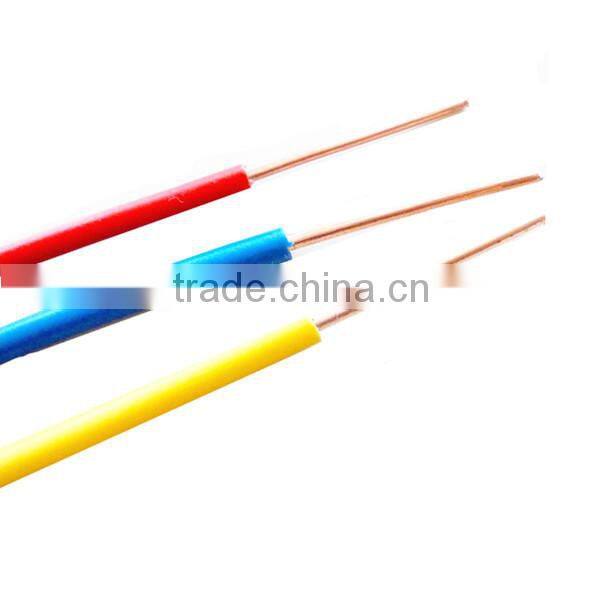

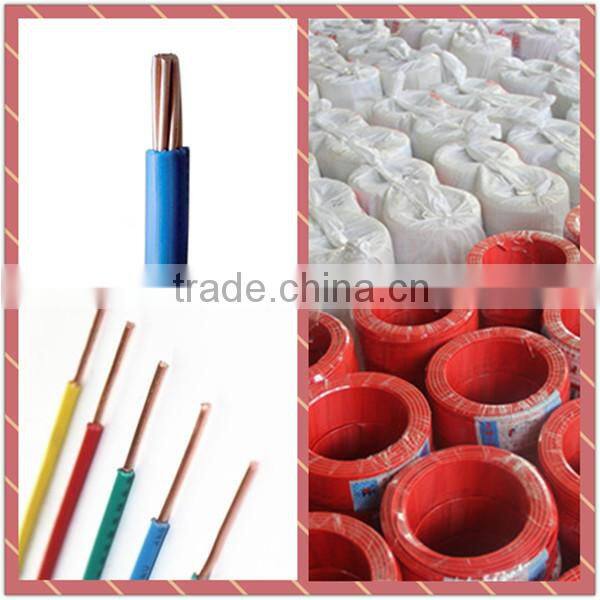

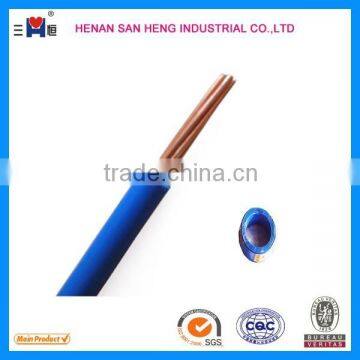

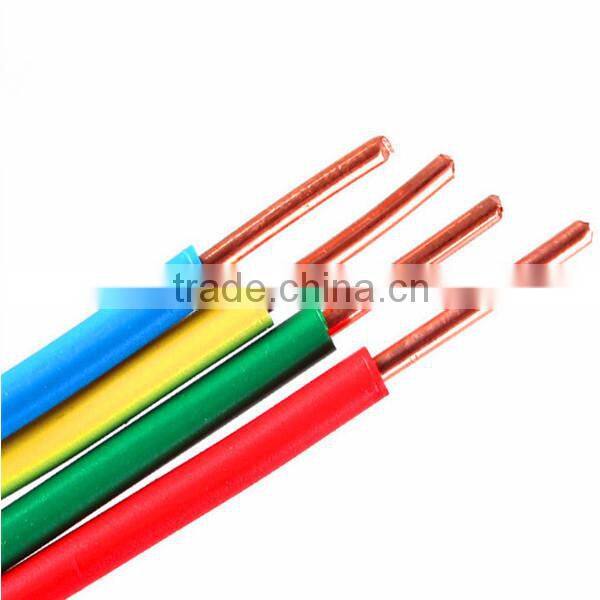

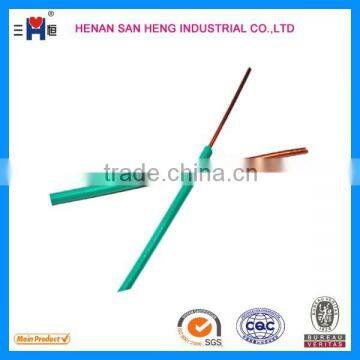

Wire - single solid copper core PVC insulation electrical wire
1. Cable is made by single soild copper wire,PVC insulation
2. Conductor: 100% pure copper
3. Range of application:this product is fit A.C rated voltage 450/750V
4.PVC type TI Ito BS-6746 rated temp7o °C; also available for 105 °C
5.Colour: Red, Yellow, Blue, Black and Yellow Green
6.Application:Includes house wiring, factory wiring, switching panel
distribution boards& installation purposes.
7. We can also customize electrical wire and cable as your request!
8. Specification,Size and Technical Date: Electrical Cable wire
H07V-U( BV) 300/500V | |||
Nominal Section(mm2) |
No.Dia. of Core(mm) |
Max outer diameter(mm) |
Conductor resistance at 20C(≤Ωkm) |
0.5 |
1/0.8 |
2.4 |
36.0 |
0.75(A) |
1/0.97 |
2.6 |
24.5 |
0.75(B) |
7/0.37 |
2.8 |
24.5 |
1(A) |
1/1.13 |
2.8 |
18.1 |
1(B) |
7/0.43 |
3.0 |
18.1 |
H07V-U (BV) 450/750V | |||
1.5(A) |
1/1.38 |
3.3 |
- |
1.5(B) |
7/0.52 |
3.5 |
- |
2.5(A) |
1/1.78 |
3.9 |
11.8 |
2.5(B) |
7/0.68 |
4.2 |
11.8 |
4(A) |
1/2.25 |
4.4 |
7.39 |
4(B) |
7/0.85 |
4.8 |
7.39 |
6(A) |
7/0.85 |
4.8 |
4.91 |
6(B) |
7/1.04 |
5.4 |
4.91 |
10 |
7/1.35 |
7.0 |
3.08 |
16 |
7/1.70 |
8.0 |
1.91 |
25 |
27/2.04 |
10.0 |
1.20 |
35 |
27/2.52 |
11.5 |
0.868 |
50 |
19/1.78 |
13.0 |
0.641 |
70 |
19/2.14 |
15.0 |
0.443 |
95 |
19/2.52 |
17.5 |
0.320 |
120 |
37/2.03 |
19.0 |
0.253 |
150 |
37/2.25 |
21.0 |
0.206 |
185 |
37/2.52 |
23.5 |
0.164 |
240 |
61/2.25 |
26.5 |
0.125 |
300 |
61/2.52 |
29.5 |
0.100 |
As customers request
Manufacturer with more than 15 years
1.What types of products do you have?
As a manufacturer, we produce power cable, control cable, communication cable and electric wires. In addition, the size of cable and wire can be customized.
2. How long have you been in the business,
We have been a leading company in China for more than 15 years.
3. What certifications do you have?
SGS UL CCC CE and so on.
4. What do you take to win the trust from customers?
Put customers first, put quality first, put reputation first
