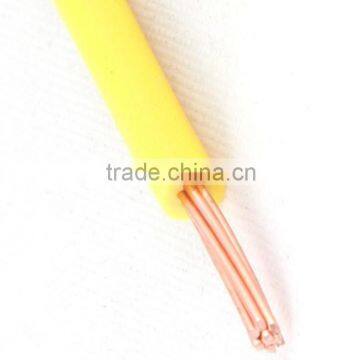

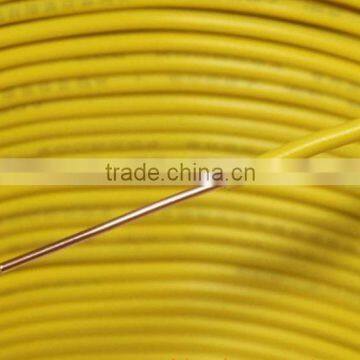

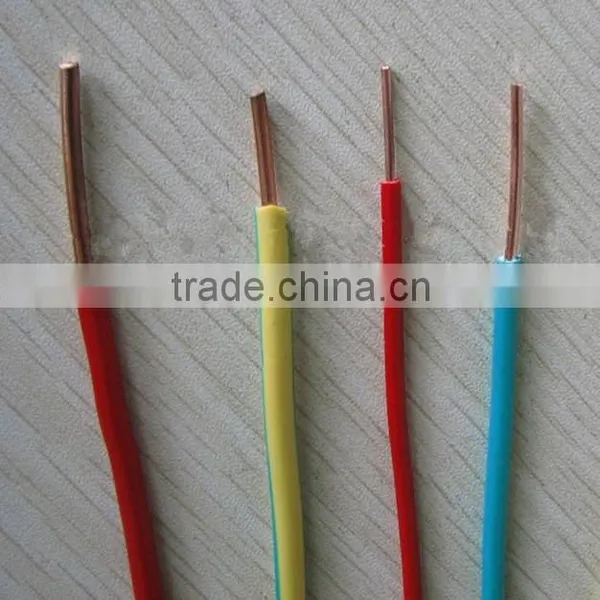

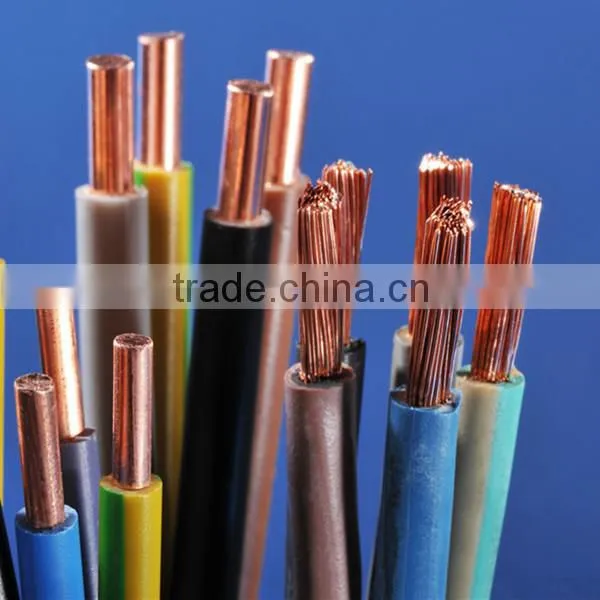

house use good cable raw material made house wiring cable
Product Description
Building wire H07V-R/H07V-U to BS6004 is suitable for power and lighting circuits and building wiring. The cable is intended for use in semi-flush exposed conduits and embedded conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances and apparatus.
Standards: BS6004, BASEC approved*
Conductor:
H07V-R: Class 2 stranded plain copper conductors to BS EN 60228: 2005 (previously BS6360)
H07V-U: Class 1 solid plain copper conductor to BS EN 60228: 2005 (previously BS6360)
Insulation: PVC (Polyvinyl Chloride) Type TI1 to BS7655
Insulation Colour: Red, Black, Blue, Yellow, Brown, White, Green/Yellow, Grey
Voltage Rating: 450/750V
Temperature Rating: 0° C to +70° C
Minimum Bending Radius:
Up to 10mm² :
3 x overall diameter
10mm² To 25mm² :
4 x overall diameter
Above 25mm² :
5 x overall diameter
| Cable H07V-R/H07V-U to BS6004 | |
| No. of Cores x Nominal Cross Sectional Area # x mm² | Nominal Overall Diameter mm |
| 1 x 1.5 | 3.3 |
| 1 x 2.5 | 3.9 |
| 1 x 4.0 | 4.6 |
| 1 x 6.0 | 5.2 |
| 1 x 10.0 | 6.7 |
| 1 x 16.0 | 7.8 |
| 1 x 25.0 | 9.7 |
| 1 x 35.0 | 10.9 |
| 1 x 50.0 | 12.8 |
| 1 x 70.0 | 14.6 |
| 1 x 95.0 | 17.1 |
| 1 x 120.0 | 18.8 |
| 1 x 150.0 | 20.9 |
| 1 x 185.0 | 23.3 |
| 1 x 240.0 | 26.6 |
| 1 x 300.0 | 29.6 |
