Electrical Wire BV/BLV Pvc Insulated 1.5/2.5/4/6/10/16 Mm2 Solid Copper Building Wire

Electrical Wire BV/BLV Pvc Insulated 1.5/2.5/4/6/10/16 Mm2 Solid Copper Building Wire thumbnail-1
Electrical Wire BV/BLV Pvc Insulated 1.5/2.5/4/6/10/16 Mm2 Solid Copper Building Wire thumbnail-2
Electrical Wire BV/BLV Pvc Insulated 1.5/2.5/4/6/10/16 Mm2 Solid Copper Building Wire thumbnail-3
Electrical Wire BV/BLV Pvc Insulated 1.5/2.5/4/6/10/16 Mm2 Solid Copper Building Wire thumbnail-4
Electrical Wire BV/BLV Pvc Insulated 1.5/2.5/4/6/10/16 Mm2 Solid Copper Building Wire thumbnail-5
Electrical Wire BV/BLV Pvc Insulated 1.5/2.5/4/6/10/16 Mm2 Solid Copper Building Wire thumbnail-6
Electrical Wire BV/BLV Pvc Insulated 1.5/2.5/4/6/10/16 Mm2 Solid Copper Building Wire photo-1
Electrical Wire BV/BLV Pvc Insulated 1.5/2.5/4/6/10/16 Mm2 Solid Copper Building Wire photo-2
Electrical Wire BV/BLV Pvc Insulated 1.5/2.5/4/6/10/16 Mm2 Solid Copper Building Wire photo-3

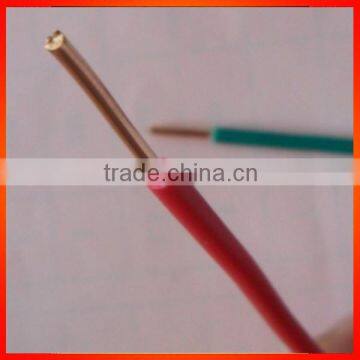

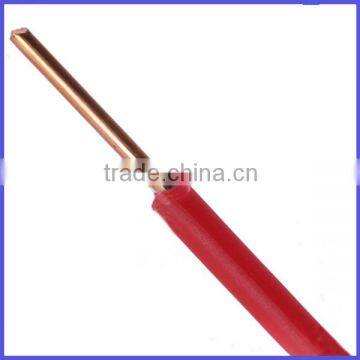

Electrical Wire BV/BLV Pvc Insulated 1.5/2.5/4/6/10/16 Mm2 Solid Copper Building Wire photo-4

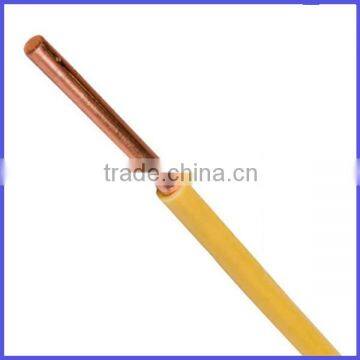

Electrical Wire BV/BLV Pvc Insulated 1.5/2.5/4/6/10/16 Mm2 Solid Copper Building Wire photo-5

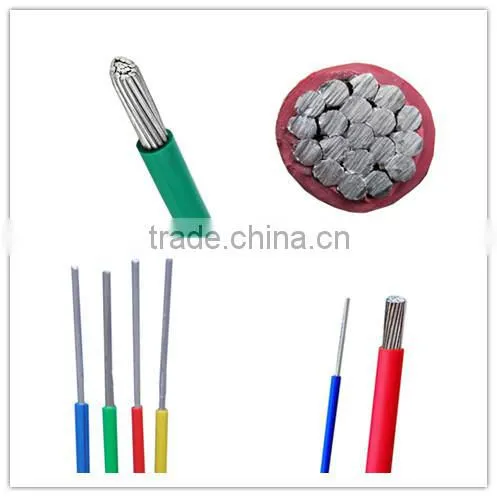

Electrical Wire BV/BLV Pvc Insulated 1.5/2.5/4/6/10/16 Mm2 Solid Copper Building Wire photo-6
US$ 0.1 - 40 MOQ: 3000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
SANHENG
Model Number:
H05V-U,H07V-U,H05V-R
Contact Supplier Request Quote Chat Now
Henan Sanheng Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO or as your request.
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name SANHENG
Model Number H05V-U,H07V-U,H05V-R
Type Insulated
Application Other, building or house, building,housing
Conductor Material Other, copper or aluminum
Conductor Type Solid
Insulation Material PVC

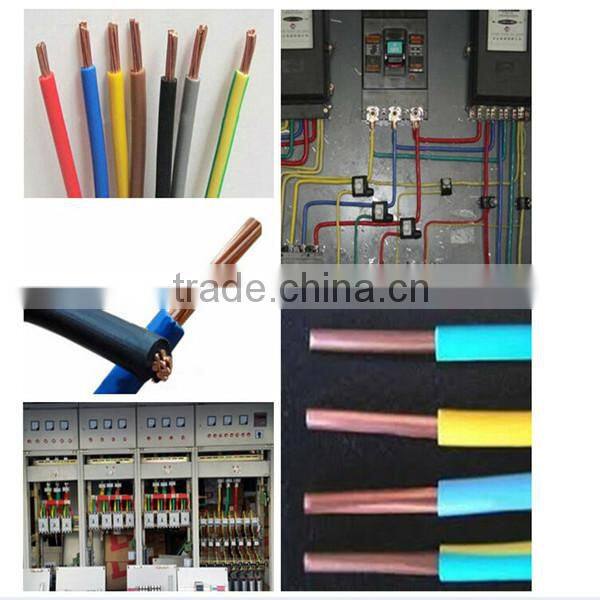

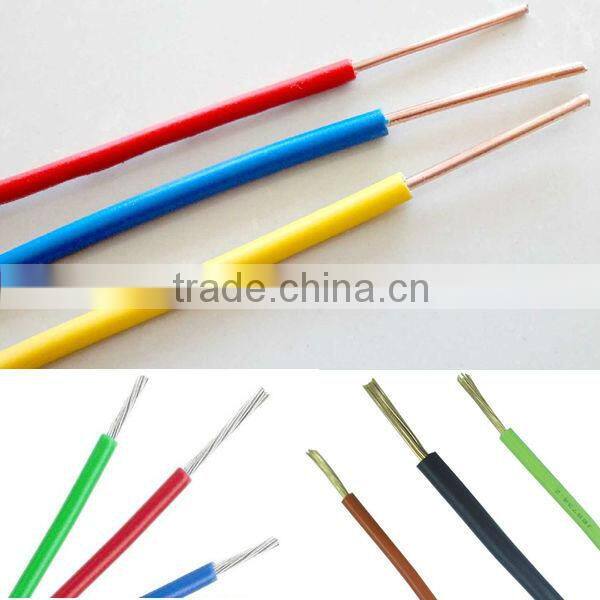

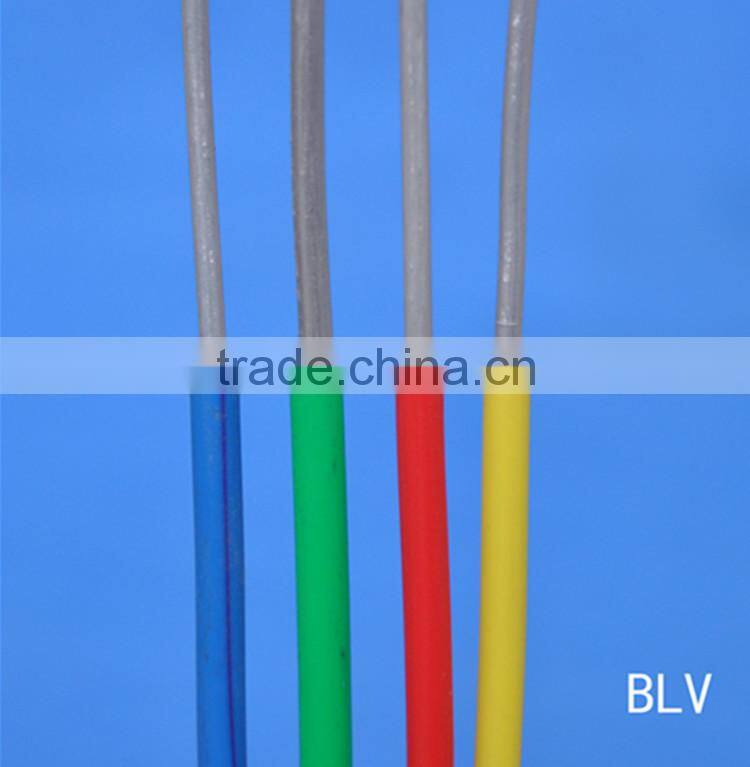

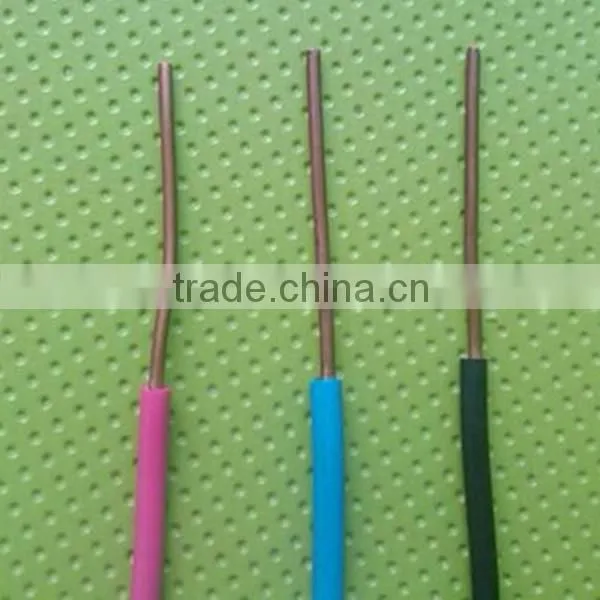

                 electrical wire BV/BLV pvc insulated

                       solid copper  building wire

  We can customize according to your requirements of different standards, different types of wire, hoping to get in touch with you





1.



Nominal Section(mm2) Number /diameter of core   (mm) Thickness of insulation(mm) outer diameter     (mm) BV weight (kg/km) BLV weight (kg/km) Thickness of sheath(mm)
1.5 1/1.38 0.70 2.78 20.07 / 0.80
2.5 1/1.78 0.80 3.38 31.72 16.32 0.80
4 1/2.25 0.80 3.85 46.70 22.09 0.90
6 1/2.76 0.80 4.36 66.43 29.39 0.90
10 7/1.35 1.00 6.05 113.15 50.71 0.90
16 7/1.70 1.00 7.10 170.56 71.55 0.90
25 7/2.14 1.20 8.82 267.85 110.96 1.20
35 7/2.52 1.20 9.96 361.34 143.78 1.20
50 19/1.78 1.40 11.70 490.78 195.74 1.40
70 19/2.14 1.40 13.50 691.22 264.77 1.40
95 19/2.52 1.60 15.80 954.92 363.58 1.60
120 37/2.03 1.60 17.41 1191.27 443.70 1.60
150 37/2.25 1.80 19.35 1465.85 547.47 1.80
185 37/2.52 2.00 21.64 1837.14 685.12 2.00
240 61/2.24 2.20 24.56 2384.59 883.48 2.20
300 61/2.50 2.40 27.30 2963.24 1093.44 2.40
400 61/2.89 2.60 31.21 3934.43 1435.75 2.60



electrical wire BV/BLV pvc insulated 1.5/2.5/4/6/10/16 mm2 solid copper building wireelectrical wire BV/BLV pvc insulated 1.5/2.5/4/6/10/16 mm2 solid copper building wireelectrical wire BV/BLV pvc insulated 1.5/2.5/4/6/10/16 mm2 solid copper building wireelectrical wire BV/BLV pvc insulated 1.5/2.5/4/6/10/16 mm2 solid copper building wireelectrical wire BV/BLV pvc insulated 1.5/2.5/4/6/10/16 mm2 solid copper building wire

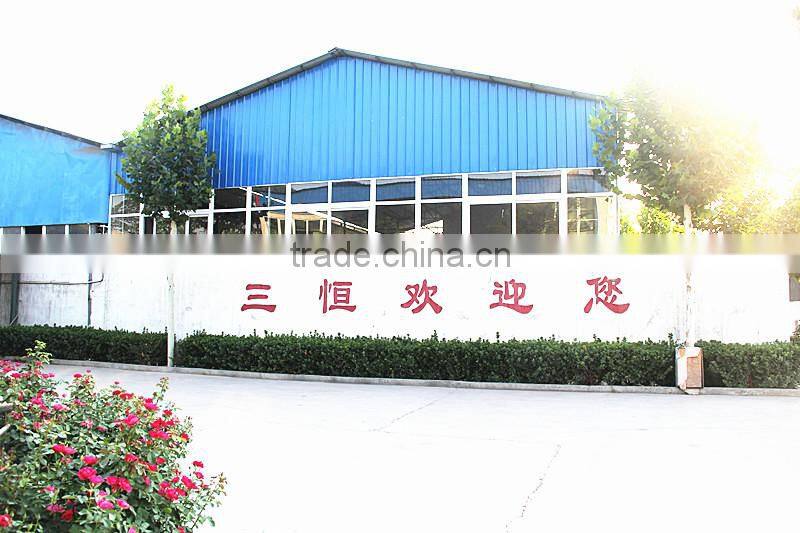

Company Information

- Established in 2000.  Mian products: PVC cables .building cables, XLPE insulated power cables, PVC insulated power cables, aerial-bundle cables, PVC insulated wires, control cables, rubber cables, bare conductors, welding cables, and other related products.

- Main Markets: Domestic market, Africa, Eastern Europe, Southeast Asia.

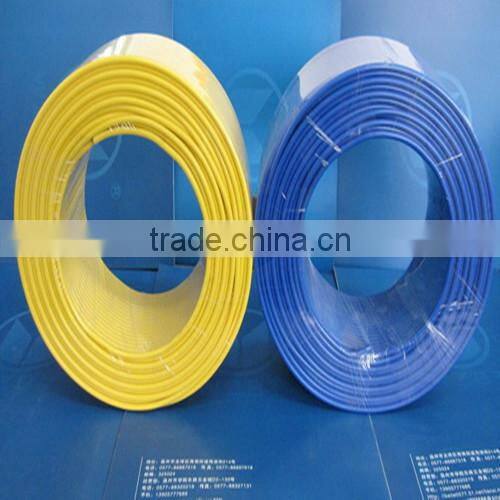

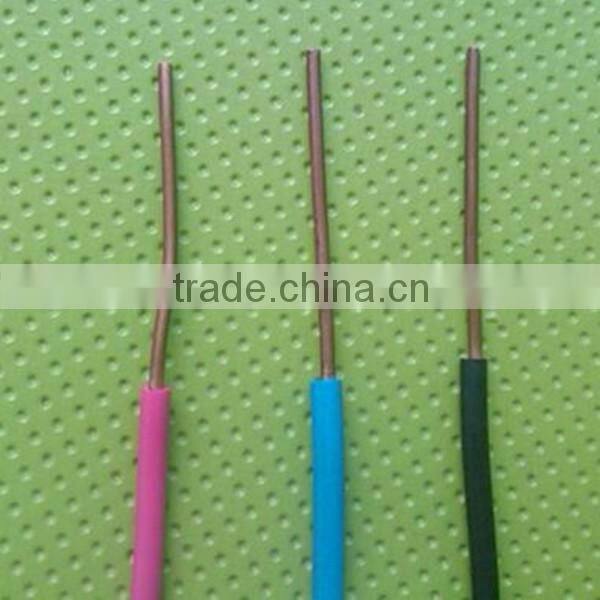

electrical wire BV/BLV pvc insulated 1.5/2.5/4/6/10/16 mm2 solid copper building wire

electrical wire BV/BLV pvc insulated 1.5/2.5/4/6/10/16 mm2 solid copper building wire

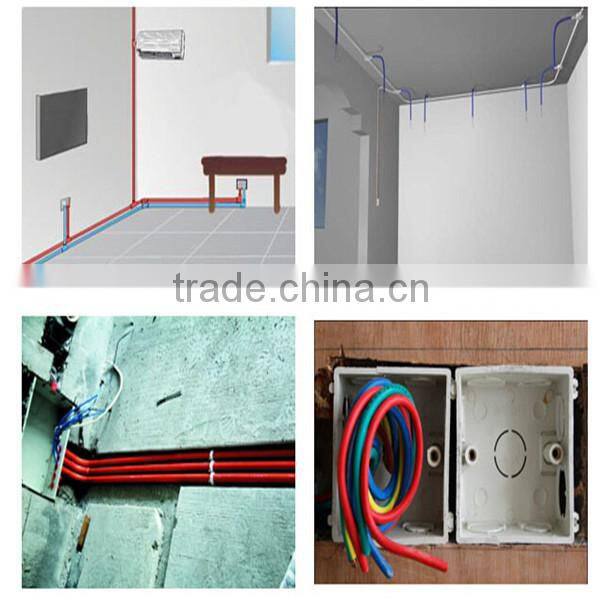

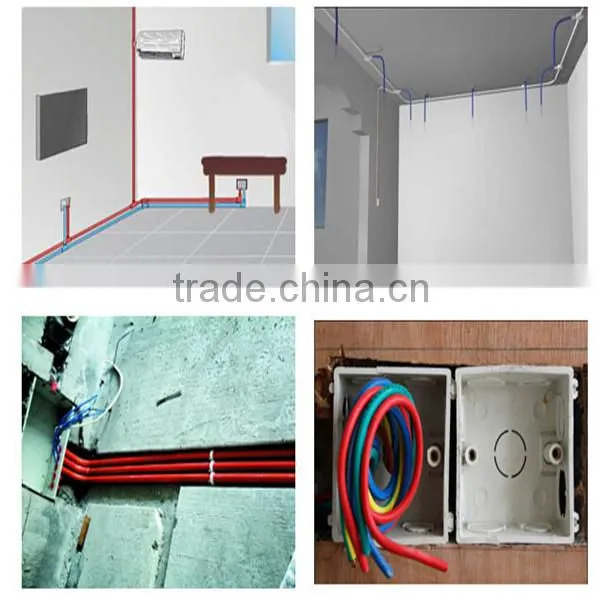

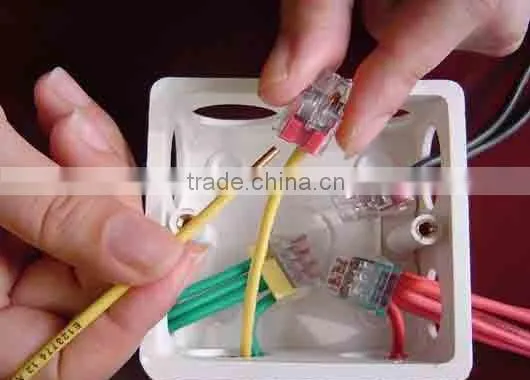

product application

 electrical wire BV/BLV pvc insulated 1.5/2.5/4/6/10/16 mm2 solid copper building wireelectrical wire BV/BLV pvc insulated 1.5/2.5/4/6/10/16 mm2 solid copper building wireelectrical wire BV/BLV pvc insulated 1.5/2.5/4/6/10/16 mm2 solid copper building wireelectrical wire BV/BLV pvc insulated 1.5/2.5/4/6/10/16 mm2 solid copper building wire







Certifications

electrical wire BV/BLV pvc insulated 1.5/2.5/4/6/10/16 mm2 solid copper building wireelectrical wire BV/BLV pvc insulated 1.5/2.5/4/6/10/16 mm2 solid copper building wire





electrical wire BV/BLV pvc insulated 1.5/2.5/4/6/10/16 mm2 solid copper building wire





contact person

Dear sir or madam

This is CINDY . If you have any problem , please feel free to contact me. Tell us your request ! Let me know your needs !  RIGHT NOW !!   ACTION !   please !





electrical wire BV/BLV pvc insulated 1.5/2.5/4/6/10/16 mm2 solid copper building wire
